Contemporary Craftsman Ranch Home Plan Under 1800 Square Feet with 3 Bedrooms
Heated S.F.
1,732
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This contemporary Craftsman Ranch home plan packs a lot into its compact size, including 3 bedrooms and an open living space with a corner fireplace.
  • The island kitchen connects with the light and airy dining room, where you'll find a built-in pantry unit and access to the rear porch.
  • Relax in the private master bedroom that features a 4-fixture bathroom, walk-in closet, and windows that overlook the porch.
  • Two family bedrooms line the right side of the home, separated by a full bath with a linen closet.
  • Step inside from the double garage to find a mudroom with a coat closet and nearby powder bath.
  • Related Plan: Get an alternate version with house plan 790106GLV.
What's Included
  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Craftsman Ranch Home Plan Under 1800 Square Feet with 3 Bedrooms

  • 1,732

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

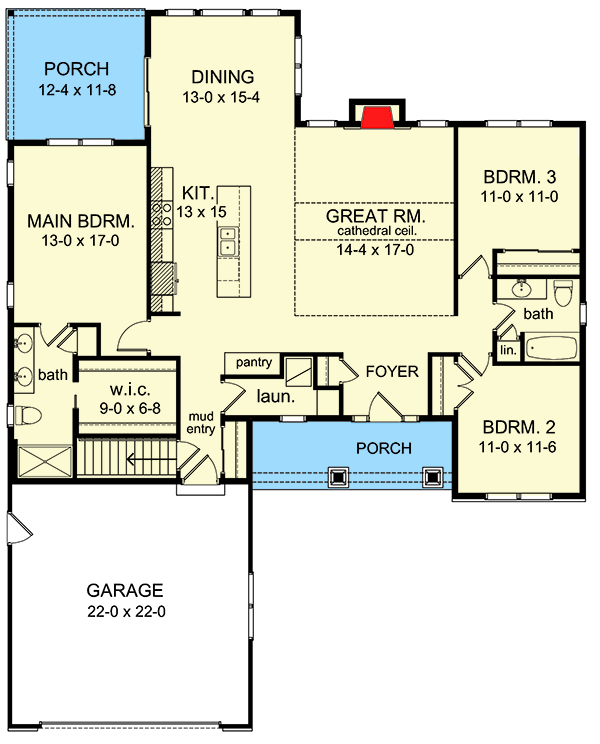

Floor Plan
