Plan 22483DR
Contemporary Duplex
Heated S.F.
4,522
Units
2
Width
64'
Depth
44'
Cars
1
What's Included
Plan Details
  • Contemporary styling enhances this multi-family duplex house plan.
  • Get two bedrooms on the main floor and two bedrooms on the finished lower level.
  • The sunken foyer is just 5 steps down from the open concept main living area.
  • Sliding glass doors in the kitchen lead out to a rear deck.
  • The lower level includes a flex room, two more bedrooms, a bathroom and the laundry room.
Unit A
2,152 Sq. Ft.
1076 Sq. Ft. Lower Level
1076 Sq. Ft. 1st Floor
4 Beds
2 Full Baths
None
26' w 44' d 21' 2" h
Unit B
2,370 Sq. Ft.
1185 Sq. Ft. Lower Level
1185 Sq. Ft. 1st Floor
4 Beds
2 Full Baths
1 Vehicle
Attached
38' w 44' d 21' 2" h
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Duplex

  • 4,522

    Heated s.f.

  • 2

    Units

  • 64'

    Width

  • 44'

    Depth

Floor Plan

  • Main Level

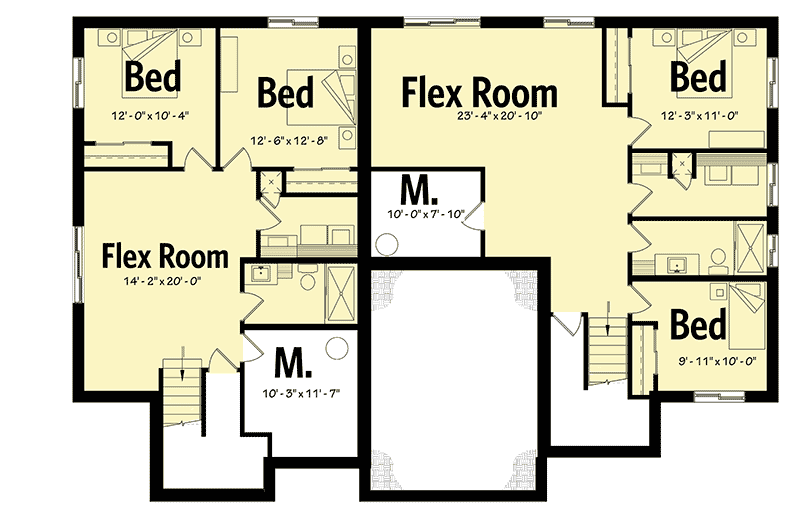

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,522 sq. ft.
  • Lower Level: 2,261 sq. ft.
  • 1st Floor: 2,261 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 44' 0"
  • Max ridge height: 21' 2"

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 351 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6
