Contemporary Duplex House Plan with 3 Bed Units - 1266 Sq Ft Each

Heated S.F.
2,532
Units
2
Width
Depth

Floor Plan

Plan 100322GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100322GHR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

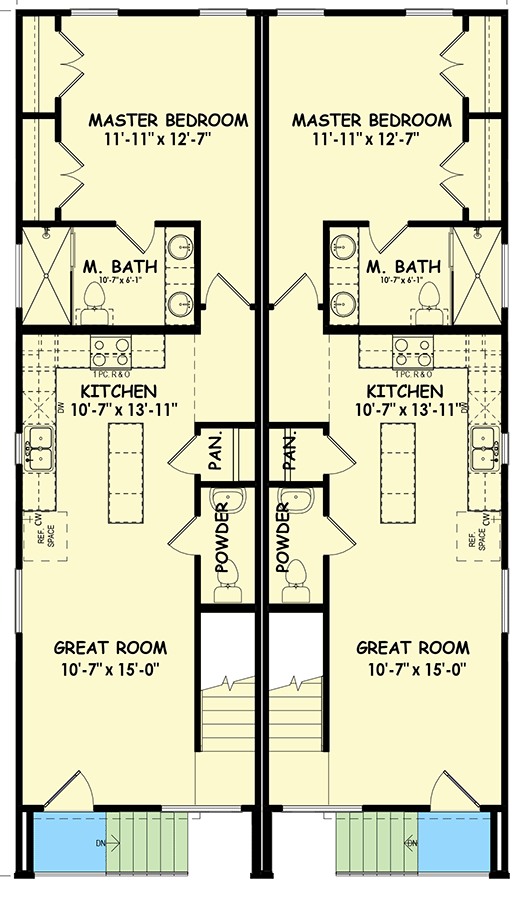

Plan 100322GHR: Contemporary Duplex House Plan with 3 Bed Units - 1266 Sq Ft Each - Floor Plan - Main Level - Contemporary, Modern

2nd Floor

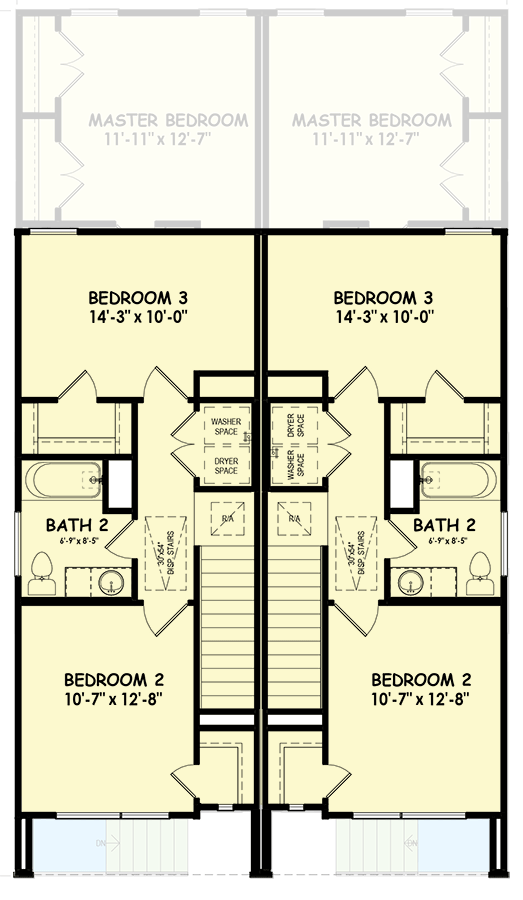

Plan 100322GHR: Contemporary Duplex House Plan with 3 Bed Units - 1266 Sq Ft Each - Floor Plan - 2nd Floor - Contemporary, Modern

Plan Details

  • This contemporary duplex house plan gives you two 3 bed, 2.5 bath units each offering 1,266 square feet of heated living.
  • The main floor - 731 square feet - gives you a master suite and an open concept living space with a kitchen and great room.
  • The second floor -  535 square feet - gives you two beds and a shared bathroom.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

Unit A
Heated Area
1,266Sq. Ft.
731 Sq. Ft. 1st
535 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
15'width
53'depth
32'height
Unit B
Heated Area
1,266Sq. Ft.
731 Sq. Ft. 1st
535 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
15'width
53'depth
32'height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

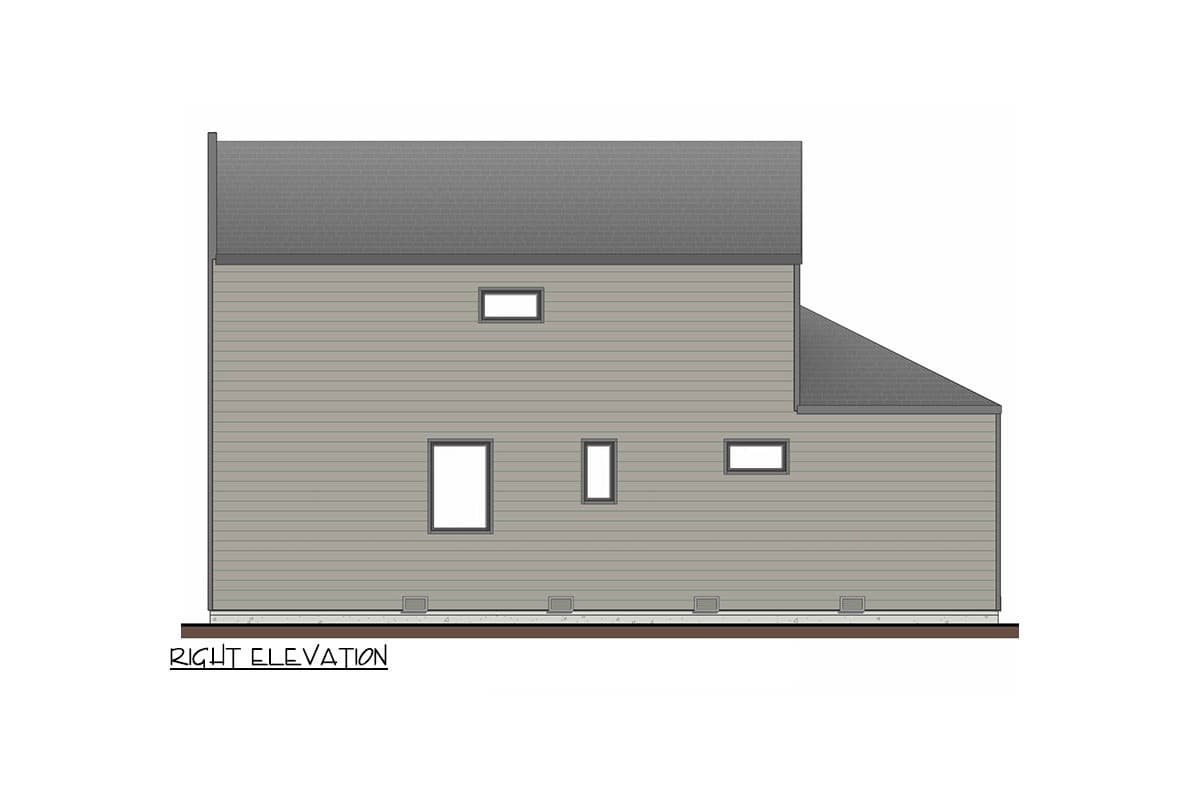

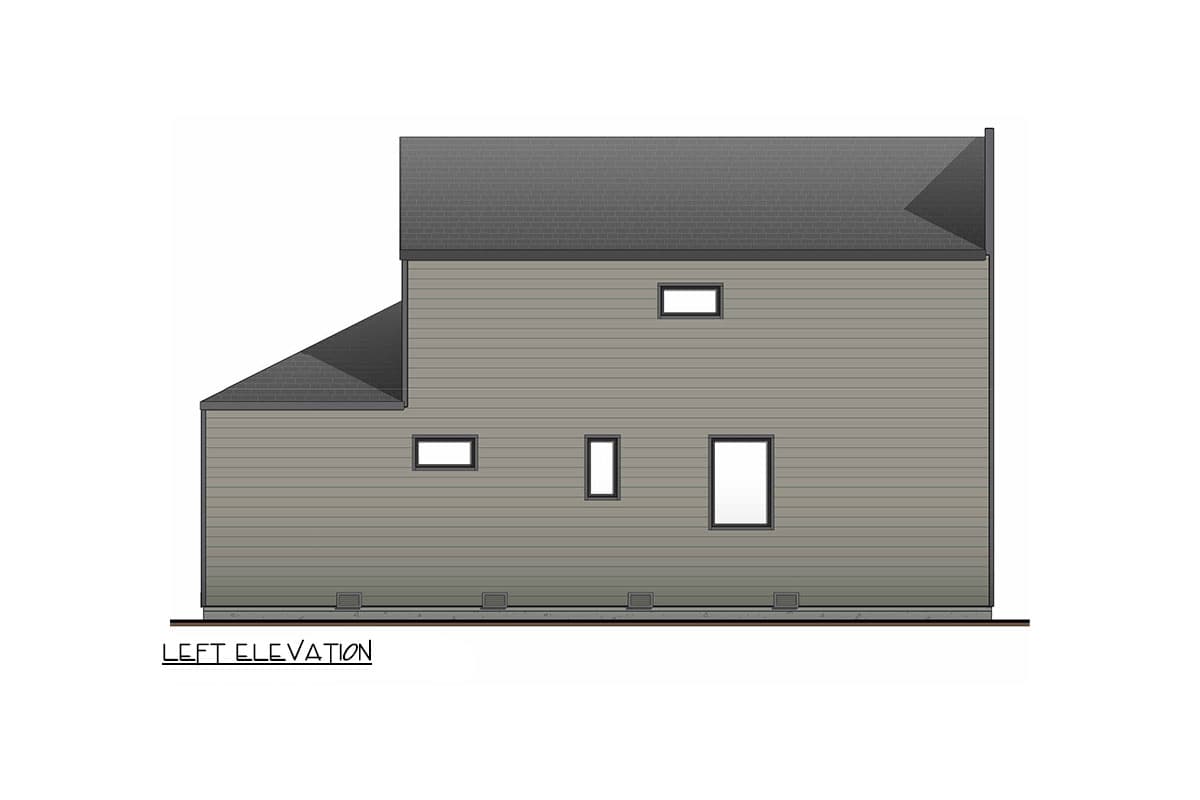

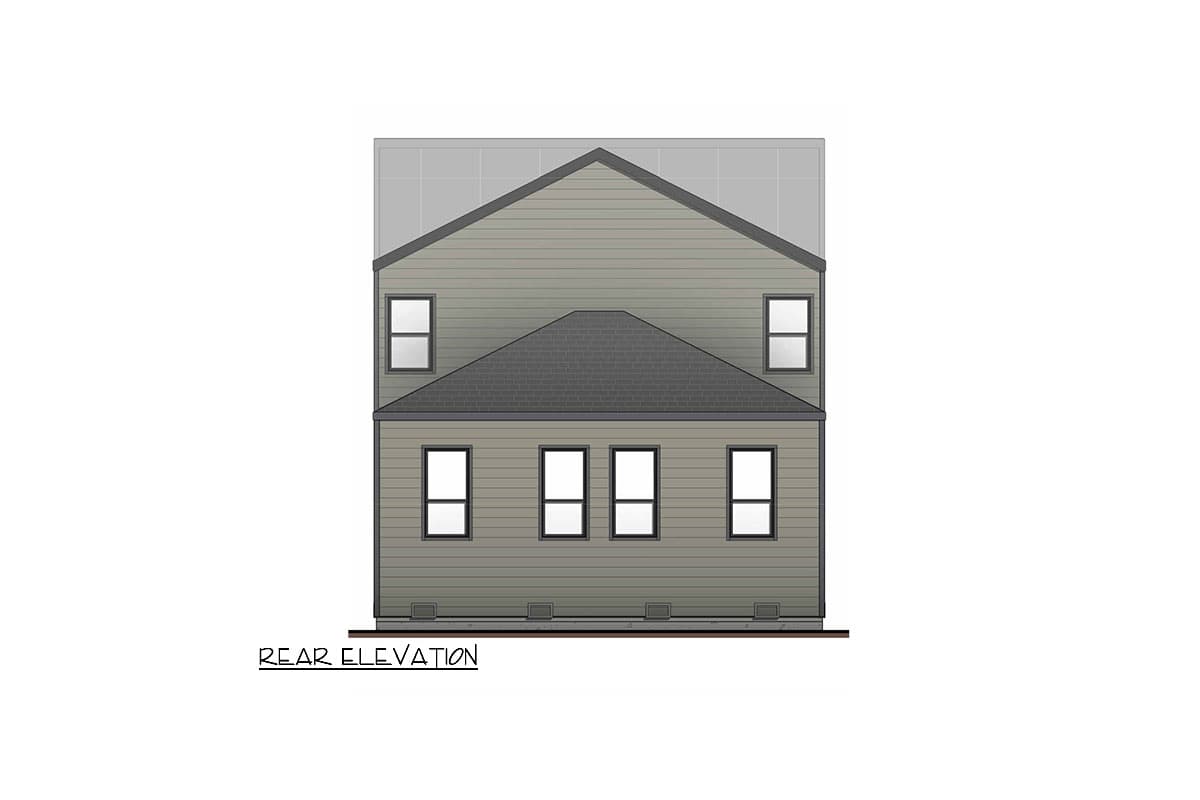

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,532 sq. ft.

1st Floor

1,462 sq. ft.

2nd Floor

1,070 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

53' 0"

Max Ridge Height

32' 2"

Ceiling Heights

First Floor

10' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,532 sq. ft.

1st Floor

1,462 sq. ft.

2nd Floor

1,070 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

53' 0"

Max Ridge Height

32' 2"

Ceiling Heights

First Floor

10' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Exclusive
