Plan 46504LA

Exclusive

Contemporary Duplex House Plan with Matching 1751 Square Foot 3-Bed Units

Heated S.F.
3,502
Units
2
Width
Depth

Floor Plan

Plan 46504LA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 46504LA

M-F 9am-5pm EST |

1-203-761-8500

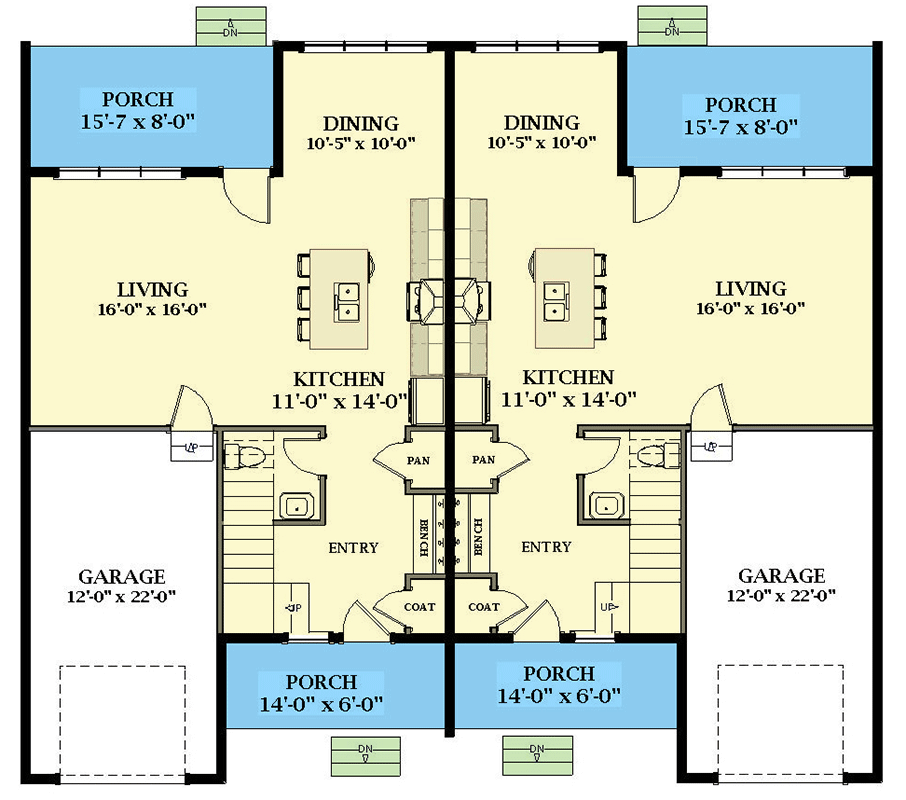

Main Level

Plan 46504LA: Contemporary Duplex House Plan with Matching 1751 Square Foot 3-Bed Units - Floor Plan - Main Level - Contemporary, New American

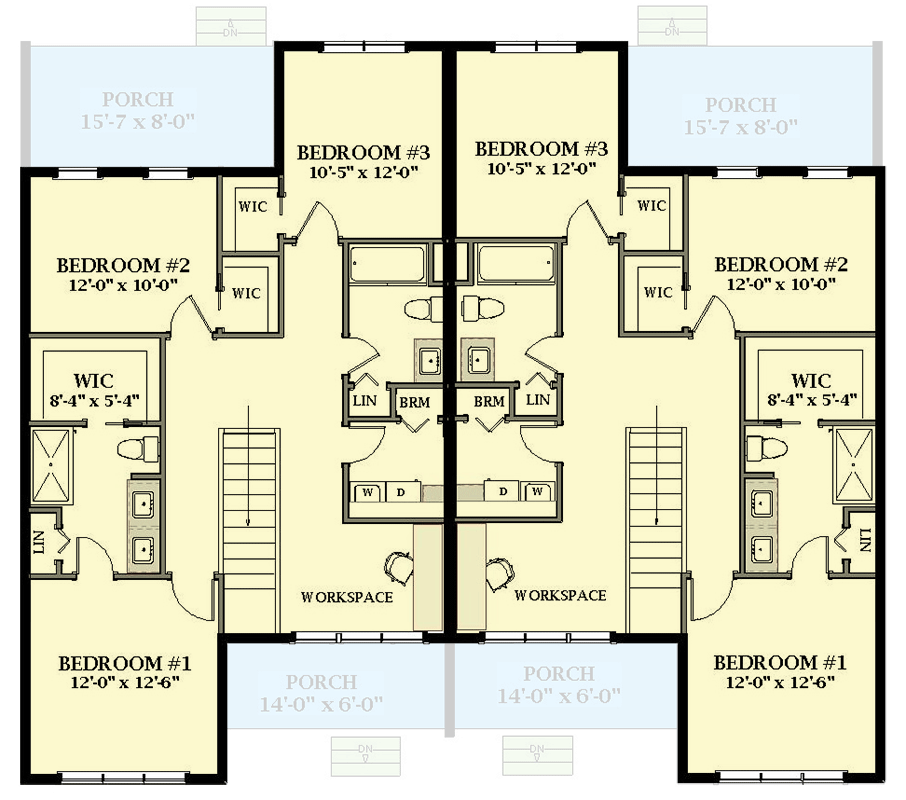

2nd Floor

Plan 46504LA: Contemporary Duplex House Plan with Matching 1751 Square Foot 3-Bed Units - Floor Plan - 2nd Floor - Contemporary, New American

Plan Details

  • This duplex house plan gives you 2 units each with 1,751 square feet of heated living space (754 sq. ft. on the first floor, 997 sq. ft. on the second floor), 3 beds, 2.5 baths and a 290 sq. ft. 1-car garage.
  • NOTE: Please allow 20 to 25 business days for delivery.
Unit A
Heated Area
1,751Sq. Ft.
754 Sq. Ft. 1st
997 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
290 Sq. Ft.
Dimensions
27' 6"width
47' 6"depth
26' 6"height
Unfinished Areas
290 Sq. Ft. Garage
Unit B
Heated Area
1,751Sq. Ft.
1508 Sq. Ft. 1st
1994 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
290 Sq. Ft.
Dimensions
27' 6"width
47' 6"depth
26' 6"height
Unfinished Areas
290 Sq. Ft. Garage

What's Included

  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,502 sq. ft.

1st Floor

1,508 sq. ft.

2nd Floor

1,994 sq. ft.

Porch, Front

176 sq. ft.

Porch, Rear

262 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

47' 6"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

580 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Contemporary

New American

Special Features

Bedrooms - Clustered

Breakfast Nook

Home Office

Laundry - Upstairs

Mudroom

Plan Collections

Exclusive

Home Office

Square Footage Breakdown

Total Heated Area

3,502 sq. ft.

1st Floor

1,508 sq. ft.

2nd Floor

1,994 sq. ft.

Porch, Front

176 sq. ft.

Porch, Rear

262 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

47' 6"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

580 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Contemporary

New American

Special Features

Bedrooms - Clustered

Breakfast Nook

Home Office

Laundry - Upstairs

Mudroom

Plan Collections

Exclusive

Home Office
