Plan 370032SEN

Contemporary Garage Workshop with Studio or Guest Potential with Kitchenette

Heated S.F.
1,318
Beds
0
Baths
1
Stories
2
Cars
2- 3

Floor Plan

Plan 370032SEN

Main Level
Main Level
2nd Floor
2nd Floor

Plan 370032SEN

M-F 9am-5pm EST |

1-203-761-8500

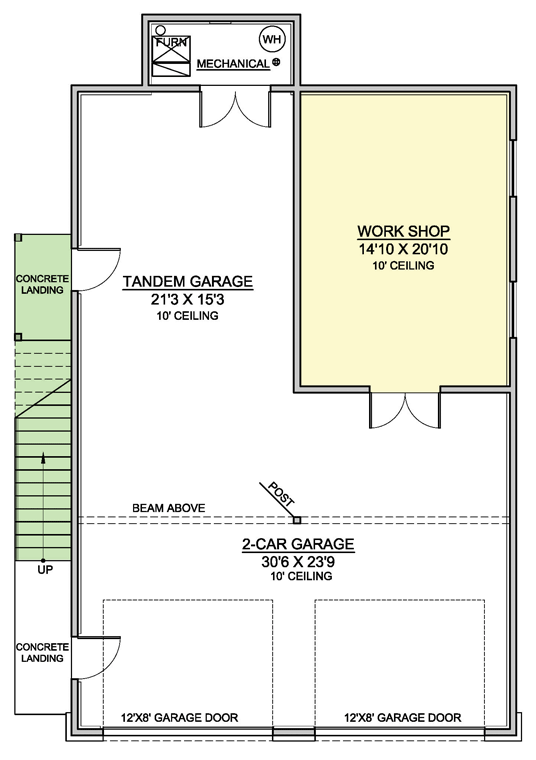

Main Level

Plan 370032SEN: Contemporary Garage Workshop with Studio or Guest Potential with Kitchenette - Floor Plan - Main Level - Carriage, Contemporary, Traditional

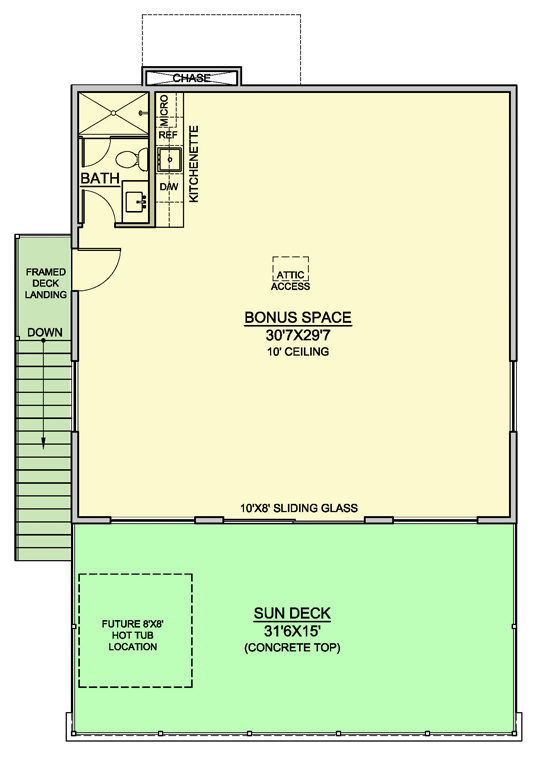

2nd Floor

Plan 370032SEN: Contemporary Garage Workshop with Studio or Guest Potential with Kitchenette - Floor Plan - 2nd Floor - Carriage, Contemporary, Traditional

Plan Details

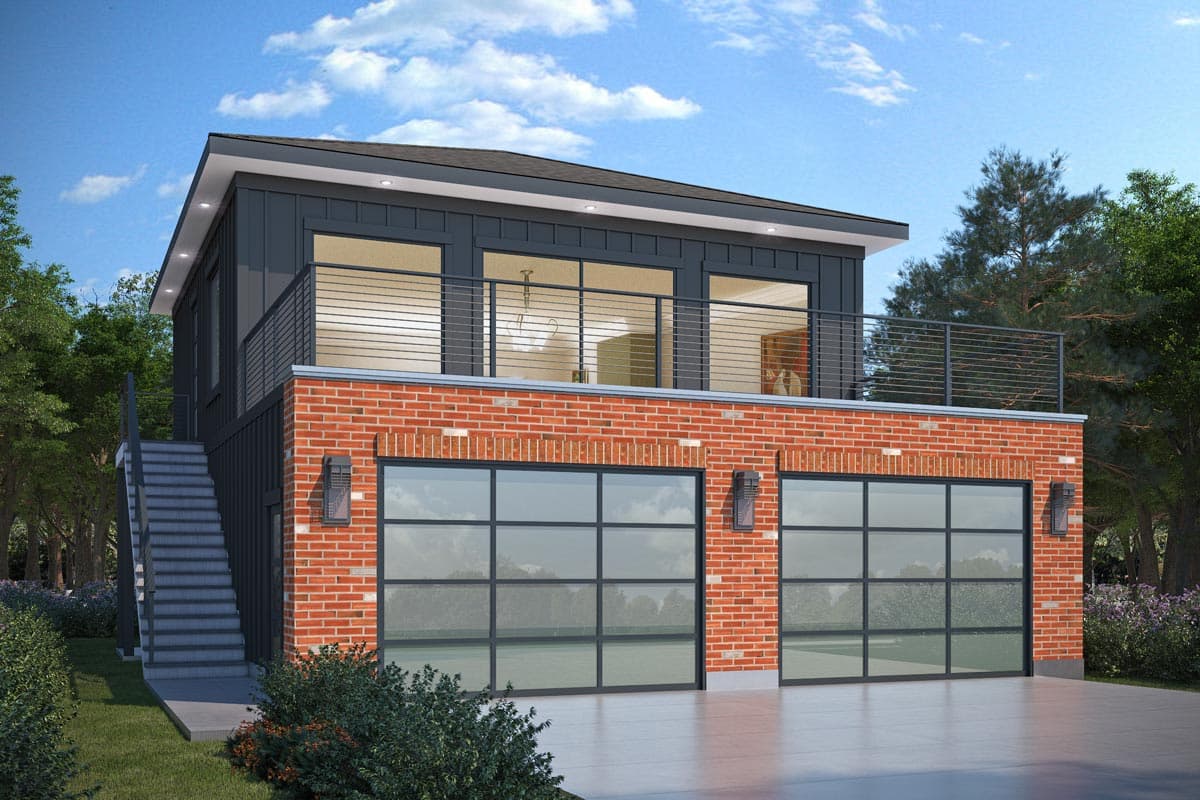

  • This contemporary garage plan is super flexible use-wise and has two 12' by 8' garage doors on the front.
  • The ground floor offers a dedicated workshop in back of the right bay while the left bay is barrier free and gives you the option to park two cars in tandem fashion.
  • Stairs run along the left side take you to the upper floor. There, you get a wide-open space with a bathroom and kitchenette in back and a wall of glass - with a 10' by 8' sliding glass door - in front that takes you to a sun deck.

What's Included

  • COVER SHEET
  • GENERAL NOTES
  • ELEVATIONS
  • FOUNDATION PLAN
  • FLOOR PLANS AND NOTES
  • BUILDING SECTION
  • ROOF PLAN
  • ELECTRICAL PLAN

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,318 sq. ft.

1st Floor

343 sq. ft.

2nd Floor

975 sq. ft.

Deck

485 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

31' 6"

Depth

51' 0"

Max Ridge Height

28' 0"

Garage

Area

1162 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Second Floor

10' 1"

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Carriage

Contemporary

Traditional

Special Features

Laundry - Main Level

Optionally Finished Bonus Room

Workshop

Square Footage Breakdown

Total Heated Area

1,318 sq. ft.

1st Floor

343 sq. ft.

2nd Floor

975 sq. ft.

Deck

485 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

31' 6"

Depth

51' 0"

Max Ridge Height

28' 0"

Garage

Area

1162 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10' 1"

Second Floor

10' 1"

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Carriage

Contemporary

Traditional

Special Features

Laundry - Main Level

Optionally Finished Bonus Room

Workshop
