Plan 23900JD Contemporary Home Plan for an Up-sloping Lot

3,125 4 3.5 1 2
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Home Plan for an Up-sloping Lot

Plan 23900JD

  • 3,125

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

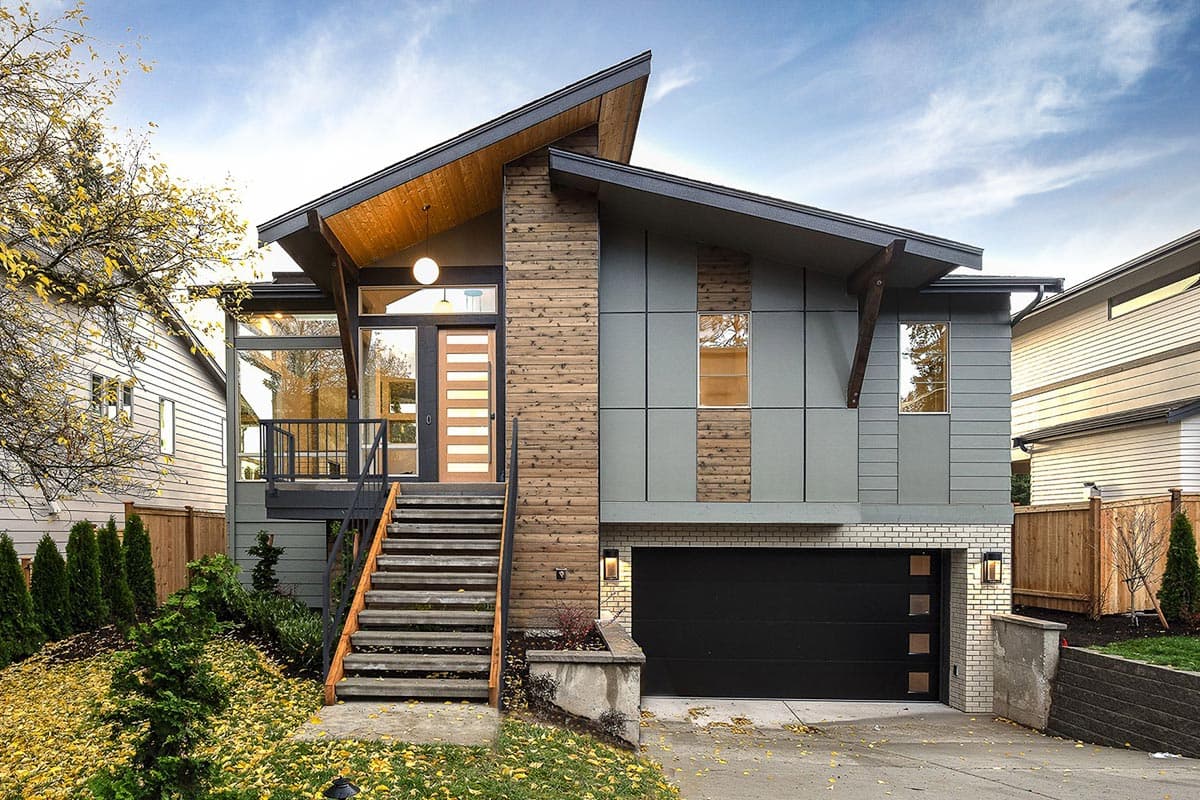

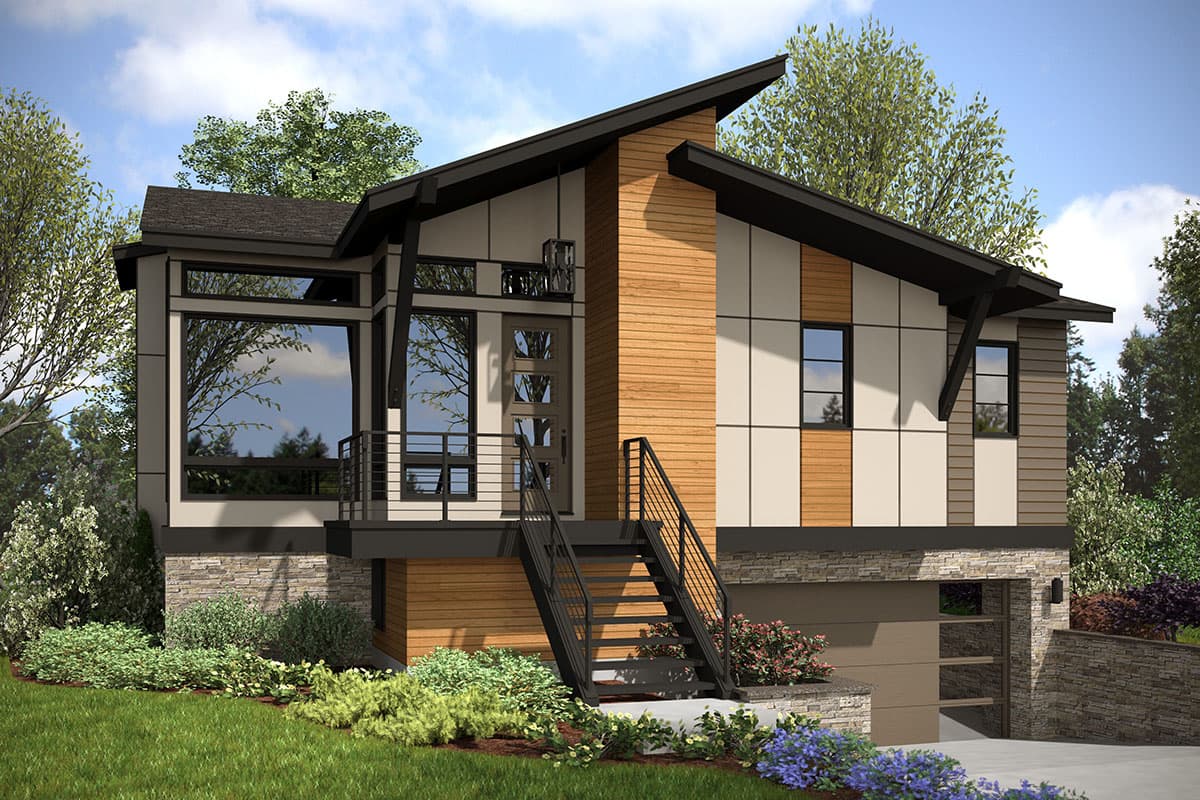

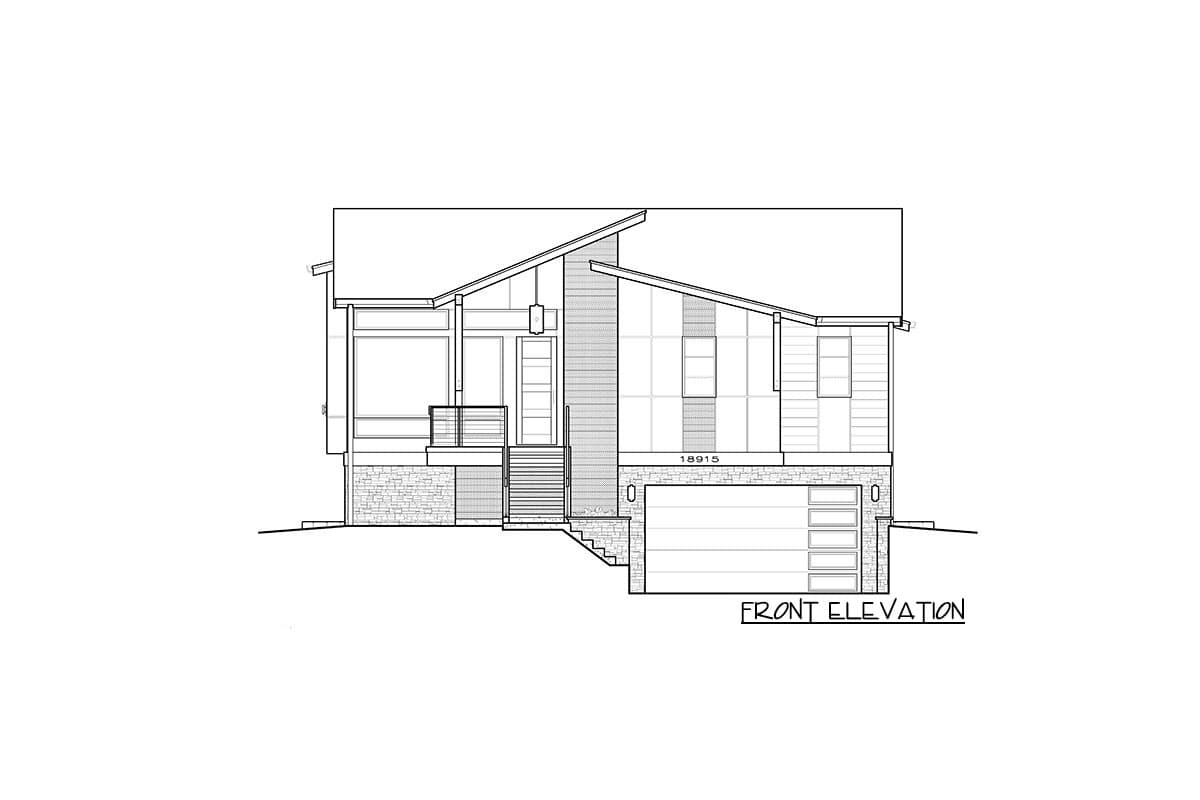

  • Dramatic rooflines, oversized windows, and large-panel siding materials deliver a contemporary vibe to this 4-bed home plan.
  • A powder bath and coat closet greet you in the foyer, while straight ahead, the open great room and kitchen create a cozy environment to host family and friends.

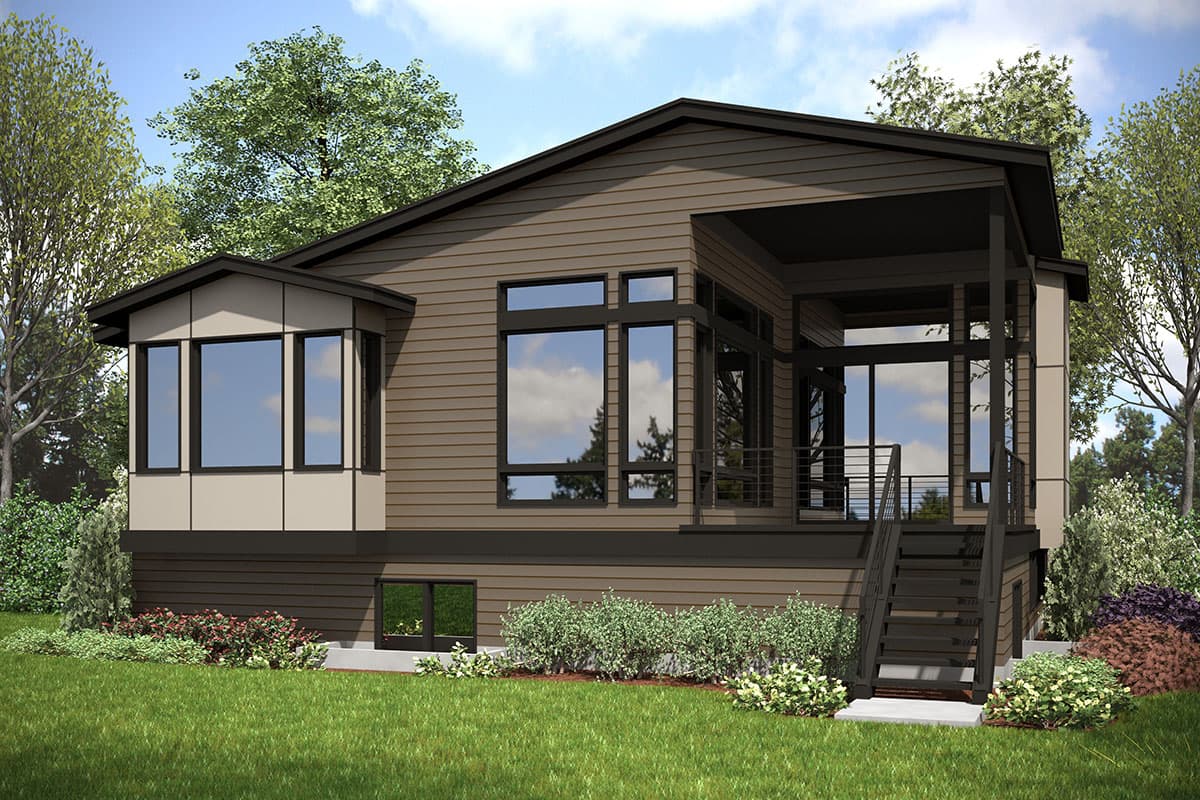

  • The dining space is drenched in natural lighting and overlooks the covered porch, accessible from the great room.
  • The master bedroom completes the main level and is joined by a 5-fixture bathroom and enormous walk-in closet.
  • Three secondary bedrooms share the lower level with a sizable recreation room, laundry room, and the double garage.
  • IMPORTANT NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

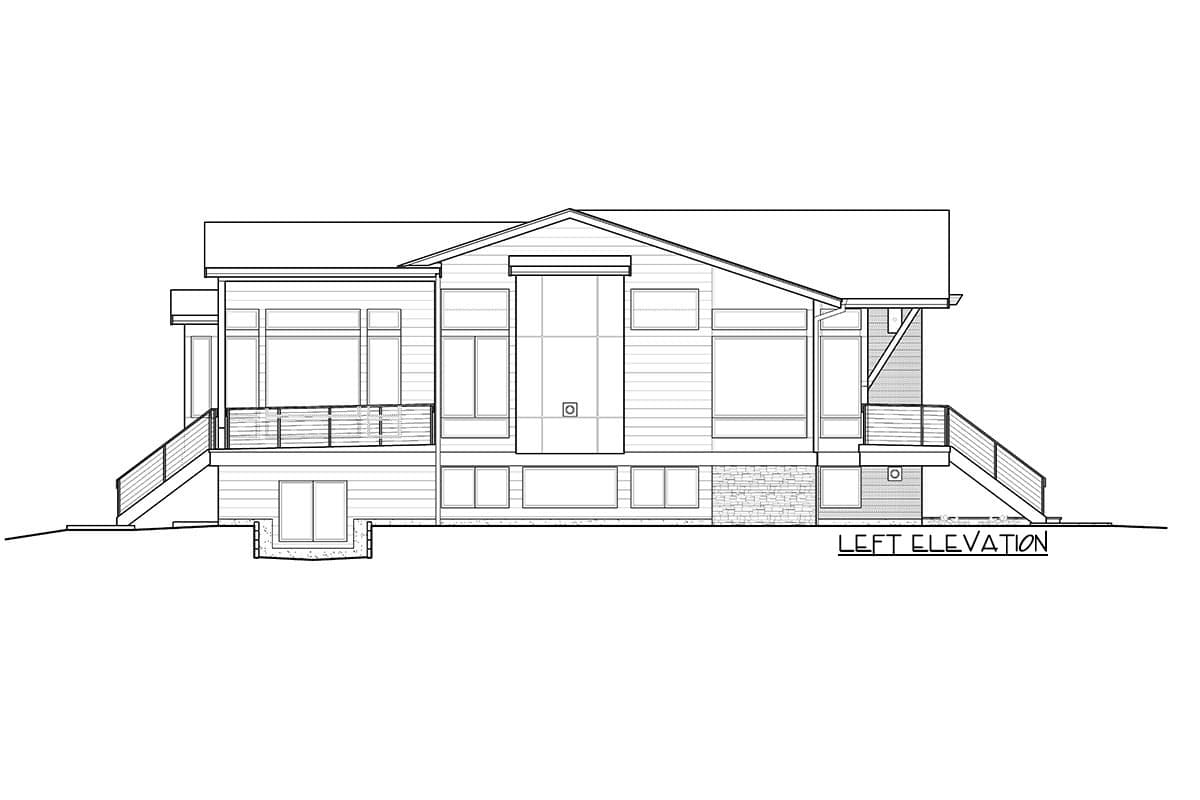

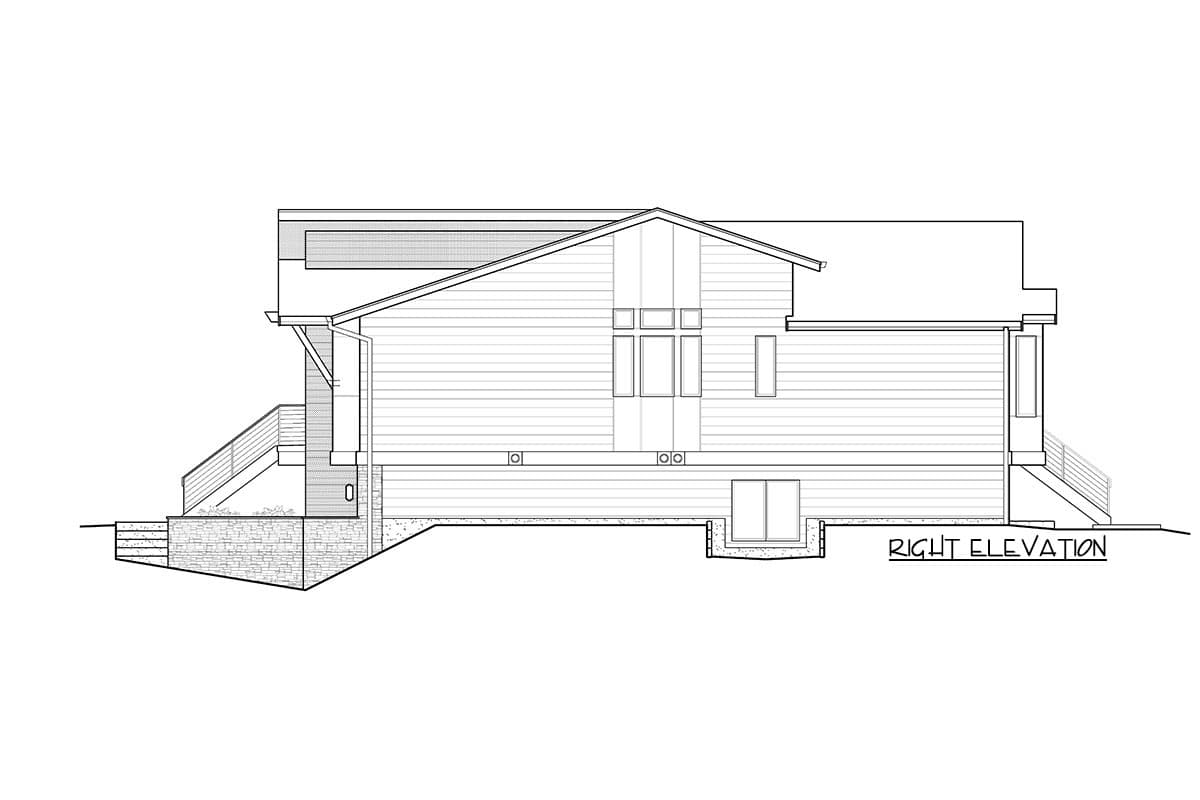

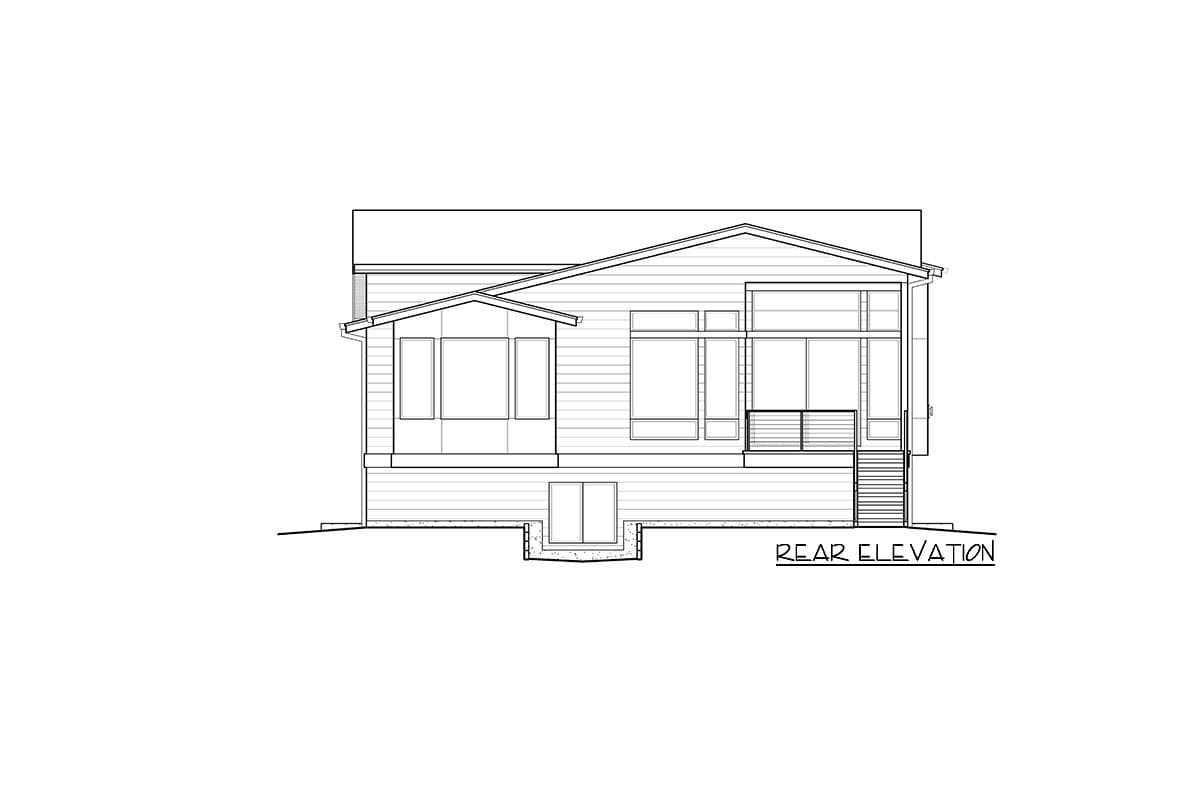

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

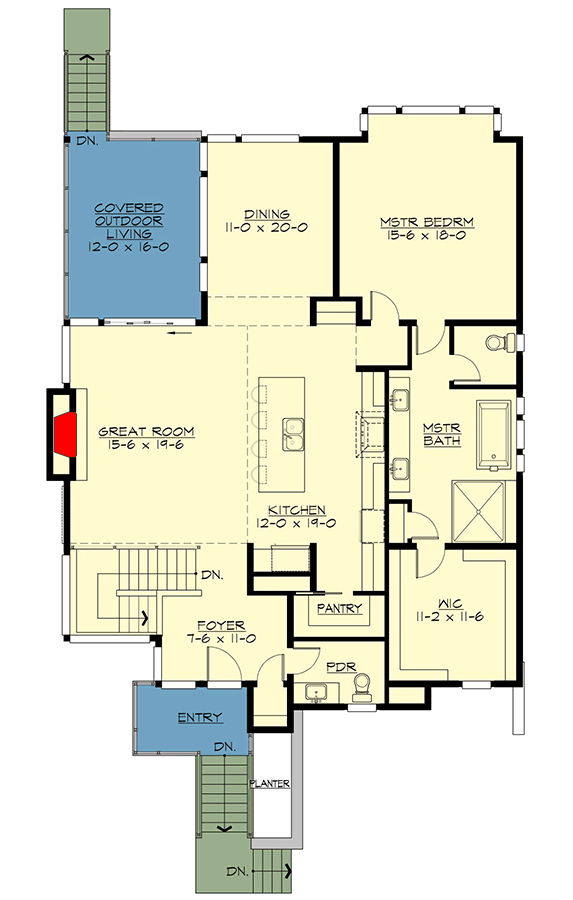

Contemporary Home Plan for an Up-sloping Lot - 23900JD floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

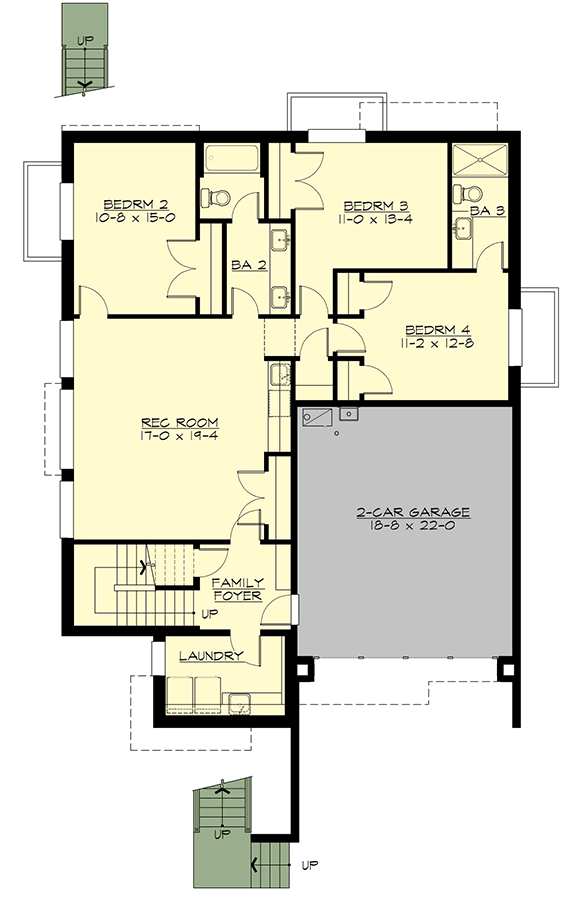

Contemporary Home Plan for an Up-sloping Lot - 23900JD floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,125 sq. ft.
  • Lower Level: 1,445 sq. ft.
  • 1st Floor: 1,680 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 56' 6"
  • Max ridge height: 17' 6"

Garage

  • Type: Drive Under
  • Area: 460 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 11' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Home Plan for an Up-sloping Lot

  • 3,125

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,000
  • CAD + PDF - Unlimited Build $3,500
  • View all purchase option online

About This Plan

  • Dramatic rooflines, oversized windows, and large-panel siding materials deliver a contemporary vibe to this 4-bed home plan.
  • A powder bath and coat closet greet you in the foyer, while straight ahead, the open great room and kitchen create a cozy environment to host family and friends.
  • The dining space is drenched in natural lighting and overlooks the covered porch, accessible from the great room.
  • The master bedroom completes the main level and is joined by a 5-fixture bathroom and enormous walk-in closet.
  • Three secondary bedrooms share the lower level with a sizable recreation room, laundry room, and the double garage.
  • IMPORTANT NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,125 sq. ft.
  • Lower Level: 1,445 sq. ft.
  • 1st Floor: 1,680 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 56' 6"
  • Max ridge height: 17' 6"

Garage

  • Type: Drive Under
  • Area: 460 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 11' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
Plan 23900JD
View this and more for this plan by visiting www.architechtecturaldesigns.com/23900JD
|
