Plan 72940DA Contemporary Home Plan with Lower Level Rental Potential

3,957 4 4.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Home Plan with Lower Level Rental Potential

Plan 72940DA

  • 3,957

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This contemporary house plan was designed with an efficient use of space. The plan is designed with a lot that slopes to the back in mind.
  • The main level has a vaulted, open great room with a large deck off the back, blending the indoors with the outdoors on those lovely summer days. Also on the main level is a bedroom with a private bath, the owners' suite with a luxurious walk-in shower and oversized walk-in closet, and a large hobby room.
  • The lower level hosts a family room with a beverage bar, two bedrooms, and a spare room for storage. The lower level has a separate entrance and can be closed off from the main level giving it potential as a rental space.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

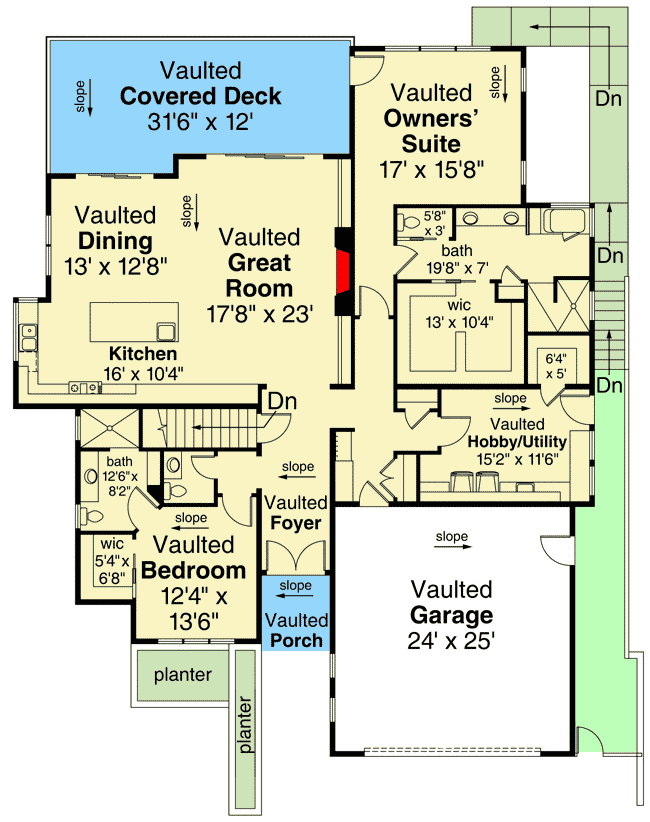

Contemporary Home Plan with Lower Level Rental Potential - 72940DA floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Home Plan with Lower Level Rental Potential - 72940DA floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,957 sq. ft.
  • Lower Level: 1,547 sq. ft.
  • 1st Floor: 2,410 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 4"
  • Depth: 73' 6"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 634 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 2 on 12

Architectural Style

Special features

Plan Collections

Contemporary Home Plan with Lower Level Rental Potential

  • 3,957

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,095
  • PDF Light $1,370
  • 5 Sets + PDF $1,665
  • PDF - Single-Build $2,615
  • CAD - Single-Build $2,855
  • CAD - Unlimited Build $3,140
  • View all purchase option online

About This Plan

  • This contemporary house plan was designed with an efficient use of space. The plan is designed with a lot that slopes to the back in mind.
  • The main level has a vaulted, open great room with a large deck off the back, blending the indoors with the outdoors on those lovely summer days. Also on the main level is a bedroom with a private bath, the owners' suite with a luxurious walk-in shower and oversized walk-in closet, and a large hobby room.
  • The lower level hosts a family room with a beverage bar, two bedrooms, and a spare room for storage. The lower level has a separate entrance and can be closed off from the main level giving it potential as a rental space.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,957 sq. ft.
  • Lower Level: 1,547 sq. ft.
  • 1st Floor: 2,410 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 4"
  • Depth: 73' 6"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 634 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 2 on 12
