Plan 68822VR
Contemporary Home Plan with Second-level Living Space
Heated S.F.
1,160
Beds
3
Baths
2
Stories
2
Photos
What's Included
Plan Details
  • Loads of character and curb appeal are featured within this 1,160 square foot Contemporary home plan.
  • An overhead door on the front elevation leads to a single garage bay that includes a workshop and a door to the back patio.
  • Taking a break from traditional floor plans, this home presents the master bedroom on the main level, while the living spaces can be found upstairs in order to take advantage of any rearward views.
  • Upstairs, the living room and eat-in kitchen are combined and open onto a sizable deck.
  • Two identical bedrooms complete the second floor.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

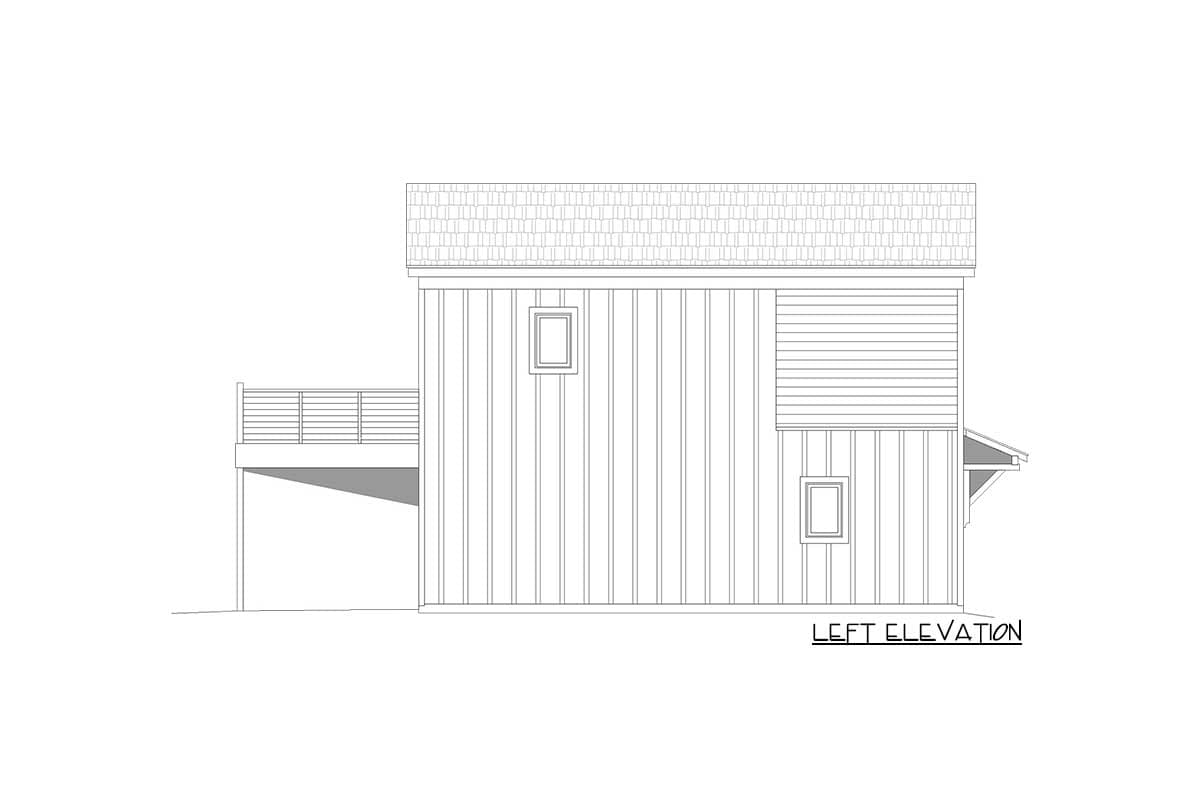

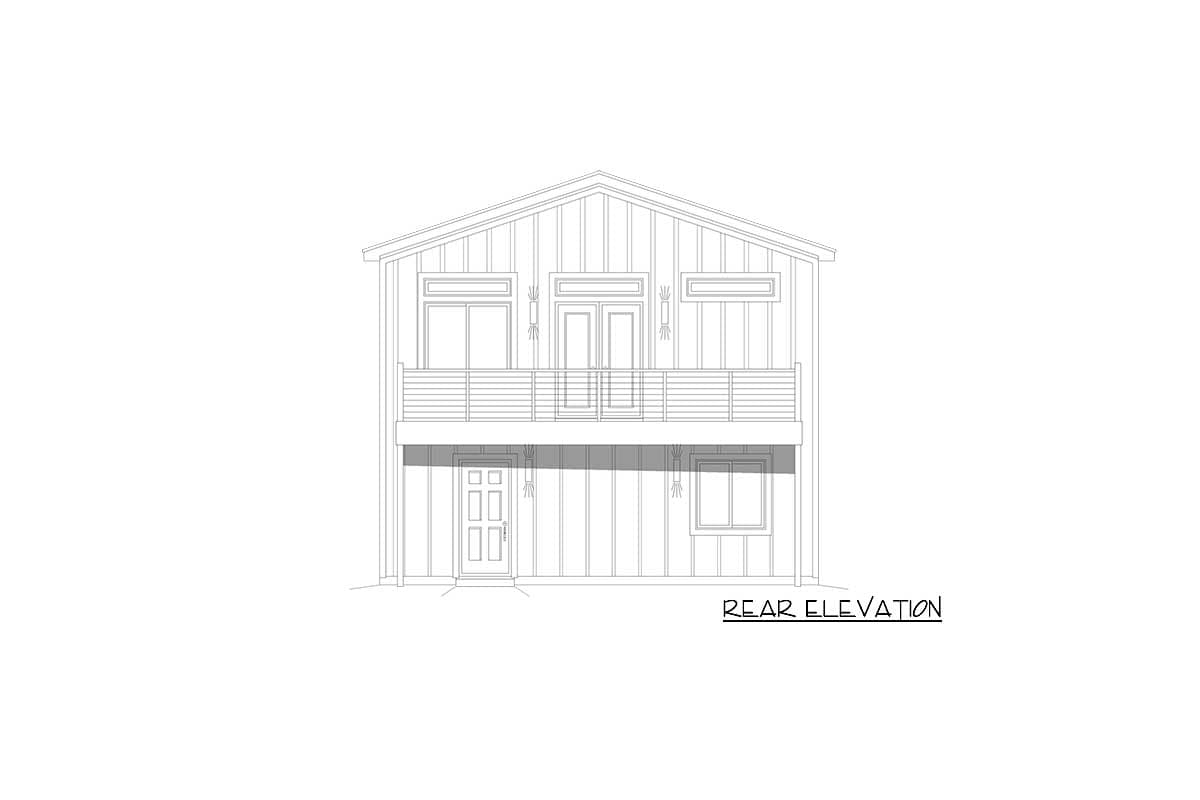

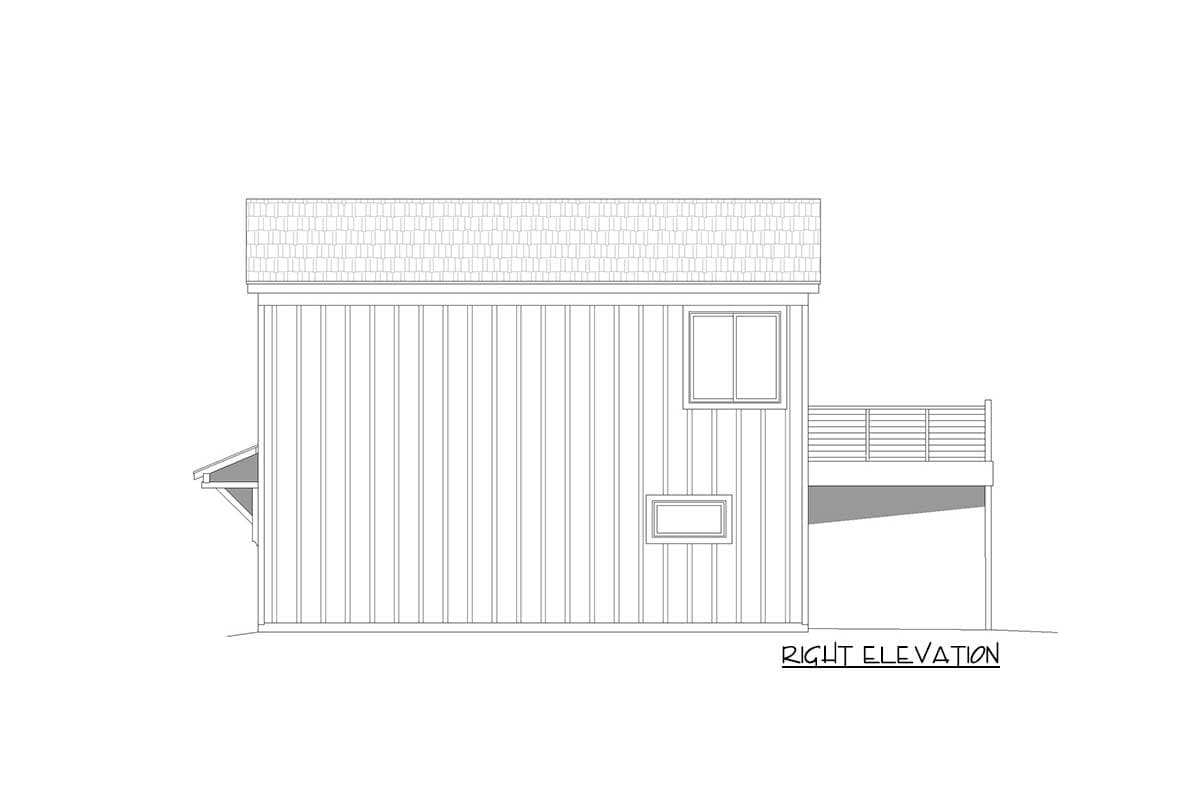

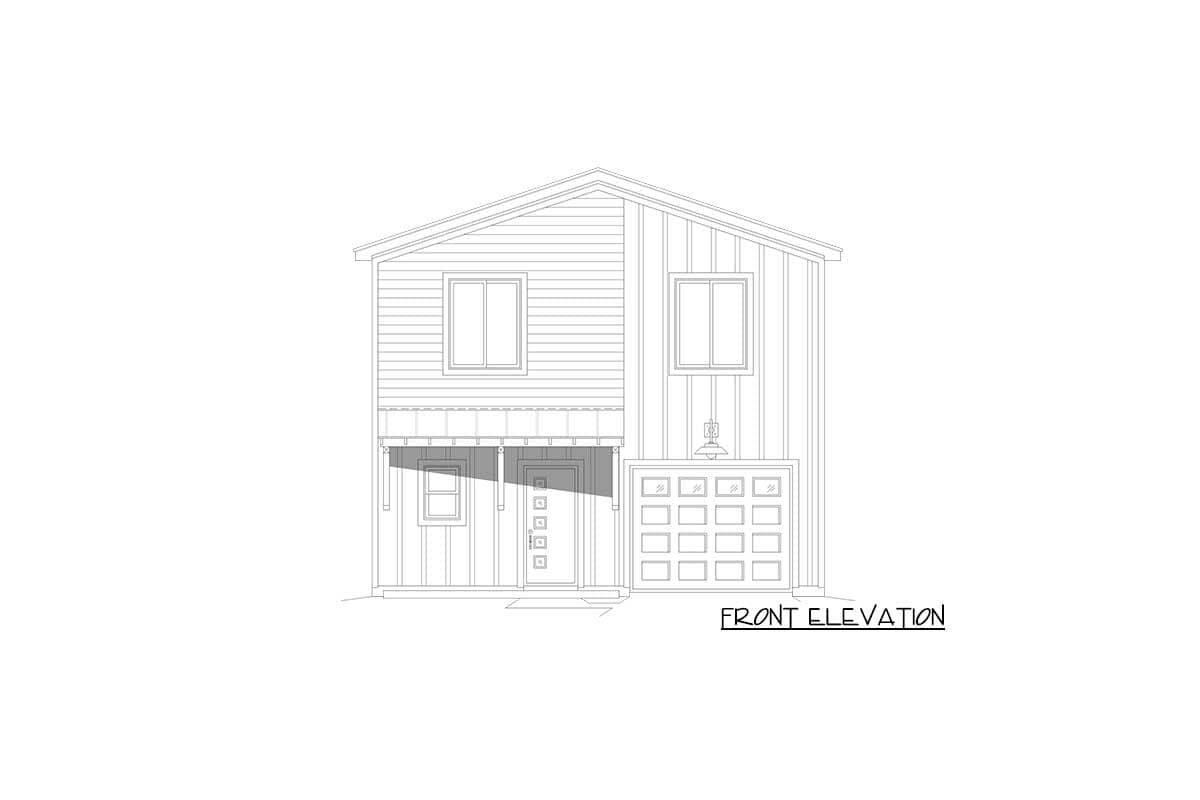

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Home Plan with Second-level Living Space

  • 1,160

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

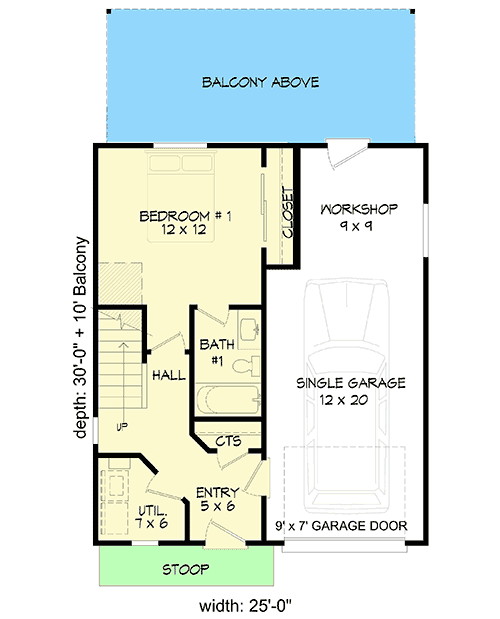

  • Main Level

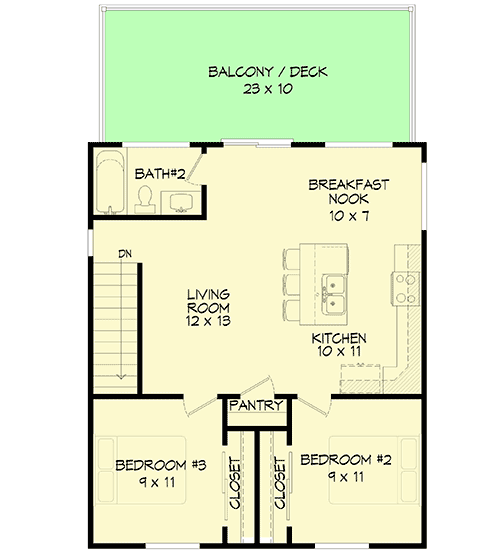

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,160 sq. ft.
  • 1st Floor: 410 sq. ft.
  • 2nd Floor: 750 sq. ft.

Dimensions

  • Width: 25' 0"
  • Depth: 40' 0"
  • Max ridge height: 23' 1"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
