Contemporary House Plan for the Outdoor Enthusiast

Plan 54238HU

  • 2,818

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Nearly each room has access to an outdoor living space in this beautiful, contemporary house plan. Clean, straight lines and a flat roof provide a modern exterior, while clerestory windows provide abundant natural light to permeate throughout the home.
  • A sizable courtyard provides separation between the master suite and the secondary bedrooms for added privacy.
  • The right wing of the home includes the shared living spaces in a combined, open layout, along with a den that provides a quiet space to retreat to when needed.
  • An oversized island in the kitchen offers additional seating for casual meals.
  • The luxurious master suite boasts a spacious bathroom with a freestanding tub, two sinks, a private toilet room, and a large walk-in closet.
  • The left wing offers two additional bedrooms, each with their own full bath.
  • Entry from the angled, 3-car garage leads to a combined mud / laundry room, which helps the homeowner remain organized.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

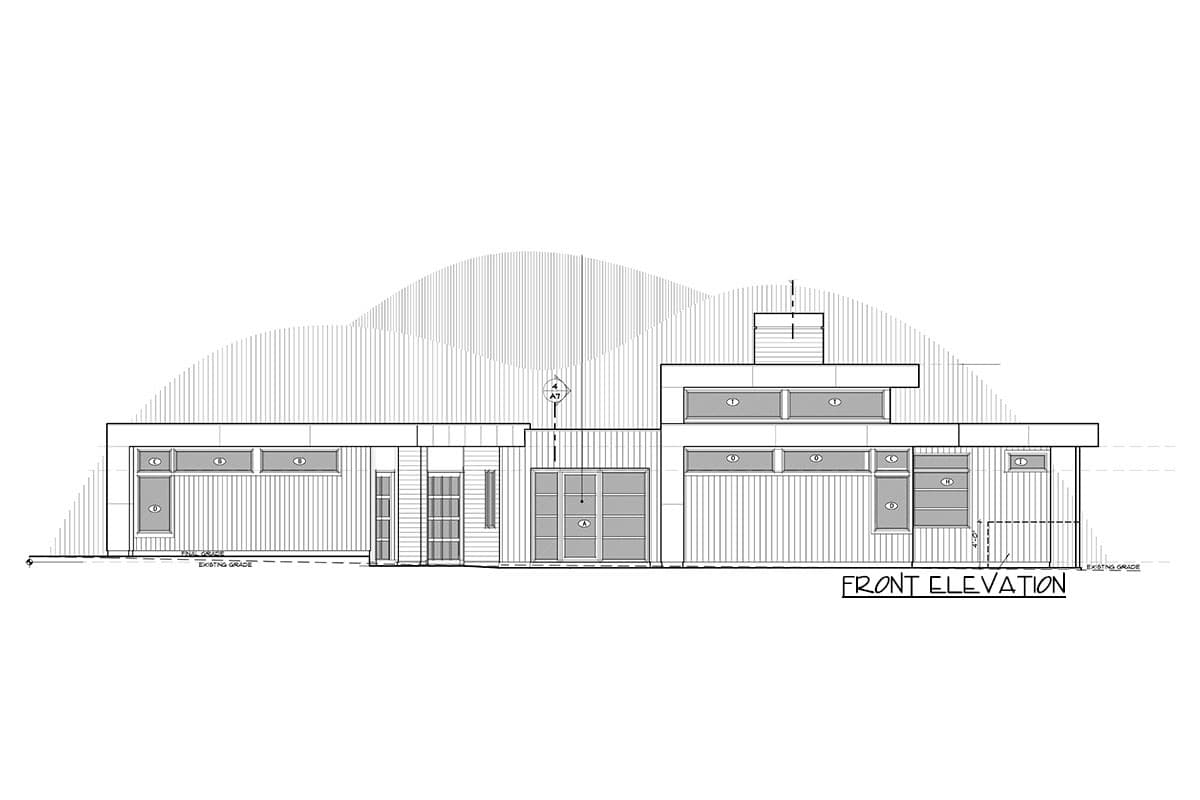

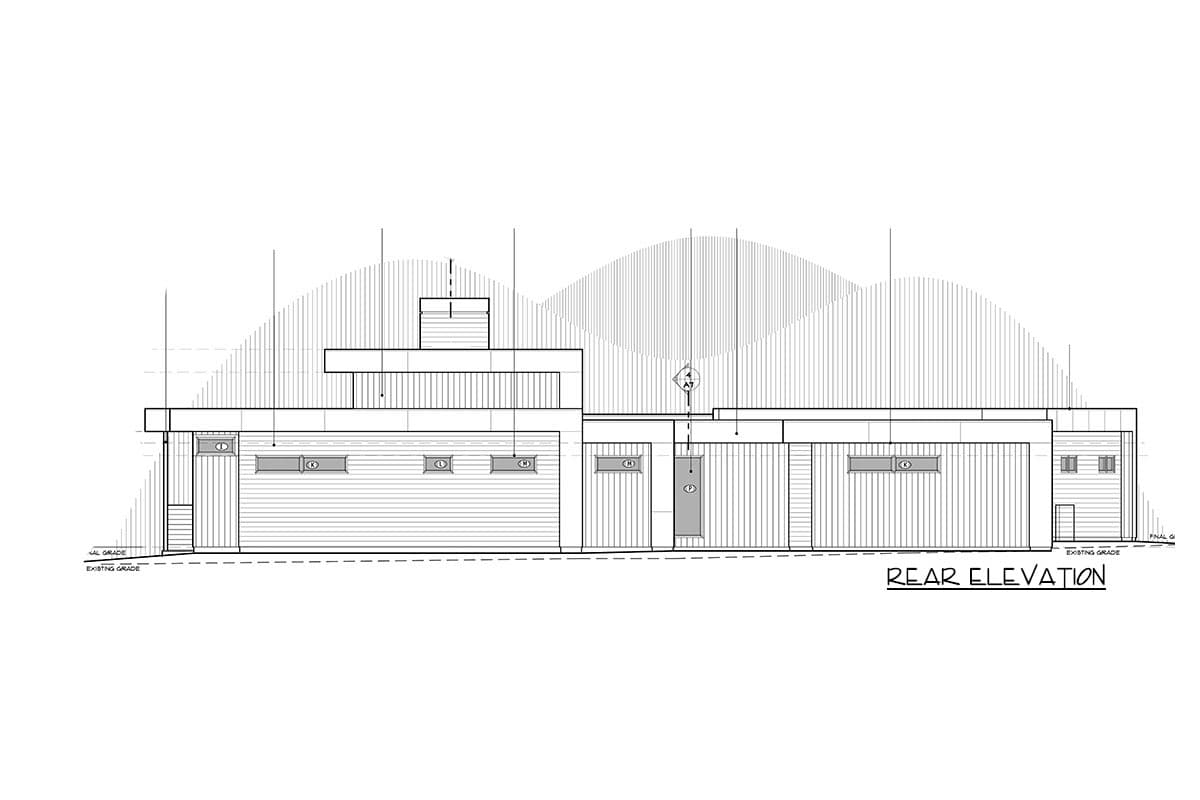

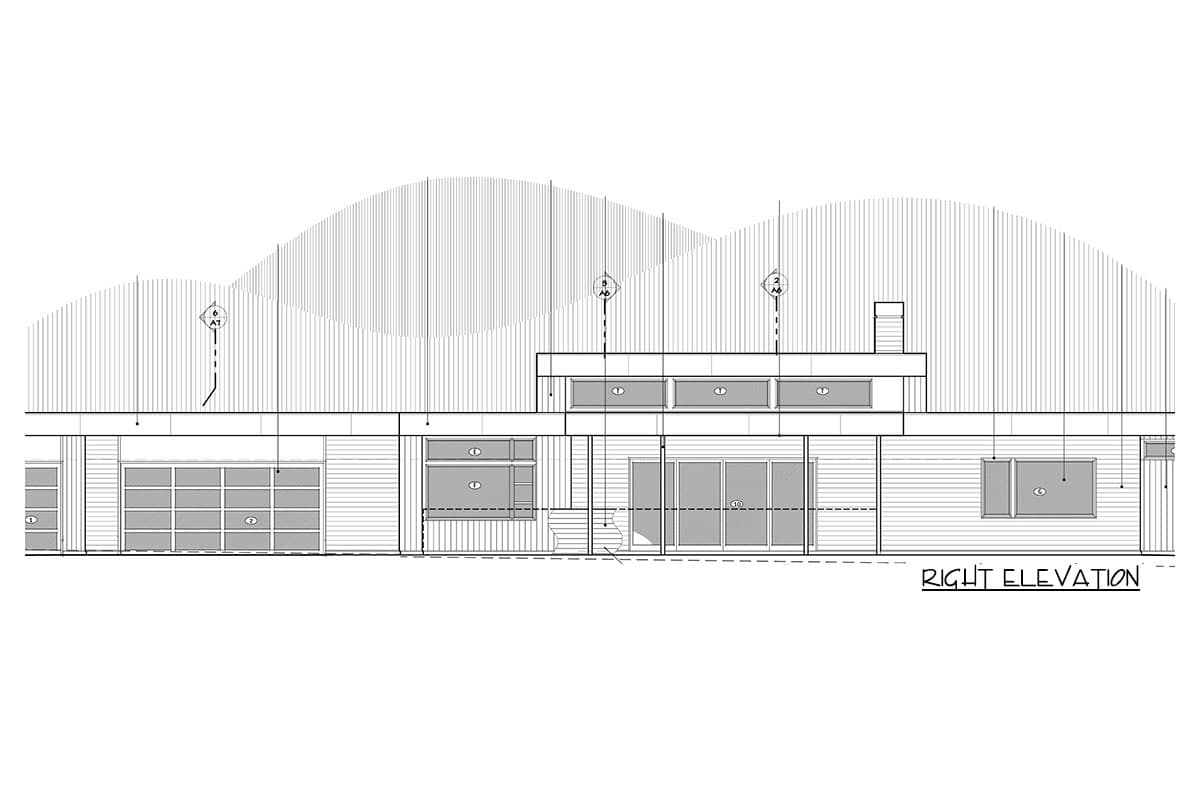

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

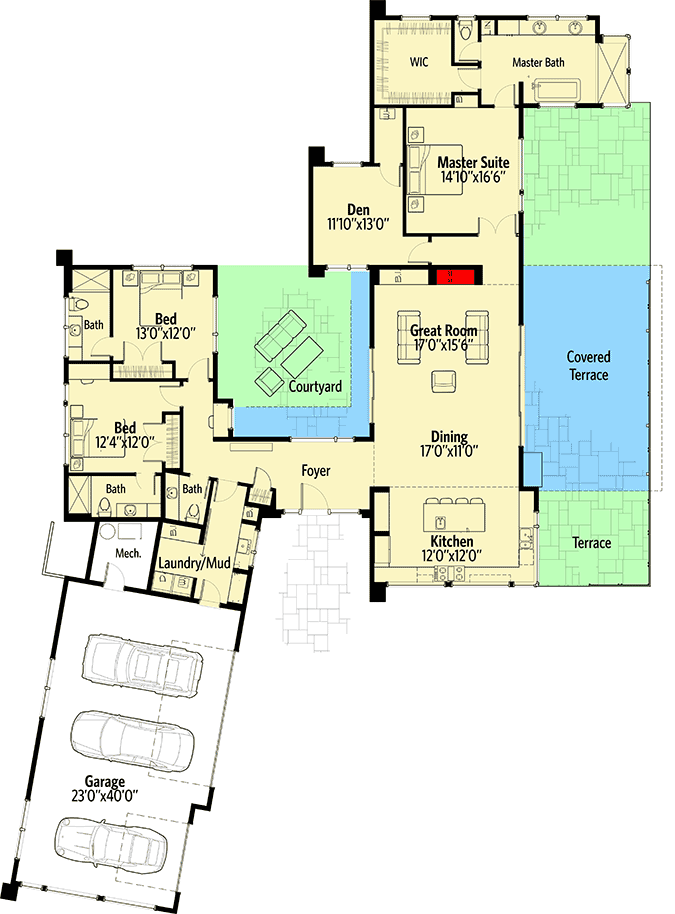

Contemporary House Plan for the Outdoor Enthusiast - 54238HU floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,818 sq. ft.
  • 1st Floor: 2,818 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 4"
  • Depth: 119' 6"
  • Max ridge height: 17' 4"

Garage

  • Type: Attached
  • Area: 1018 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Contemporary House Plan for the Outdoor Enthusiast

  • 2,818

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,795
  • 5 Sets $1,895
  • 8 Sets $1,995
  • CAD + PDF - Single-Build $2,595
  • View all purchase option online

About This Plan

  • Nearly each room has access to an outdoor living space in this beautiful, contemporary house plan. Clean, straight lines and a flat roof provide a modern exterior, while clerestory windows provide abundant natural light to permeate throughout the home.
  • A sizable courtyard provides separation between the master suite and the secondary bedrooms for added privacy.
  • The right wing of the home includes the shared living spaces in a combined, open layout, along with a den that provides a quiet space to retreat to when needed.
  • An oversized island in the kitchen offers additional seating for casual meals.
  • The luxurious master suite boasts a spacious bathroom with a freestanding tub, two sinks, a private toilet room, and a large walk-in closet.
  • The left wing offers two additional bedrooms, each with their own full bath.
  • Entry from the angled, 3-car garage leads to a combined mud / laundry room, which helps the homeowner remain organized.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,818 sq. ft.
  • 1st Floor: 2,818 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 82' 4"
  • Depth: 119' 6"
  • Max ridge height: 17' 4"

Garage

  • Type: Attached
  • Area: 1018 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
