Plan 42720DB

Contemporary House Plan with Main Level Master Suite and 2 Upstairs Bedrooms - 1649 Sq Ft

Heated S.F.
1,649
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 42720DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42720DB

M-F 9am-5pm EST |

1-203-761-8500

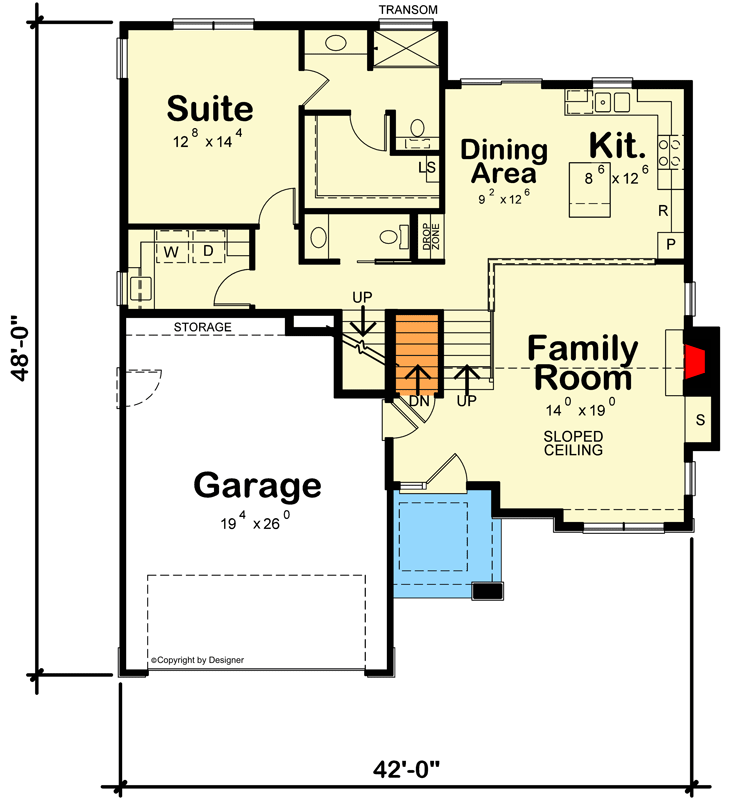

Main Level

Plan 42720DB: Contemporary House Plan with Main Level Master Suite and 2 Upstairs Bedrooms - 1649 Sq Ft - Floor Plan - Main Level - Contemporary, Modern

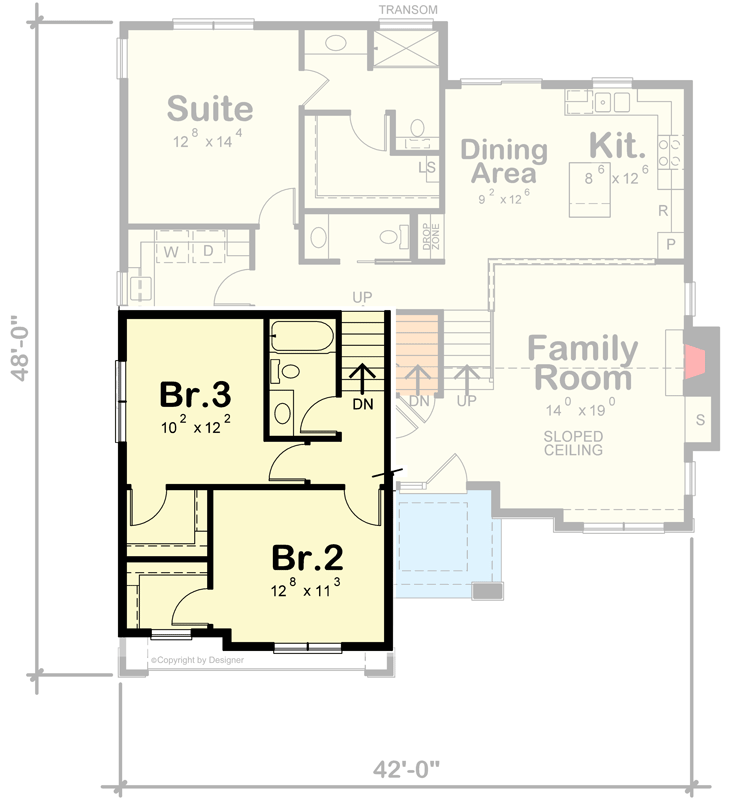

2nd Floor

Plan 42720DB: Contemporary House Plan with Main Level Master Suite and 2 Upstairs Bedrooms - 1649 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Modern

Plan Details

  • This contemporary house plan gives you 3 beds, 2.5 baths and 1,649 square feet of heated living space. A 2-car forward-facing garage gives you 495 square feet of parking space.
  • Both the front door and garage entrance meet in the spacious family room. A few stairs up, you'll find the eat-in kitchen that overlooks the family room below.
  • The primary suite is privately situated on the main level, next to the laundry room. The ensuite delivers a large walk-in closet for a home of this size.
  • Two family bedrooms and a full bath occupy the second level. Each bedroom includes a walk-in closet.
  • The extra-deep garage provides plenty of space for storage and a side door for an alternate entry point.

What's Included

  • General Notes

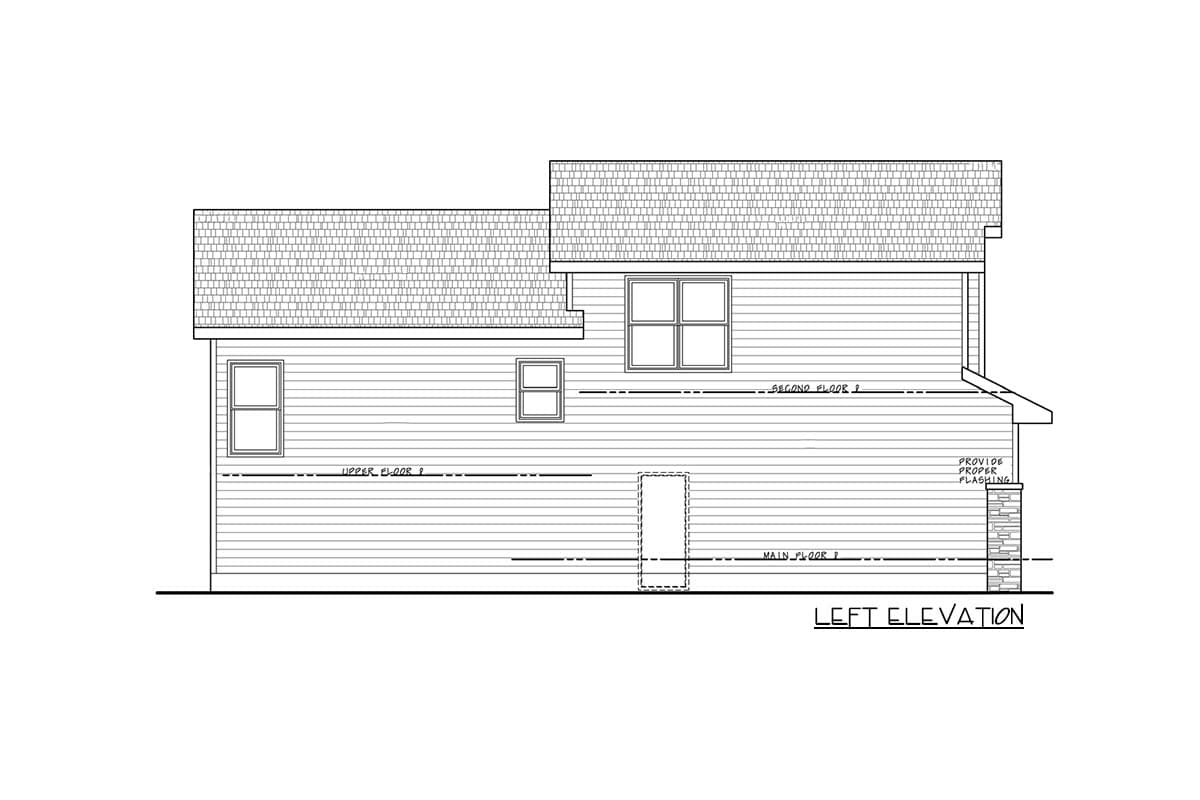

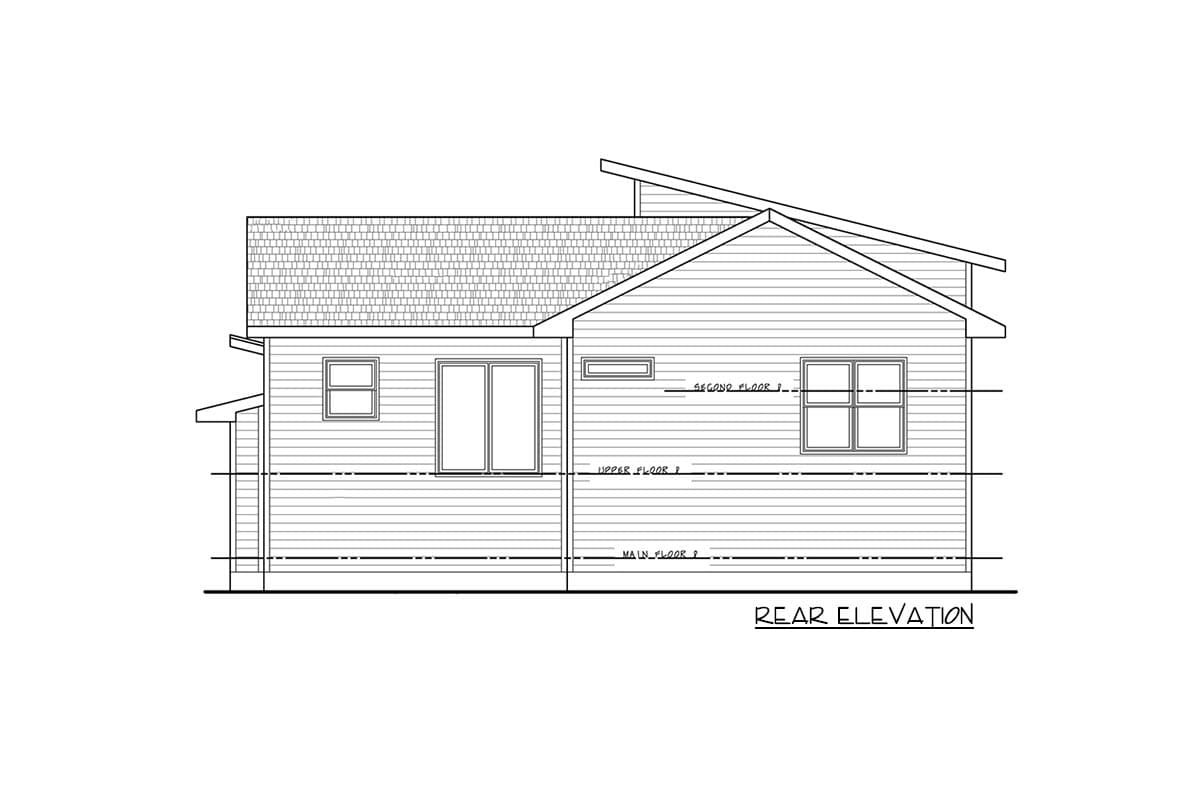

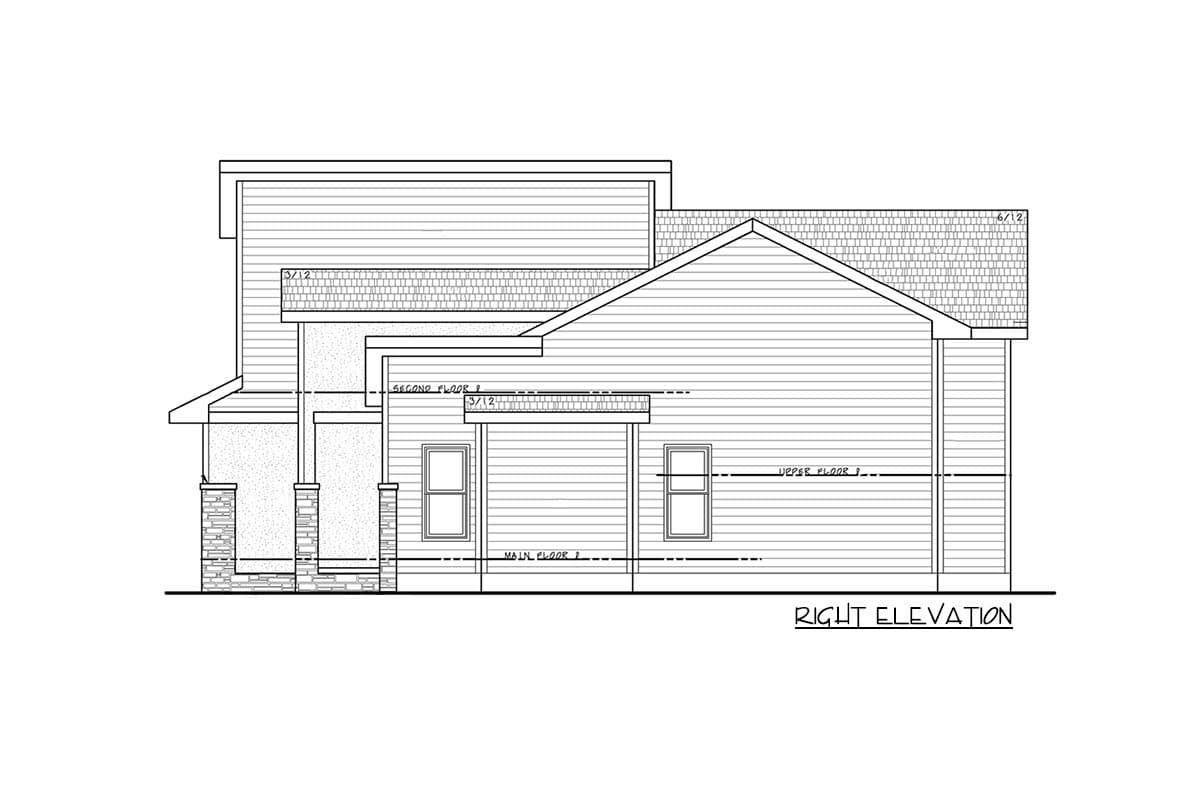

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,649 sq. ft.

1st Floor

1,184 sq. ft.

2nd Floor

465 sq. ft.

Porch, Front

63 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

48' 0"

Max Ridge Height

25' 9"

Garage

Type

Attached

Area

495 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Contemporary

Modern

Special Features

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Split Level

Square Footage Breakdown

Total Heated Area

1,649 sq. ft.

1st Floor

1,184 sq. ft.

2nd Floor

465 sq. ft.

Porch, Front

63 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

48' 0"

Max Ridge Height

25' 9"

Garage

Type

Attached

Area

495 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Contemporary

Modern

Special Features

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Split Level
