Contemporary House Plan with Panoramic Views

Plan 737003LVL

  • 1,152

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • A dramatic slanted roof line allows for vaulted ceilings inside this Contemporary house plan.
  • Big transoms and glass walls give you wonderful panoramic views.
  • Modest in size, this house plan is easy to clean and maintain as a vacation home.
  • Three bedrooms and lots of porch space mean you have living spaces inside and out.

This house plan includes the following:

Cover sheet
Foundation plan
Floor plans
Roof framing plan
Building section and typical wall sections
Elevations
General construction details


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

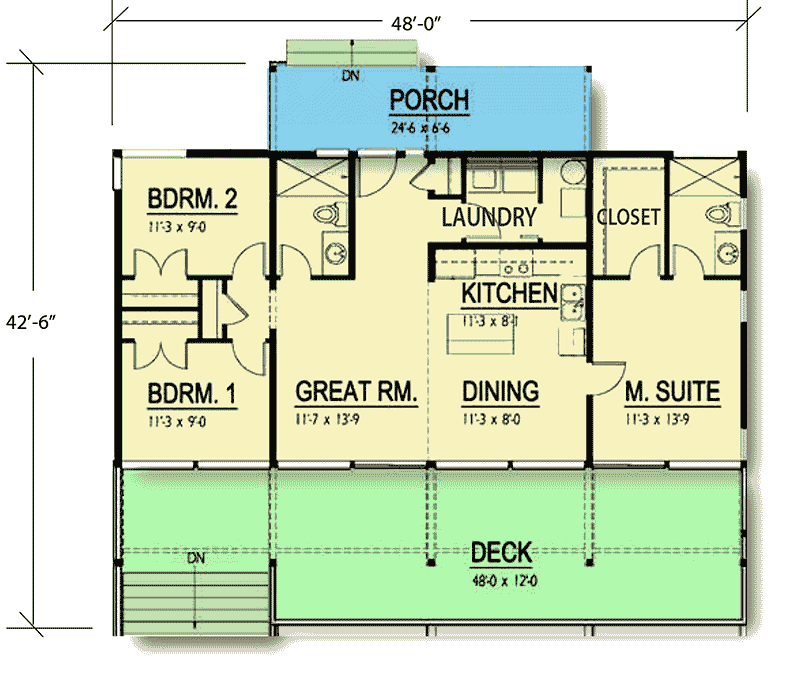

Contemporary House Plan with Panoramic Views - 737003LVL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,152 sq. ft.
  • 1st Floor: 1,152 sq. ft.
  • Deck: 576 sq. ft.
  • Porch, Rear: 159 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 42' 6"
  • Max ridge height: 15' 8"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Stick

Architectural Style

Special features

Contemporary House Plan with Panoramic Views

  • 1,152

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $800
  • CAD - Single-Build $1,600
  • View all purchase option online

About This Plan

  • A dramatic slanted roof line allows for vaulted ceilings inside this Contemporary house plan.
  • Big transoms and glass walls give you wonderful panoramic views.
  • Modest in size, this house plan is easy to clean and maintain as a vacation home.
  • Three bedrooms and lots of porch space mean you have living spaces inside and out.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,152 sq. ft.
  • 1st Floor: 1,152 sq. ft.
  • Deck: 576 sq. ft.
  • Porch, Rear: 159 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 42' 6"
  • Max ridge height: 15' 8"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
Plan 737003LVL
View this and more for this plan by visiting www.architechtecturaldesigns.com/737003LVL
|
