Plan 24355TW Contemporary House Plan with Window-filled Vaulted Great Room

2,161 3 2.5 1
Print
Compare
...

Contemporary House Plan with Window-filled Vaulted Great Room

Plan 24355TW

  • 2,161

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

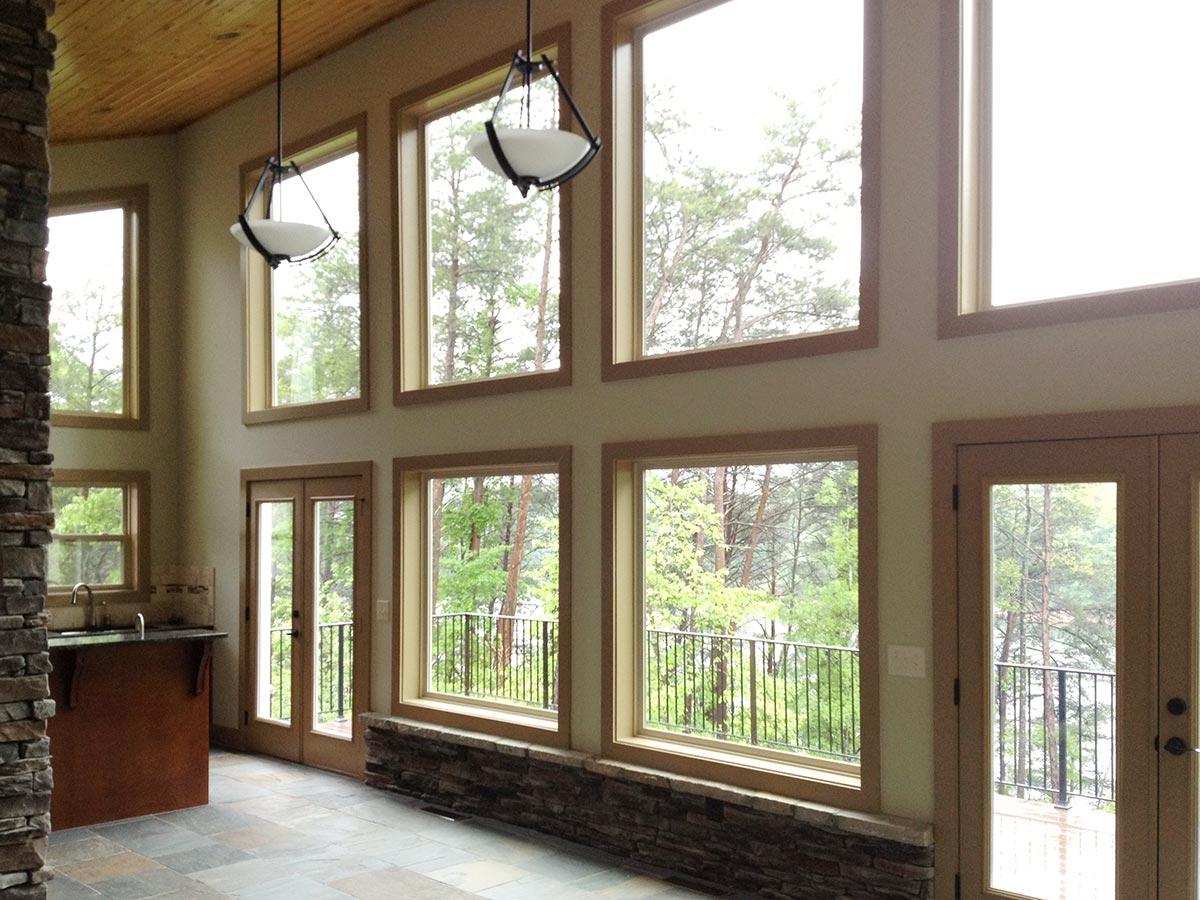

  • Windows on three sides of the fabulous vaulted great room flood the room with light in this extraordinary Contemporary vacation home.
  • The open floor plan wraps around to the dining room and kitchen.
  • Three sets of double doors open to the outdoors, giving you easy access.
  • On the first floor, the master suite boasts a large walk-in shower and huge walk-in closet.
  • The finished lower level adds two additional bedrooms, a bath and a big game room with tray ceiling.
  • The lower level concrete patio shelters you from the sun.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.

The plans include the following:

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

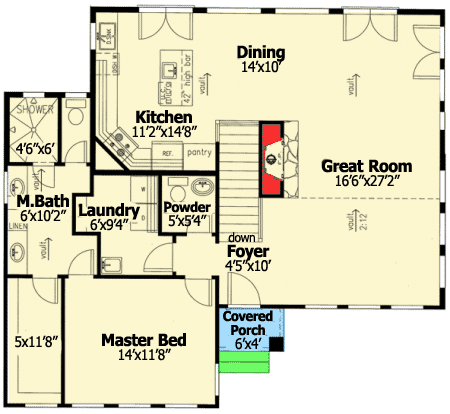

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary House Plan with Window-filled Vaulted Great Room - 24355TW floor plan - Main Level

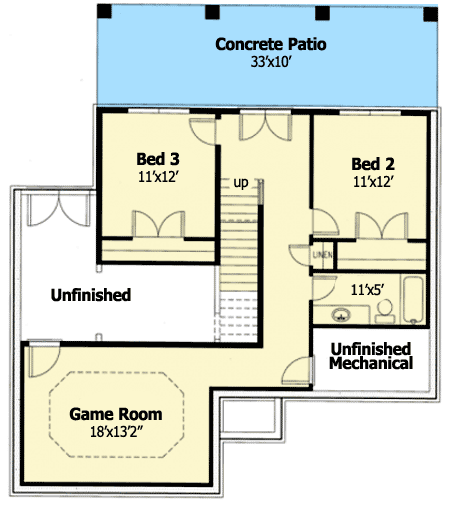

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary House Plan with Window-filled Vaulted Great Room - 24355TW floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,161 sq. ft.
  • Lower Level: 890 sq. ft.
  • 1st Floor: 1,271 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 51' 0"
  • Depth: 47' 4"
  • Max ridge height: 19' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Architectural Style

Special features

Plan Collections



Contemporary House Plan with Window-filled Vaulted Great Room

  • 2,161

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $850
  • CAD - Single-Build $950
  • View all purchase option online

About This Plan

  • Windows on three sides of the fabulous vaulted great room flood the room with light in this extraordinary Contemporary vacation home.
  • The open floor plan wraps around to the dining room and kitchen.
  • Three sets of double doors open to the outdoors, giving you easy access.
  • On the first floor, the master suite boasts a large walk-in shower and huge walk-in closet.
  • The finished lower level adds two additional bedrooms, a bath and a big game room with tray ceiling.
  • The lower level concrete patio shelters you from the sun.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,161 sq. ft.
  • Lower Level: 890 sq. ft.
  • 1st Floor: 1,271 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 51' 0"
  • Depth: 47' 4"
  • Max ridge height: 19' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Plan 24355TW
View this and more for this plan by visiting www.architechtecturaldesigns.com/24355TW
|
Need Help? 800-854-7852
|
Plan 24355TW
