Contemporary Lake House Plan with Vaulted Great Room and Covered Deck

Plan 623063DJ

  • 2,509

    Heated s.f.

  • 1-3

    Beds

  • 1.5 - 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

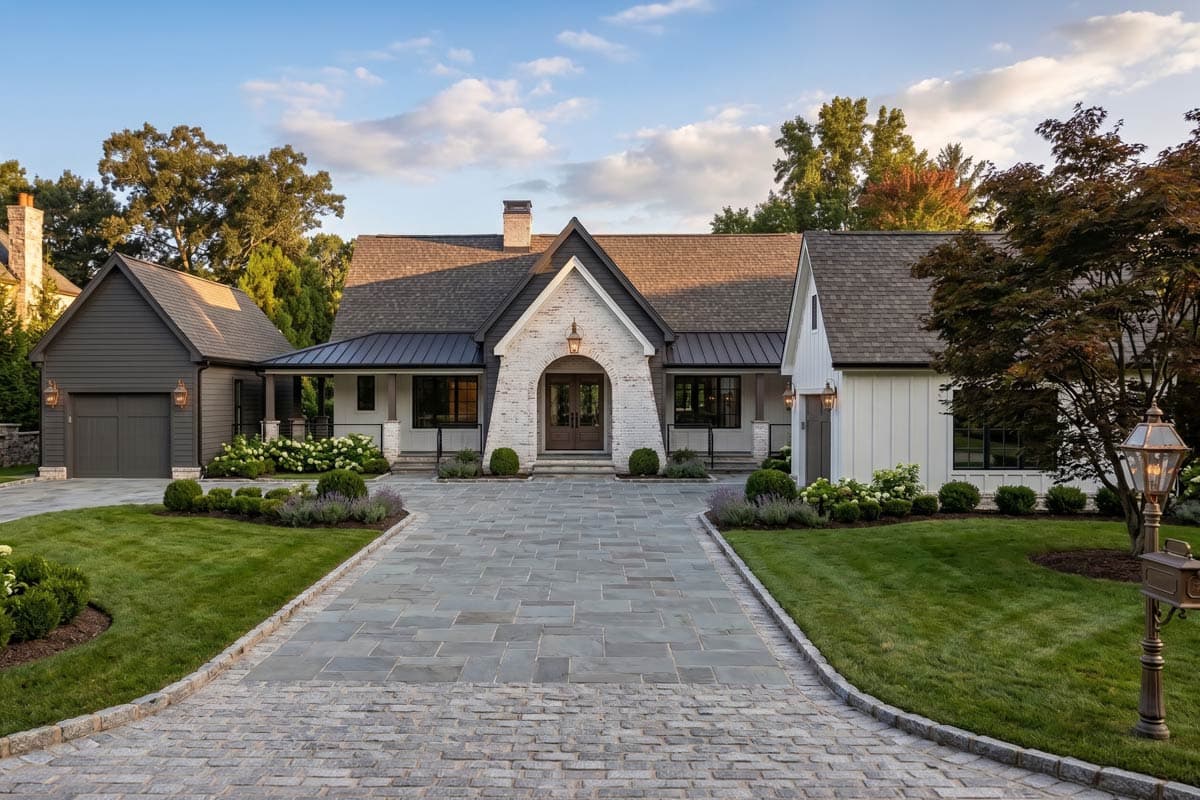

  • The stunning exterior of this contemporary lake house plan combines board and batten, brick, wood garage doors, and contrasting siding colors to elevate the curb appeal. Just one step inside the home, and you'll be amazed at the floor plan.
  • A large entryway greets guests as they step into the home. A cathedral ceiling runs from the entryway through the great room. Just to the left of the entryway is a home office that is the perfect place for anyone who works from home.
  • The great room, dining room, and kitchen are arranged in an open floor plan layout. The kitchen includes a large island with a snack bar and a walk-in pantry. The great room is warmed by a fireplace that has built-in bookshelves. A large sliding glass door leads from the great room to a massive covered deck that provides excellent views to the rear of the home. A family room is situated off the dining room and faces the rear of the home.
  • The left side of the home features a dreamy master suite. The master bedroom lies under a trayed ceiling with exposed beams and has its own large sliding glass door that leads to the covered deck. The master bathroom includes his/her vanities, a soaking tub, an enclosed toilet area, and a walk-in closet.
  • Take this home to the next level by adding the optional finished basement. The finished basement can add 2 more bedrooms, a family room with a fireplace, a rec area, a wet bar, an exercise room, and a wine cellar.
  • The home features a split 3 car garage. The 2 car garage accesses the home through a convenient mudroom with a bench and lockers. Just off the mudroom you'll find a convenient grilling deck.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Lake House Plan with Vaulted Great Room and Covered Deck - 623063DJ floor plan - Main Level

Optional Lower Level Layout (+$250)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Lake House Plan with Vaulted Great Room and Covered Deck - 623063DJ floor plan - Optional Lower Level Layout (+$250)

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,509 sq. ft.
  • 1st Floor: 2,509 sq. ft.
  • Porch, Combined: 996 sq. ft.

Beds/Baths

  • Bedrooms: 1, 2, or 3
  • Full bathrooms: 1 or 2
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 95' 0"
  • Depth: 89' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 1129 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 On 12; 8 On 12; 14 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Lake House Plan with Vaulted Great Room and Covered Deck

  • 2,509

    Heated s.f.

  • 1-3

    Beds

  • 1.5 - 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,500
  • 5 Sets + PDF $1,750
  • PDF - Unlimited Build $2,000
  • CAD + PDF - Single-Build $2,000
  • CAD Unlimited + PDF $2,500
  • View all purchase option online

About This Plan

  • The stunning exterior of this contemporary lake house plan combines board and batten, brick, wood garage doors, and contrasting siding colors to elevate the curb appeal. Just one step inside the home, and you'll be amazed at the floor plan.
  • A large entryway greets guests as they step into the home. A cathedral ceiling runs from the entryway through the great room. Just to the left of the entryway is a home office that is the perfect place for anyone who works from home.
  • The great room, dining room, and kitchen are arranged in an open floor plan layout. The kitchen includes a large island with a snack bar and a walk-in pantry. The great room is warmed by a fireplace that has built-in bookshelves. A large sliding glass door leads from the great room to a massive covered deck that provides excellent views to the rear of the home. A family room is situated off the dining room and faces the rear of the home.
  • The left side of the home features a dreamy master suite. The master bedroom lies under a trayed ceiling with exposed beams and has its own large sliding glass door that leads to the covered deck. The master bathroom includes his/her vanities, a soaking tub, an enclosed toilet area, and a walk-in closet.
  • Take this home to the next level by adding the optional finished basement. The finished basement can add 2 more bedrooms, a family room with a fireplace, a rec area, a wet bar, an exercise room, and a wine cellar.
  • The home features a split 3 car garage. The 2 car garage accesses the home through a convenient mudroom with a bench and lockers. Just off the mudroom you'll find a convenient grilling deck.

Floor Plans

  • Main Level

  • Optional Lower Level Layout (+$250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,509 sq. ft.
  • 1st Floor: 2,509 sq. ft.
  • Porch, Combined: 996 sq. ft.

Beds/Baths

  • Bedrooms: 1, 2, or 3
  • Full bathrooms: 1 or 2
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 95' 0"
  • Depth: 89' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 1129 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 On 12; 8 On 12; 14 on 12
  • Framing Type: Truss
