Plan 69927AM

Contemporary Modern House Plan with 3 Bedrooms and Courtyard Entry

Name: Plan 69927AM: Contemporary Modern House Plan with 3 Bedrooms and Courtyard Entry
Brand: Architectural Designs
SKU: 69927AM
Price: 1635.0 USD
Availability: InStock

Heated S.F.

1,946

Beds

Baths

2.5

Stories

Cars

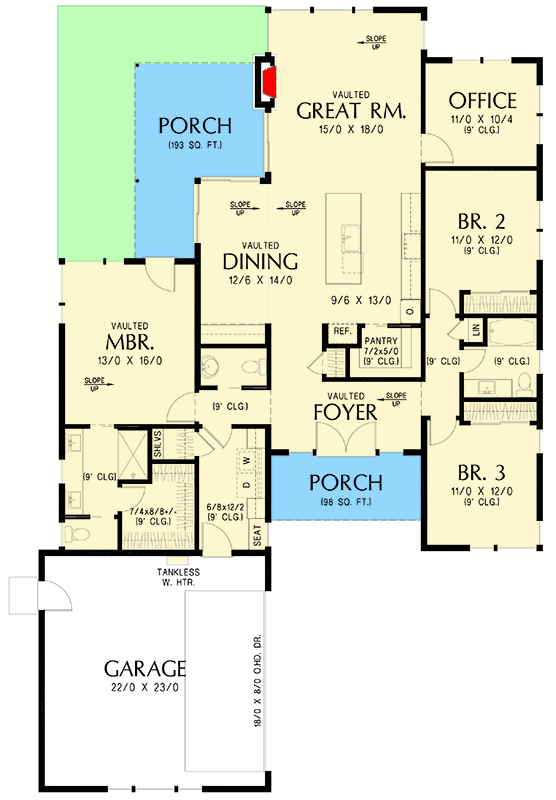

Floor Plan

Plan Details

This striking contemporary modern home offers 1,946 square feet of living space, featuring three bedrooms, two full bathrooms, a half bath, and an attached two-car garage.
The unique courtyard entry creates a welcoming and private arrival experience that immediately sets a sophisticated tone for the home.
Inside, the floor plan emphasizes a seamless flow, connecting the main living areas in an open-concept layout that is flooded with natural light.
A dedicated home office provides a quiet retreat for productivity, while the mudroom and walk-in pantry offer practical solutions for everyday organization.
The primary suite is thoughtfully positioned in a split-bedroom arrangement, ensuring maximum privacy from the secondary bedrooms.
Clean lines and high-contrast exterior details define the curb appeal of this residence, making it a standout choice for those who appreciate modern architectural design.

What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
