Plan 623615DJ

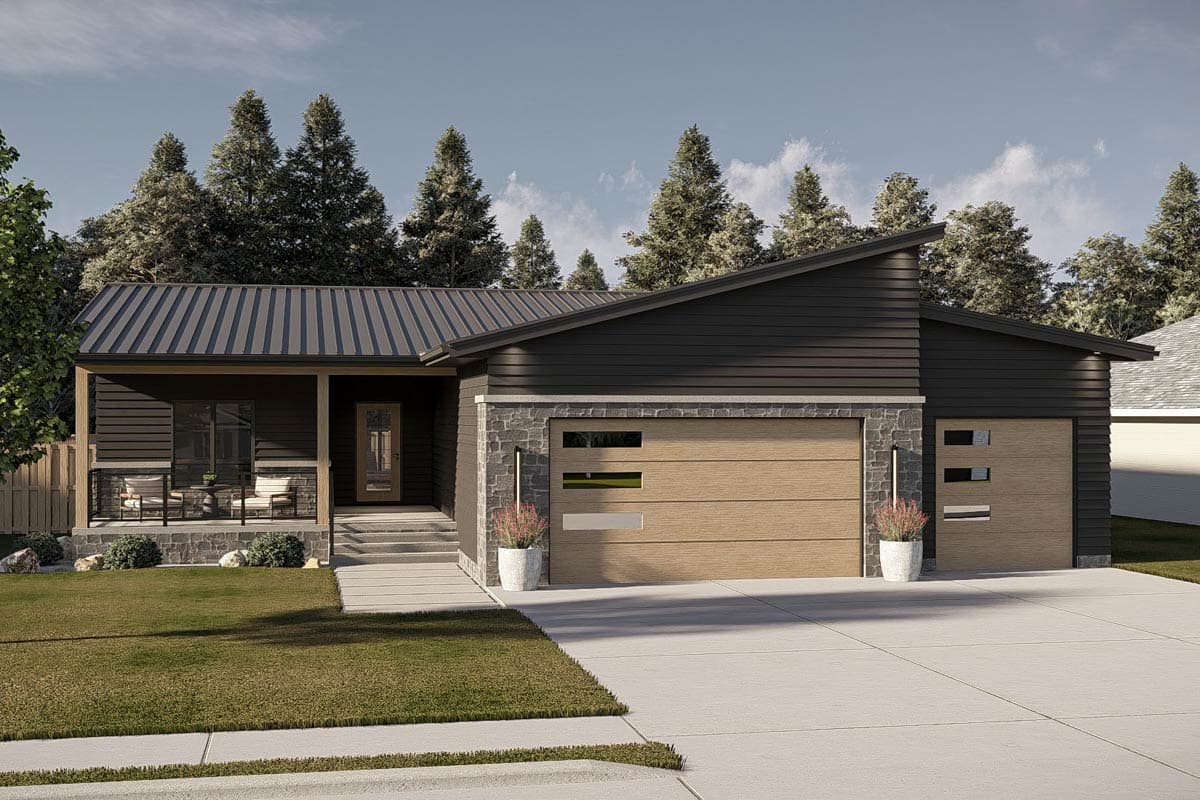

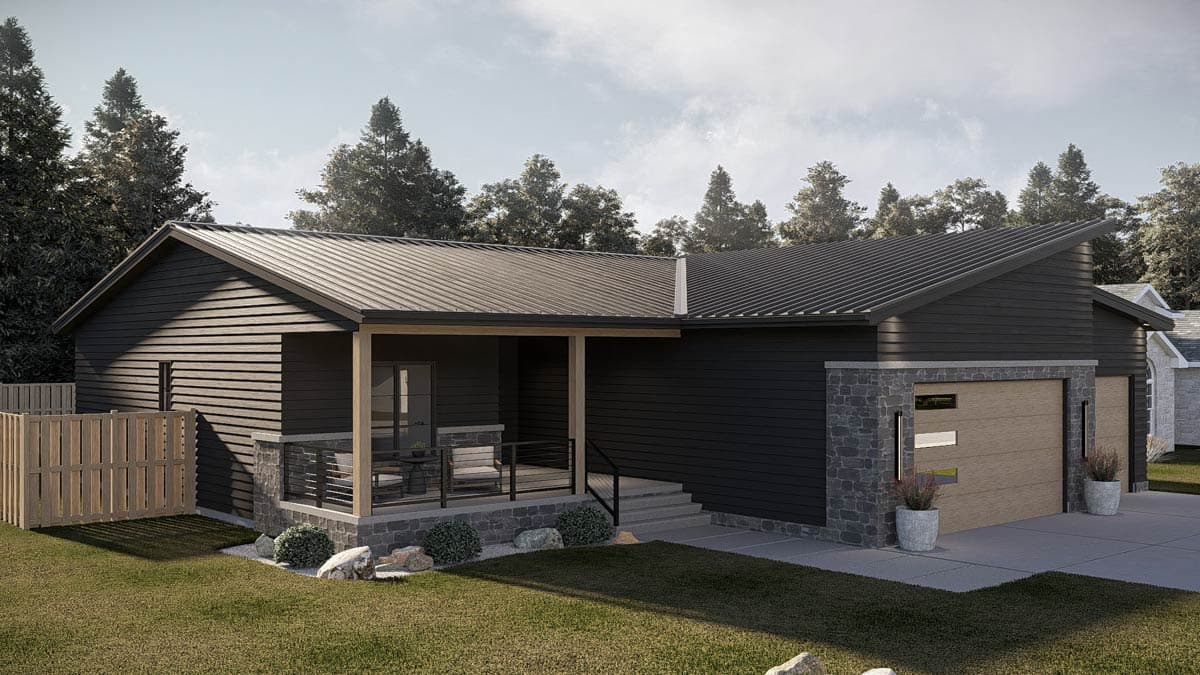

Contemporary Modern House Plan with Split Bedrooms and Covered Patio

Heated S.F.
1,701
Beds
3
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 623615DJ

Main Level
Main Level
Optional Lower Level Layout ($ Paid Option)
Optional Lower Level Layout ($ Paid Option)

Plan 623615DJ

M-F 9am-5pm EST |

1-203-761-8500

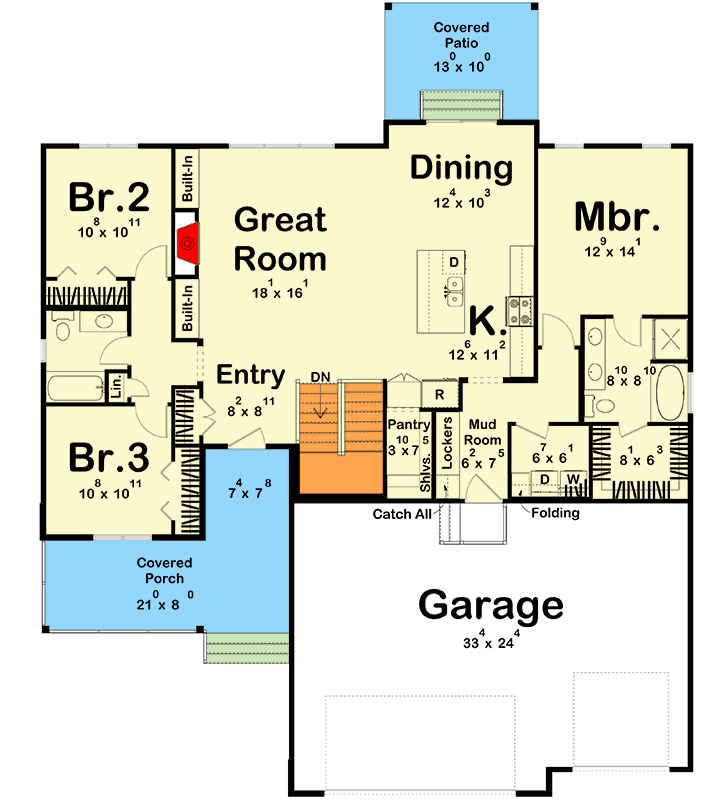

Main Level

Plan 623615DJ: Contemporary Modern House Plan with Split Bedrooms and Covered Patio - Floor Plan - Main Level - Contemporary, Modern

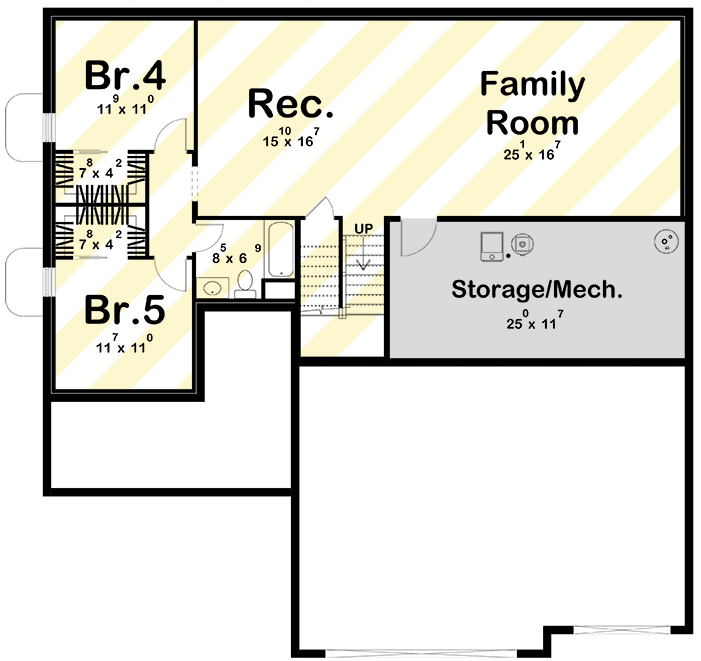

Optional Lower Level Layout ($ Paid Option)

Plan 623615DJ: Contemporary Modern House Plan with Split Bedrooms and Covered Patio - Floor Plan - Optional Lower Level Layout ($ Paid Option) - Contemporary, Modern

Plan Details

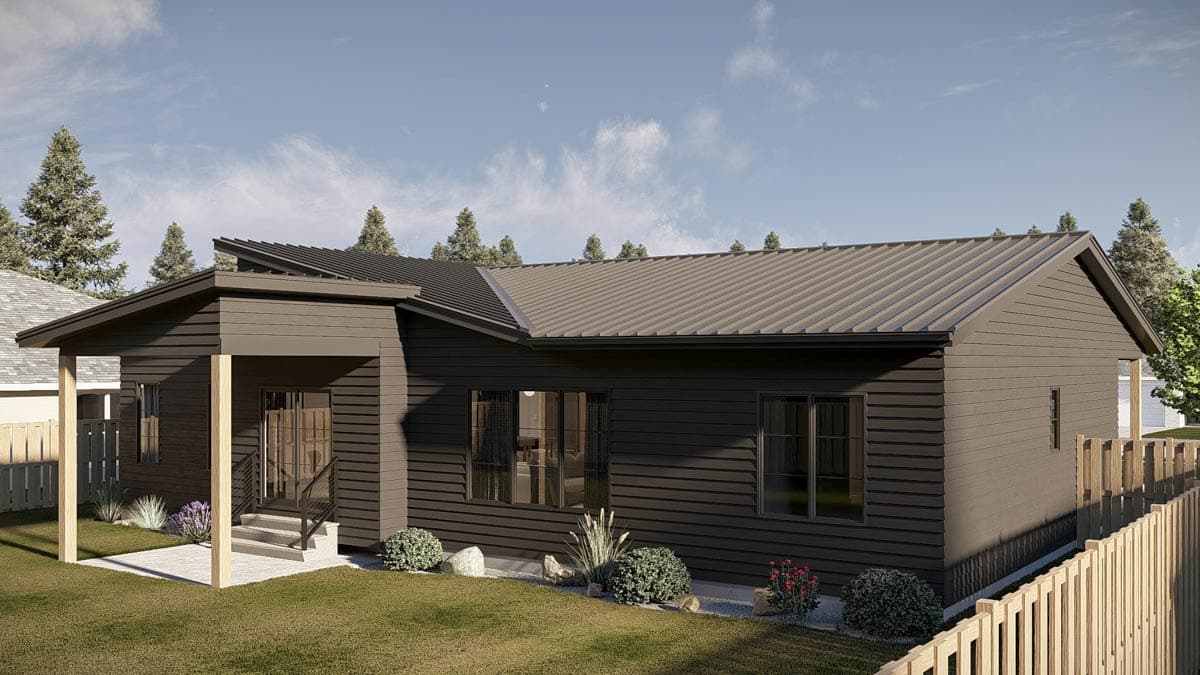

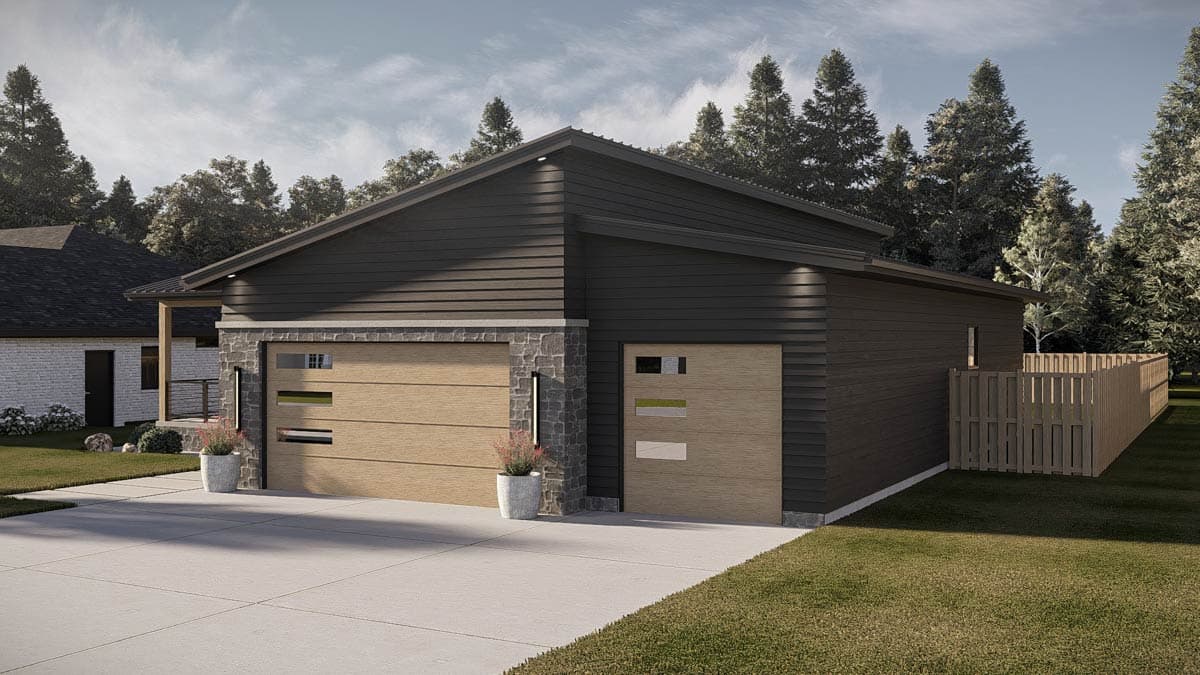

  • This inviting 1,701 sq. ft. plan features three bedrooms, two full bathrooms, and a spacious front-facing three-car garage with a clean-lined contemporary exterior.

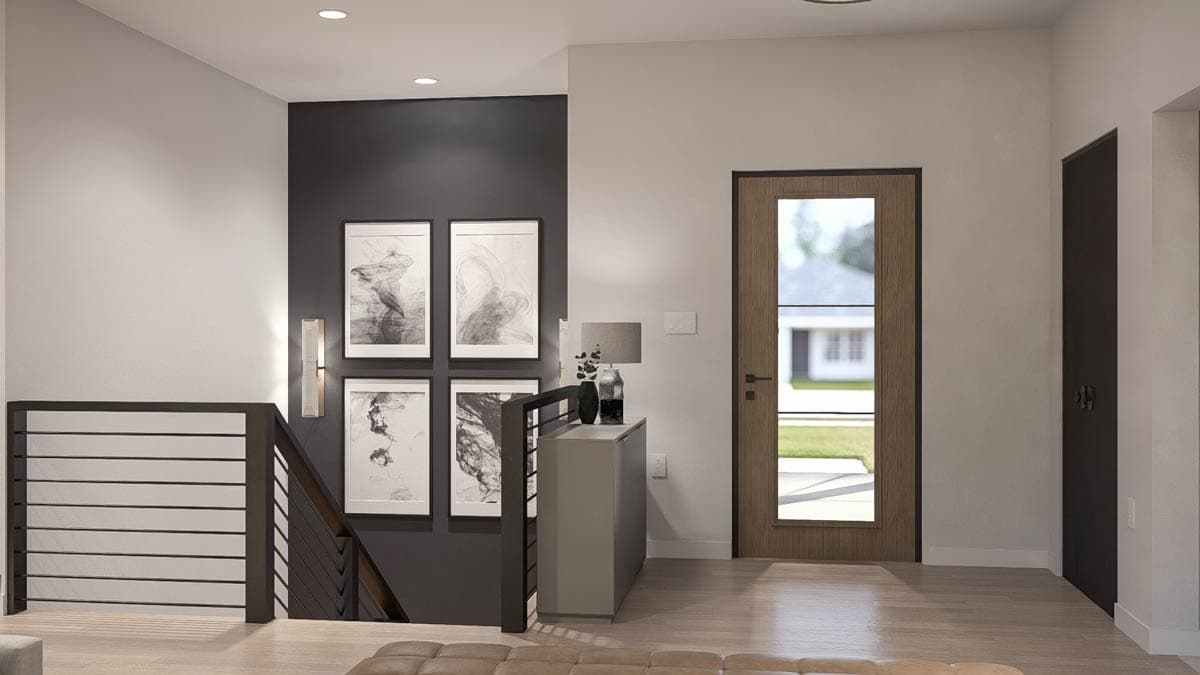

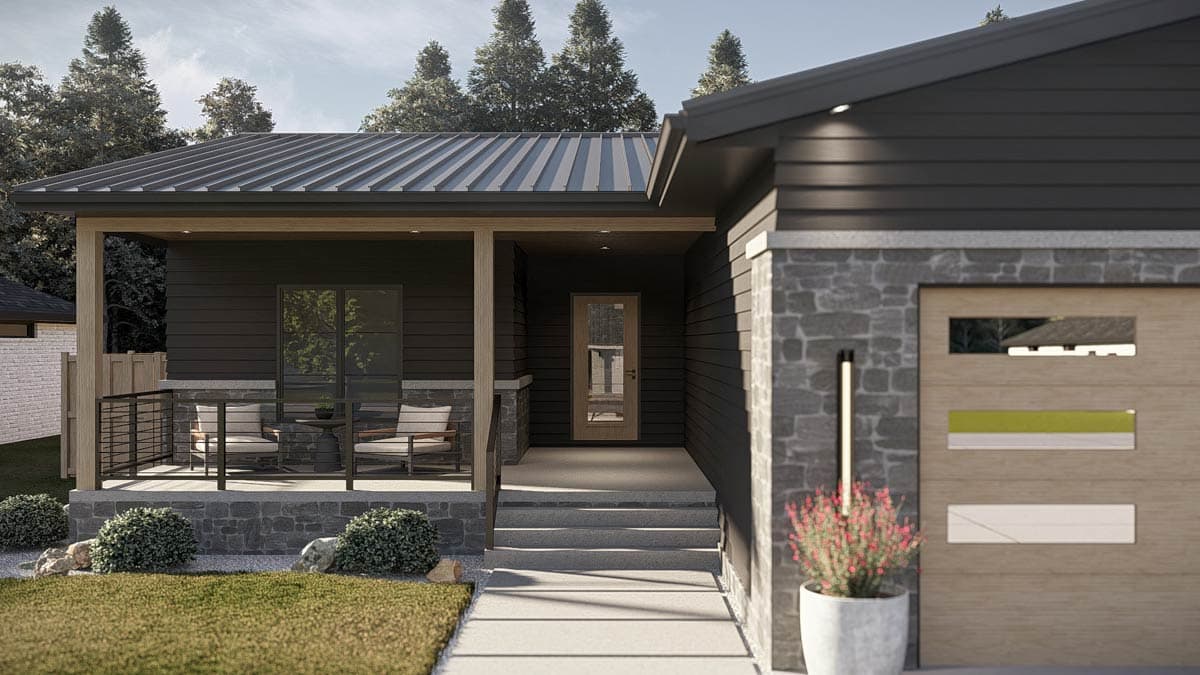

  • A welcoming covered porch leads inside to a bright entryway that offers open sightlines to the great room and rear views, enhanced by 9-foot ceilings for an airy feel.

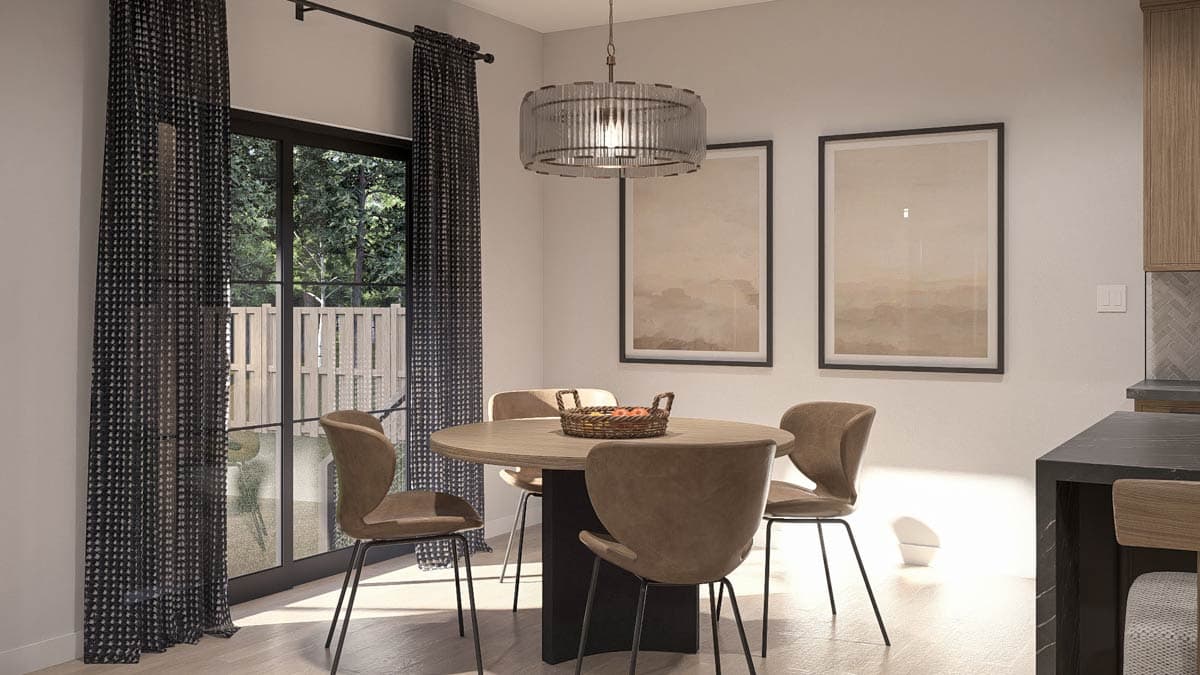

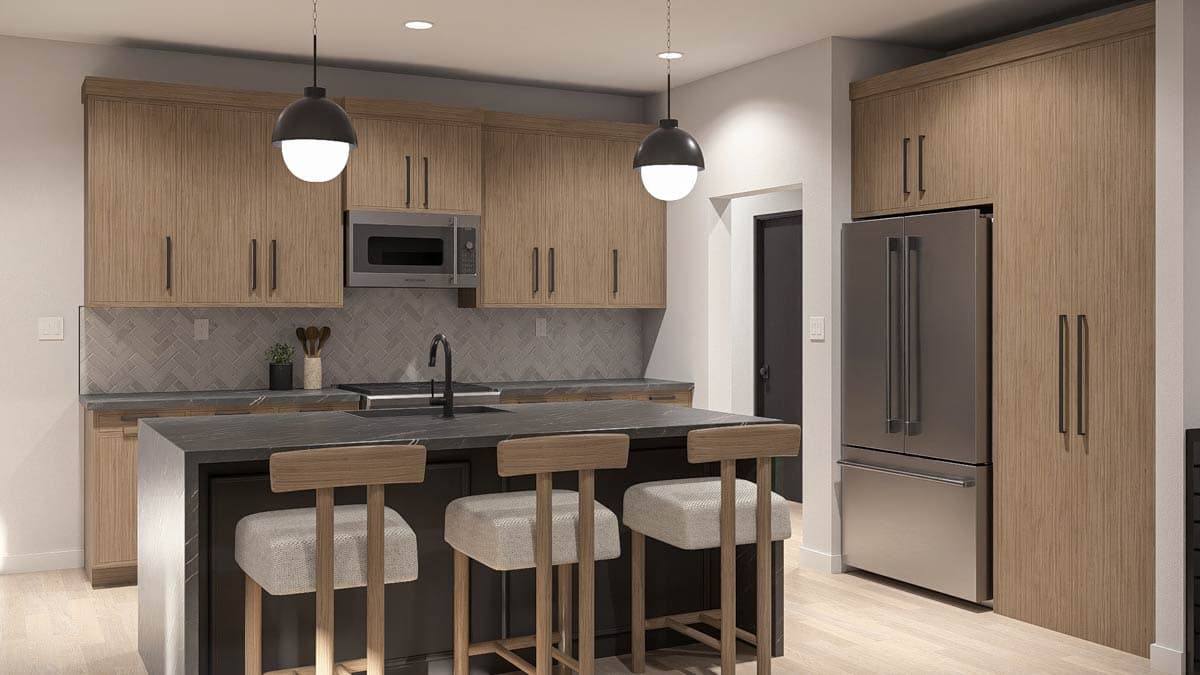

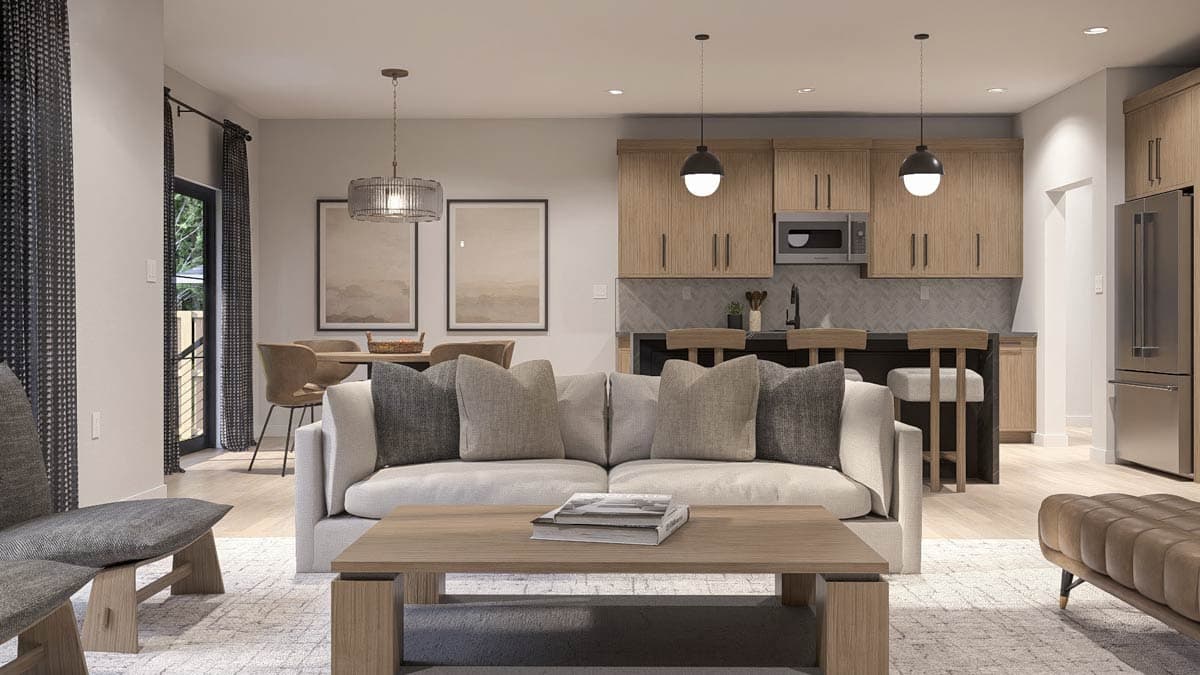

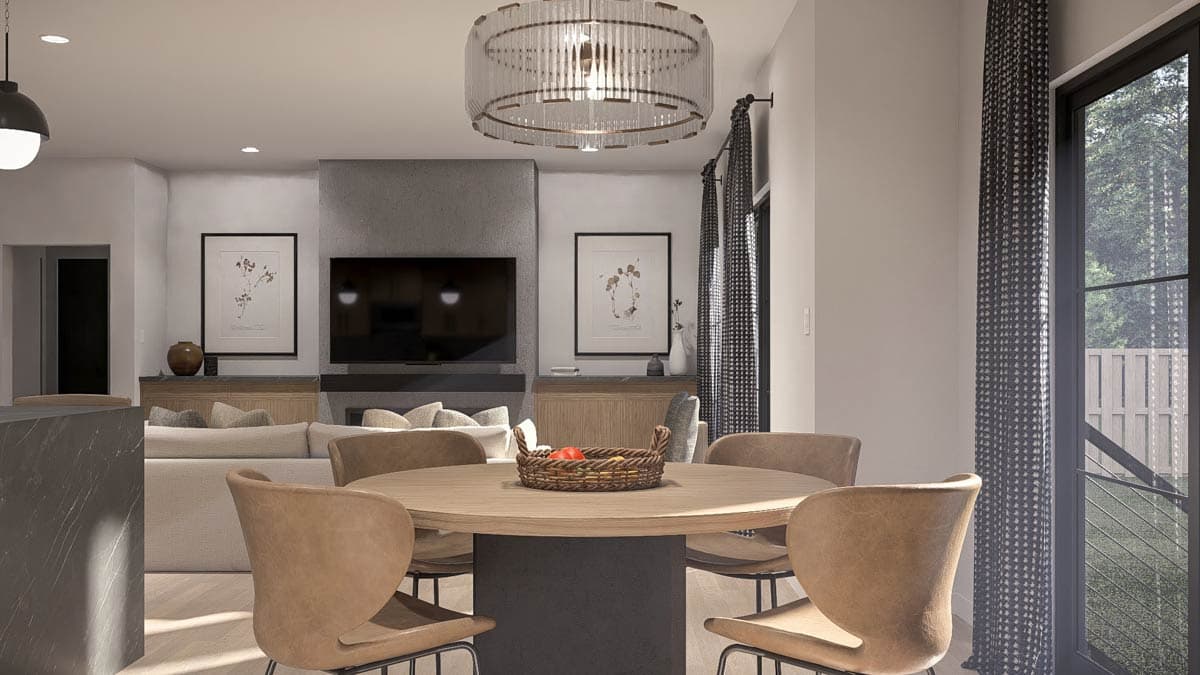

  • The kitchen acts as a true gathering spot, complete with a large island, a walk-in butler's pantry, and seamless flow into the dining area and great room for easy entertaining.

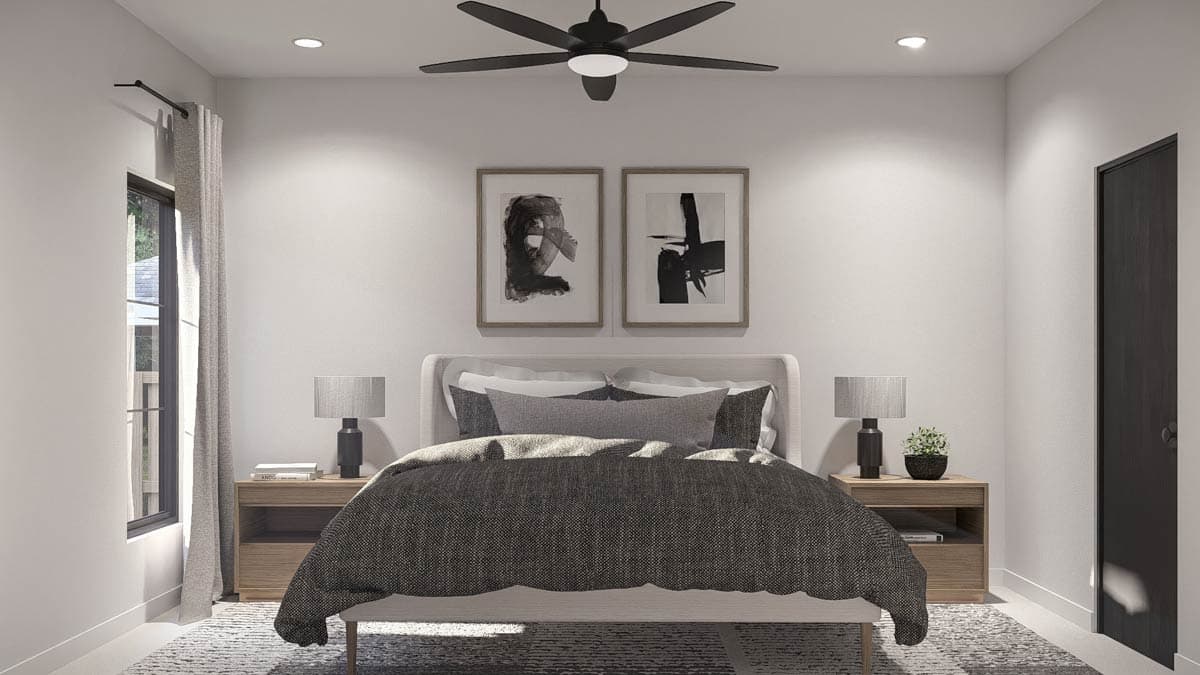

  • The split-bedroom layout thoughtfully places the private primary suite in its own wing, while two secondary bedrooms are situated together for comfort and privacy.
  • Practical living is enhanced by a dedicated mudroom, pantry, and handy laundry area, keeping daily routines organized and clutter out of sight.

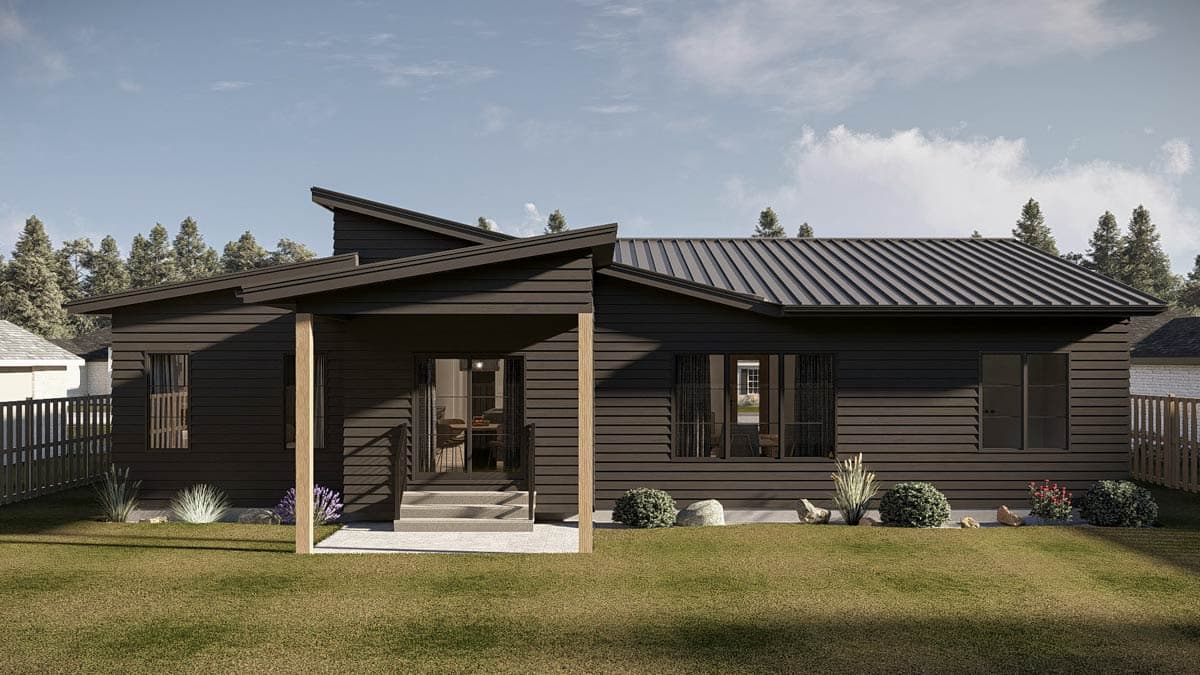

  • A covered rear patio provides an outdoor extension of the living space, ideal for relaxing or hosting meals outside in all seasons.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,701 sq. ft.

1st Floor

1,701 sq. ft.

Optional Lower Level

1,179 sq. ft.

Porch, Combined

354 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 0"

Depth

67' 0"

Max Ridge Height

15' 6"

Garage

Type

Standard, Attached

Area

851 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

2 on 12

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,701 sq. ft.

1st Floor

1,701 sq. ft.

Optional Lower Level

1,179 sq. ft.

Porch, Combined

354 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 0"

Depth

67' 0"

Max Ridge Height

15' 6"

Garage

Type

Standard, Attached

Area

851 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

2 on 12

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
