Plan 52467WM

Contemporary Modern House Plan with Split Bedrooms and Vaulted Ceilings

Heated S.F.
1,341
Beds
3
Baths
2
Stories
1

Floor Plan

Plan 52467WM

Main Level
Main Level

Plan 52467WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

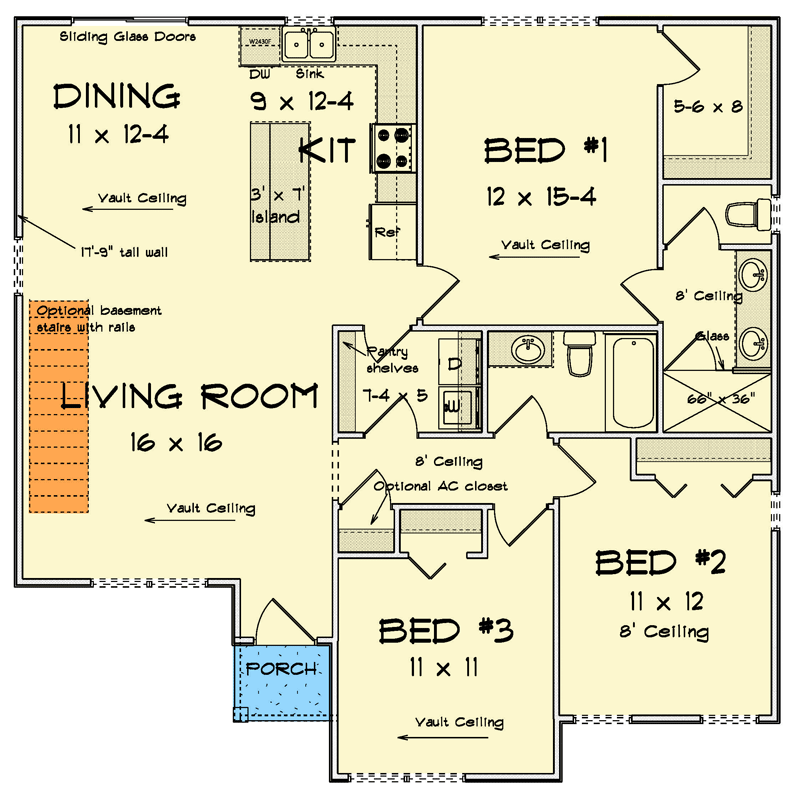

Plan 52467WM: Contemporary Modern House Plan with Split Bedrooms and Vaulted Ceilings - Floor Plan - Main Level - Contemporary, Modern

Plan Details

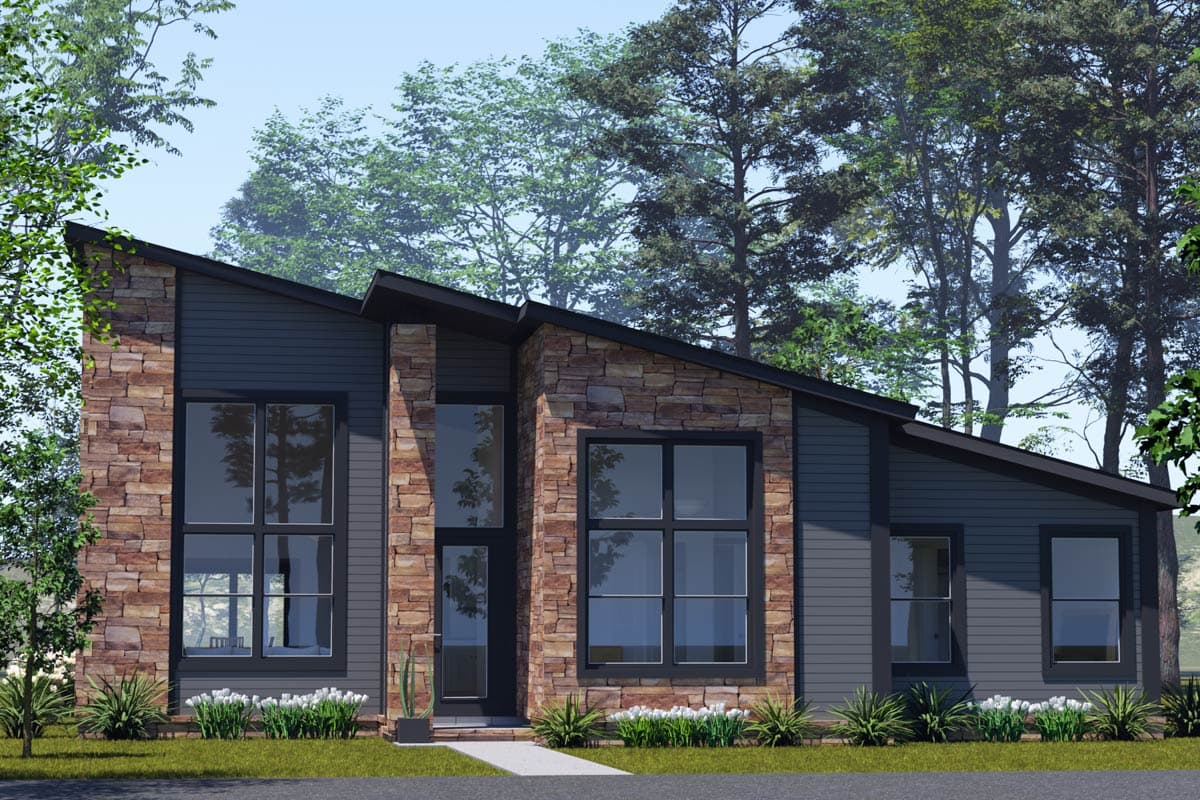

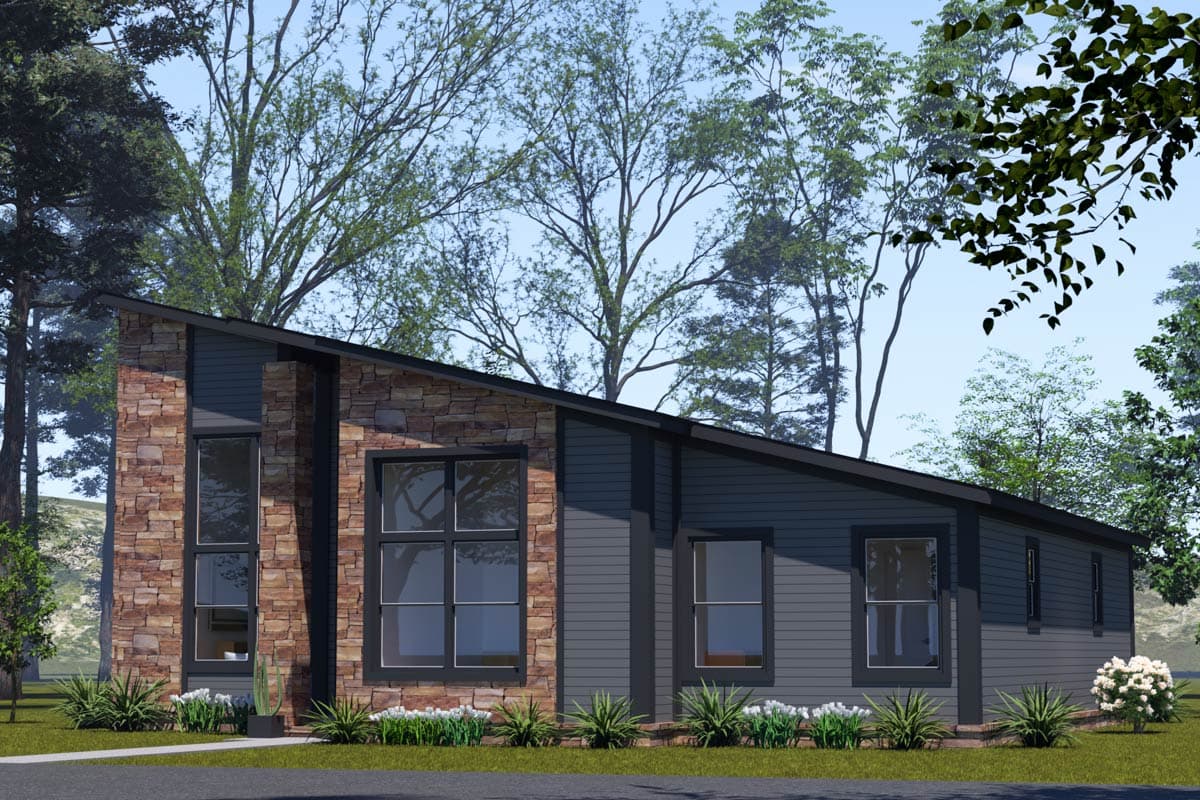

  • This 1,341 sq. ft. contemporary modern house plan features 3 bedrooms, 2 full bathrooms, and a sleek, stone and dark siding exterior.
  • Upon entry, discover an expansive open-concept living area where the living room, dining room, and kitchen flow seamlessly together, all crowned with dramatic vaulted ceilings and a striking 17-foot tall wall in the living space.
  • The gourmet kitchen boasts a spacious 3'x7' island, perfect for casual dining or meal prep, and is complemented by a generous walk-in pantry, providing ample storage and organization for culinary essentials.
  • The thoughtful split-bedroom layout places the private master suite on one side, complete with its own vaulted ceiling and an attached full bathroom, while two additional bedrooms and a shared full bath are situated on the opposite side, offering privacy and comfort for all.
  • Sliding glass doors in the dining area invite natural light and provide direct access to the outdoors, ideal for enjoying morning coffee or al fresco dining.
  • A welcoming front porch offers a charming spot to greet guests or simply relax and observe the neighborhood.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,341 sq. ft.

1st Floor

1,341 sq. ft.

Porch, Front

20 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

39' 0"

Max Ridge Height

18' 7"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,341 sq. ft.

1st Floor

1,341 sq. ft.

Porch, Front

20 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

39' 0"

Max Ridge Height

18' 7"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
