Contemporary Mountain View Home Plan with 17' Ceilings in Back

Plan 680042VR

  • 2,202

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • Approached from the front, this home plan presents itself as a staid mountain ranch. Approach it from the back, however, and its truly colors shine through as a contemporary mountain home with a wall of windows to soak up the views.
  • The main floor ceilings rise from 8' to 17' in the family room and main floor bedroom.
  • The lower level gives you a bedroom with bath and a roomy den with access to the back yard.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

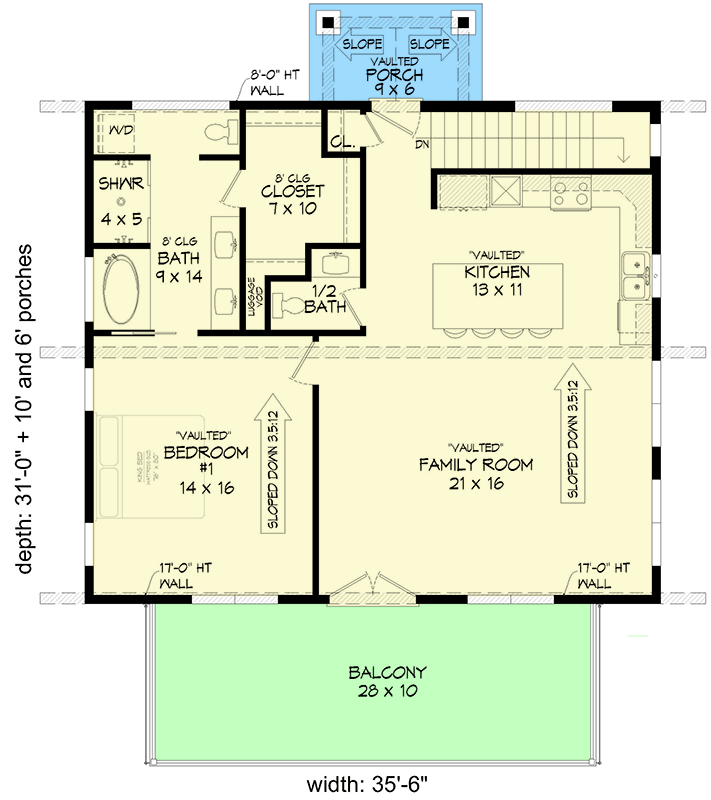

Contemporary Mountain View Home Plan with 17' Ceilings in Back - 680042VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

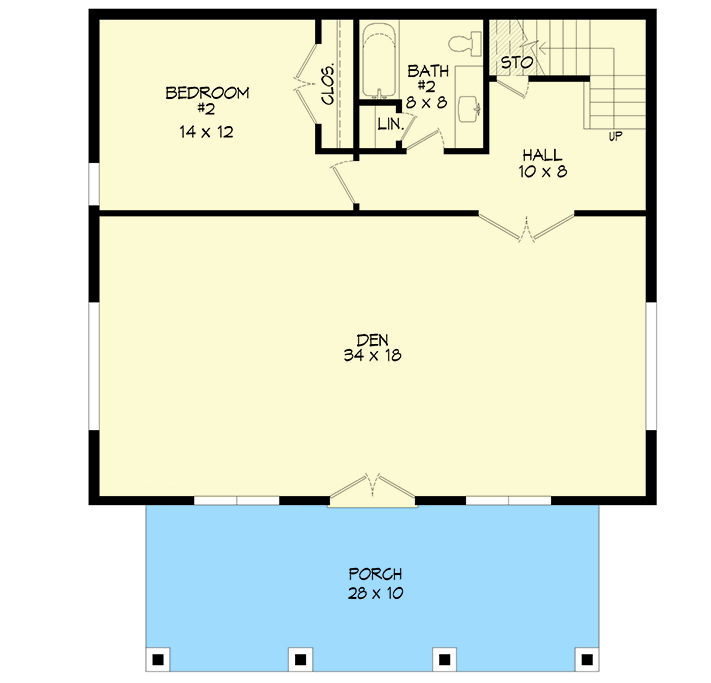

Contemporary Mountain View Home Plan with 17' Ceilings in Back - 680042VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,202 sq. ft.
  • 1st Floor: 1,101 sq. ft.
  • 2nd Floor: 1,101 sq. ft.
  • Balcony / Veranda: 275 sq. ft.
  • Porch, Rear: 275 sq. ft.
  • Porch, Front: 63 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 35' 6"
  • Depth: 47' 0"
  • Max ridge height: 30' 6"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick

Architectural Style
