Plan 280130JWD Contemporary New American House Plan with Home Office and Private In-Law Suite

Contemporary New American House Plan with Home Office and Private In-Law Suite

Plan 280130JWD

  • 3,257

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This contemporary New American house plan has a refreshing exterior and comes with its own in-law suite (or a multi-generational or nanny wing) accessible from its own private stair cleverly hidden in front of the garage.
  • To the right of the foyer you'll find a beautiful 19'-high vaulted ceiling in the great room. This space is open to the kitchen and dining room and has access to the covered porch through sliding doors.
  • The kitchen has a large island with seating and a walk-in pantry. Serving meals is a breeze in the adjacent dining room or outside on the patio.
  • The master suite is on the main floor and has a walk-in closet and a five-fixture bath complete with two vanities, tub, shower and private toilet.
  • Work from home in the office tucked in off the mudroom. A powder room is conveniently located by the stairs.
  • Upstairs, there are three bedrooms plus an activity room with a 10' vaulted ceiling. This room is a great space to play games in or to do your homework.
  • Perhaps the most special feature of this home is through the door on the activity room: a full suite with its own kitchenette, bedroom, bath and living area. Perfect for a boomerang kid, a nanny or au pair, or parents, it has ground floor access by stairs that run directly outside.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

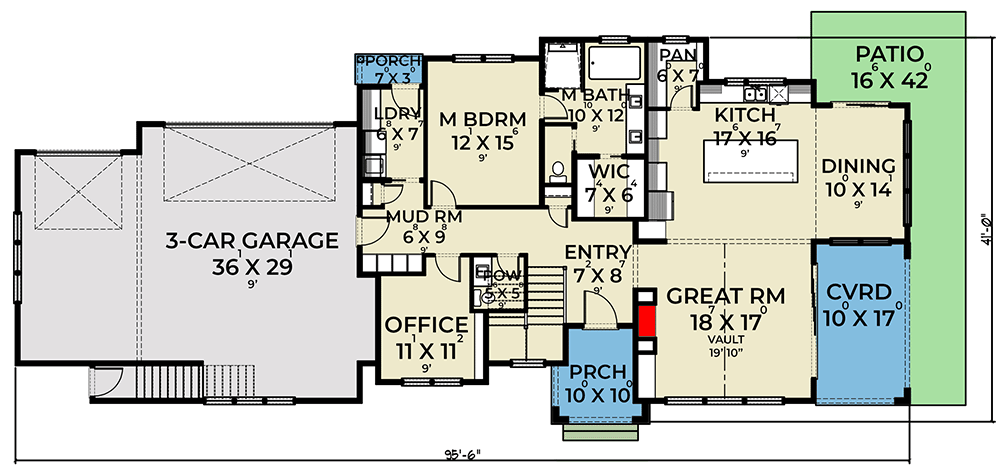

Contemporary New American House Plan with Home Office and Private In-Law Suite - 280130JWD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

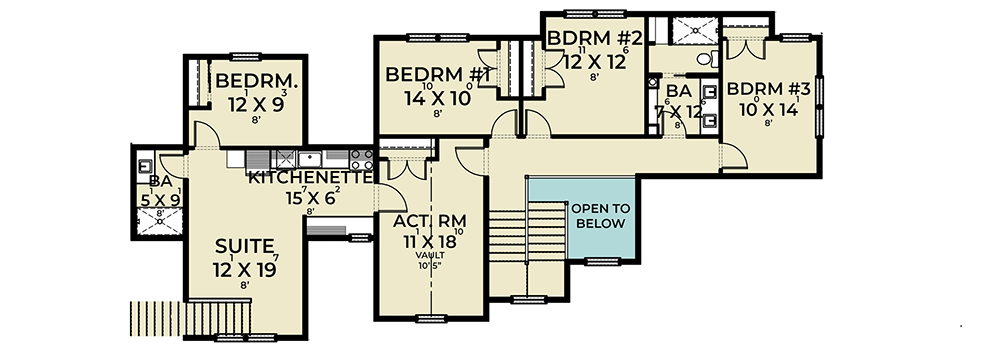

Contemporary New American House Plan with Home Office and Private In-Law Suite - 280130JWD floor plan - 2nd Floor

Plan details

Contemporary New American House Plan with Home Office and Private In-Law Suite

  • 3,257

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $1,275
  • PDF - Single-Build $2,150
  • 5 Sets + PDF $2,300
  • CAD - Single-Build $2,650
  • View all purchase option online

About This Plan

  • This contemporary New American house plan has a refreshing exterior and comes with its own in-law suite (or a multi-generational or nanny wing) accessible from its own private stair cleverly hidden in front of the garage.
  • To the right of the foyer you'll find a beautiful 19'-high vaulted ceiling in the great room. This space is open to the kitchen and dining room and has access to the covered porch through sliding doors.
  • The kitchen has a large island with seating and a walk-in pantry. Serving meals is a breeze in the adjacent dining room or outside on the patio.
  • The master suite is on the main floor and has a walk-in closet and a five-fixture bath complete with two vanities, tub, shower and private toilet.
  • Work from home in the office tucked in off the mudroom. A powder room is conveniently located by the stairs.
  • Upstairs, there are three bedrooms plus an activity room with a 10' vaulted ceiling. This room is a great space to play games in or to do your homework.
  • Perhaps the most special feature of this home is through the door on the activity room: a full suite with its own kitchenette, bedroom, bath and living area. Perfect for a boomerang kid, a nanny or au pair, or parents, it has ground floor access by stairs that run directly outside.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,257 sq. ft.
  • 1st Floor: 1,807 sq. ft.
  • 2nd Floor: 960 sq. ft.
  • Apartment: 490 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 95' 6"
  • Depth: 39' 0"
  • Max ridge height: 28' 3"

Garage

  • Type: Attached
  • Area: 1046 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
