Plan 85380MS Contemporary New American Multiplex House Plan with 4 Units Each under 1500 Square Feet

5,976 4 64' 0" 45' 0" 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary New American Multiplex House Plan with 4 Units Each under 1500 Square Feet

Plan 85380MS

  • 5,976

    Heated s.f.

  • 4

    Units

  • 64' 0"

    Width

  • 45' 0"

    Depth

  • This contemporary New American multiplex house plan gives you four units, each with 2 beds, 2.5 baths and 1,494 square feet of heated living space (254 sq. ft. on the main floor, 640 on the second floor and 600 square feet on the third floor) in addition to a 242 square foot 1-car garage.
  • The ground floor consists of a covered porch and the office, as well as the rear entry garage. The office benefits from shared access to the garage so you could even repurpose the garage as an extension of the office or if you are an artist, perhaps you could use the office as a clean room and the garage as the main studio.
  • Moving to the second floor, there is a long and open central living space, where the kitchen, dining room, and living room all flow together as one unit. The kitchen is a very functional U-shape and offers tons of counter space for such a compact space. Rounding out the main floor is a powder room just off the kitchen.
  • The third floor is home to the two bedrooms, as well as an additional full bath. The primary bedroom occupies the front half of the floor, and includes a wide closet and an en suite bathroom that includes an extra wide counter and a full size shower. The second bedroom is down the hall past the second full bathroom and is quite large for the footprint of the home.

Each plan set is drawn to 1/4" scale and includes the following:

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

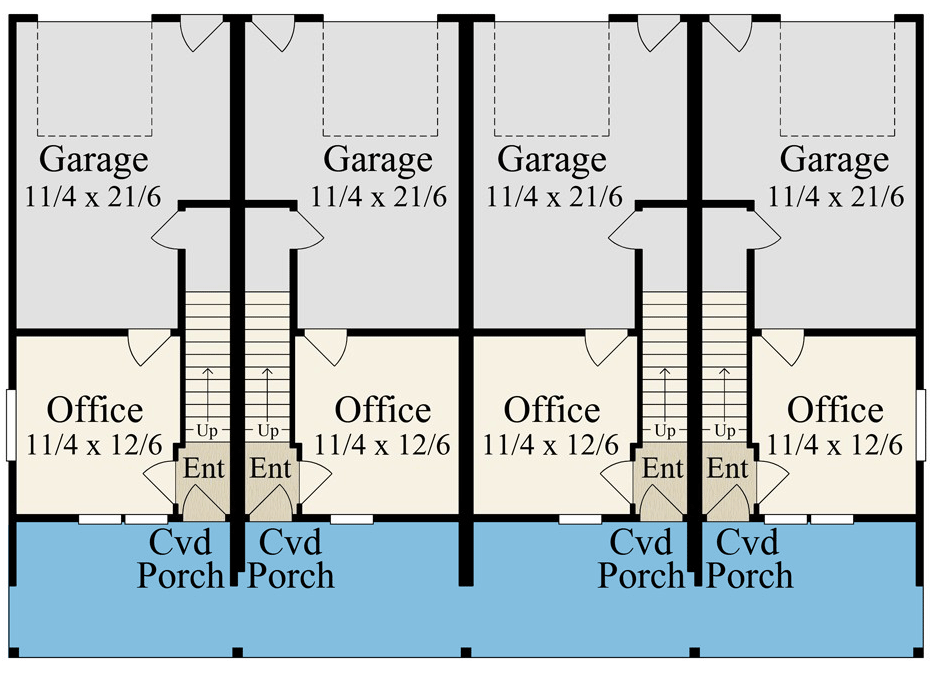

Contemporary New American Multiplex House Plan with 4 Units Each under 1500 Square Feet - 85380MS floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

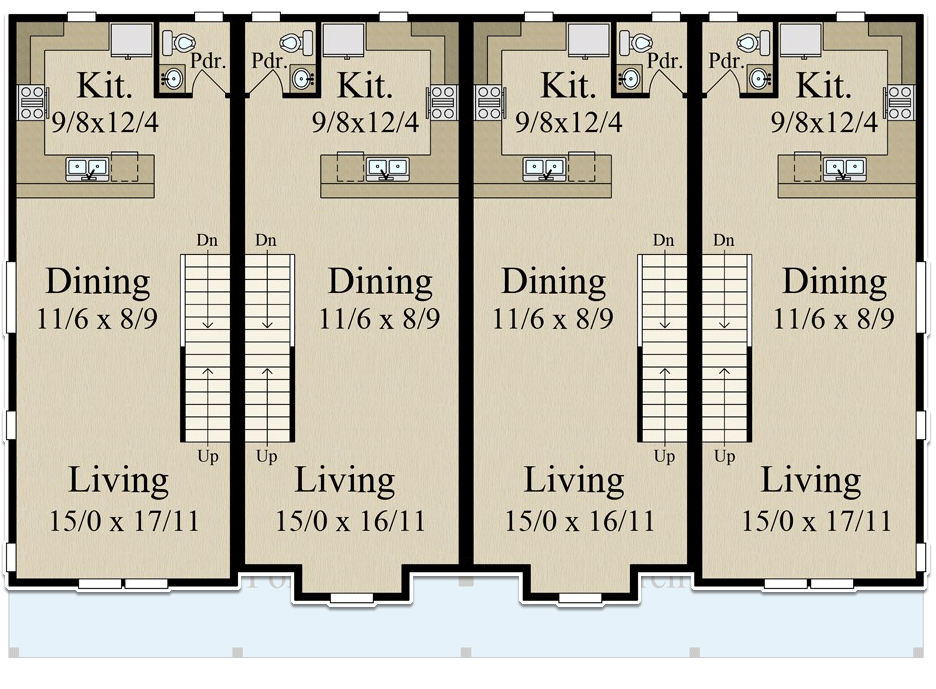

Contemporary New American Multiplex House Plan with 4 Units Each under 1500 Square Feet - 85380MS floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

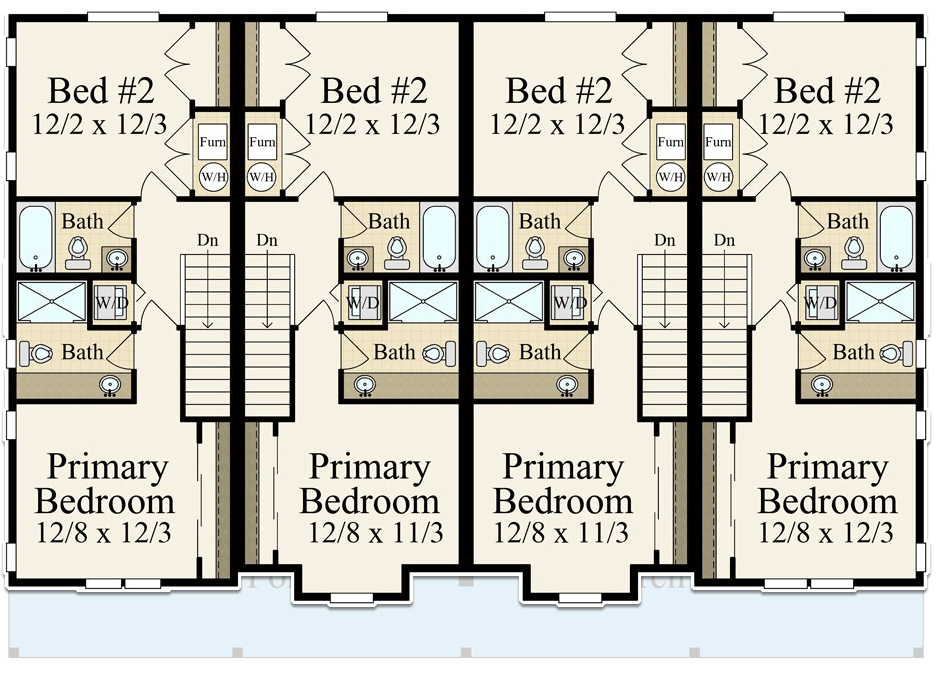

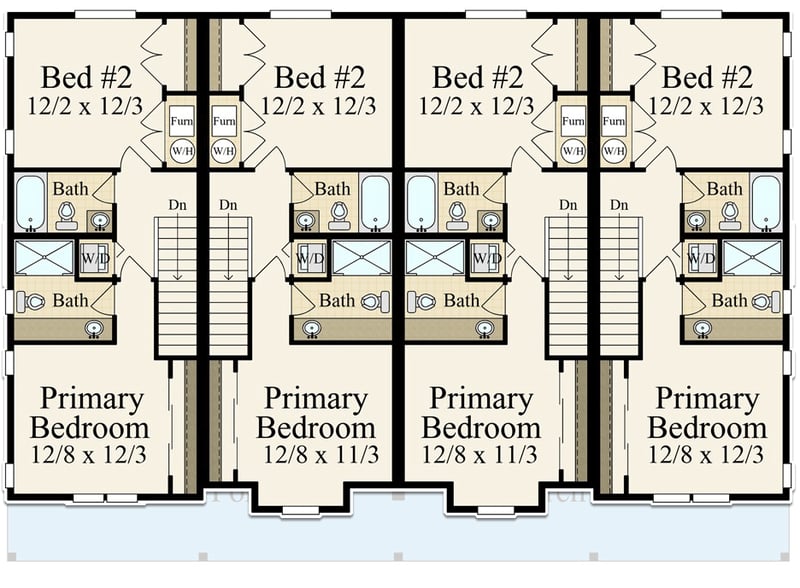

Contemporary New American Multiplex House Plan with 4 Units Each under 1500 Square Feet - 85380MS floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,976 sq. ft.
  • 1st Floor: 1,016 sq. ft.
  • 2nd Floor: 1,920 sq. ft.
  • 3rd Floor: 1,800 sq. ft.

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 8
  • Half bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 45' 0"

Garage

  • Type: Drive Under
  • Area: 968 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary New American Multiplex House Plan with 4 Units Each under 1500 Square Feet

  • 5,976

    Heated s.f.

  • 4

    Units

  • 64' 0"

    Width

  • 45' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,900
  • 6 Sets + PDF $2,100
  • CAD Unlimited + PDF $2,750
  • CAD + PDF - Single-Build $2,750
  • View all purchase option online

About This Plan

  • This contemporary New American multiplex house plan gives you four units, each with 2 beds, 2.5 baths and 1,494 square feet of heated living space (254 sq. ft. on the main floor, 640 on the second floor and 600 square feet on the third floor) in addition to a 242 square foot 1-car garage.
  • The ground floor consists of a covered porch and the office, as well as the rear entry garage. The office benefits from shared access to the garage so you could even repurpose the garage as an extension of the office or if you are an artist, perhaps you could use the office as a clean room and the garage as the main studio.
  • Moving to the second floor, there is a long and open central living space, where the kitchen, dining room, and living room all flow together as one unit. The kitchen is a very functional U-shape and offers tons of counter space for such a compact space. Rounding out the main floor is a powder room just off the kitchen.
  • The third floor is home to the two bedrooms, as well as an additional full bath. The primary bedroom occupies the front half of the floor, and includes a wide closet and an en suite bathroom that includes an extra wide counter and a full size shower. The second bedroom is down the hall past the second full bathroom and is quite large for the footprint of the home.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,976 sq. ft.
  • 1st Floor: 1,016 sq. ft.
  • 2nd Floor: 1,920 sq. ft.
  • 3rd Floor: 1,800 sq. ft.

Beds/Baths

  • Bedrooms: 8
  • Full bathrooms: 8
  • Half bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 45' 0"

Garage

  • Type: Drive Under
  • Area: 968 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear

Roof

  • Framing Type: Truss
