Contemporary Northwest Home Plan with Garage Storage and Open Concept Main Level

Plan 80984PM

  • 1,459

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 2

    Stories

  • 1

    Cars

  • This Contemporary Northwest home plan displays a blend of siding materials for a modern appeal, complete with a low-pitched, hip and valley roof.
  • The extra-deep garage bay provides space for storage or lawn supplies and opens into a mudroom with a coat closet and powder bath.
  • The main level offers an open concept living space with the kitchen framed by the dining and living rooms.
  • The kitchen island provides seating for casual meals, and an oversized window in the two-story living room invites natural lighting to infiltrate the space.
  • Three bedrooms reside on the second level, along with a 5-fixture ensuite.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

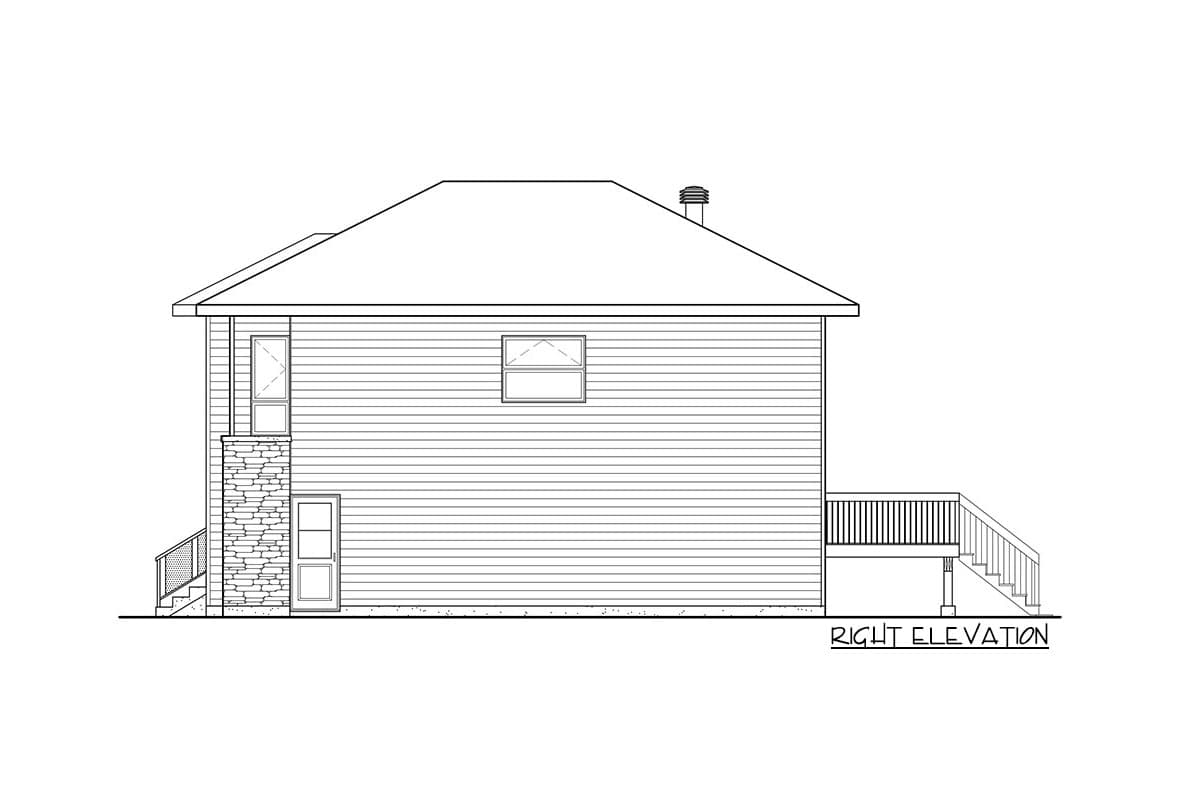

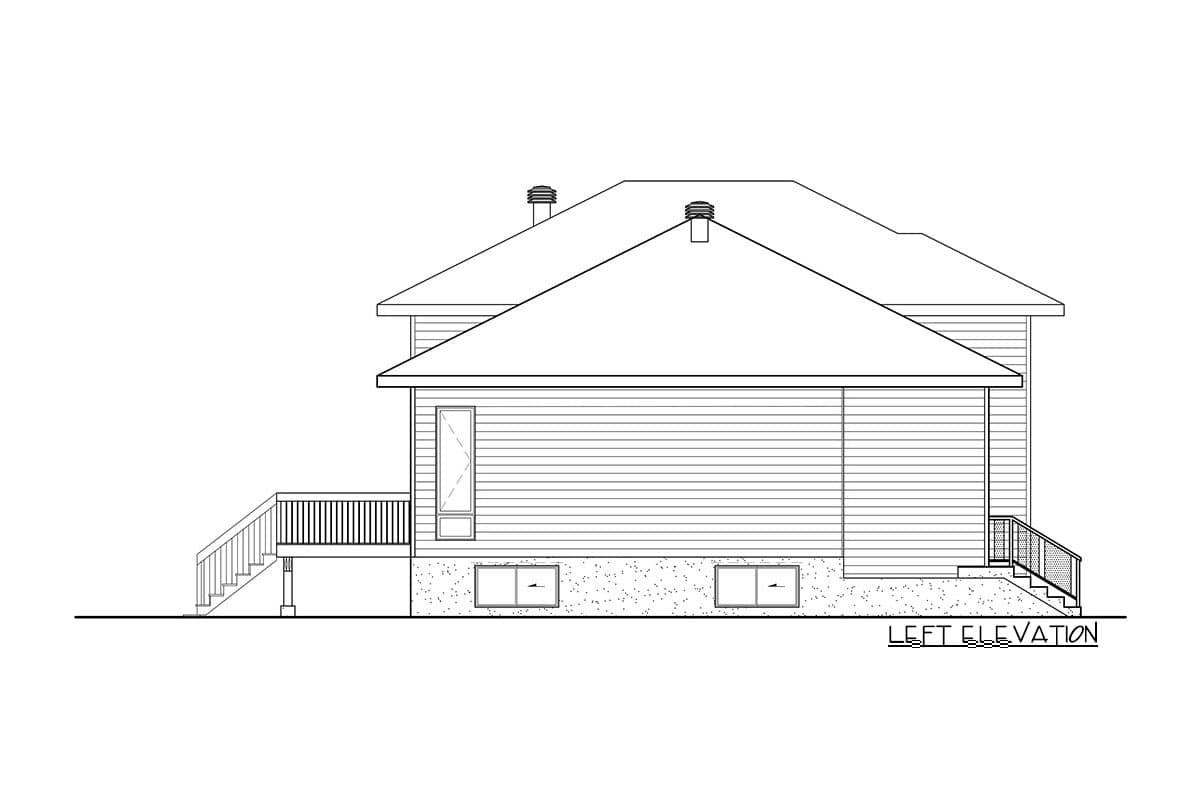

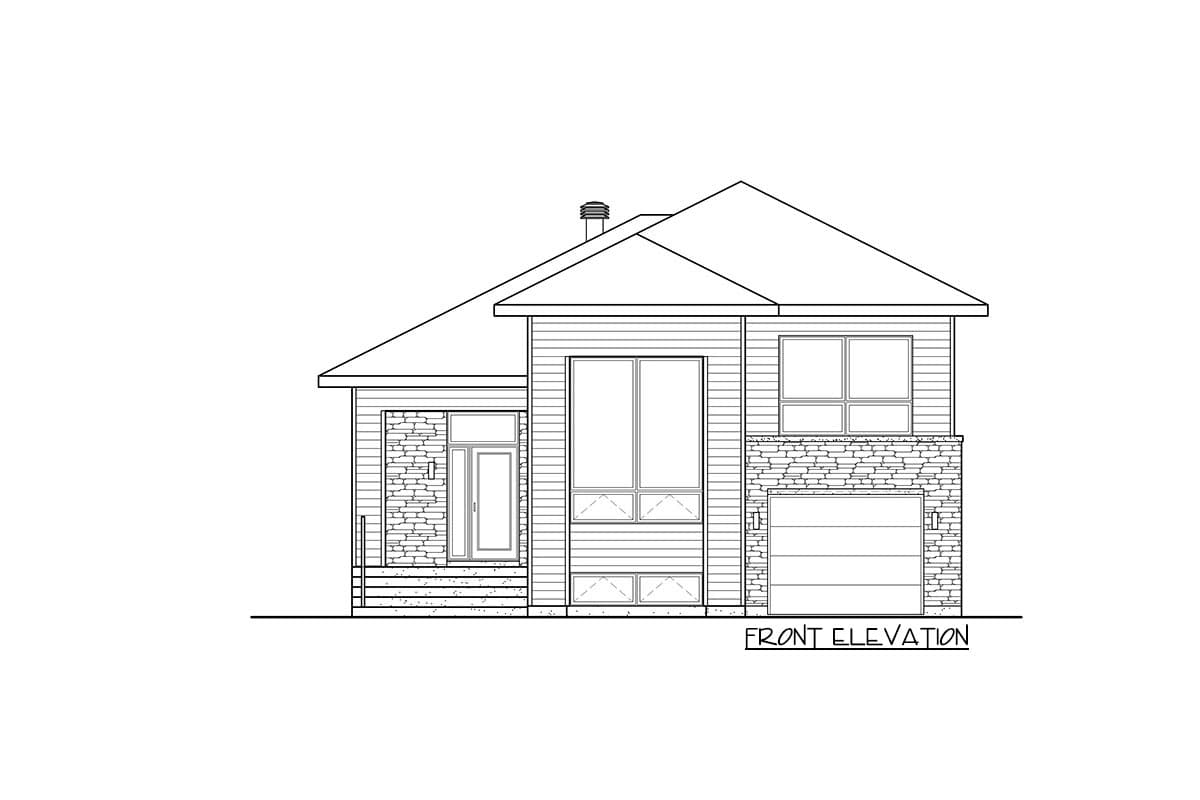

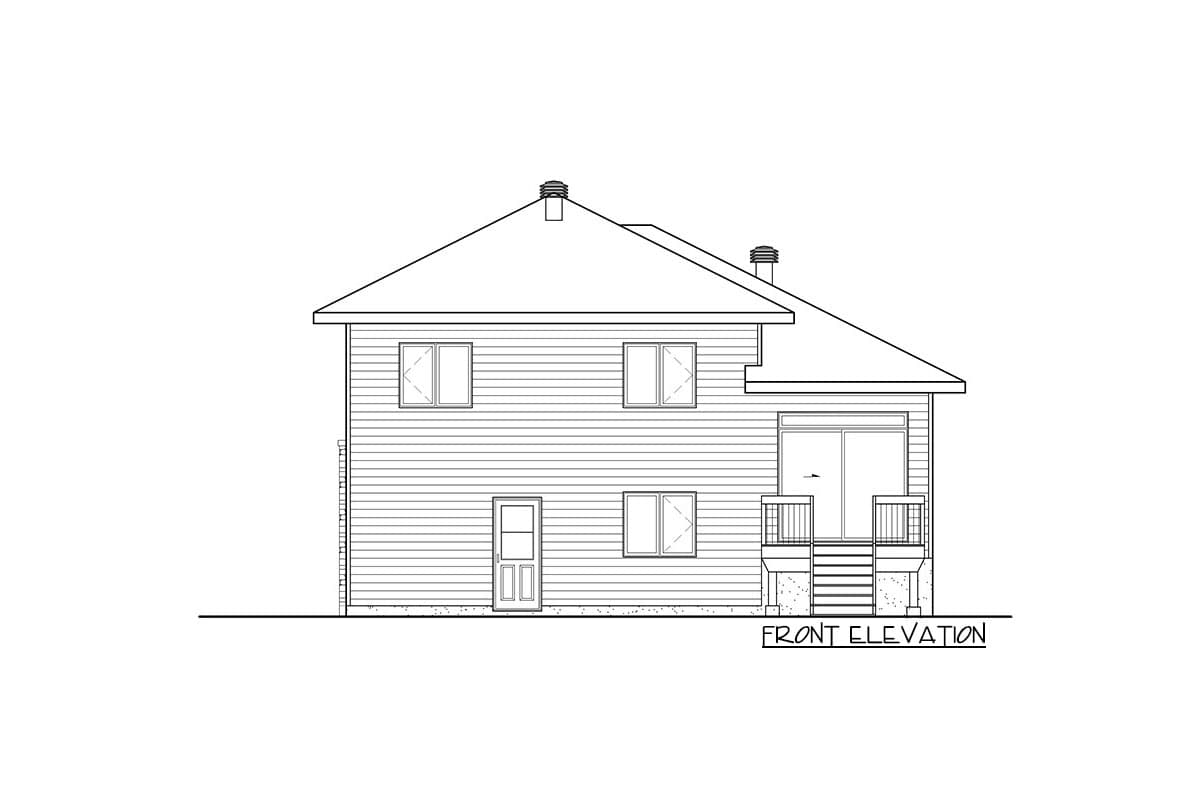

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

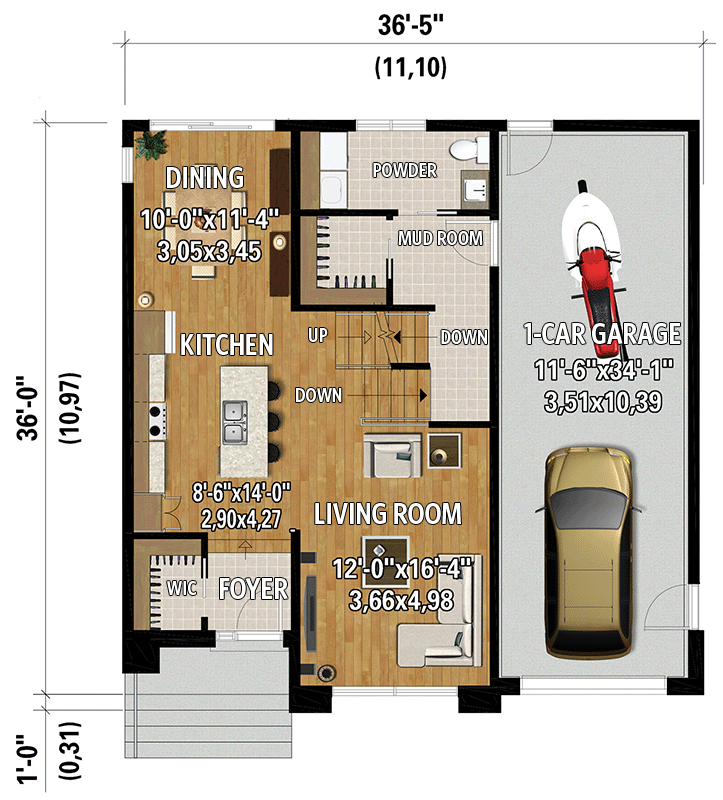

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Northwest Home Plan with Garage Storage and Open Concept Main Level - 80984PM floor plan - Main Level

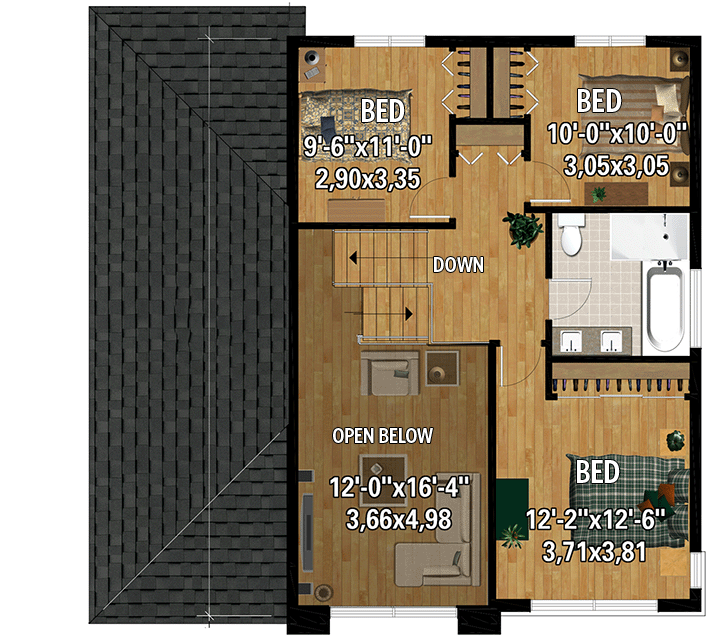

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Northwest Home Plan with Garage Storage and Open Concept Main Level - 80984PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,459 sq. ft.
  • 1st Floor: 815 sq. ft.
  • 2nd Floor: 664 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 36' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 450 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Architectural Style

Special features

Contemporary Northwest Home Plan with Garage Storage and Open Concept Main Level

  • 1,459

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $920
  • 5 Sets $965
  • 5 Sets + PDF $1,055
  • 5 Set + PDF + Materials List $1,140
  • CAD + PDF - Single-Build $1,940
  • View all purchase option online

About This Plan

  • This Contemporary Northwest home plan displays a blend of siding materials for a modern appeal, complete with a low-pitched, hip and valley roof.
  • The extra-deep garage bay provides space for storage or lawn supplies and opens into a mudroom with a coat closet and powder bath.
  • The main level offers an open concept living space with the kitchen framed by the dining and living rooms.
  • The kitchen island provides seating for casual meals, and an oversized window in the two-story living room invites natural lighting to infiltrate the space.
  • Three bedrooms reside on the second level, along with a 5-fixture ensuite.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,459 sq. ft.
  • 1st Floor: 815 sq. ft.
  • 2nd Floor: 664 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 36' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 450 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
