Contemporary Northwest Home Plan with Oversized Windows and Covered Patio

Plan 666126RAF

  • 4,070

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 3

    Stories

  • 2

    Cars

  • The open living space on the main level of this Contemporary Northwest home plan presents two sets of oversized sliding doors to maintain the flow between inside and out.
  • Move freely around the spacious kitchen that features an eating bar at the prep island, walk-in pantry, and built-in desk for days when you need to multi-task.
  • A forward-facing room is filled with natural lighting and can serve as a den or fourth bedroom.
  • At the top of the stairs, discover a leisure room with a TV niche that permits access to the remaining three bedrooms.
  • Large windows line the walls of the master suite, which includes a 5-fixture bathroom with a generous walk-in closet, while laundry on this level is an added bonus.

Plans include:

  • Cover Sheet
  • General notes
  • Foundation Plan
  • Fully dimensioned floor plans
  • Elevations
  • Building cross sections
  • Roof Plan

What is NOT included in the plans:
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

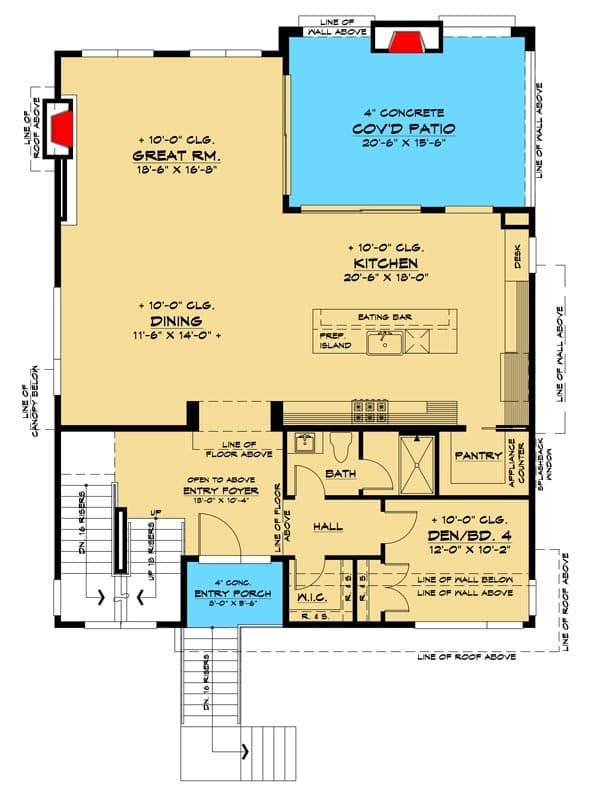

Contemporary Northwest Home Plan with Oversized Windows and Covered Patio - 666126RAF floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

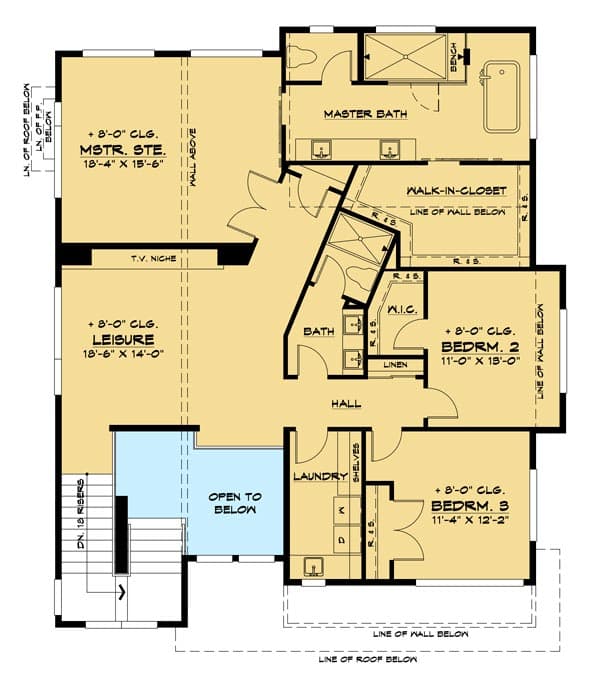

Contemporary Northwest Home Plan with Oversized Windows and Covered Patio - 666126RAF floor plan - Second Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

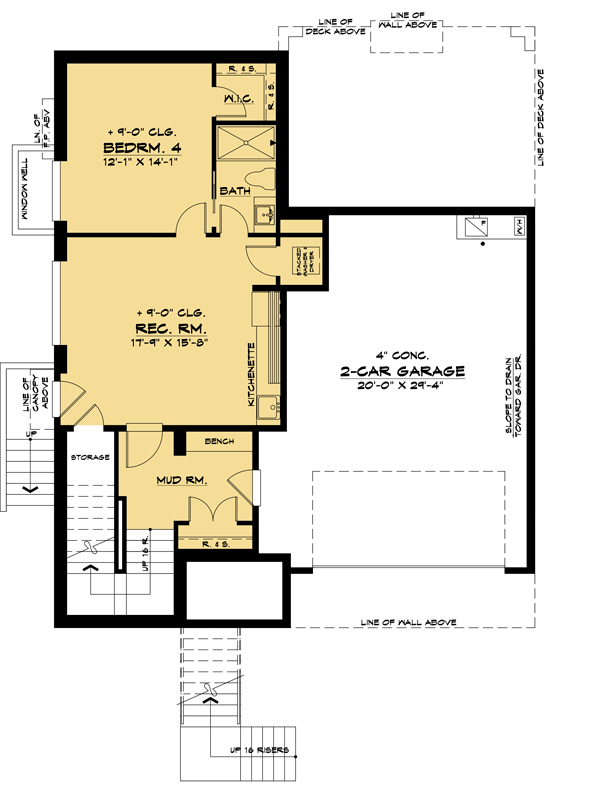

Contemporary Northwest Home Plan with Oversized Windows and Covered Patio - 666126RAF floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,070 sq. ft.
  • Lower Level: 817 sq. ft.
  • 1st Floor: 1,614 sq. ft.
  • 2nd Floor: 1,639 sq. ft.
  • Covered Patio: 309 sq. ft.
  • Porch, Front: 44 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 0"
  • Max ridge height: 28' 3"

Garage

  • Type: Attached
  • Area: 630 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 1 on 2
  • Secondary Pitch: 1 1/2 on 1
  • Framing Type: Truss

Architectural Style

Special features

Contemporary Northwest Home Plan with Oversized Windows and Covered Patio

  • 4,070

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 3

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,035
  • 5 Sets + PDF $2,285
  • 5 Sets $2,335
  • 8 Sets $2,485
  • CAD - Single-Build $3,867
  • View all purchase option online

About This Plan

  • The open living space on the main level of this Contemporary Northwest home plan presents two sets of oversized sliding doors to maintain the flow between inside and out.
  • Move freely around the spacious kitchen that features an eating bar at the prep island, walk-in pantry, and built-in desk for days when you need to multi-task.
  • A forward-facing room is filled with natural lighting and can serve as a den or fourth bedroom.
  • At the top of the stairs, discover a leisure room with a TV niche that permits access to the remaining three bedrooms.
  • Large windows line the walls of the master suite, which includes a 5-fixture bathroom with a generous walk-in closet, while laundry on this level is an added bonus.

Floor Plans

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,070 sq. ft.
  • Lower Level: 817 sq. ft.
  • 1st Floor: 1,614 sq. ft.
  • 2nd Floor: 1,639 sq. ft.
  • Covered Patio: 309 sq. ft.
  • Porch, Front: 44 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 0"
  • Max ridge height: 28' 3"

Garage

  • Type: Attached
  • Area: 630 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 1 on 2
  • Secondary Pitch: 1 1/2 on 1
  • Framing Type: Truss
Plan 666126RAF
View this and more for this plan by visiting www.architechtecturaldesigns.com/666126RAF
|
Need Help? 800-854-7852
|
Plan 666126RAF
