Contemporary Pool House with Covered Patio

Plan 62310DJ

  • 364

    Heated s.f.

  • 0

    Beds

  • 1

    Baths

  • 1

    Stories

  • With a stucco exterior and metal roof, this contemporary pool house makes a great addition to any property.
  • The hip and valley roof extends to provide a covered patio supported by two large pillars.
  • The 4-panel sliding door allows you to come and go as you please, and an elongated island hosts a deep-bowl sink. Two refrigerators in the wet bar provide ample space for your drinks and snacks.
  • Two closets provide dedicated storage space and a powder bath doubles as a changing room with a built-in bench and hanging hooks.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

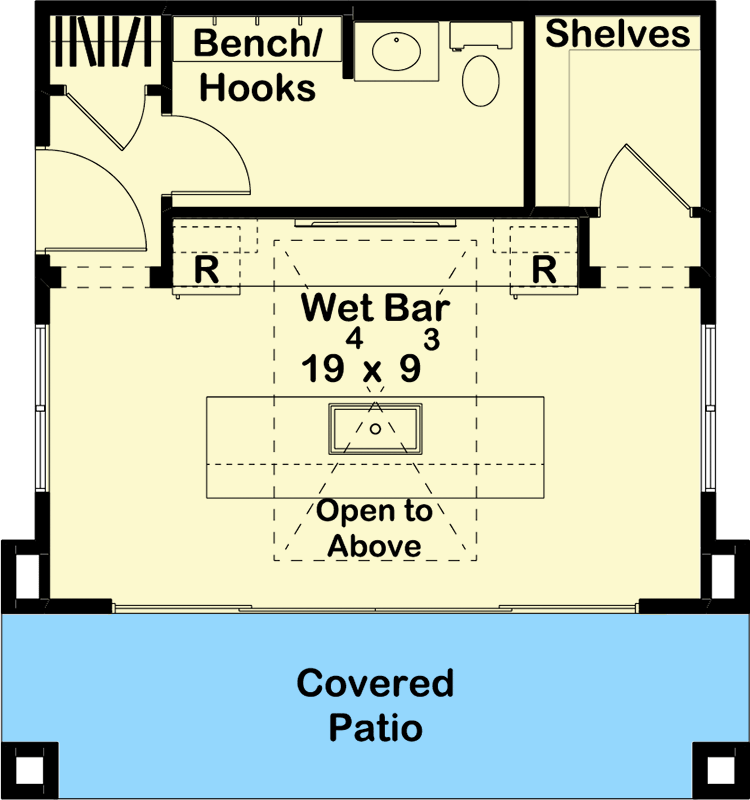

Contemporary Pool House with Covered Patio - 62310DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 364 sq. ft.
  • 1st Floor: 364 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 22' 0"
  • Depth: 24' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12

Special features

Plan Collections

Contemporary Pool House with Covered Patio

  • 364

    Heated s.f.

  • 0

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $400
  • 5 Sets + PDF $650
  • PDF - Unlimited Build $900
  • CAD + PDF - Single-Build $900
  • CAD - Unlimited Build $1,400
  • View all purchase option online

About This Plan

  • With a stucco exterior and metal roof, this contemporary pool house makes a great addition to any property.
  • The hip and valley roof extends to provide a covered patio supported by two large pillars.
  • The 4-panel sliding door allows you to come and go as you please, and an elongated island hosts a deep-bowl sink. Two refrigerators in the wet bar provide ample space for your drinks and snacks.
  • Two closets provide dedicated storage space and a powder bath doubles as a changing room with a built-in bench and hanging hooks.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 364 sq. ft.
  • 1st Floor: 364 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 22' 0"
  • Depth: 24' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
