Plan 81601AB
Contemporary Prairie Style
Heated S.F.
3,991
Beds
3
Baths
4
Stories
2
Cars
4
What's Included
Plan Details
  • This 3 bedroom house has a great contemporary exterior with great curb appeal. Covered spaces front and back add to its appeal.
  • The centerpiece of this home plan is the vaulted kitchen, dining room and great room space. The ceiling comes to a point in the center. Centered on the back wall you'll find access to the large covered deck, perfect for an outdoor living room.
  • The master suite is spacious, has deck access, as well as access to the exercise area. And look at that walk-in closet!
  • An office and mud room and laundry flank the stairs.
  • Upstairs, two bedrooms - both with walk-ins and baths - share the large family room.
What's Included

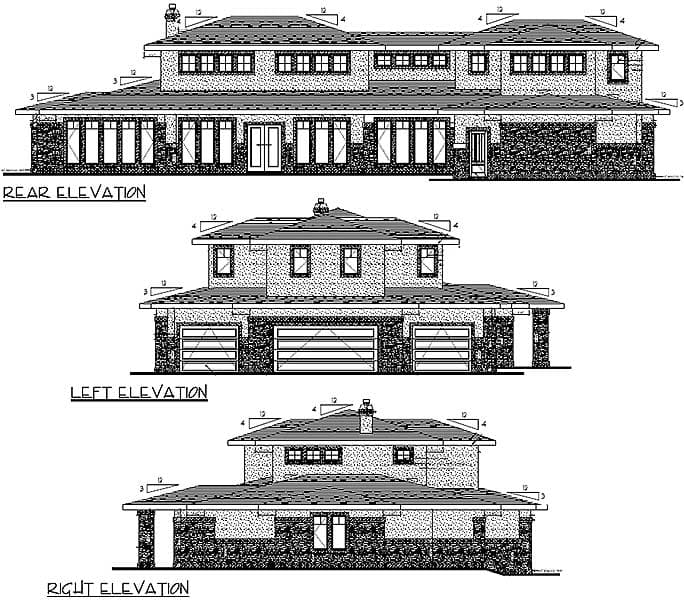

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Contemporary Prairie Style

  • 3,991

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

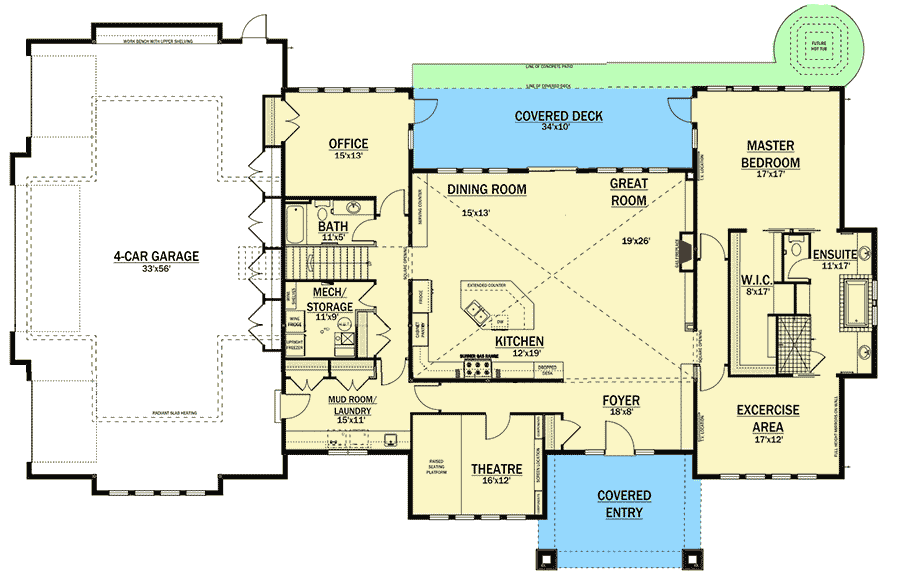

  • Main Level

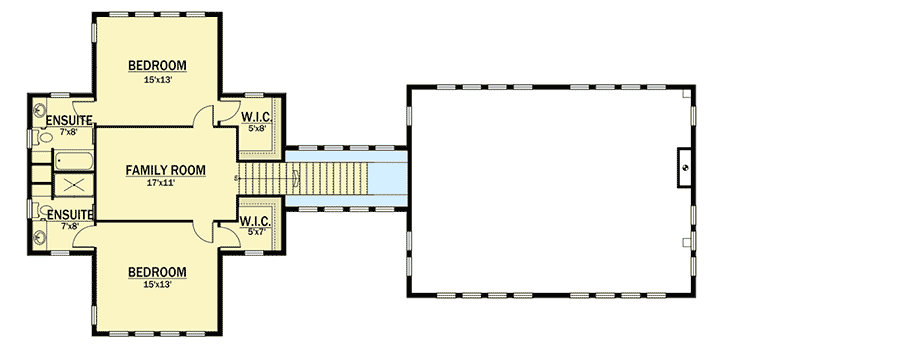

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,991 sq. ft.
  • 1st Floor: 3,033 sq. ft.
  • 2nd Floor: 958 sq. ft.

Dimensions

  • Width: 107' 0"
  • Depth: 69' 0"
  • Max ridge height: 27' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 1814 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
