Plan 490164NAH

Contemporary Single-Story House Plan with Lower Level Master Suite

Heated S.F.
1,566
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 490164NAH

Main Level
Main Level
Lower Level Walkout Basement
Lower Level Walkout Basement

Plan 490164NAH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 490164NAH: Contemporary Single-Story House Plan with Lower Level Master Suite - Floor Plan - Main Level - Contemporary, Mountain

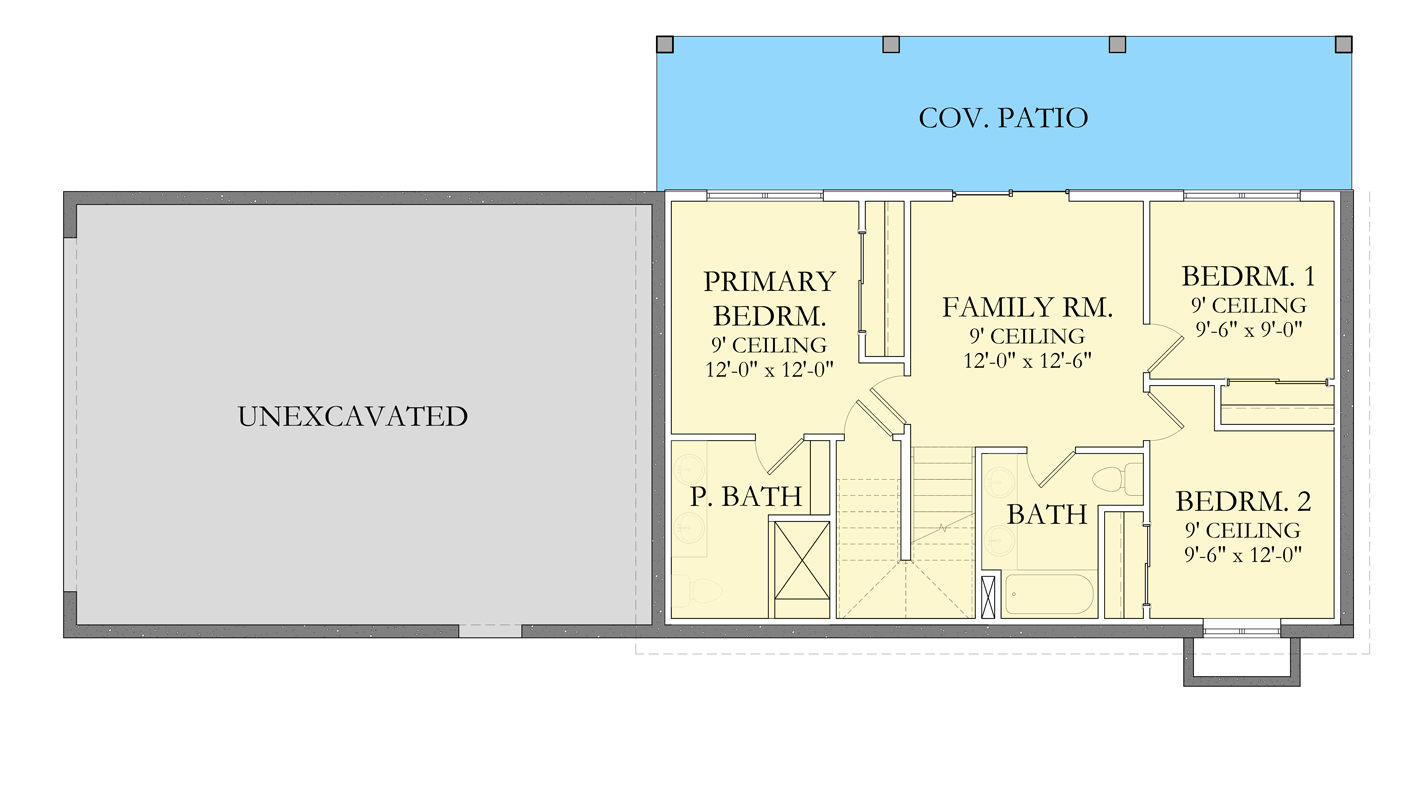

Lower Level Walkout Basement

Plan 490164NAH: Contemporary Single-Story House Plan with Lower Level Master Suite - Floor Plan - Lower Level Walkout Basement - Contemporary, Mountain

Plan Details

  • This 1,566 sq. ft. contemporary home plan features 3 bedrooms and 2.5 baths with a 709 sq. ft. attached garage for 2 cars.
  • The main level entry opens to a vaulted great room and dining area, seamlessly connected to the modern kitchen.
  • A spacious deck extends the living area outdoors, perfect for enjoying nature.
  • The lower level houses the master suite with a private bath, located for privacy alongside two additional bedrooms and a family room.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,566 sq. ft.

Lower Level

778 sq. ft.

1st Floor

778 sq. ft.

Porch, Front

32 sq. ft.

Deck

291 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

67' 0"

Depth

23' 0"

Max Ridge Height

18' 2"

Garage

Type

Attached

Area

709 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Architectural Style

Contemporary

Mountain

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - Lower Level

Square Footage Breakdown

Total Heated Area

1,566 sq. ft.

Lower Level

778 sq. ft.

1st Floor

778 sq. ft.

Porch, Front

32 sq. ft.

Deck

291 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

67' 0"

Depth

23' 0"

Max Ridge Height

18' 2"

Garage

Type

Attached

Area

709 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Architectural Style

Contemporary

Mountain

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - Lower Level
