Plan 64573SC

Contemporary Three Car Garage Plan with Spacious Storage and High Ceilings

Name: Plan 64573SC: Contemporary Three Car Garage Plan with Spacious Storage and High Ceilings
Brand: Architectural Designs
SKU: 64573SC
Price: 695.0 USD
Availability: InStock

Heated S.F.

Beds

Baths

Stories

Cars

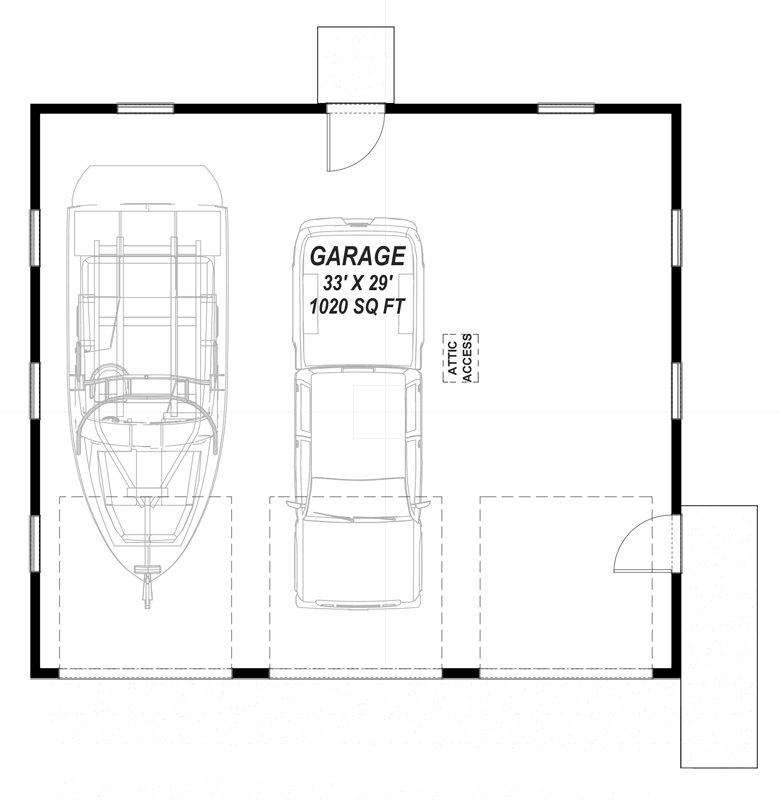

Floor Plan

Plan Details

This contemporary three-car garage plan offers 1,020 square feet of versatile space, perfect for vehicle storage, a workshop, or hobby area.
The exterior features crisp board-and-batten siding and a clean, modern aesthetic that complements a variety of architectural styles.
Inside, the design boasts an impressive 11-foot ceiling height, providing ample vertical clearance for lifts or overhead storage solutions.
Three separate garage doors ensure easy access for vehicles, while a dedicated side entry door offers convenient pedestrian entry.
Built with sturdy 2x6 exterior walls, this structure is designed for durability and efficiency.
Whether you need a secure spot for your vehicles or a dedicated space for projects, this flexible plan provides the perfect foundation for your needs.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

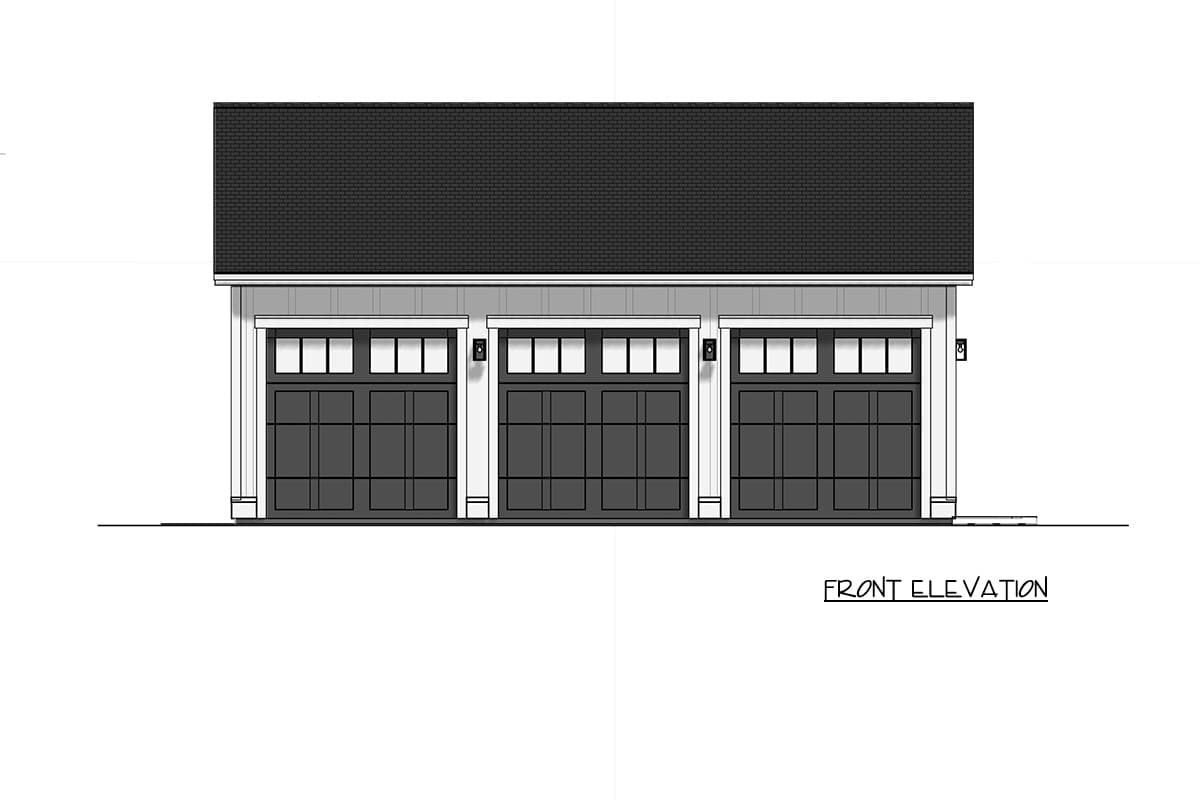

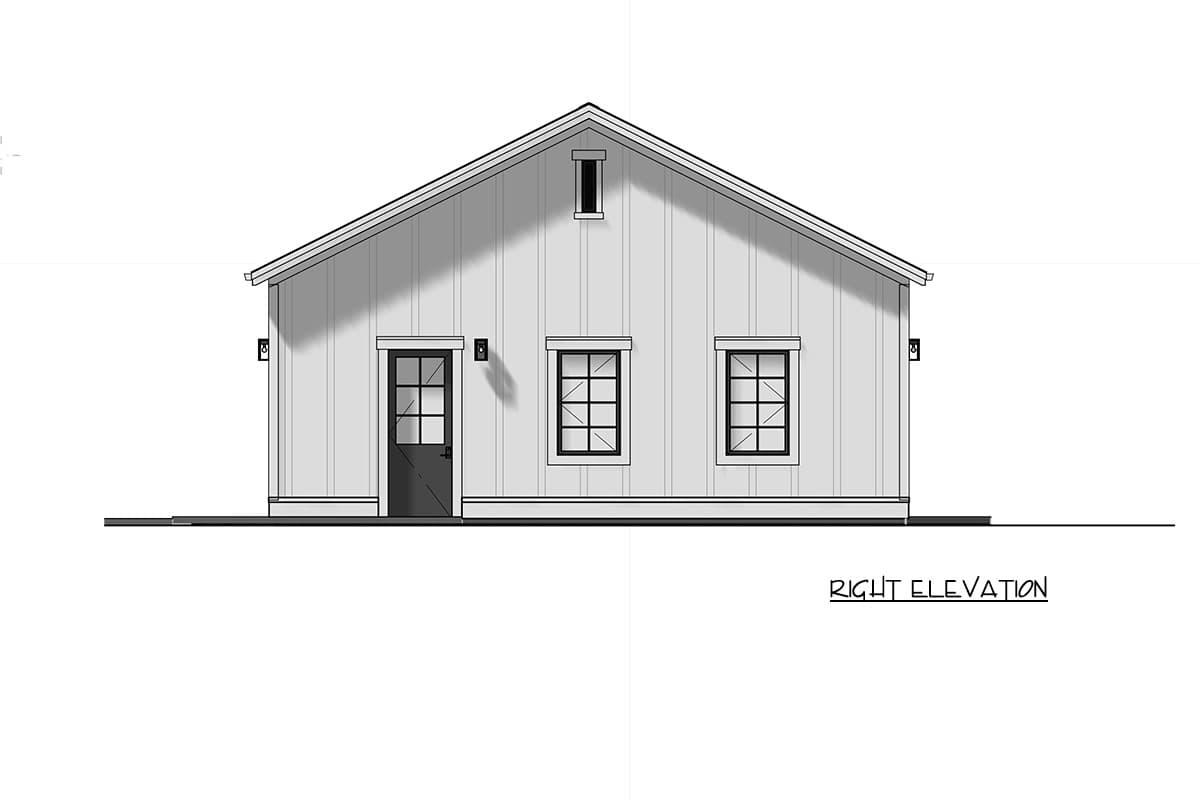

Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

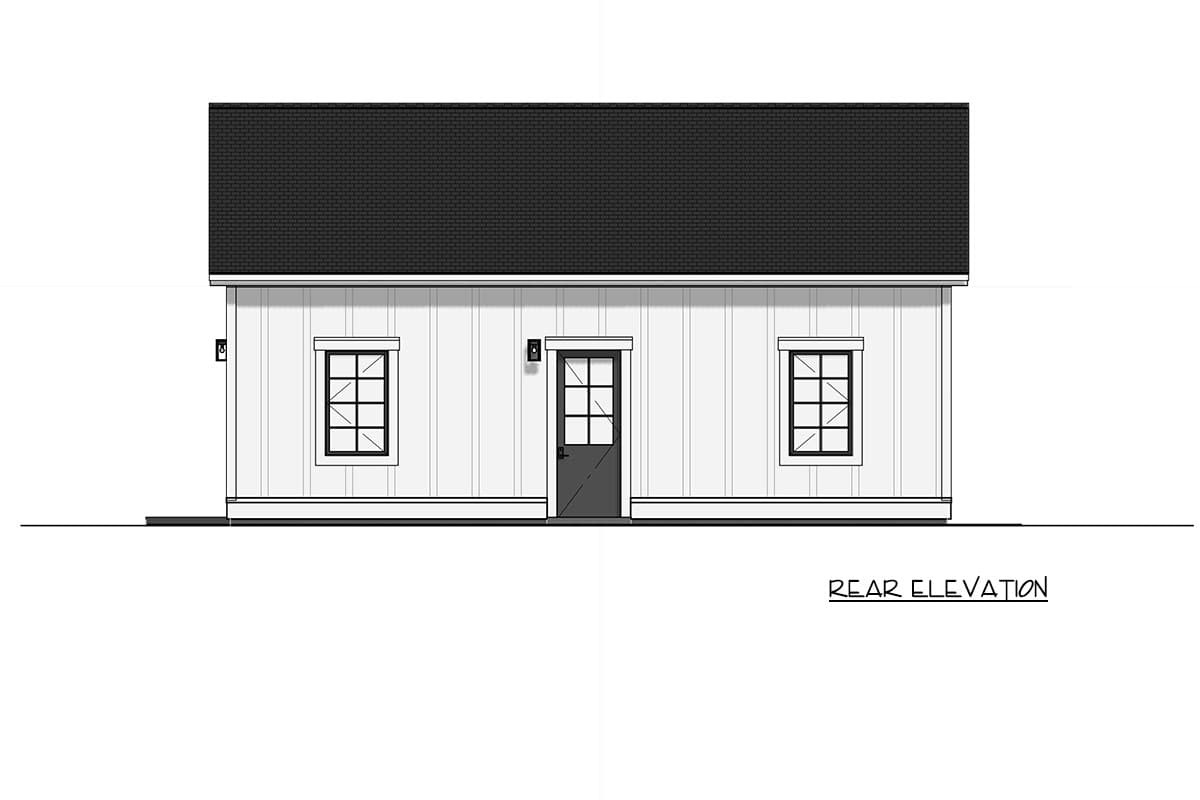

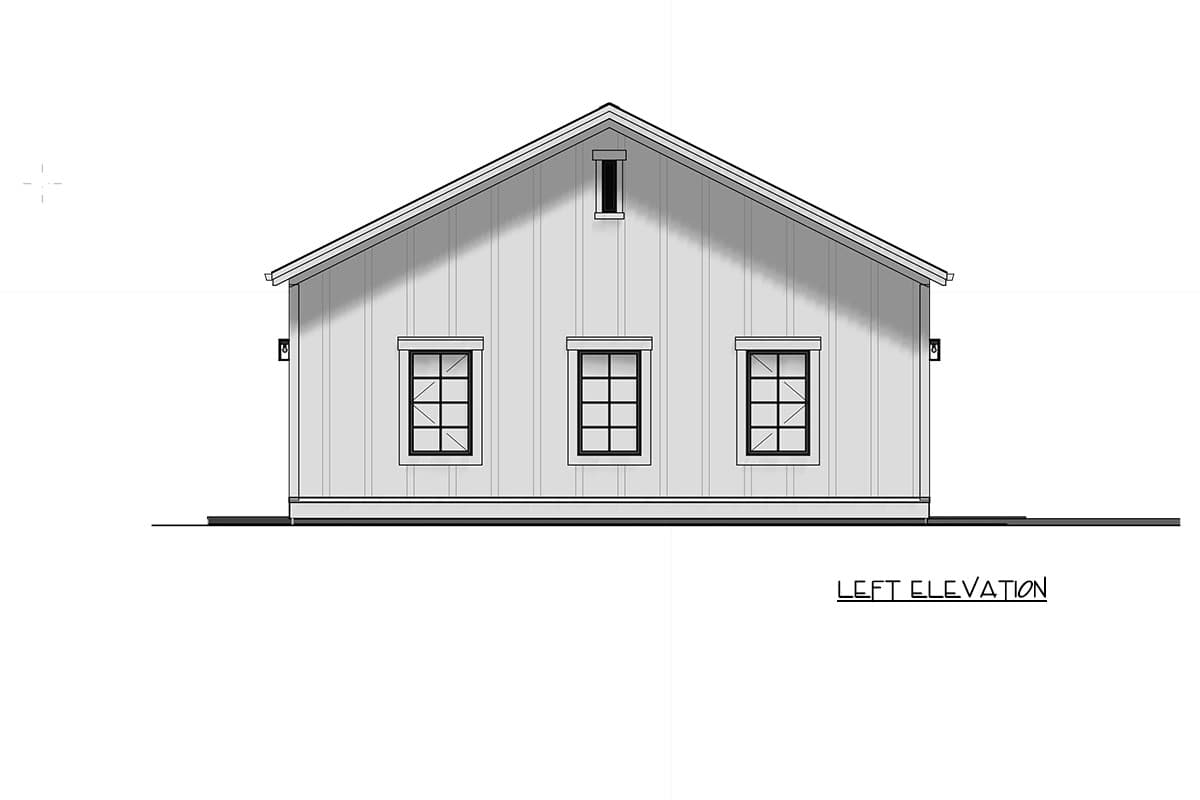

Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee

What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

Foundation Type

Standard Foundations

Slab, Stem Wall

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

30' 0"

Max Ridge Height

19' 9"

Garage

Type

Carport

Area

1020 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick Or Truss

Architectural Style

Contemporary

Plan Collections

Unlimited Build License
