Plan 68949VR

Contemporary Triplex House Plan with Rooftop Deck

Heated S.F.
5,803
Units
3
Width
Depth

Floor Plan

Plan 68949VR

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor
4th Floor - Overlook
4th Floor - Overlook

Plan 68949VR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

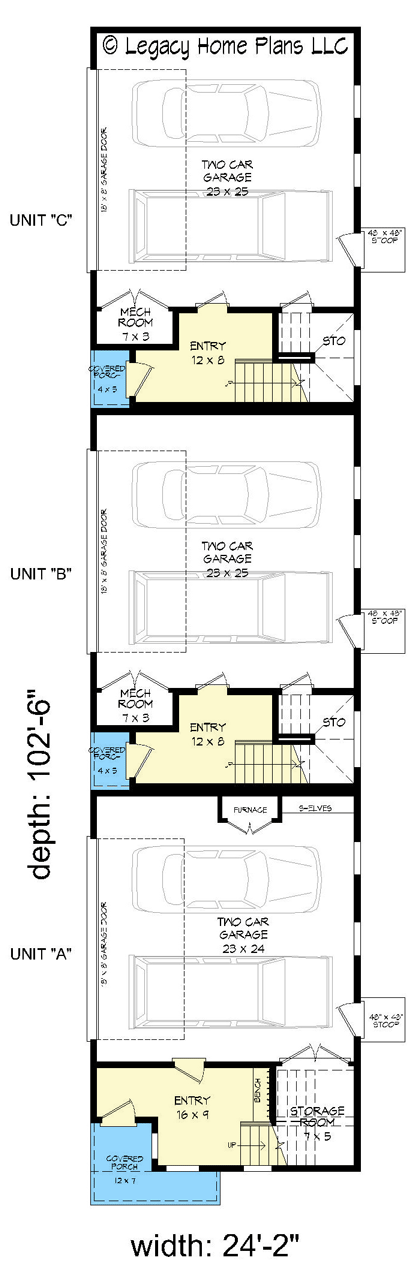

Plan 68949VR: Contemporary Triplex House Plan with Rooftop Deck - Floor Plan - Main Level - Contemporary

2nd Floor

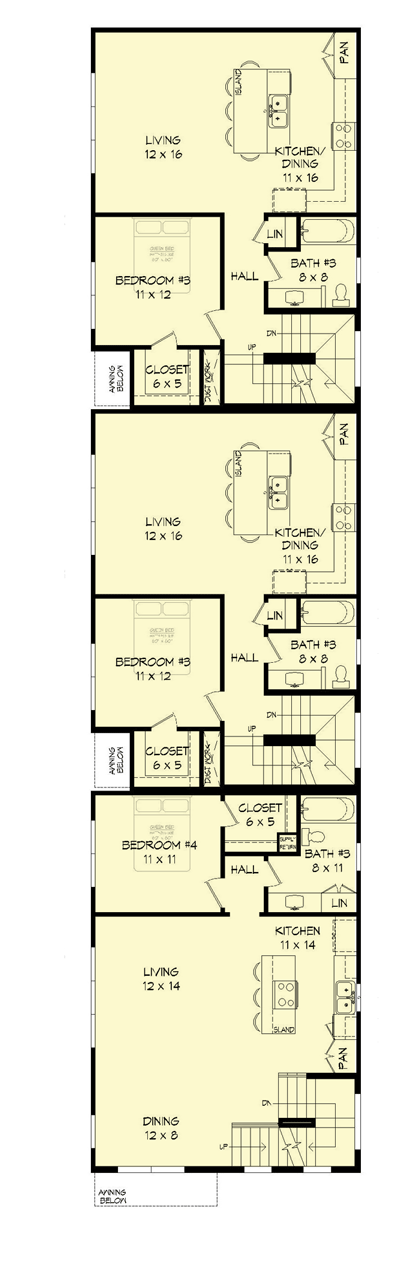

Plan 68949VR: Contemporary Triplex House Plan with Rooftop Deck - Floor Plan - 2nd Floor - Contemporary

3rd Floor

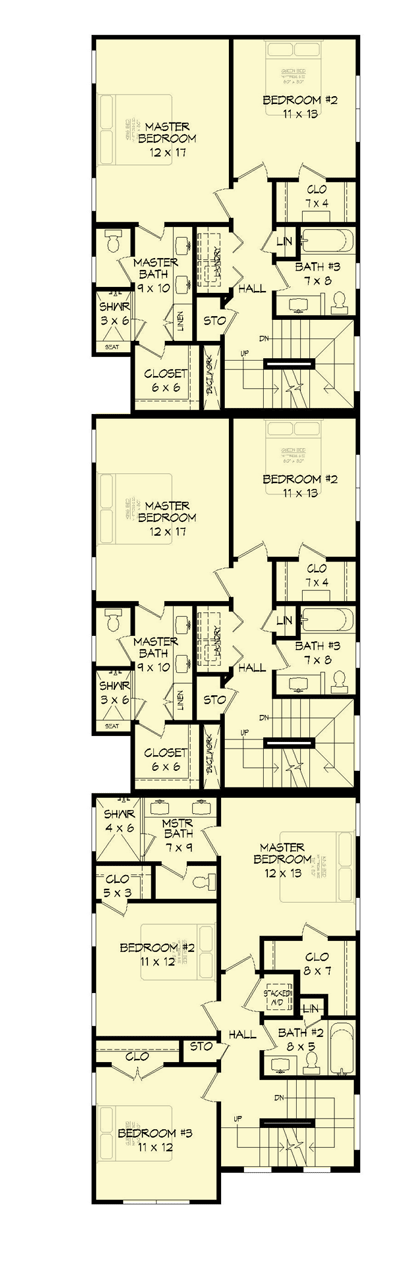

Plan 68949VR: Contemporary Triplex House Plan with Rooftop Deck - Floor Plan - 3rd Floor - Contemporary

4th Floor - Overlook

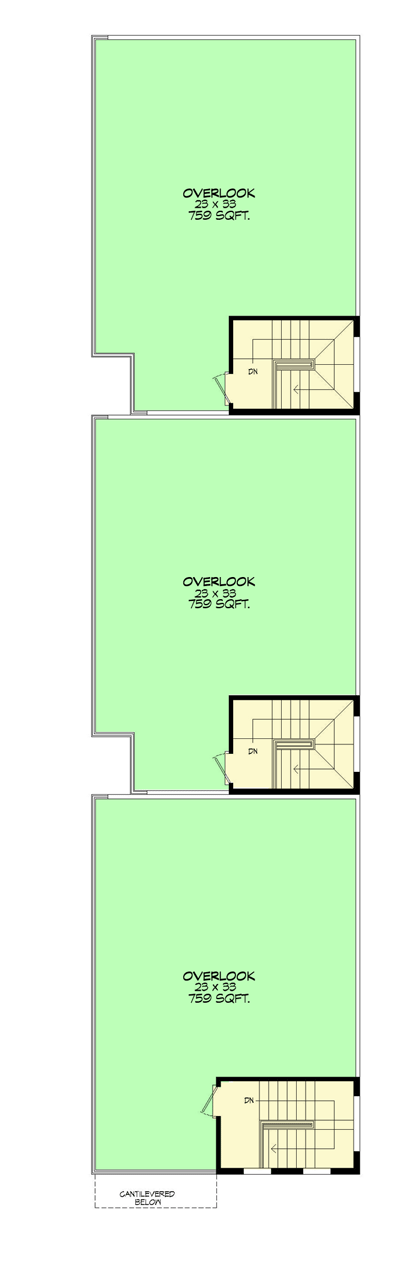

Plan 68949VR: Contemporary Triplex House Plan with Rooftop Deck - Floor Plan - 4th Floor - Overlook - Contemporary

Plan Details

  • This contemporary plan combines to of our narrow contemporary designs into - Unit A is 4-bed 68947VR and Units B and C are 3-bed 68948VR - into a triplex design.
  • All 3 units give you 2-car parking in the ground floor and a rooftop deck above the third floor.
  • Unit A gives you 4 bedrooms and 2,011 square feet of heated living space (213 sq. ft. on the ground floor, 826 sq. ft. on the second floor and 859 sq. ft. on the third floor).
  • Units B and C give you 3 bedrooms and 1,896 sq. ft. of heated living space (175 sq. ft. on the ground floor and 808 sq. ft. on the second and third floors).
Unit A
Heated Area
2,011Sq. Ft.
213 Sq. Ft. 1st
826 Sq. Ft. 2nd
859 Sq. Ft. 3rd
Beds
4Beds
Baths
3Full Baths
Cars
Attached
589 Sq. Ft.
Dimensions
24'width
34'depth
30'height
Unfinished Areas
589 Sq. Ft. Garage
Unit B
Heated Area
1,896Sq. Ft.
808 Sq. Ft. 1st
808 Sq. Ft. 2nd
105 Sq. Ft. 3rd
Beds
3Beds
Baths
3Full Baths
Cars
Attached
633 Sq. Ft.
Dimensions
24'width
34'depth
30'height
Unfinished Areas
633 Sq. Ft. Garage
Unit C
Heated Area
1,896Sq. Ft.
563 Sq. Ft. 1st
2442 Sq. Ft. 2nd
2475 Sq. Ft. 3rd
Beds
3Beds
Baths
3Full Baths
Cars
Attached
633 Sq. Ft.
Dimensions
24'width
34'depth
30'height
Unfinished Areas
633 Sq. Ft. Garage

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

5,803 sq. ft.

1st Floor

563 sq. ft.

2nd Floor

2,442 sq. ft.

3rd Floor

2,475 sq. ft.

Porch, Combined

95 sq. ft.

Balcony / Veranda

2,117 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 2"

Depth

102' 6"

Max Ridge Height

37' 9"

Garage

Type

Attached

Area

1855 sq. ft.

Count

6 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

9' 0''

Roof Details

Primary Pitch

0 on 12

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Mudroom

Rooftop Deck

Square Footage Breakdown

Total Heated Area

5,803 sq. ft.

1st Floor

563 sq. ft.

2nd Floor

2,442 sq. ft.

3rd Floor

2,475 sq. ft.

Porch, Combined

95 sq. ft.

Balcony / Veranda

2,117 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 2"

Depth

102' 6"

Max Ridge Height

37' 9"

Garage

Type

Attached

Area

1855 sq. ft.

Count

6 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

9' 0''

Roof Details

Primary Pitch

0 on 12

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Mudroom

Rooftop Deck
