Plan 93186EL Contemporary Tudor Home Plan with Flex and Bonus Rooms

2,244 3 2.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary Tudor Home Plan with Flex and Bonus Rooms

Plan 93186EL

  • 2,244

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

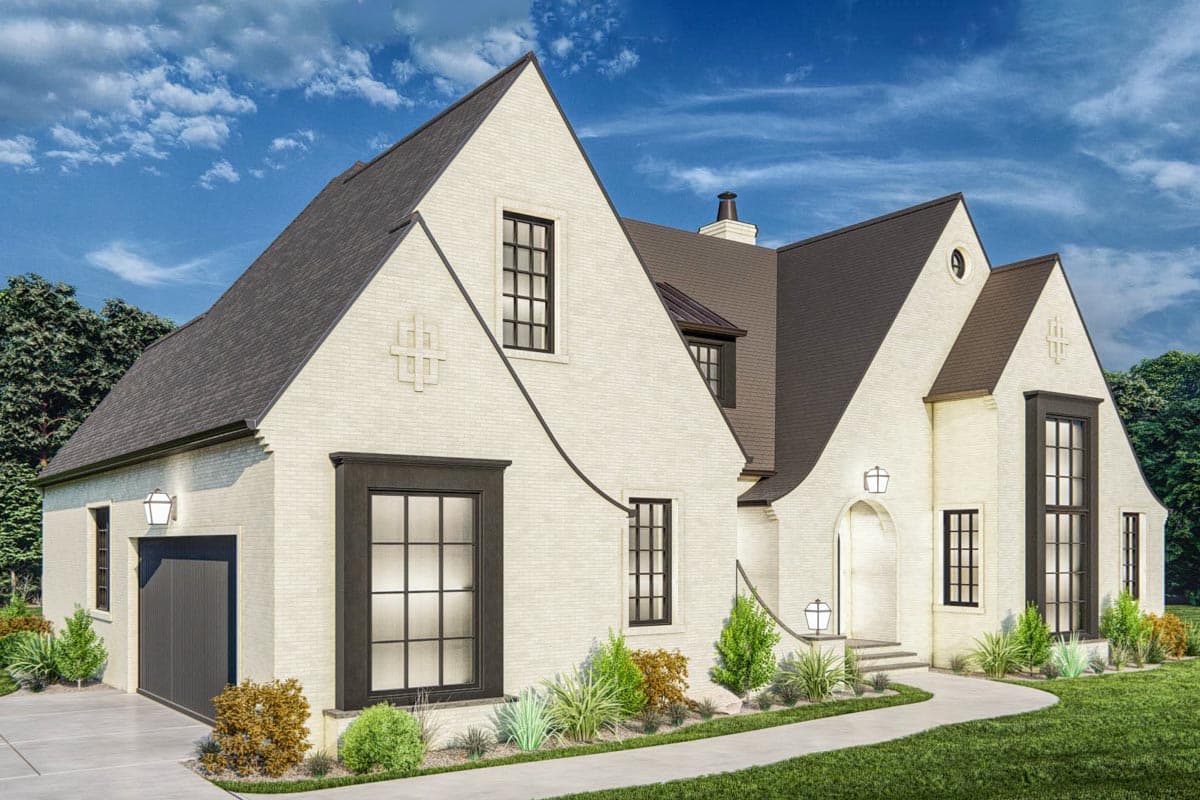

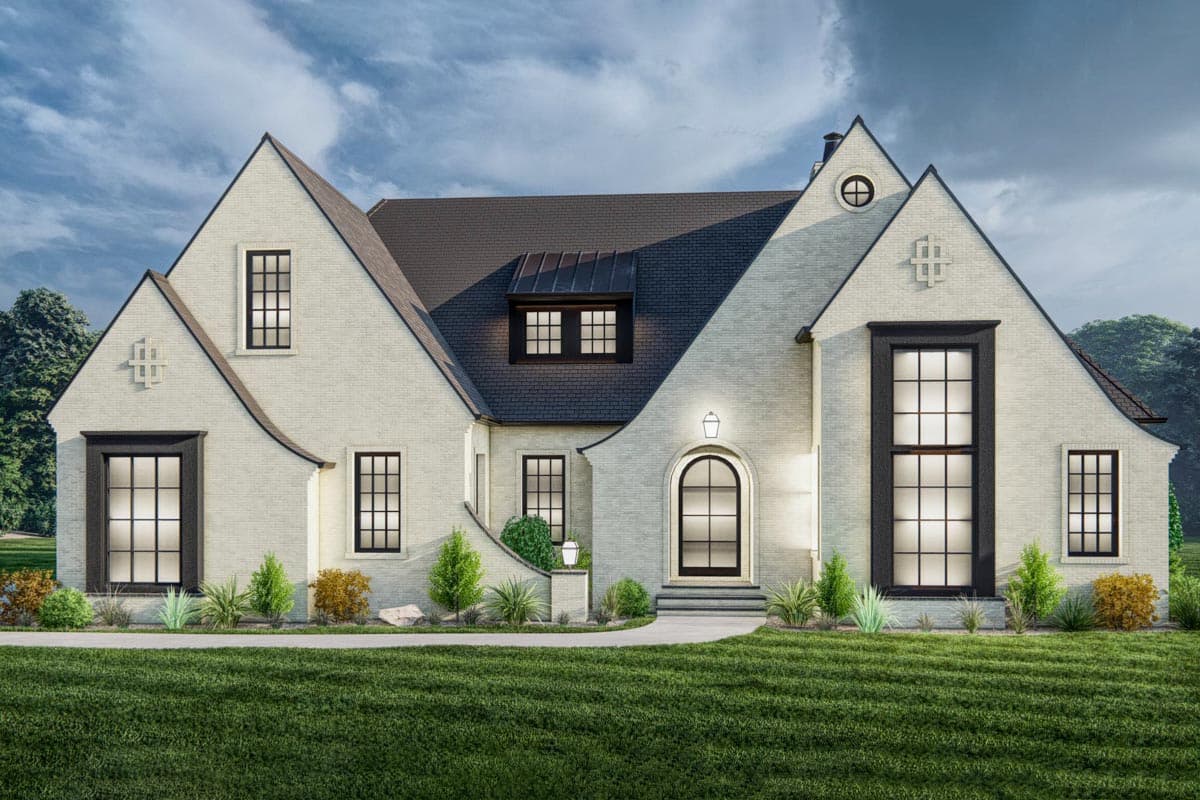

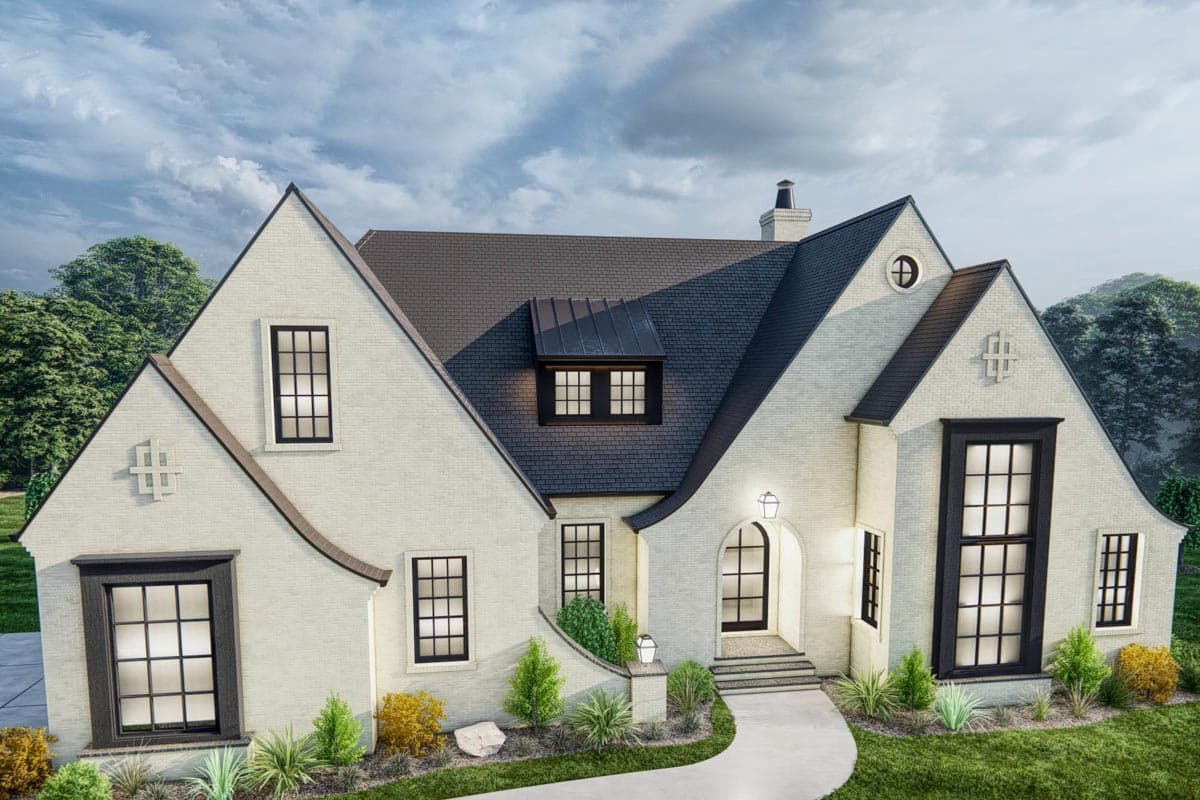

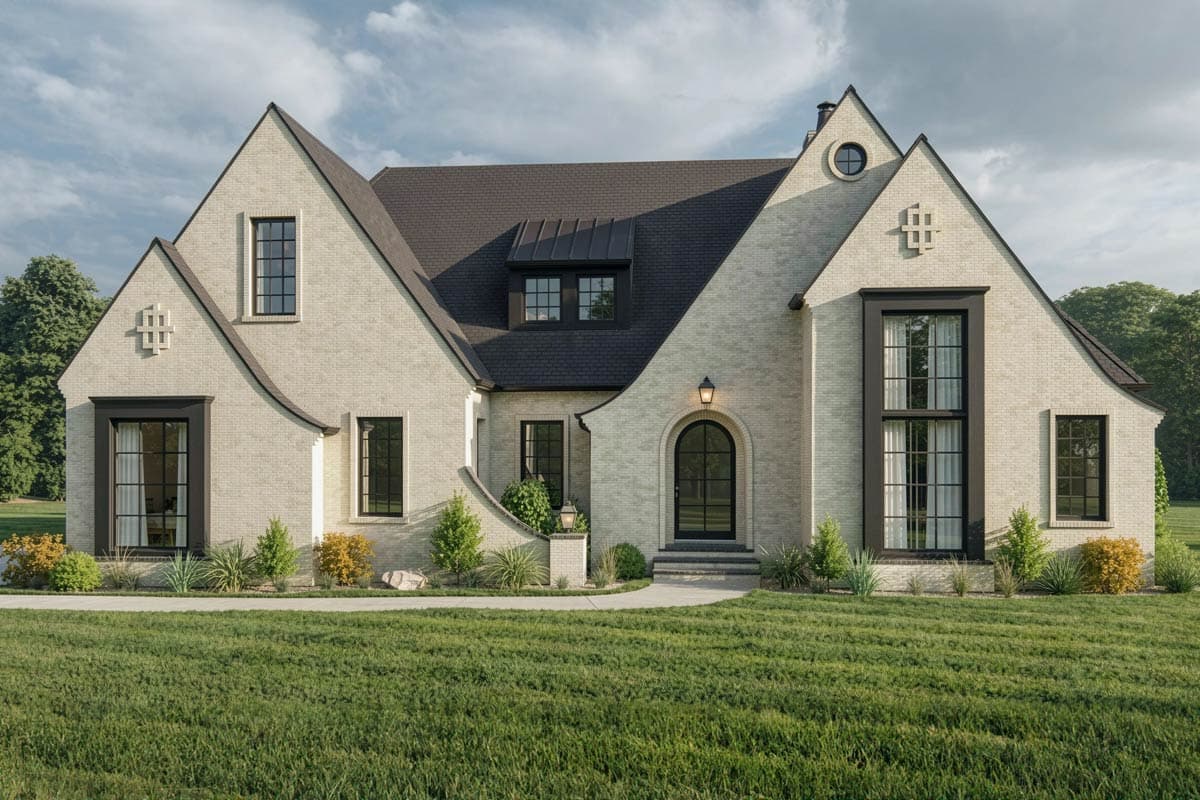

  • A stunning and sophisticated exterior welcomes you into this Contemporary Tudor home plan that delivers 2,244 square feet of living space.

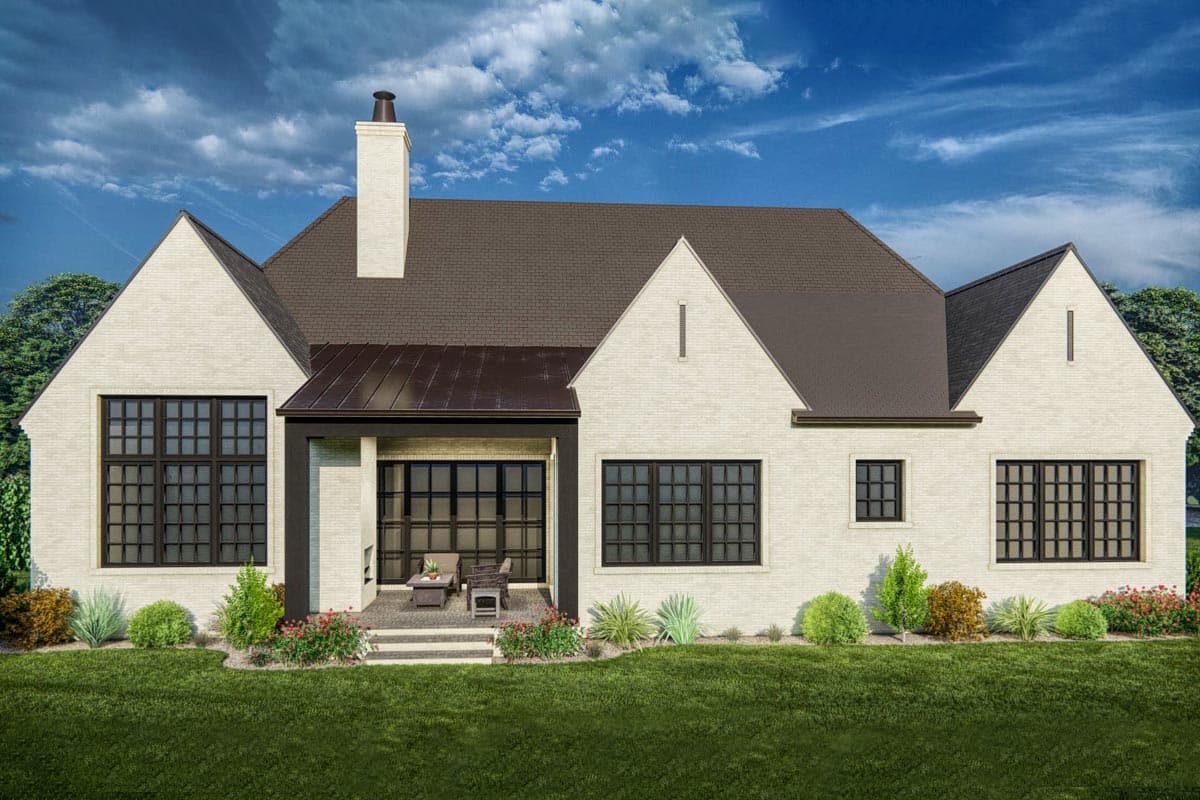

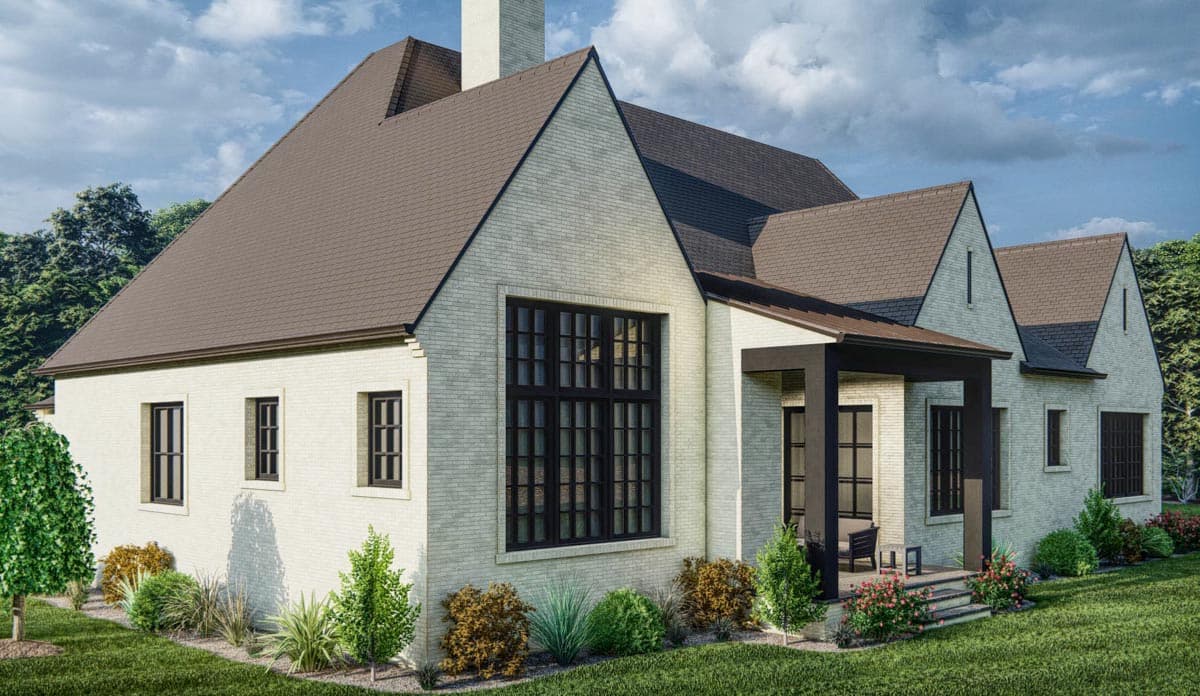

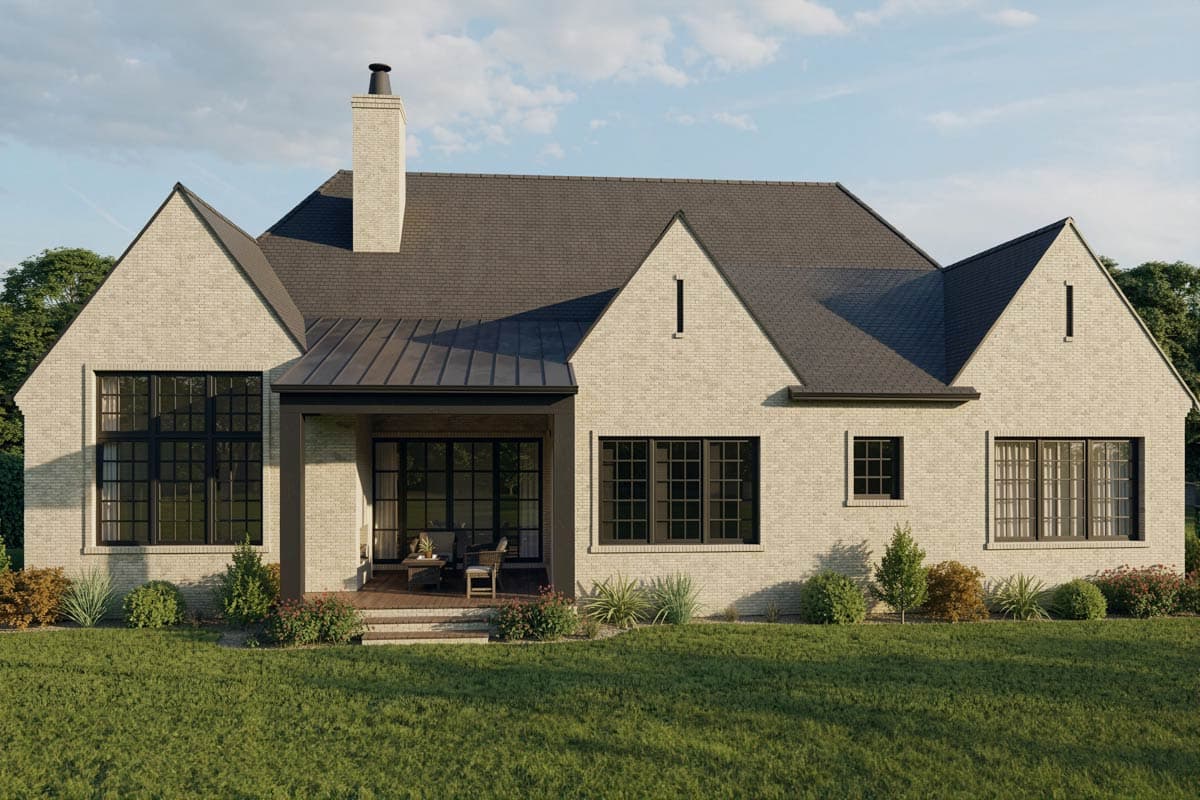

  • The open family room and eat-in kitchen are crowned by a vaulted ceiling with exposed beams, centered above a grand fireplace. Glass sliders encourage you to spend time on the covered porch, and an oversized range allows you to cook for larger events.
  • The primary bedroom lines the right side of the home and is accompanied by a 5-fixture bathroom and walk-in closet.
  • Two family bedrooms are tucked behind the double garage, and an optional bonus room above the garage can be added in the future.
  • Other notable features include a flex room near the foyer, mudroom with access to the pantry, and the laundry room down the hall from the primary bedroom.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

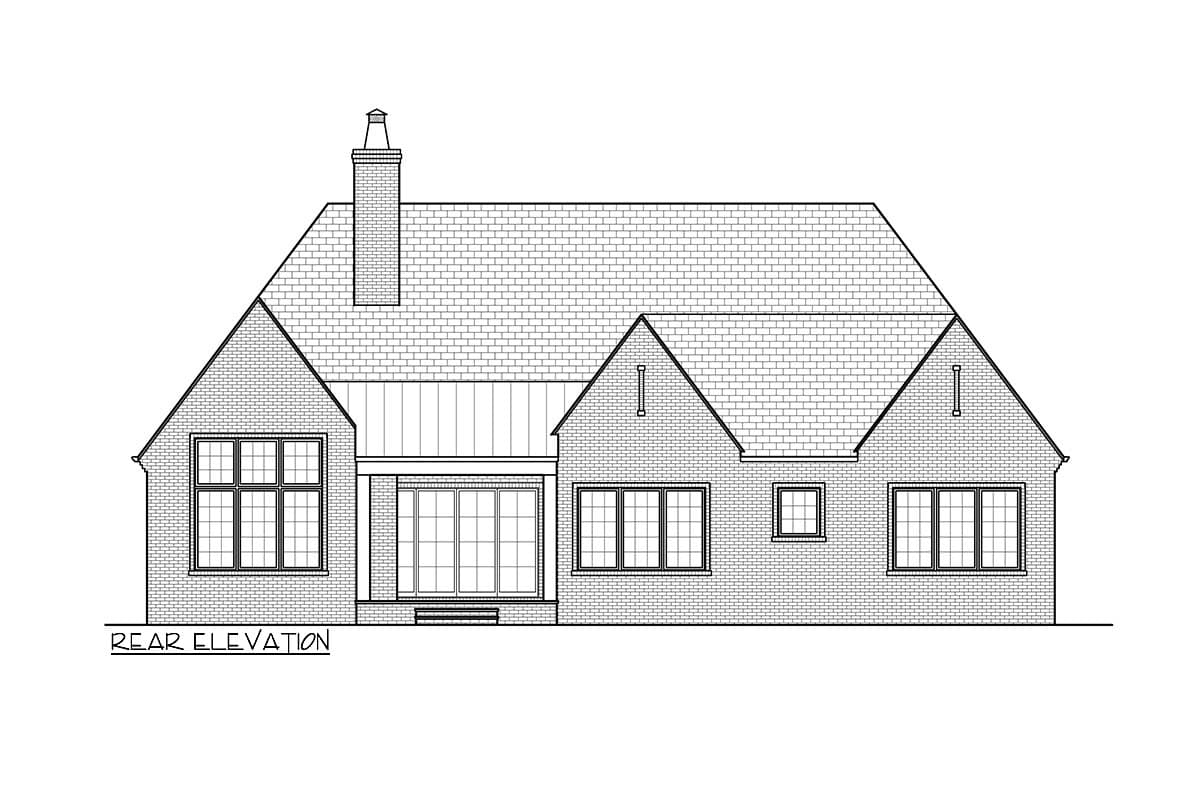

  • Front & Rear Elevation

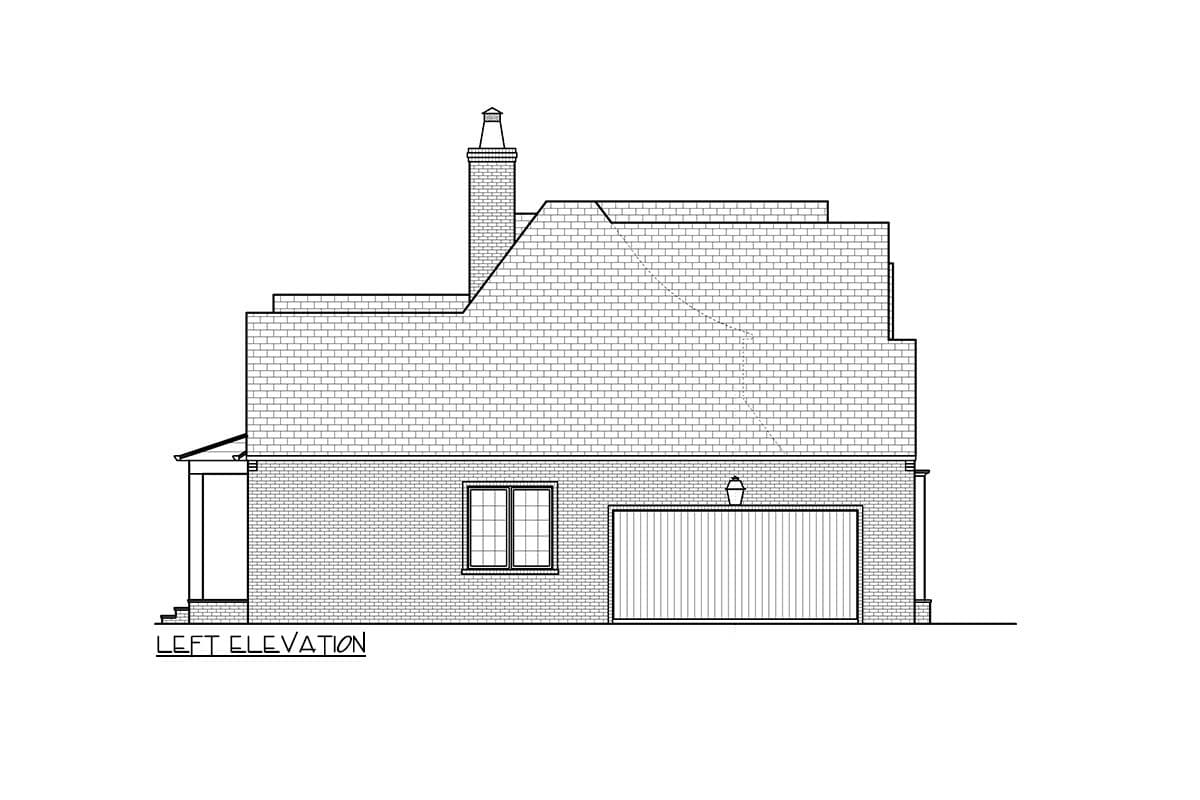

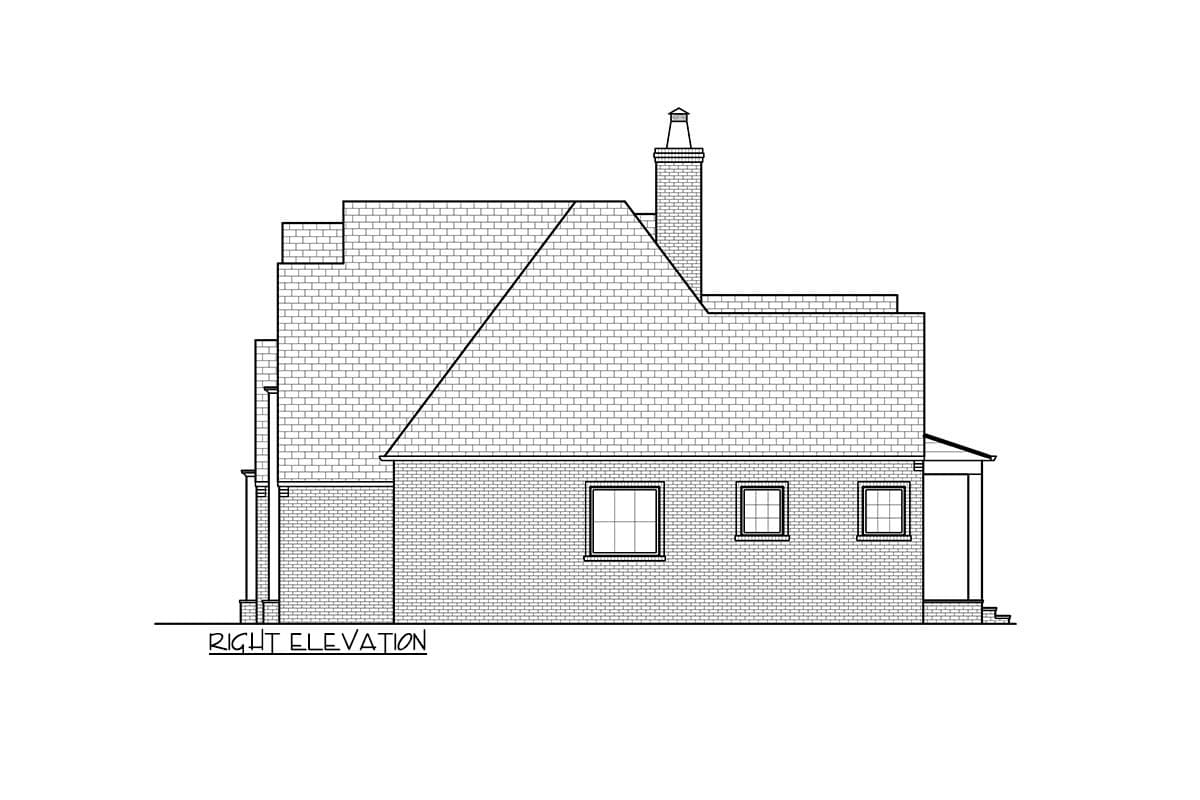

  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

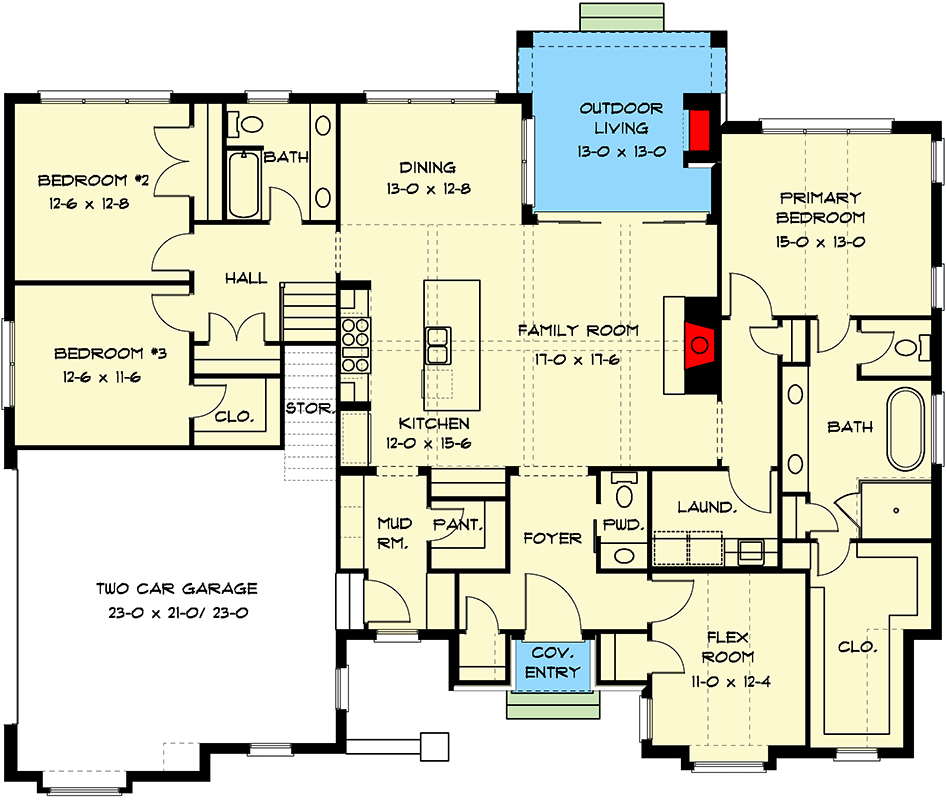

Contemporary Tudor Home Plan with Flex and Bonus Rooms - 93186EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

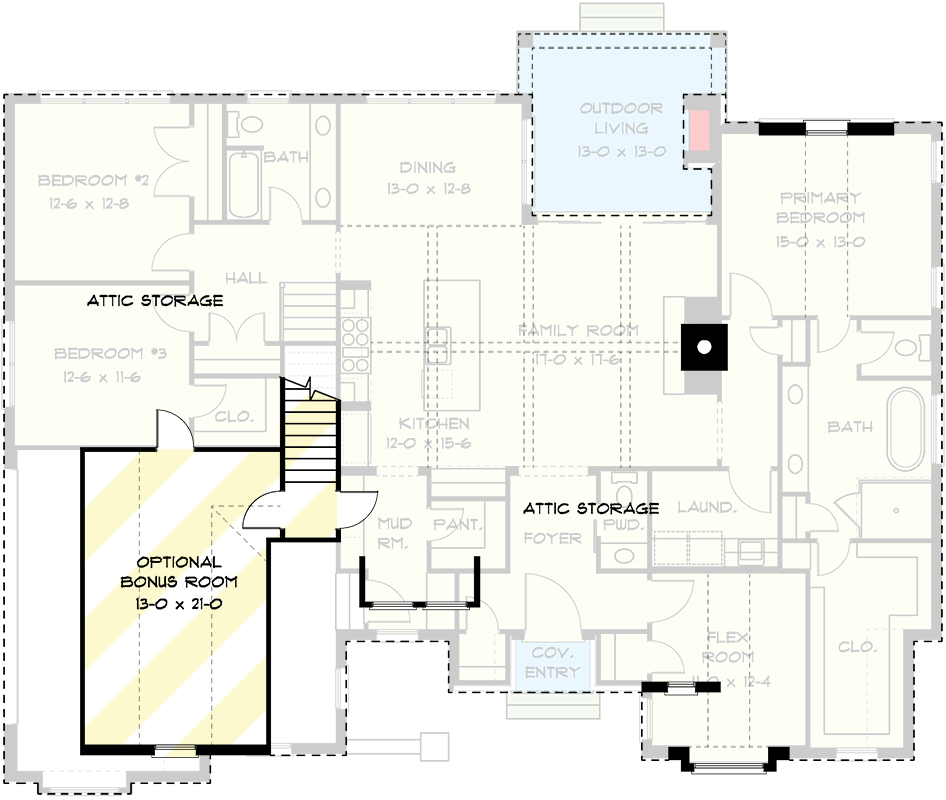

Contemporary Tudor Home Plan with Flex and Bonus Rooms - 93186EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,244 sq. ft.
  • 1st Floor: 2,244 sq. ft.
  • Porch, Rear: 178 sq. ft.
  • Porch, Front: 17 sq. ft.
  • Bonus: 320 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 2"
  • Depth: 56' 7"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 572 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Contemporary Tudor Home Plan with Flex and Bonus Rooms

  • 2,244

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,600
  • CAD+PDF - Single-Build $1,900
  • PDF - Unlimited Build $2,450
  • CAD - Unlimited Build $2,750
  • View all purchase option online

About This Plan

  • A stunning and sophisticated exterior welcomes you into this Contemporary Tudor home plan that delivers 2,244 square feet of living space.
  • The open family room and eat-in kitchen are crowned by a vaulted ceiling with exposed beams, centered above a grand fireplace. Glass sliders encourage you to spend time on the covered porch, and an oversized range allows you to cook for larger events.
  • The primary bedroom lines the right side of the home and is accompanied by a 5-fixture bathroom and walk-in closet.
  • Two family bedrooms are tucked behind the double garage, and an optional bonus room above the garage can be added in the future.
  • Other notable features include a flex room near the foyer, mudroom with access to the pantry, and the laundry room down the hall from the primary bedroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,244 sq. ft.
  • 1st Floor: 2,244 sq. ft.
  • Porch, Rear: 178 sq. ft.
  • Porch, Front: 17 sq. ft.
  • Bonus: 320 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 2"
  • Depth: 56' 7"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 572 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Plan 93186EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/93186EL
|
Need Help? 800-854-7852
|
Plan 93186EL
