Plan 22341DR Contemporary Two Family Home Plan

Contemporary Two Family Home Plan

Plan 22341DR

  • 1,836

    Heated s.f.

  • 2

    Units

  • 54' 0"

    Width

  • 34' 0"

    Depth

  • We took a popular two family home plan and modified it to a Craftsman exterior with shingle siding and tone. Each unit gives you 918 square feet of living space.
  • Inside, an open concept floor plan creates the feeling of space in the activities areas. The left unit includes a laundry area in the bathroom (thus sacrificing a bit of bedroom space) while the second unit allows for a more spa-like atmosphere with a corner spa tub.
  • The master bedrooms enjoy private bathroom access and separation from the secondary bedroom due to the placement of the bathroom.
  • Well-separated patio placement allows a more intimate outdoor space for each unit.
  • Related Plan: Get a more contemporary look with duplex home plan 22342DR. And a more traditional exterior with house plan 21248DR.

Each plan includes the following:

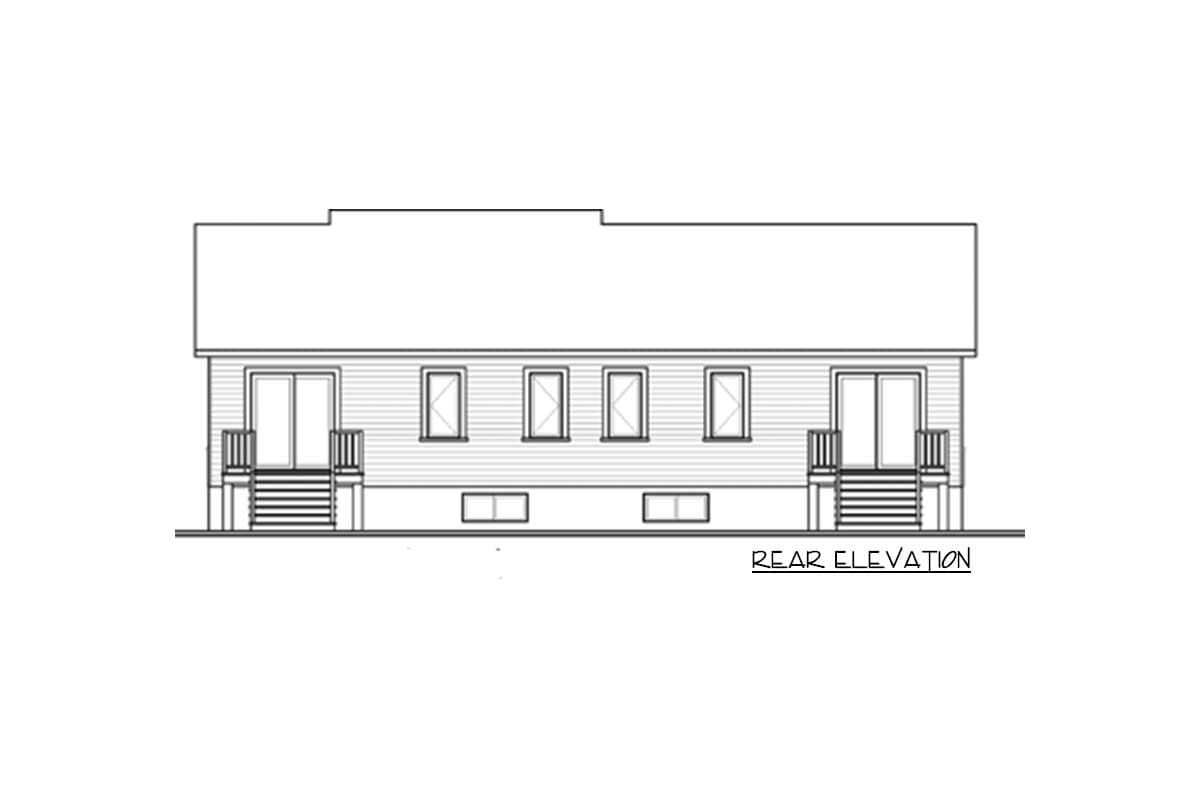

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

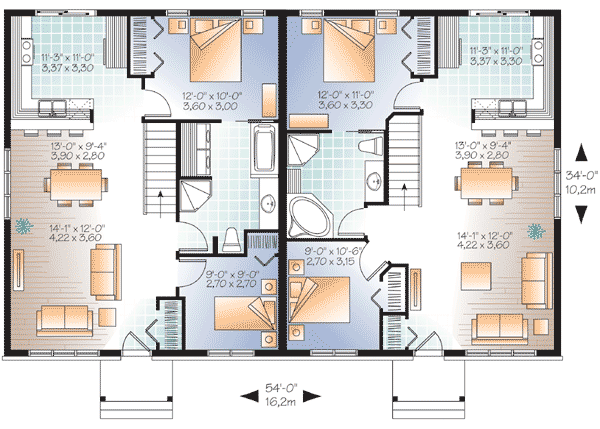

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contemporary Two Family Home Plan - 22341DR floor plan - Main Level

Plan details

Contemporary Two Family Home Plan

  • 1,836

    Heated s.f.

  • 2

    Units

  • 54' 0"

    Width

  • 34' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,420
  • Reproducible Set $1,420
  • 5 Sets + PDF $1,545
  • CAD - Single-Build $2,020
  • View all purchase option online

About This Plan

  • We took a popular two family home plan and modified it to a Craftsman exterior with shingle siding and tone. Each unit gives you 918 square feet of living space.
  • Inside, an open concept floor plan creates the feeling of space in the activities areas. The left unit includes a laundry area in the bathroom (thus sacrificing a bit of bedroom space) while the second unit allows for a more spa-like atmosphere with a corner spa tub.
  • The master bedrooms enjoy private bathroom access and separation from the secondary bedroom due to the placement of the bathroom.
  • Well-separated patio placement allows a more intimate outdoor space for each unit.
  • Related Plan: Get a more contemporary look with duplex home plan 22342DR. And a more traditional exterior with house plan 21248DR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,836 sq. ft.
  • 1st Floor: 1,836 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 34' 0"
  • Max ridge height: 17' 9"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
