Contractor-Friendly 4-Bed House Plan with Open Layout

Plan 51791HZ

  • 1,889

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

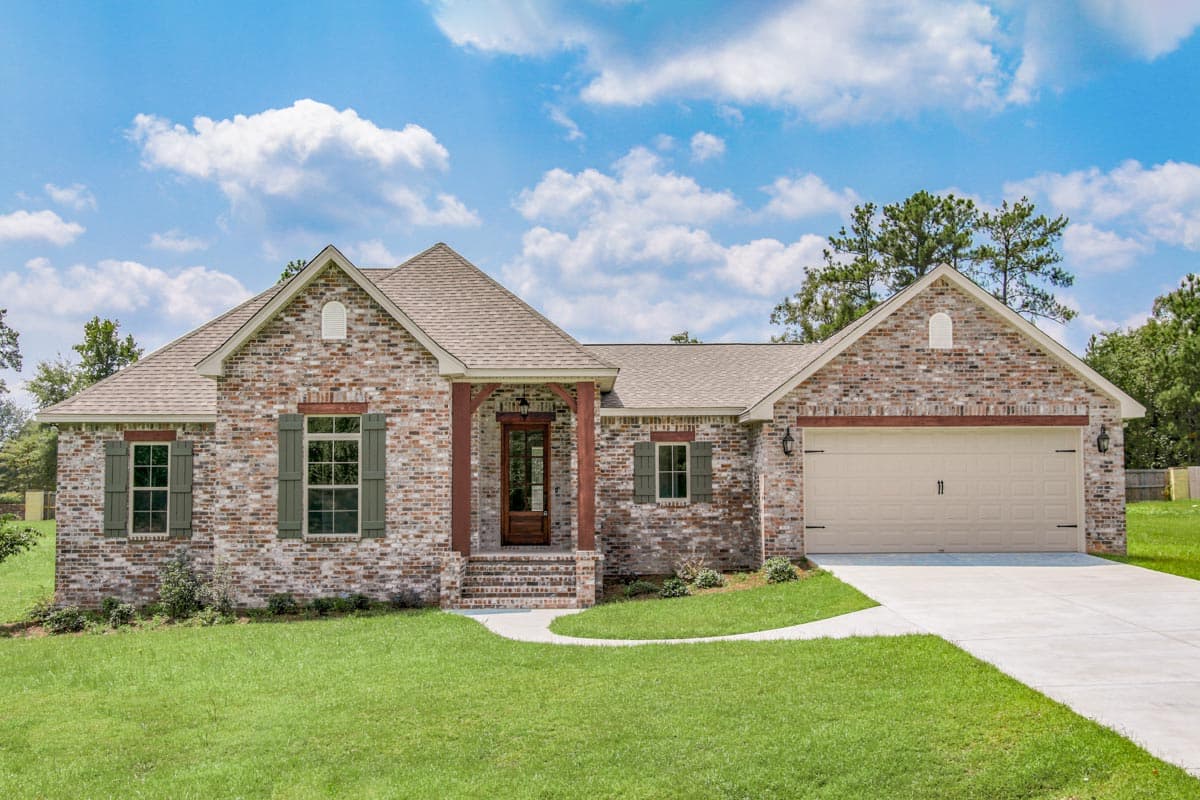

  • A brick exterior with timber accents graces the front of this 4-bedroom 2-bath contractor-friendly house plan with large rooms and an open layout.
  • The kitchen has a large walk-in pantry and an island with eating bar. It is open to both the dining and great room.

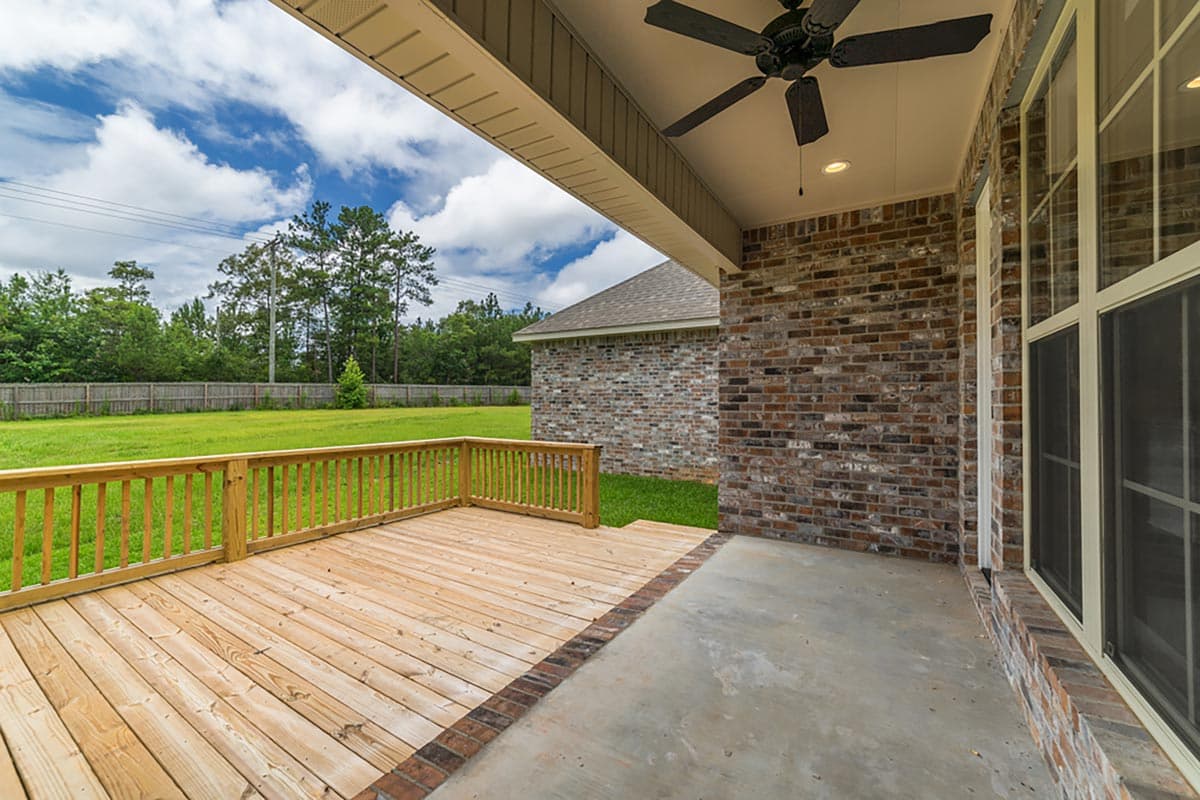

  • A rear porch is accessible from the great room with fireplace and 11' tray ceiling.
  • The master suite has a large bath with tub and shower and a great walk-in closet. Across the home, three bedrooms share a bath with space for multiple users at the same time.
  • The garage comes as a 2-car front-entry and there is a 2-car side-entry option available.
  • Note: Please note that orders including special options may result in a delay. Call us for details.

This designer's plans include the following details:

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

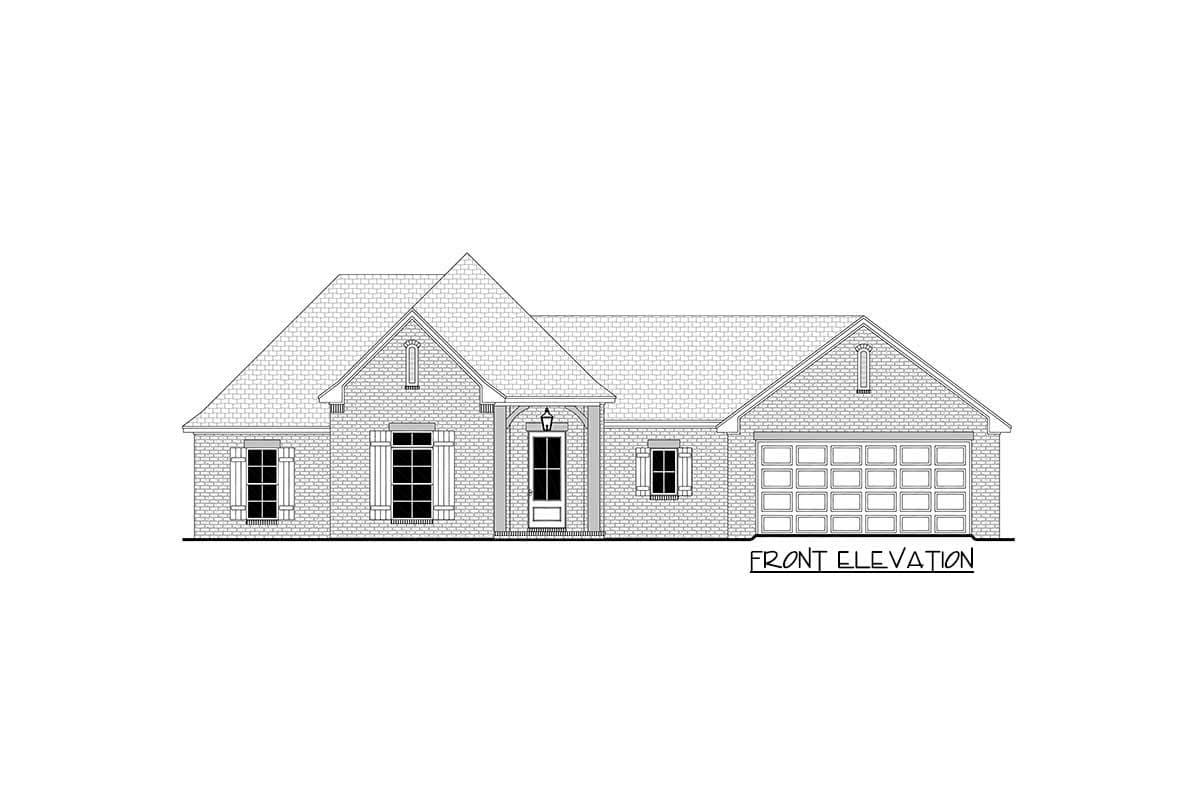

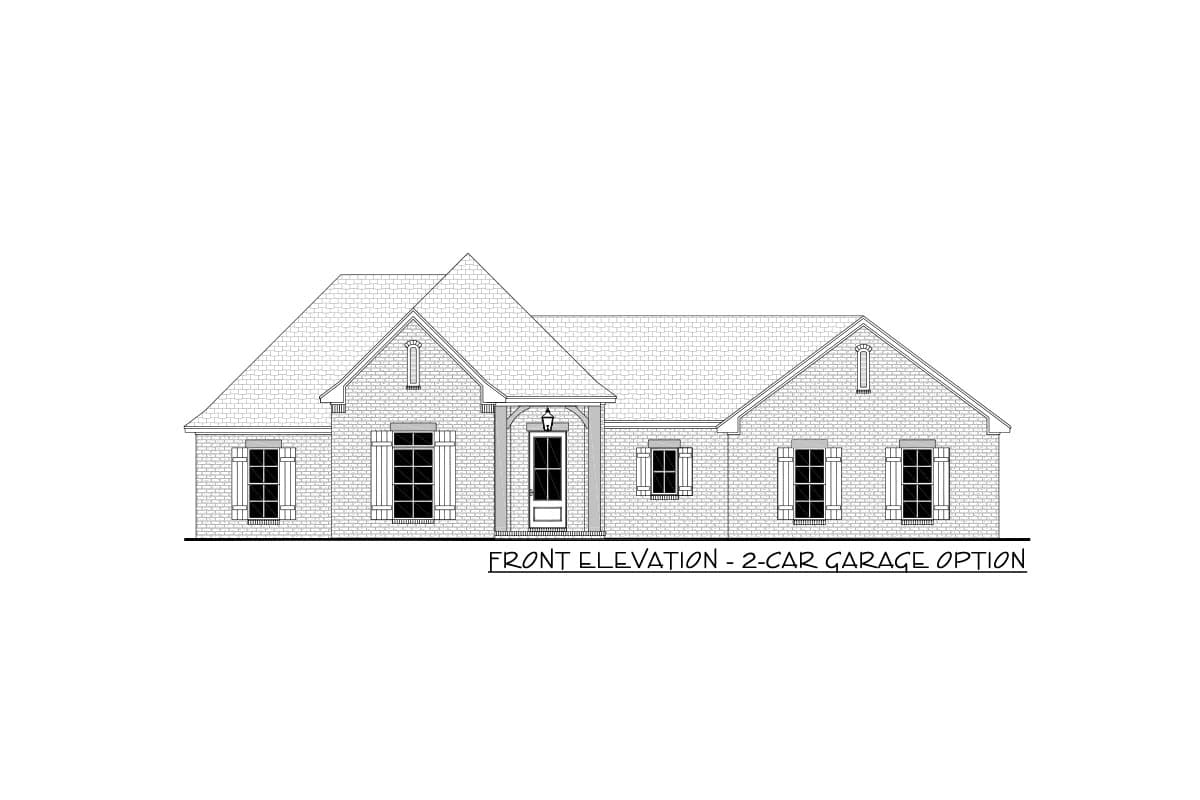

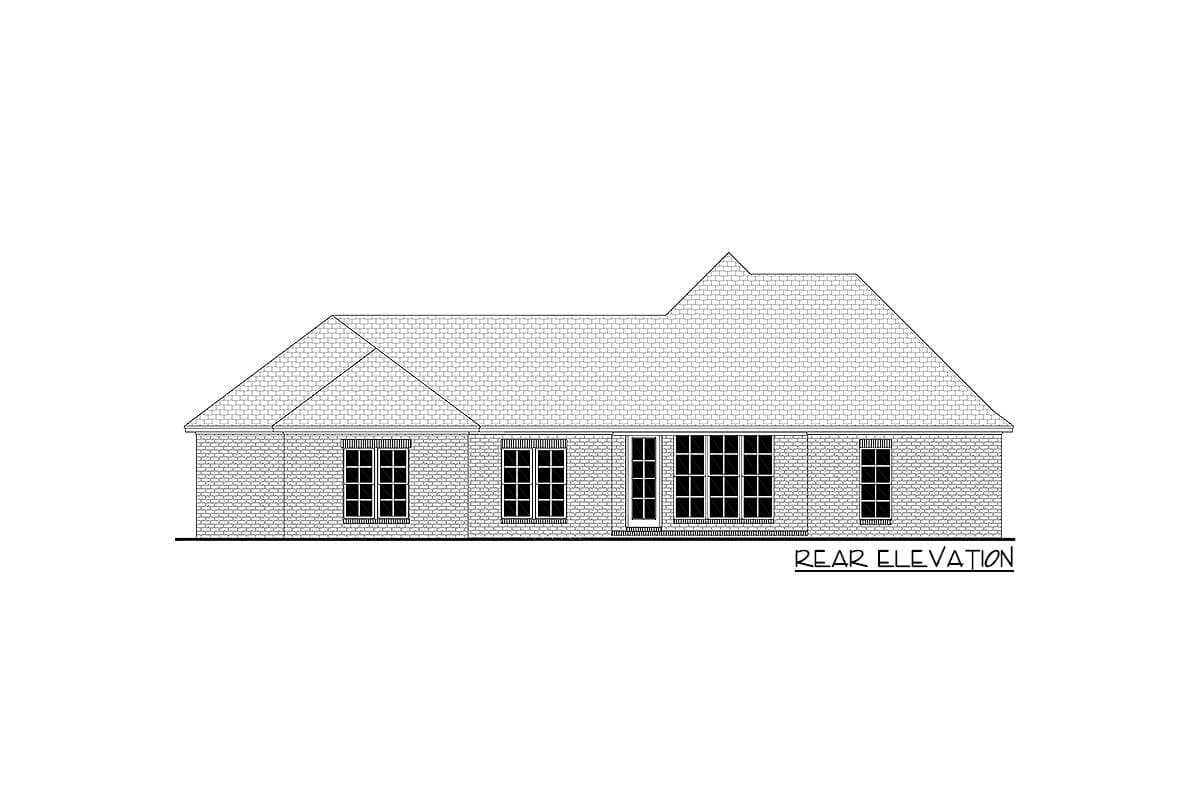

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Sample Plan

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

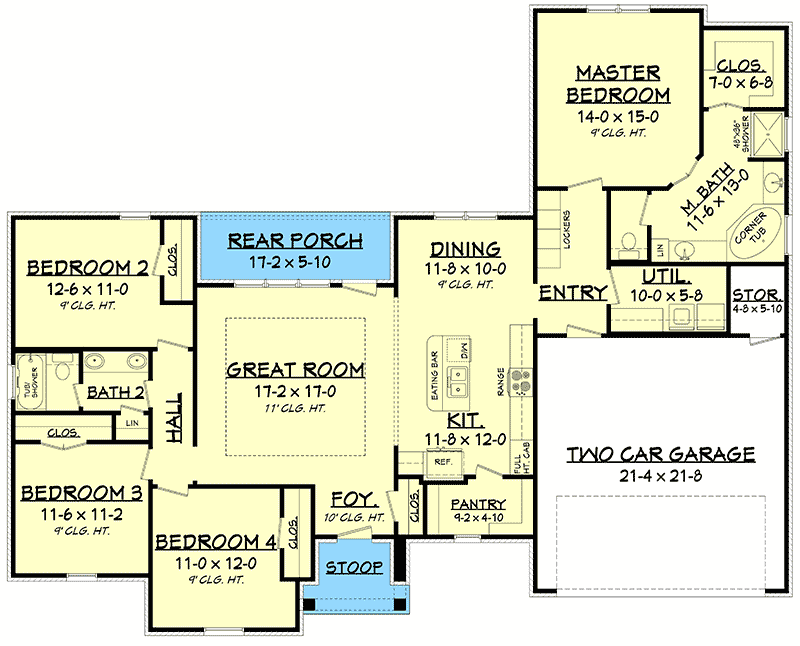

Contractor-Friendly 4-Bed House Plan with Open Layout - 51791HZ floor plan - Main Level

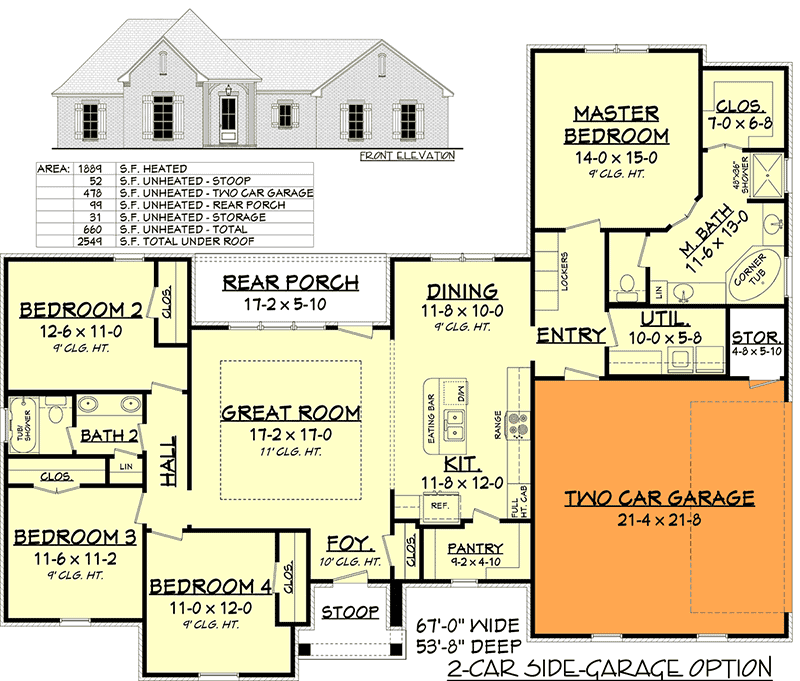

2-Car Side-Garage Option

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Contractor-Friendly 4-Bed House Plan with Open Layout - 51791HZ floor plan - 2-Car Side-Garage Option
