Plan 72092DA

  • 2,050

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Textural variety melds with Craftsman styling to give a pleasing yet unpretentious front facade.
  • Shingles and foundation materials are slightly rough, while windows, doors, columns and railings are smooth and sleek.
  • Fairly similar gables on the house and garage add to the visual appeal, and the full front porch has a welcoming appearance.
  • Decorative columns on the left mark the wide passageway into a living room with a fireplace flanked by Craftsman windows. Another walkway, at the rear of the room, leads to the master suite, stairs, and kitchen.
  • A huge walk-in closet and luxurious bathroom expand the master suite. An alcove there can hold either a built-in dresser, or another of the owners' choice.
  • Upper bedrooms share a two-section bathroom, and a loft. A large bonus room, plus plenty of attic storage space, is over the garage.
  • Kitchen measurements are 9' 10" x 11' 0"

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

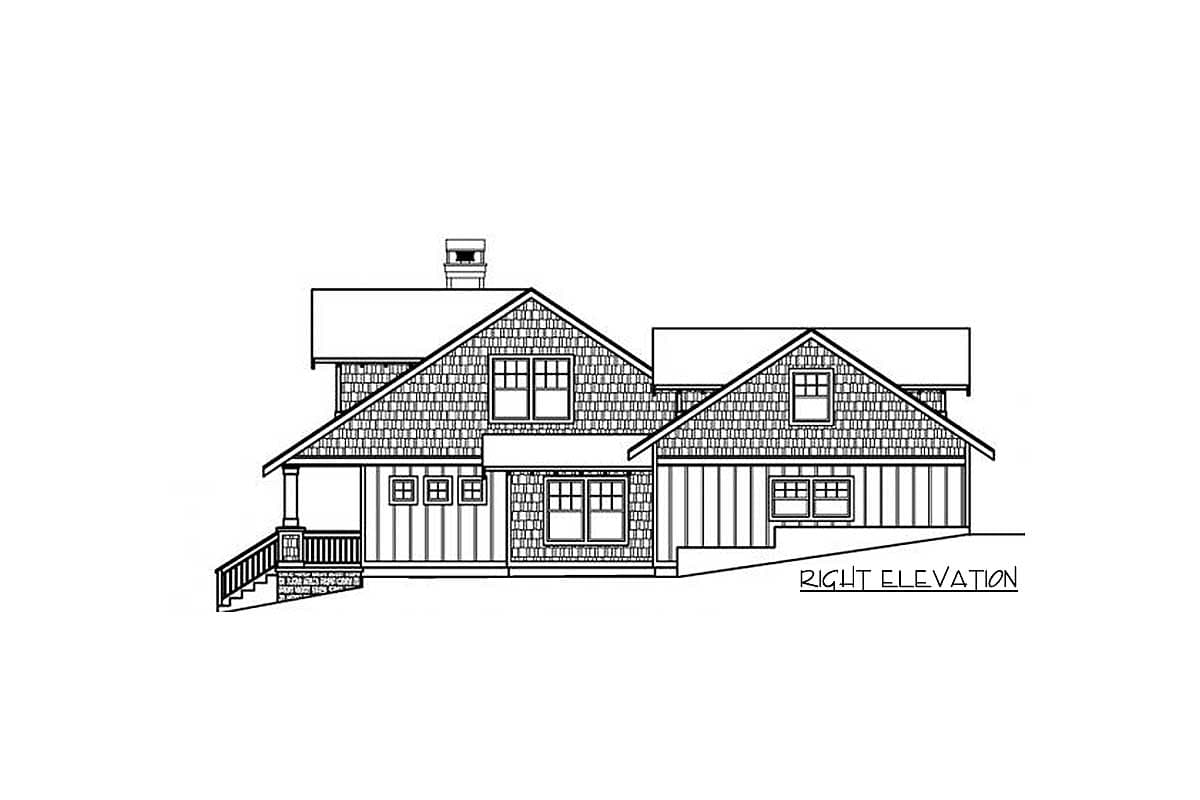

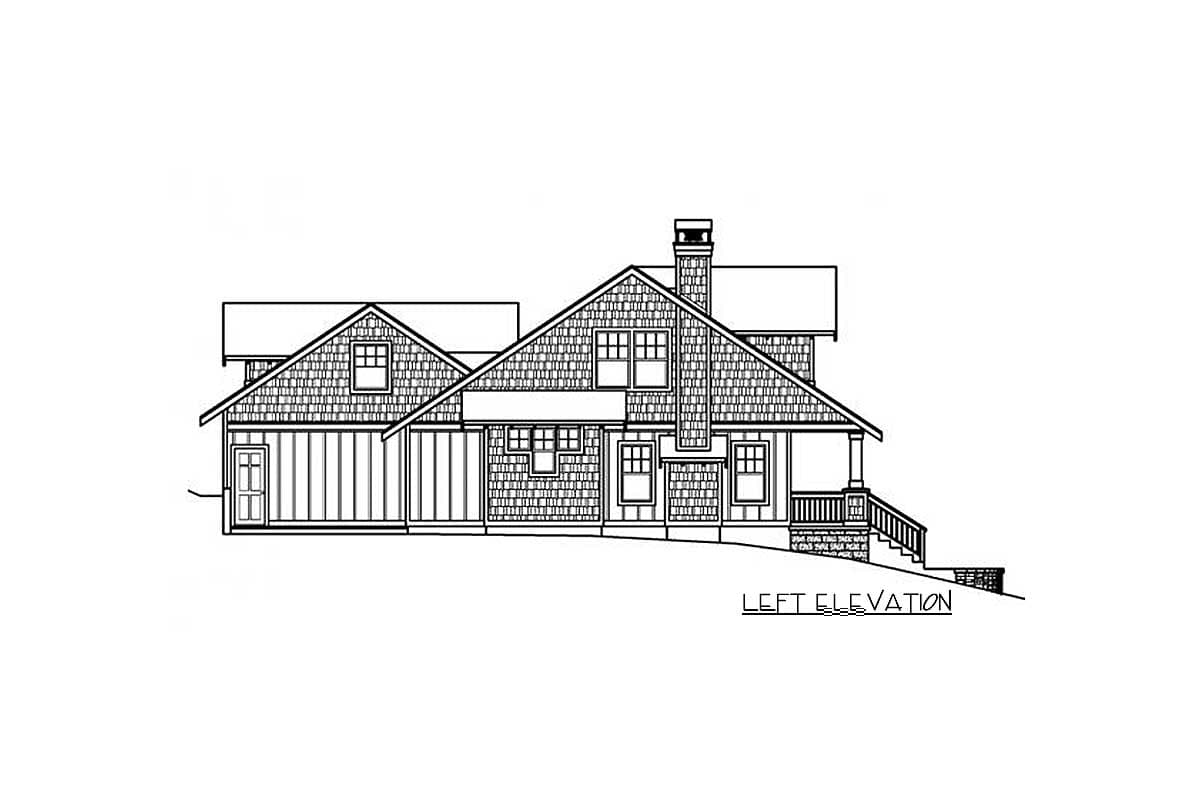

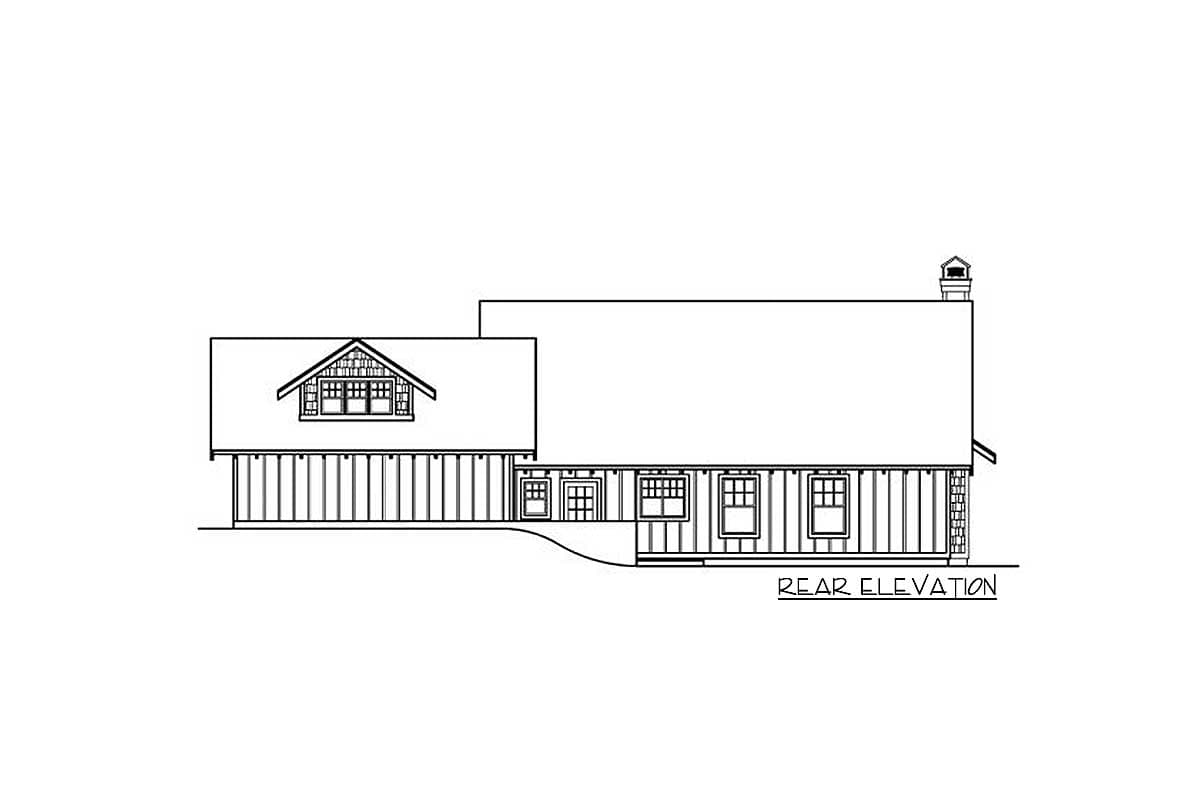

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Contrasting Outer Materials

  • 2,050

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 8 Sets $1,140
  • PDF Plus $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • Textural variety melds with Craftsman styling to give a pleasing yet unpretentious front facade.
  • Shingles and foundation materials are slightly rough, while windows, doors, columns and railings are smooth and sleek.
  • Fairly similar gables on the house and garage add to the visual appeal, and the full front porch has a welcoming appearance.
  • Decorative columns on the left mark the wide passageway into a living room with a fireplace flanked by Craftsman windows. Another walkway, at the rear of the room, leads to the master suite, stairs, and kitchen.
  • A huge walk-in closet and luxurious bathroom expand the master suite. An alcove there can hold either a built-in dresser, or another of the owners' choice.
  • Upper bedrooms share a two-section bathroom, and a loft. A large bonus room, plus plenty of attic storage space, is over the garage.
  • Kitchen measurements are 9' 10" x 11' 0"

Floor Plans

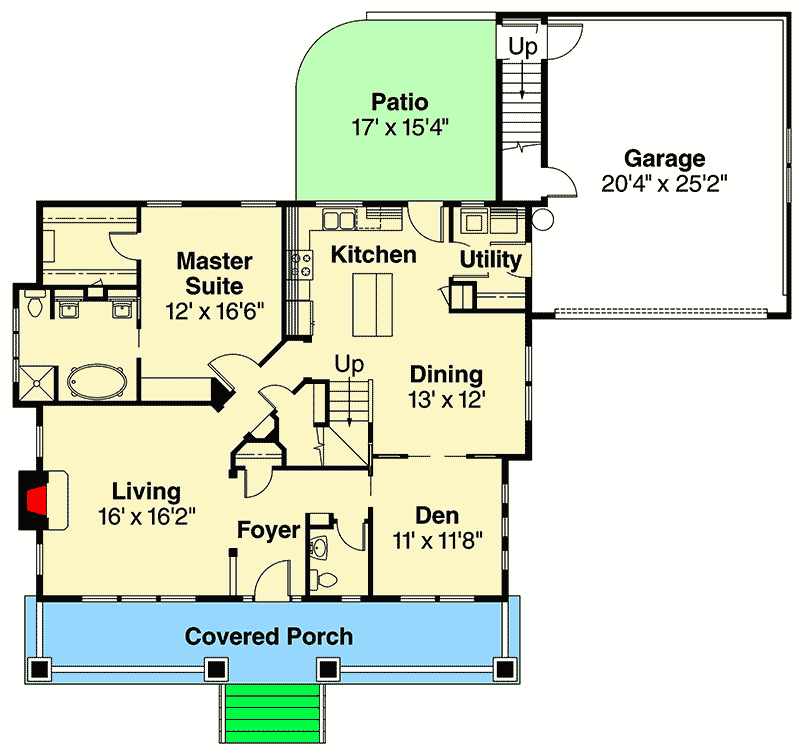

  • Main Level

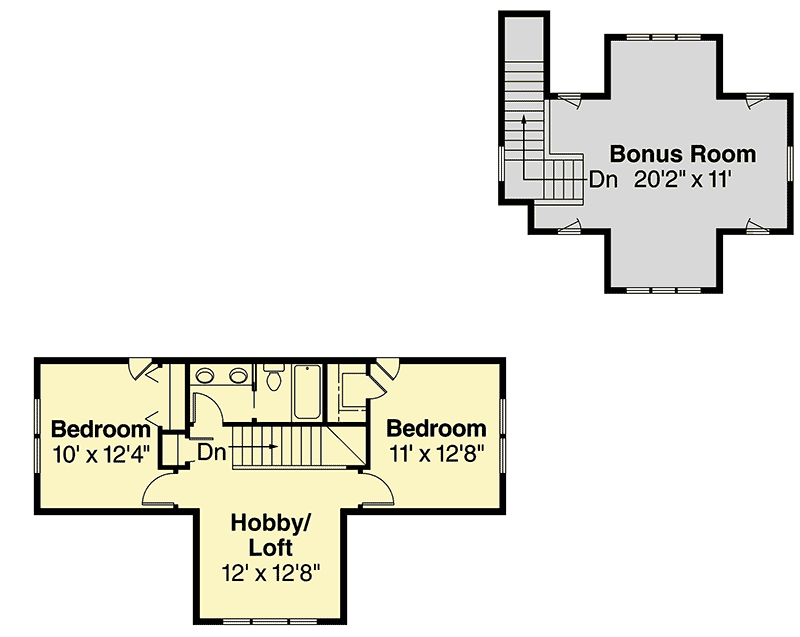

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,050 sq. ft.
  • 1st Floor: 1,433 sq. ft.
  • 2nd Floor: 617 sq. ft.
  • Bonus: 347 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 56' 0"
  • Max ridge height: 22' 0"

Garage

  • Type: Attached
  • Area: 620 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

  • Cottage
  • Country
  • Mountain

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • Den-Office-Library-Study
  • Loft
  • PDF
