Plan 39135ST
Cost Efficient Construction
Heated S.F.
1,835
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This two-story home plan with a brick front and bay window offers step-saving convenience, large spaces and a 9' first floor ceiling height. The equal distribution of space between the first floor and second floor offers a cost efficient construction.
  • Formal and informal dining are served equally well from the kitchen which offers a pantry cabinet, counter with seating and 21' of counter space.
  • A bay window and window seat decorate the breakfast area and the gas fireplace offers a beautiful focal point and warmth to the great room.
  • The location of the laundry room offers an easy relationship with the second floor bedrooms and paired with the powder room creates a handy secondary entry from the garage.
  • The three bedrooms enjoy large closets and the Master Suite offers a whirlpool tub, double bowl vanity and shower.
What's Included
  • General notes and specifications

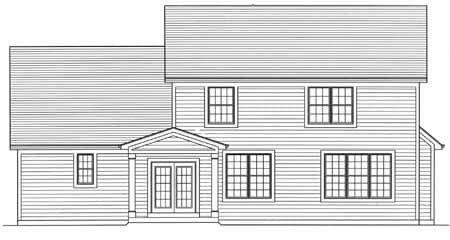

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Cost Efficient Construction

  • 1,835

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

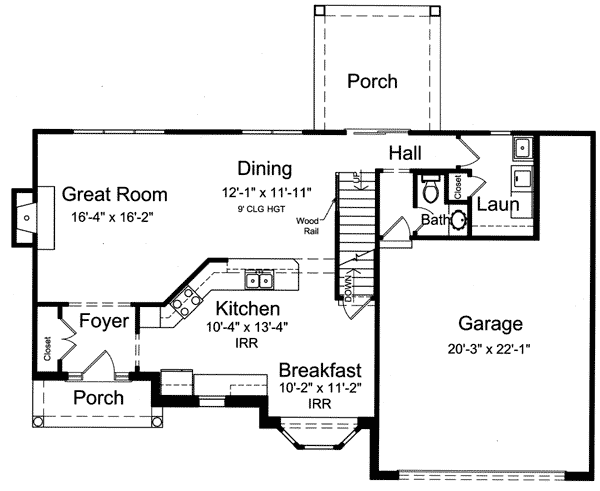

  • Main Level

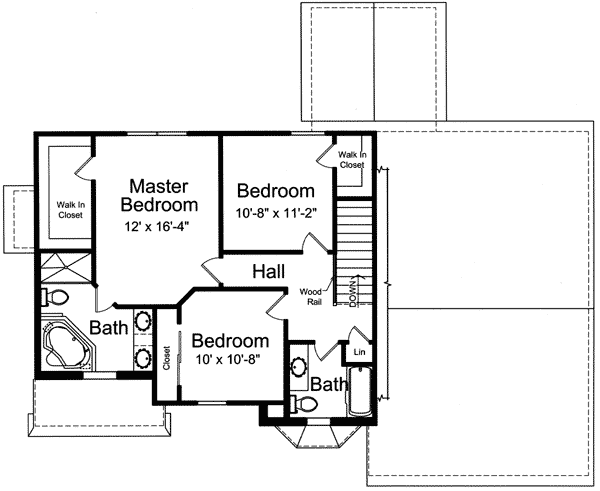

  • 2nd Floor
