Cottage Escape with 3 Master Suites

Plan 68400VR

  • 1,972

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • Everyone gets a master bedroom in this exciting Vacation getaway house plan.

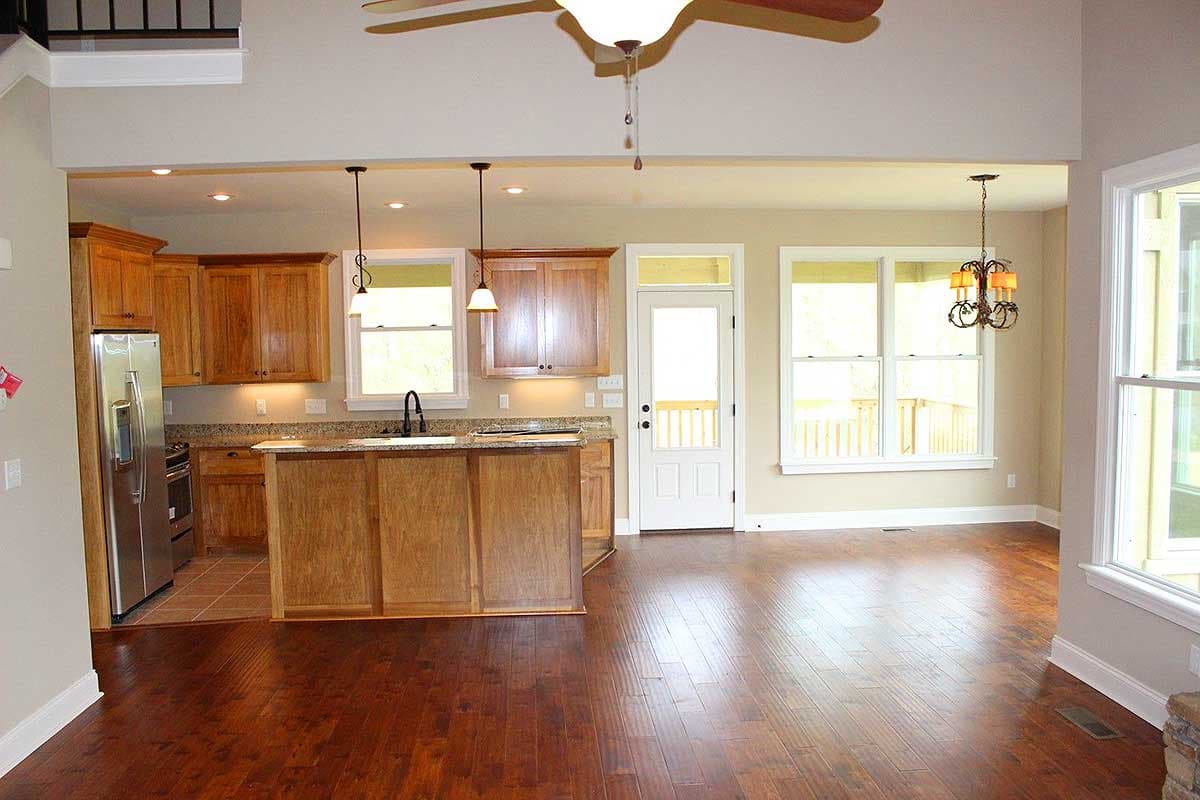

  • The open floor plan comes with a vaulted family room that's within sight of the kitchen and dining area.

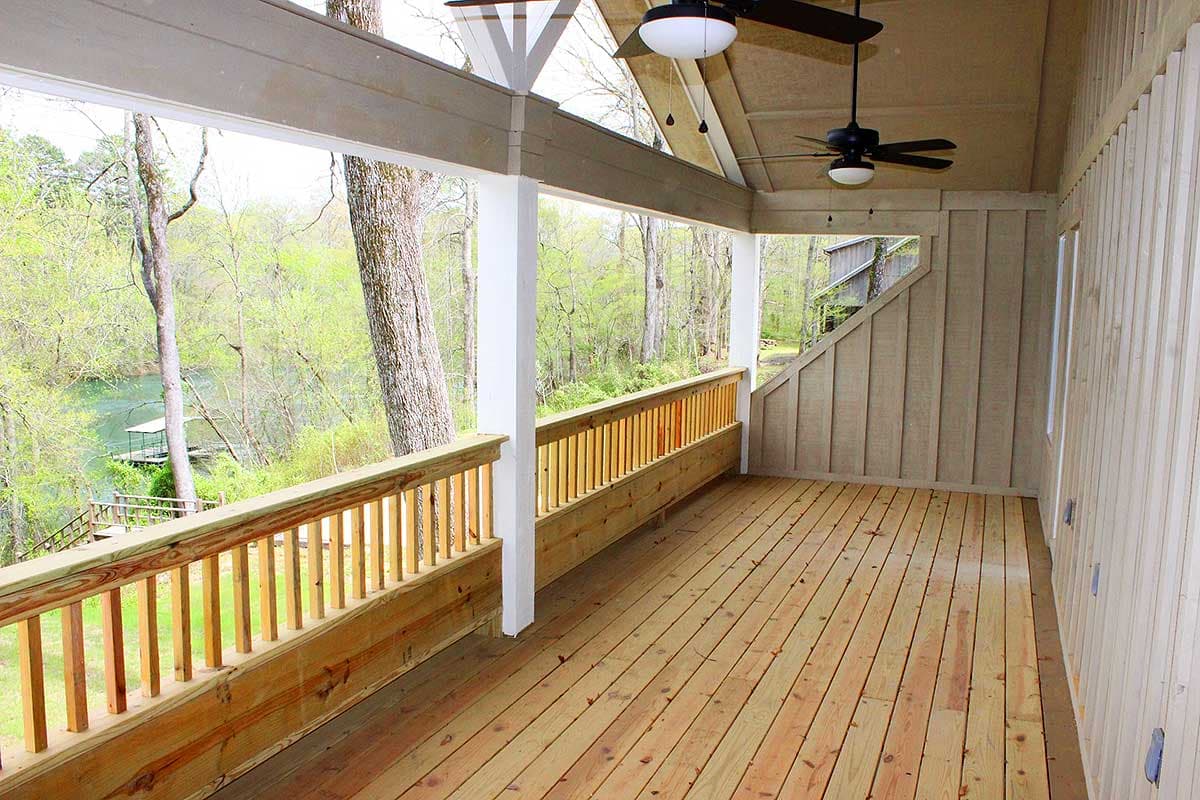

  • A huge rear covered porch spans the width of the house, giving everyone some quality outdoor time.
  • There's also a vaulted front porch and an outdoor upper balcony that can be reached by both bedrooms on the second floor.
  • Having three master suites makes the home ideal for a group-owned vacation retreat or a splurge for single families who want three luxurious bedrooms.
  • Related Plans: Get a bay window in the dining room with built-in seating with house plan 68440VR and a bonus room upstairs with house plan 68734VR and an alternate version with house plan 68944VR. Get a 2-bed version with house plan 68561VR (2,065 sq. ft.). Get an attached 2-car garage and 4 beds with house plan 68458VR and 68749VR and a version with a 3-car garage with house plan 68945VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

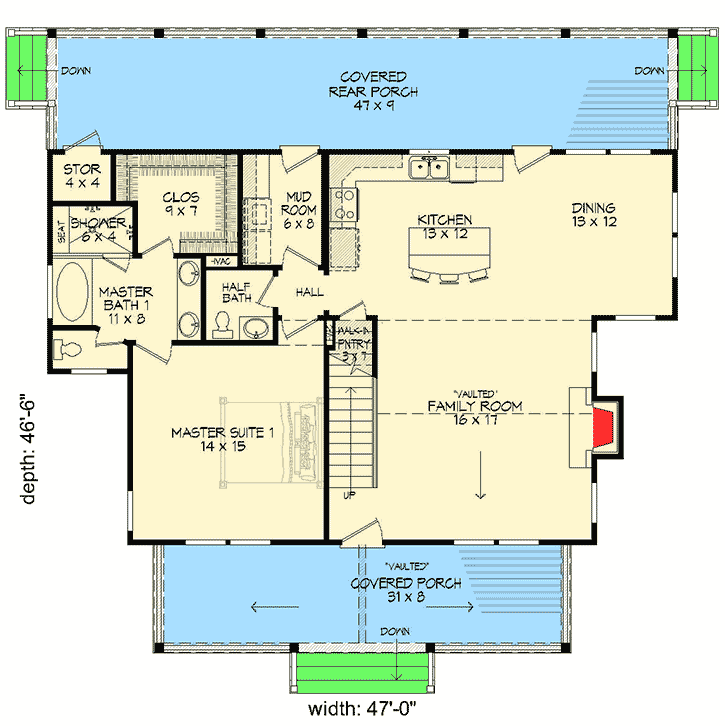

Cottage Escape with 3 Master Suites - 68400VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

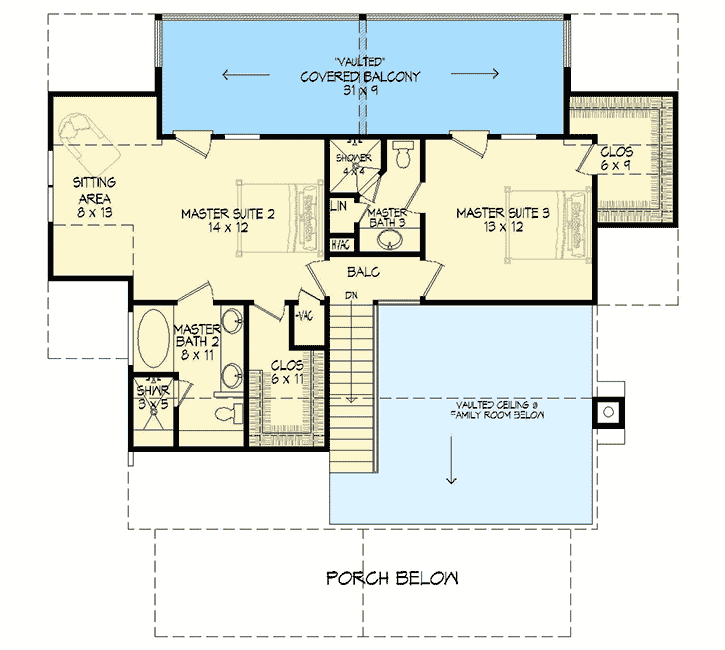

Cottage Escape with 3 Master Suites - 68400VR floor plan - 2nd Floor
