Plan 55052BR
Cottage Home Plan with Choices
Heated S.F.
848
Beds
1
Baths
1
Stories
1
What's Included
Plan Details
  • With majestic columns and graceful windows, this cottage home plan will charm your guests from the moment they drive up. Linger on the enticing wraparound porch or saunter inside.
  • The versatile dining and living area offers enough space to create separate areas for reading, conversation and dining, or the area can be opened up to host a gathering of friends.
  • Just off the dining and living area, the efficient kitchen offers just enough space to accommodate a party but won't overwhelm you during a solitary weekend retreat.
  • The master suite is posh with beautiful windows, a stepped ceiling, a bookshelf, unique bifold-door entries and two roomy walk-in closets. Dual access to the bath from the master suite and the wraparound porch is a clever addition to this charming home.
  • Related Plan: Get an alternate exterior, see house plan 55053BR.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Cottage Home Plan with Choices

  • 848

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

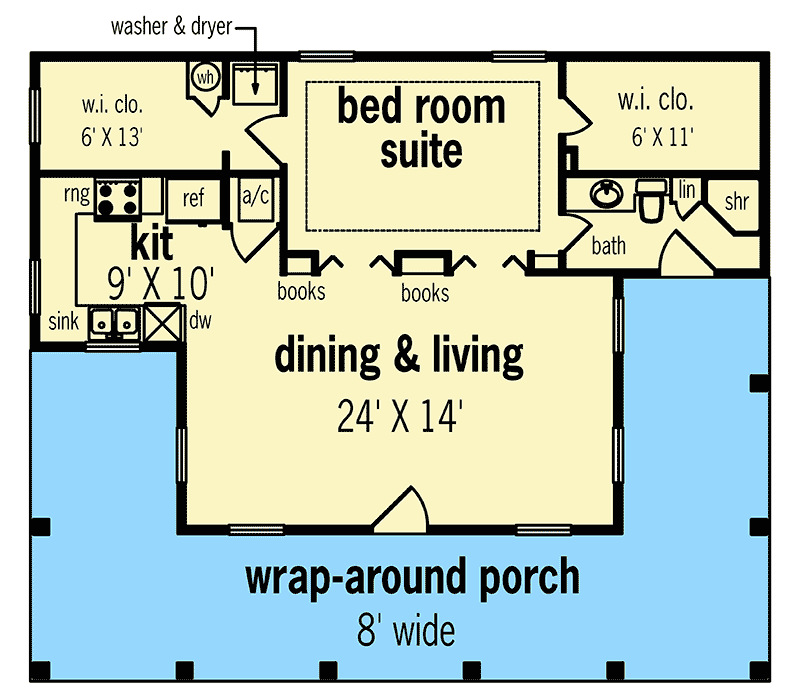

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 848 sq. ft.
  • 1st Floor: 848 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 34' 0"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
