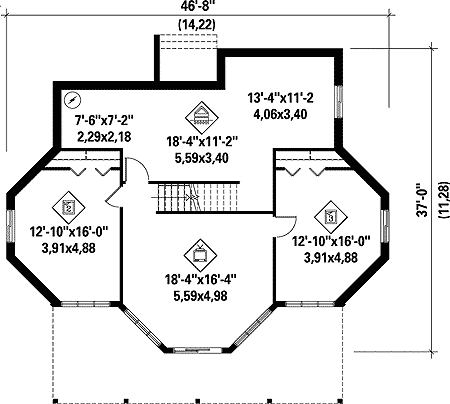

Basement

Plan 80657PM: Cottage Home Plan with Views - Floor Plan - Basement - Cottage, Mountain, Vacation

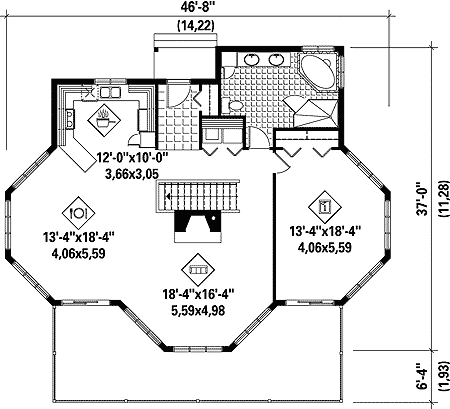

Main Level

Plan 80657PM: Cottage Home Plan with Views - Floor Plan - Main Level - Cottage, Mountain, Vacation

Plan Details

  • This magnificent cottage is truly impressive thanks to its large arched windows with transoms.
  • The house plan measures 46 feet 8 inches wide by 37 feet deep and provides 2,520 square feet of living space.
  • The main floor has 10' ceilings. It consists of an open area that includes a living room with a fireplace and a dining room, a bathroom, a kitchen as well as a master bedroom with access to the rear terrace.
  • The finished lower level has 1,260 sq. ft. of living space like above and includes two bedrooms, a den and a huge storage room for tools or garden accessories.

What's Included

Please note this plan is designed to the National Building Code of Canada.

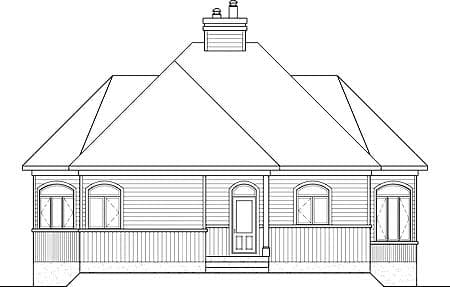

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,520 sq. ft.

Lower Level

1,260 sq. ft.

1st Floor

1,260 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 8"

Depth

37' 0"

Max Ridge Height

34' 10"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cottage

Mountain

Vacation

Special Features

Bedrooms - Clustered

Den

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,520 sq. ft.

Lower Level

1,260 sq. ft.

1st Floor

1,260 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 8"

Depth

37' 0"

Max Ridge Height

34' 10"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cottage

Mountain

Vacation

Special Features

Bedrooms - Clustered

Den

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Sloping Lot
