Plan 267099SPK

Cottage House Plan with Vaulted Loft and Patio

Heated S.F.
784
Beds
1
Baths
2
Stories
1

Floor Plan

Plan 267099SPK

Main Level
Main Level
Optional Finished Upper Loft
Optional Finished Upper Loft

Plan 267099SPK

M-F 9am-5pm EST |

1-203-761-8500

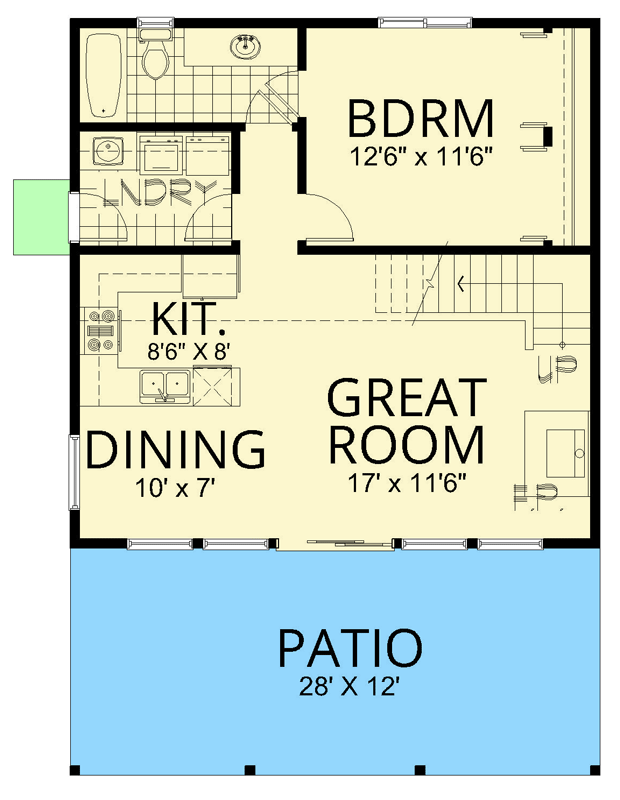

Main Level

Plan 267099SPK: Cottage House Plan with Vaulted Loft and Patio - Floor Plan - Main Level - Cabin, Cottage

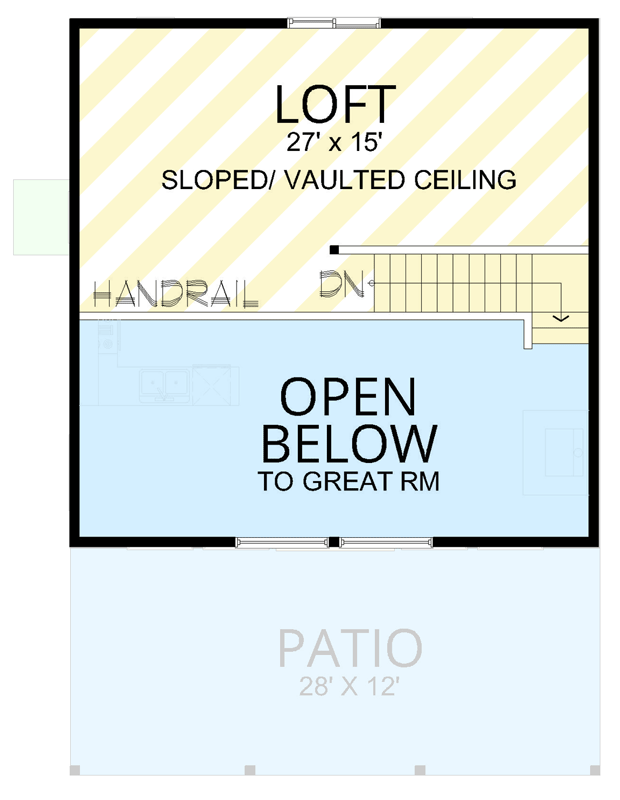

Optional Finished Upper Loft

Plan 267099SPK: Cottage House Plan with Vaulted Loft and Patio - Floor Plan - Optional Finished Upper Loft - Cabin, Cottage

Plan Details

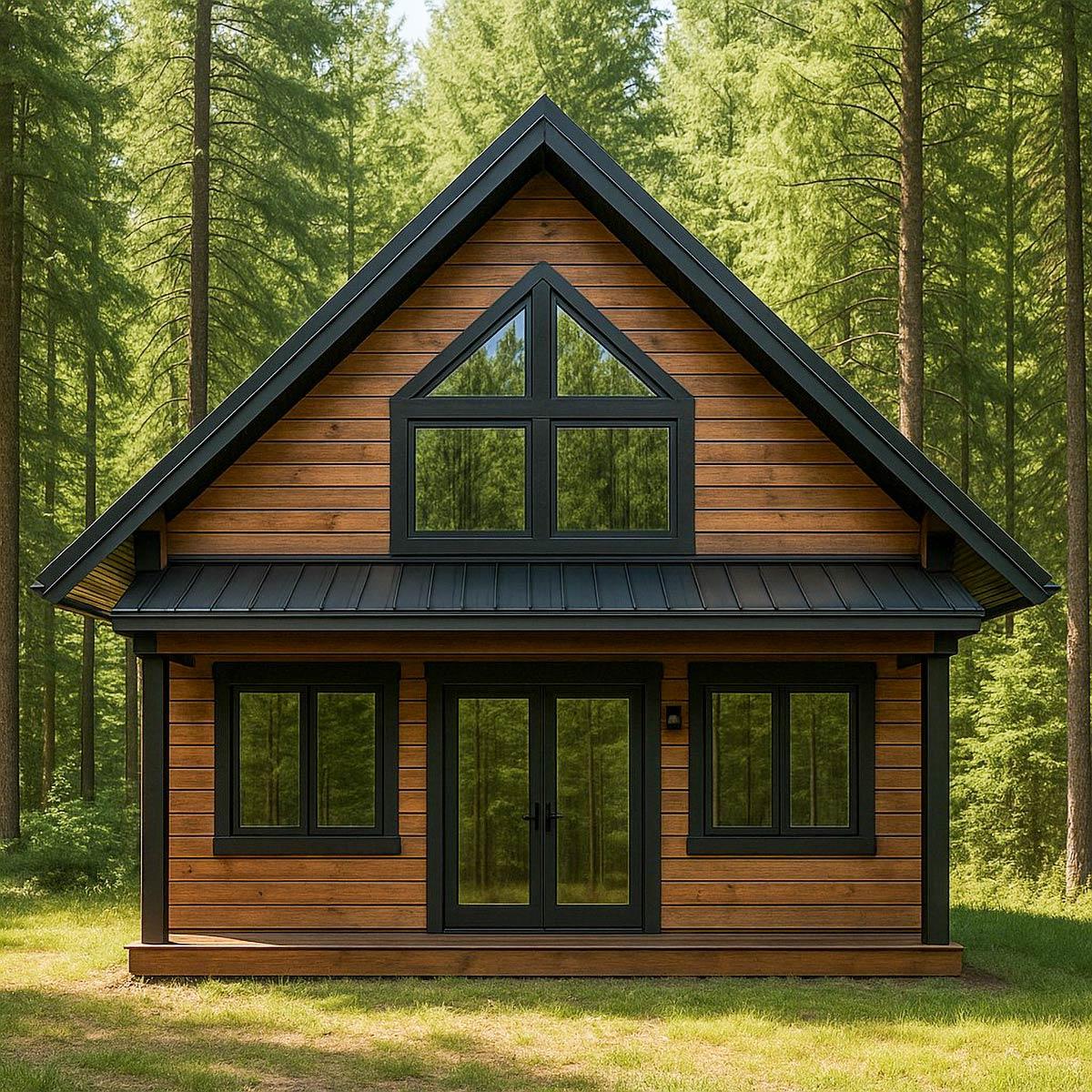

  • This inviting 784 sq. ft. Cabin-style house plan, complemented by an additional 405 sq. ft. heated loft, features 1 bedroom and 2 full bathrooms, all housed within a natural wood exterior topped with a modern dark metal roof.
  • Step inside to discover an open-concept layout, where the great room immediately welcomes you with its expansive feel and views towards the patio, perfect for relaxing or intimate gatherings.
  • The main living areas flow seamlessly, with the great room opening into a cozy dining area and a well-appointed kitchen, complete with a breakfast nook for casual mornings. A conveniently located main-level laundry area and a full bathroom are also found on this floor.
  • The private first-floor master suite offers a tranquil retreat, featuring ample space and easy access to a full bathroom. Its strategic placement ensures privacy and a dedicated personal sanctuary.
  • Above, a spacious 405 sq. ft. vaulted loft, open to the great room below, provides a flexible area ideal for a home office, an artist's studio, or an additional lounging space, bathed in natural light from the prominent A-frame window.
  • The generous 28' x 12' patio offers ample space for enjoying the surrounding natural landscape and fresh air.

What's Included

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
View Sample Plan

What's Not Included

  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

784 sq. ft.

1st Floor

784 sq. ft.

Loft

405 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

28' 0"

Max Ridge Height

27' 3"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

2 on 12

Architectural Style

Cabin

Cottage

Special Features

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

784 sq. ft.

1st Floor

784 sq. ft.

Loft

405 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

28' 0"

Max Ridge Height

27' 3"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

2 on 12

Architectural Style

Cabin

Cottage

Special Features

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
