Plan 70859MK

Cottage-Like Duplex with Full Floor 1-Bed Units

Heated S.F.
1,345
Units
2
Width
Depth

Floor Plan

Plan 70859MK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 70859MK

M-F 9am-5pm EST |

1-203-761-8500

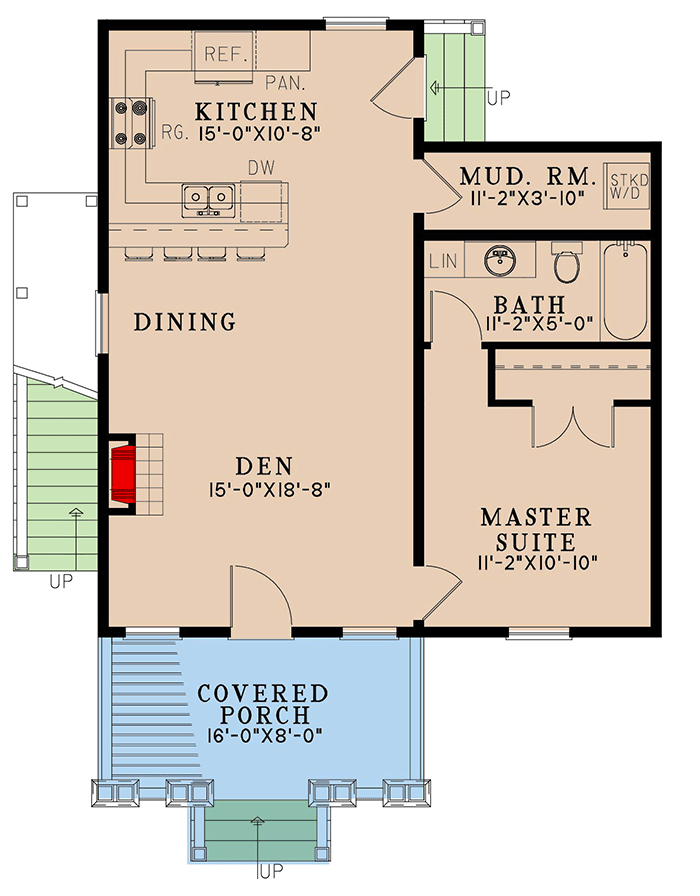

Main Level

Plan 70859MK: Cottage-Like Duplex with Full Floor 1-Bed Units - Floor Plan - Main Level - Cottage, Country, Mountain, Rustic

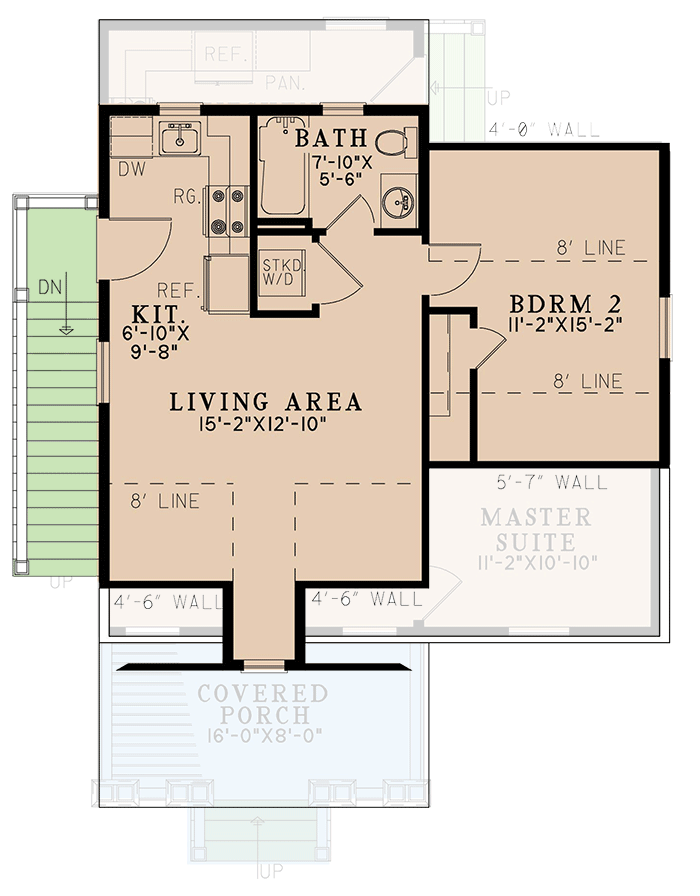

2nd Floor

Plan 70859MK: Cottage-Like Duplex with Full Floor 1-Bed Units - Floor Plan - 2nd Floor - Cottage, Country, Mountain, Rustic

Plan Details

  • This charming duplex-style cottage boasting a cozy yet spacious interior spanning just under 1,400 square feet, this retreat offers 2 bedrooms and 2 full baths, making it the perfect haven for your next small lot or somewhere on you property. Each floor constitutes its own unit.
  • Upon entering the main floor 769 square foot unit, you'll find an open space encompassing the den, dining space, and kitchen with a convenient eating peninsula. To the right you'll find the bedroom with well-appointed bathroom. Beyond the bathroom, you'll discover the mudroom, complete with a washer and dryer.
  • Stairs to the second floor 576 square foot unit run along the left side of the structure. The unit has an open living area with its own well-equipped kitchen on the left side. On the right, you'll find another washer and dryer, a second bathroom and bedroom.
Unit A
Heated Area
769Sq. Ft.
769 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
31' 10"width
38' 7"depth
22' 8"height
Unit B
Heated Area
576Sq. Ft.
769 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
31' 10"width
38' 7"depth
22' 8"height

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,345 sq. ft.

1st Floor

769 sq. ft.

2nd Floor

576 sq. ft.

Porch, Front

128 sq. ft.

Porch, Combined

128 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

31' 10"

Depth

38' 7"

Max Ridge Height

22' 8"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

5 on 12

Architectural Style

Cottage

Country

Mountain

Rustic

Special Features

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Mudroom

Square Footage Breakdown

Total Heated Area

1,345 sq. ft.

1st Floor

769 sq. ft.

2nd Floor

576 sq. ft.

Porch, Front

128 sq. ft.

Porch, Combined

128 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

31' 10"

Depth

38' 7"

Max Ridge Height

22' 8"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

5 on 12

Architectural Style

Cottage

Country

Mountain

Rustic

Special Features

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Mudroom
