Plan 710124BTZ

Cottage-like House Plan with Cedar Shake and Stone Exterior

Pageloader

Cottage-like House Plan with Cedar Shake and Stone Exterior

Plan 710124BTZ

  • 3,225

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Cedar shake and stacked stone envelop this gorgeous cottage. Thoughtful details such as board-and-batten shutters, farmhouse windows and high peaking gables complete the charming look of this attractive house plan.
  • A vaulted family room and separate keeping room - both with fireplaces - provide cozy rooms to visit.
  • The large kitchen is adorned with a curved island and breakfast area looking onto the covered back porch and extended deck.
  • A main level master bedroom is found across the home, and comes with a lovely en suite and generous walk-in closet.
  • Upstairs, a study loft with a built-in desk area is waiting to be used. Two additional bedrooms, each with their own full bath, are located on either side of the hall.
  • An optional bonus room is available on this floor as well for a fourth bedroom or possible game area.
  • Related Plans: Get an alternate exterior with house plan 710123BTZ and 710125BTZ.

The plans include the following:

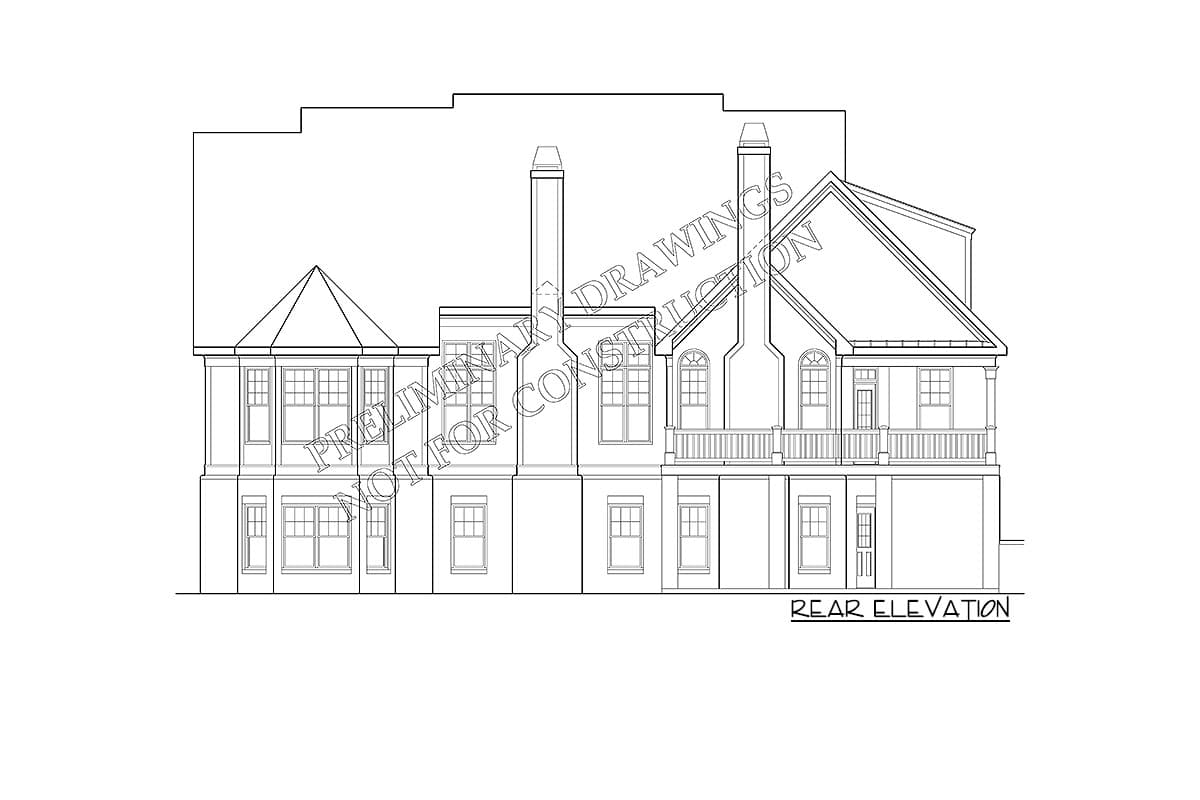

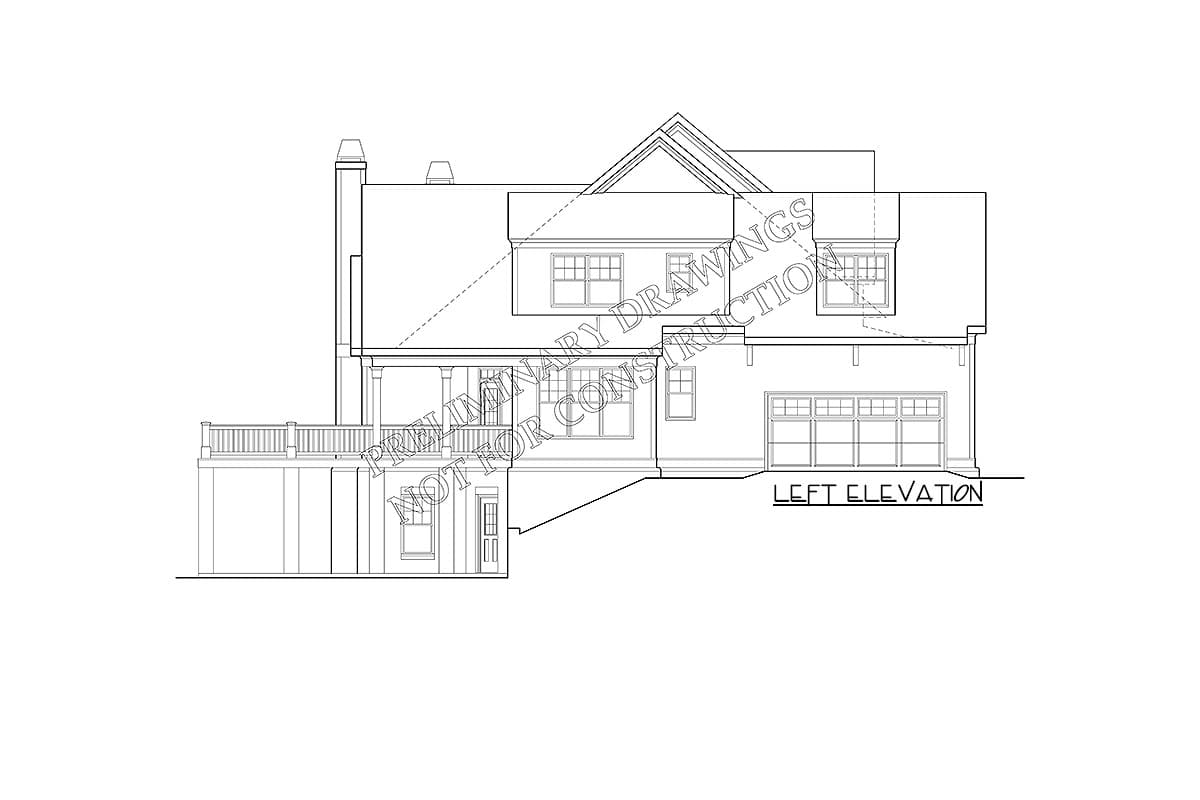

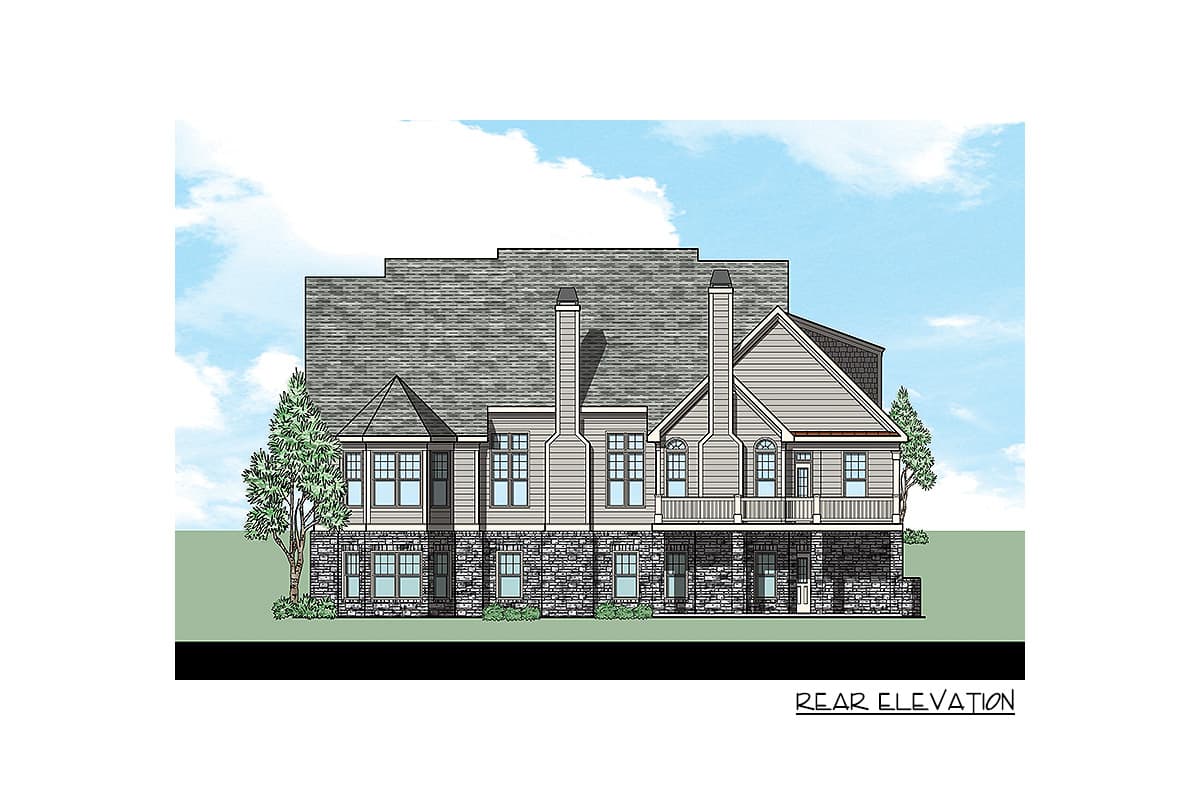

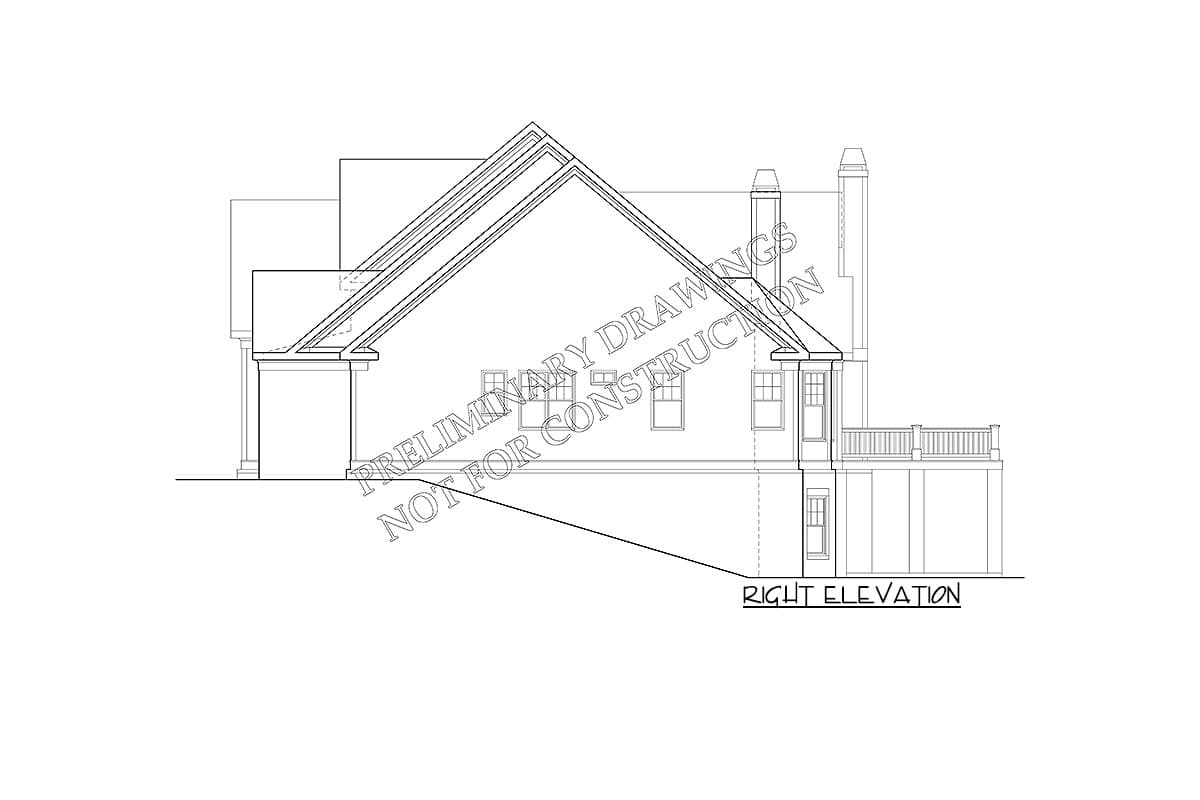

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



Cottage-like House Plan with Cedar Shake and Stone Exterior

  • 3,225

    Heated s.f.

  • 3 - 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - multi-use $1,620
  • Reproducible Set $1,700
  • CAD - multi-use $3,090
  • View all purchase option online

About This Plan

  • Cedar shake and stacked stone envelop this gorgeous cottage. Thoughtful details such as board-and-batten shutters, farmhouse windows and high peaking gables complete the charming look of this attractive house plan.
  • A vaulted family room and separate keeping room - both with fireplaces - provide cozy rooms to visit.
  • The large kitchen is adorned with a curved island and breakfast area looking onto the covered back porch and extended deck.
  • A main level master bedroom is found across the home, and comes with a lovely en suite and generous walk-in closet.
  • Upstairs, a study loft with a built-in desk area is waiting to be used. Two additional bedrooms, each with their own full bath, are located on either side of the hall.
  • An optional bonus room is available on this floor as well for a fourth bedroom or possible game area.
  • Related Plans: Get an alternate exterior with house plan 710123BTZ and 710125BTZ.

Floor Plans

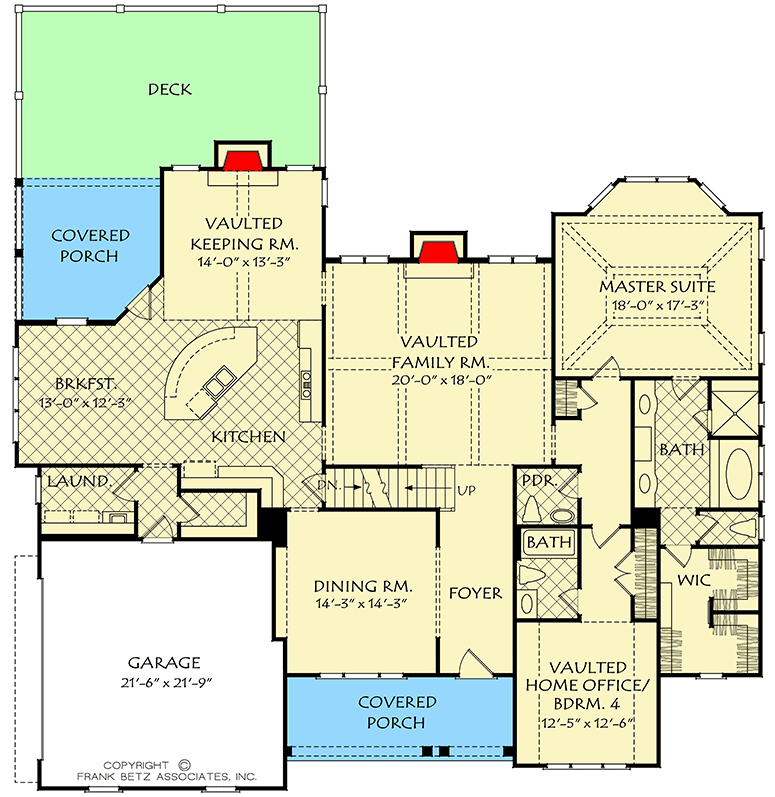

  • Main Level

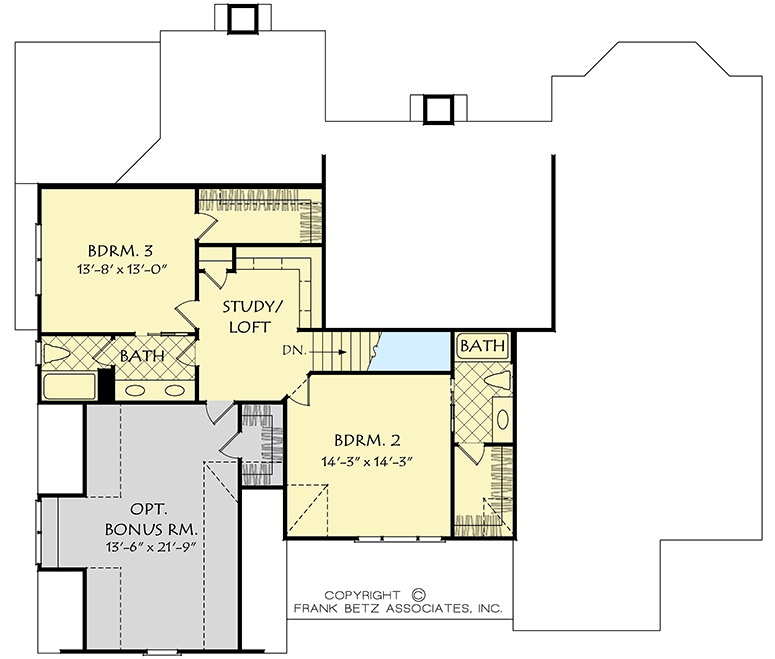

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,225 sq. ft.
  • 1st Floor: 2,415 sq. ft.
  • 2nd Floor: 810 sq. ft.
  • Bonus: 363 sq. ft.
  • Basement Unfinished: 2,415 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 66' 0"
  • Depth: 57' 4"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 472 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
