Plan 52535WM

Cottage Ranch Duplex House Plan with Two 1 Bed Units

Name: Plan 52535WM: Cottage Ranch Duplex House Plan with Two 1 Bed Units
Brand: Architectural Designs
SKU: 52535WM
Price: 1195.0 USD
Availability: InStock

Heated S.F.

1,920

Units

Width

Depth

Tour

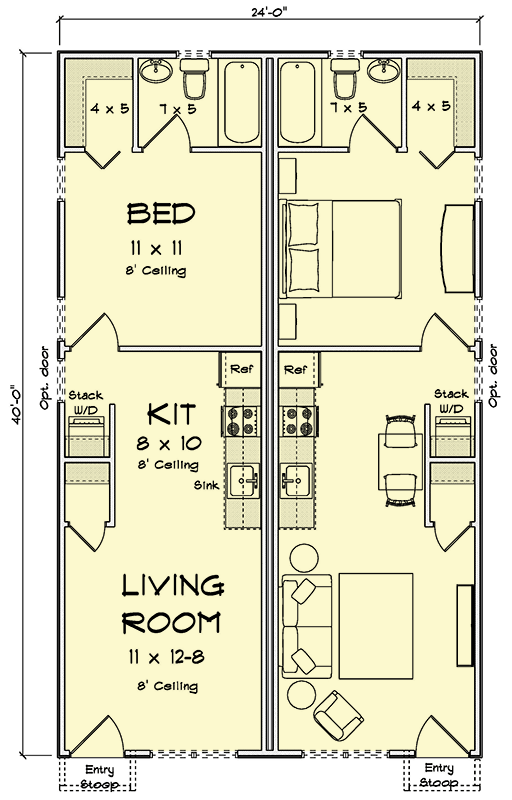

Floor Plan

Main Level

Plan Details

This charming Cottage Ranch duplex house plan offers a total of 1,920 sq ft, comprising two distinct 1-bed, 1-bath units, each featuring a traditional single-story layout.
Each unit features its own welcoming front entry, opening into a thoughtfully designed living space that maximizes its compact footprint.
The efficient layout of each unit seamlessly connects the main living area, kitchen, and dining space, ideal for comfortable daily living.
Each unit includes a private primary bedroom suite conveniently located on the first floor, offering an integrated laundry area for ease of use.

Unit A & B

Heated Area

960Sq. Ft.

960 Sq. Ft. 1st

Beds

1Beds

Baths

1Full Bath

Dimensions

12'width

40'depth

What's Included

Front elevation and construction notes
Rear and side elevations
Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Full building section

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
