Plan 69006AM

Cottage Style with Split-Bedroom Design

2,357 3 3 1-2 3
Pageloader

Cottage Style with Split-Bedroom Design

Plan 69006AM

  • 2,357

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • A split-bedroom plan. A three-car garage. A home office. A second-level storage area. A cottage-style exterior. This home plan answers your must-have list for new home amenities and offers a host of other great features you'll love. To start with, you'll find a cozy front porch delineated with columns, a place where you can watch the grand kids bike around the neighborhood, or sip your morning coffee in solitude.
  • Additionally two large dining spaces, the formal dining room and casual breakfast nook, allow you to entertain large groups and seat the whole family in comfort. The great room is spectacular with its vaulted ceiling, fireplace, and tall transom windows. A covered porch at the rear provides sheltered outdoor entertaining space.
  • The master suite is isolated behind the garage, and it includes a bump-out window, spa tub, and large shower. Across the hall from the master suite a staircase leads to the bonus room and storage closet. Two additional bedrooms and the office are in another wing on the opposite side of the home. Double doors lead into the office revealing a wall of built-in cabinets.
  • Related Plan: For an alternate exterior, see house plan 69005AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Plan details



Cottage Style with Split-Bedroom Design

  • 2,357

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $920
  • PDF - single-use $1,270
  • 5 Sets $1,420
  • 5 Sets PLUS $1,470
  • CAD - multi-use $2,540
  • View all purchase option online

About This Plan

  • A split-bedroom plan. A three-car garage. A home office. A second-level storage area. A cottage-style exterior. This home plan answers your must-have list for new home amenities and offers a host of other great features you'll love. To start with, you'll find a cozy front porch delineated with columns, a place where you can watch the grand kids bike around the neighborhood, or sip your morning coffee in solitude.
  • Additionally two large dining spaces, the formal dining room and casual breakfast nook, allow you to entertain large groups and seat the whole family in comfort. The great room is spectacular with its vaulted ceiling, fireplace, and tall transom windows. A covered porch at the rear provides sheltered outdoor entertaining space.
  • The master suite is isolated behind the garage, and it includes a bump-out window, spa tub, and large shower. Across the hall from the master suite a staircase leads to the bonus room and storage closet. Two additional bedrooms and the office are in another wing on the opposite side of the home. Double doors lead into the office revealing a wall of built-in cabinets.
  • Related Plan: For an alternate exterior, see house plan 69005AM.

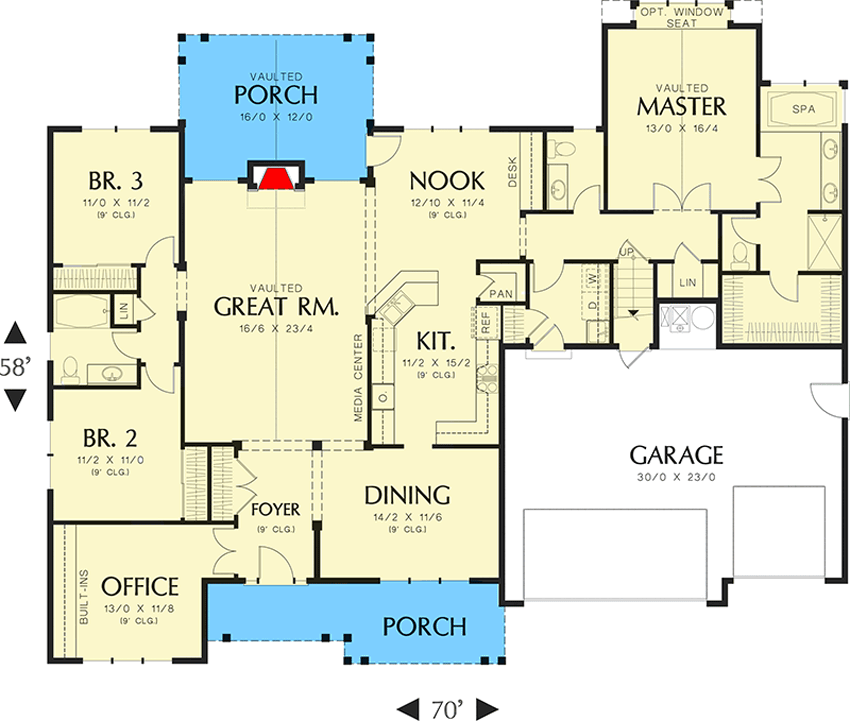

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,357 sq. ft.
  • 1st Floor: 2,357 sq. ft.
  • Bonus: 234 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 58' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 691 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • Craftsman
  • Northwest

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • PDF
  • Split Bedrooms
