Country Barn with Loft and Upstairs Deck

Plan 95147RW

  • 0

    Heated s.f.

  • 2

    Stories

  • Board and batten siding is accompanied by a ribbed metal roof, offering a classic barn exterior to this design.
  • Two sets of sliding barn doors, 18' by 7' and 18' by 10', part to reveal the rectangular interior with a vaulted ceiling.
  • An exterior staircase leads to a 1,950 sq ft loft with a vaulted ceiling and generous deck.

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

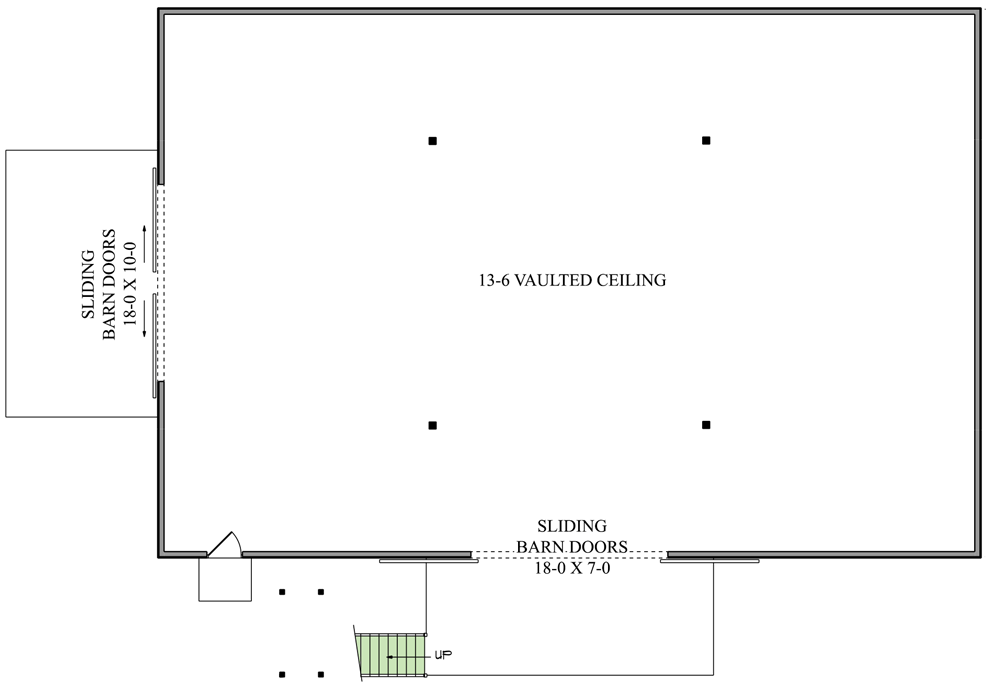

Country Barn with Loft and Upstairs Deck - 95147RW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

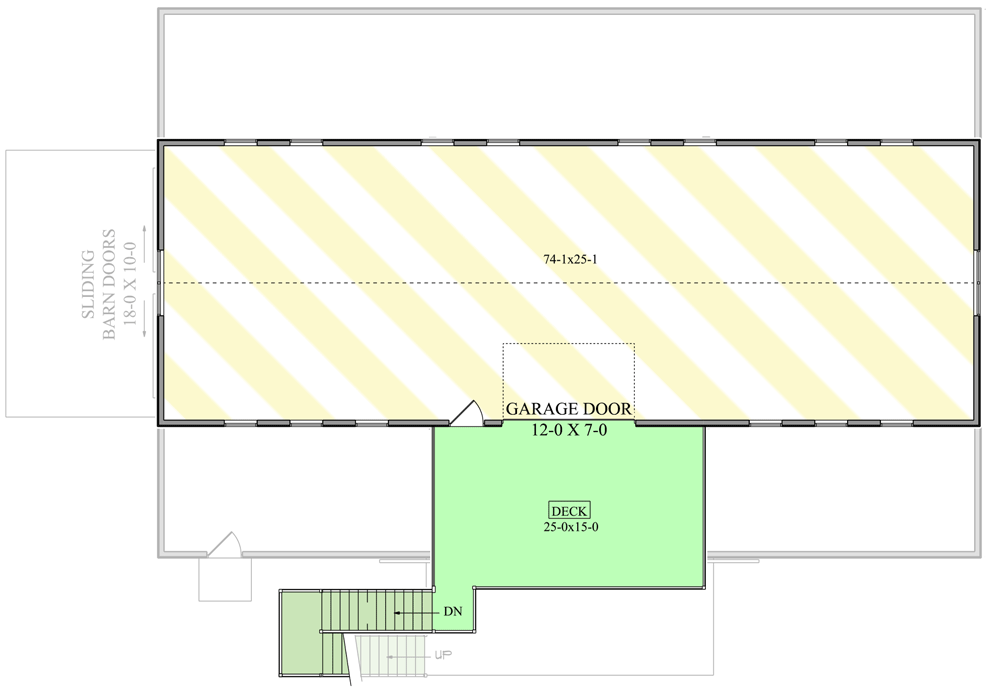

Country Barn with Loft and Upstairs Deck - 95147RW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Deck: 375 sq. ft.
  • Bonus: 1,950 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 61' 0"
  • Max ridge height: 33' 4"

Ceiling Heights

  • Floor / Height: First Floor / 14' 3"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Country Barn with Loft and Upstairs Deck
