Plan 59159ND

Country Cottage House Plan

Heated S.F.
1,542
Beds
2
Baths
2
Stories
1

Floor Plan

Plan 59159ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59159ND

M-F 9am-5pm EST |

1-203-761-8500

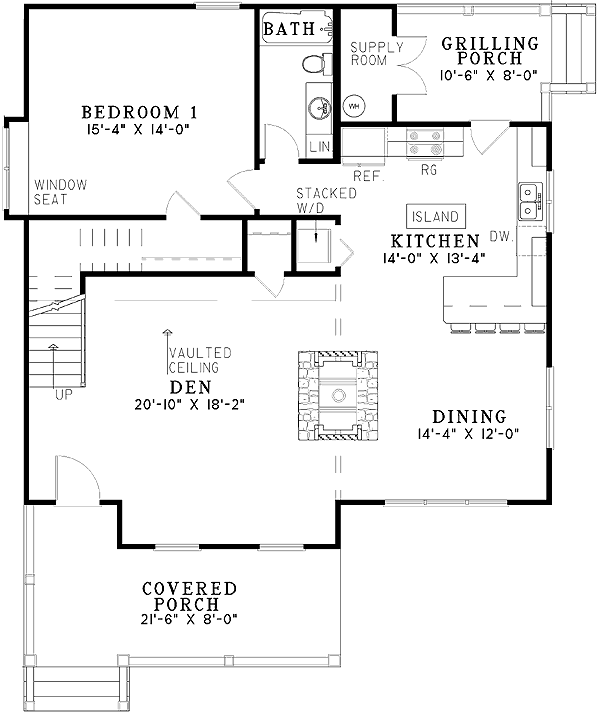

Main Level

Plan 59159ND: Country Cottage House Plan - Floor Plan - Main Level - Cabin, Cottage, Country, Rustic, Vacation

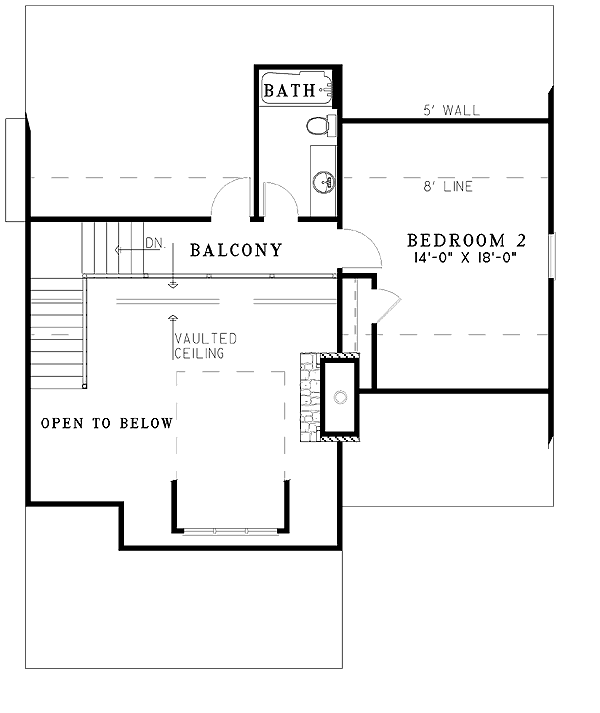

2nd Floor

Plan 59159ND: Country Cottage House Plan - Floor Plan - 2nd Floor - Cabin, Cottage, Country, Rustic, Vacation

Plan Details

  • A comfortable entry porch graces the front of this cottage house plan.
  • Enter into the den with vaulted ceiling open to above.
  • Enjoy the pass-through fireplace from both the den and the dining room.
  • The kitchen has island counter space and bar seating for four.
  • Upstairs, the balcony is open to below. You'll also find an extra bedroom with its own bath.
  • Related Plan: Need an elevated version? See house plan 59968ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,542 sq. ft.

1st Floor

1,159 sq. ft.

2nd Floor

383 sq. ft.

Porch, Front

172 sq. ft.

Porch, Rear

223 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 2"

Depth

45' 0"

Max Ridge Height

25' 4"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4.5 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Rustic

Vacation

Special Features

Den

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,542 sq. ft.

1st Floor

1,159 sq. ft.

2nd Floor

383 sq. ft.

Porch, Front

172 sq. ft.

Porch, Rear

223 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

37' 2"

Depth

45' 0"

Max Ridge Height

25' 4"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4.5 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Rustic

Vacation

Special Features

Den

Master Suite - 1st Floor
