Elevated Cottage House Plan

Plan 59968ND

This plan plants 3 trees

1,542
Heated s.f.
2
Beds
2
Baths
1
Stories

A comfortable entry porch graces the front of this elevated cottage house plan.
Enter into the den with vaulted ceiling open to above.
Enjoy the pass-through fireplace from both the den and the dining room.
The kitchen has island counter space and bar seating for four.
Upstairs, the balcony is open to below. You'll also find an extra bedroom with its own bath.
Related Plan: Need a non-elevated version? See house plan 59159ND.

Each plan set includes the following:

Foundation Plan** (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
An electrical diagram showing a birdseye view of rooms with lights, fans to switches

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

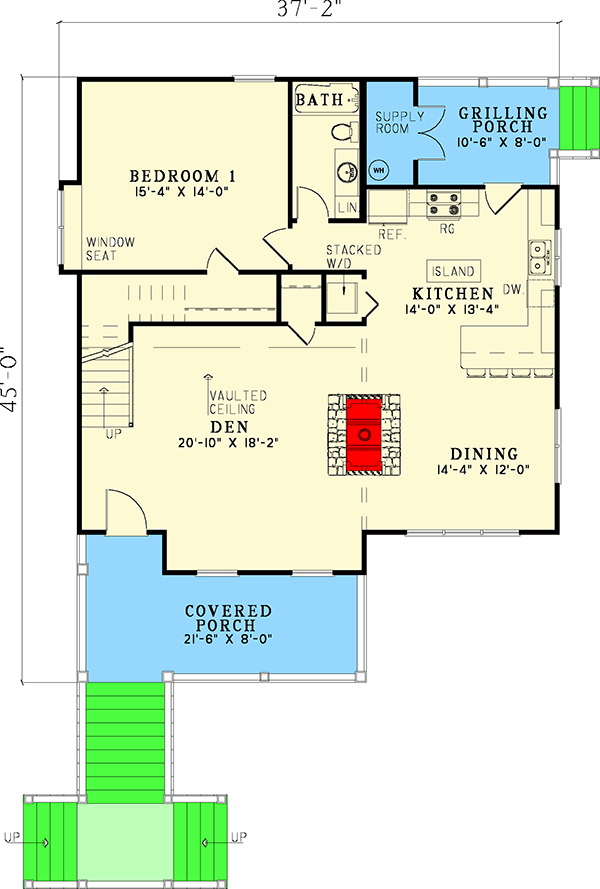

Elevated Cottage House Plan - 59968ND floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

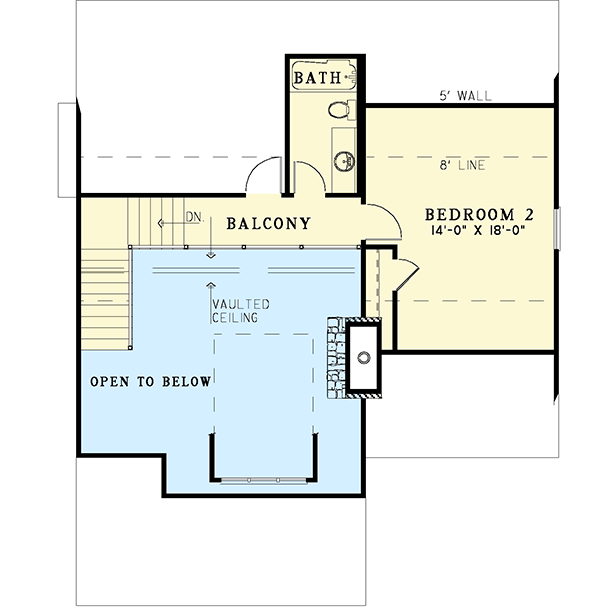

Elevated Cottage House Plan - 59968ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,542 sq. ft.
1st Floor: 1,159 sq. ft.
2nd Floor: 383 sq. ft.

Porch, Rear: 84 sq. ft.
Porch, Front: 311 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 2

Foundation Type

Standard Foundations: Slab, Crawl

Optional Foundations: Basement, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 37' 2"
Depth: 45' 0"
Max ridge height: 25' 4"

Ceiling Heights

Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 9 on 12
Secondary Pitch: 4.5 on 12

Framing Type: Stick

Architectural Style

Special features
