Plan 31605GF

Country Cottage House Plan with 3 Bedrooms and Great Symmetry

Heated S.F.
1,910
Beds
3
Baths
2.5
Stories
2

Floor Plan

Plan 31605GF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 31605GF

M-F 9am-5pm EST |

1-203-761-8500

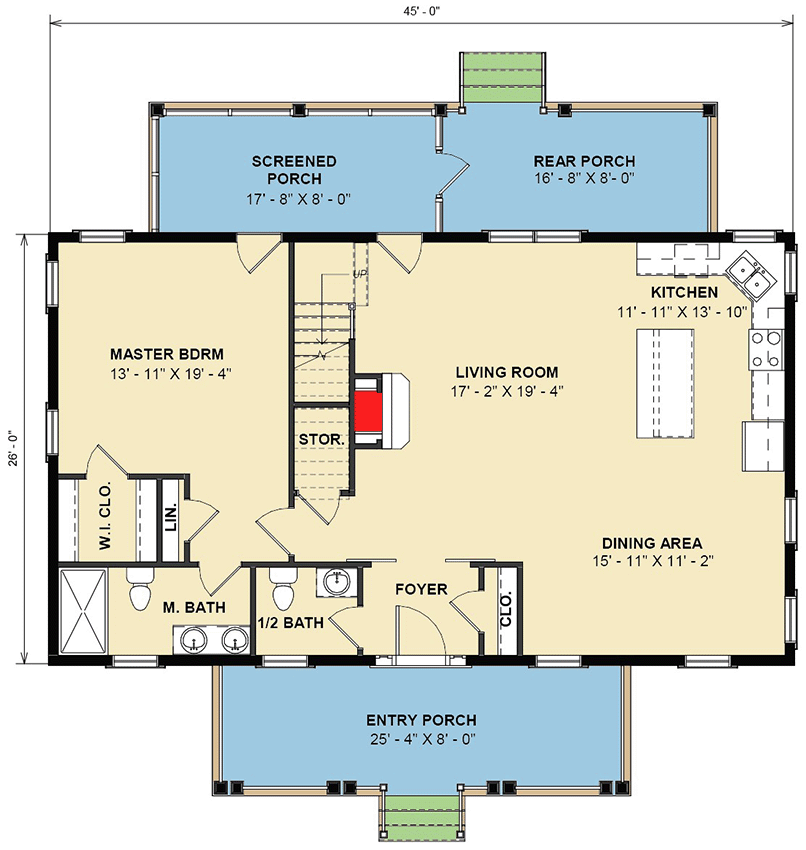

Main Level

Plan 31605GF: Country Cottage House Plan with 3 Bedrooms and Great Symmetry - Floor Plan - Main Level - Cottage, Country, Vacation

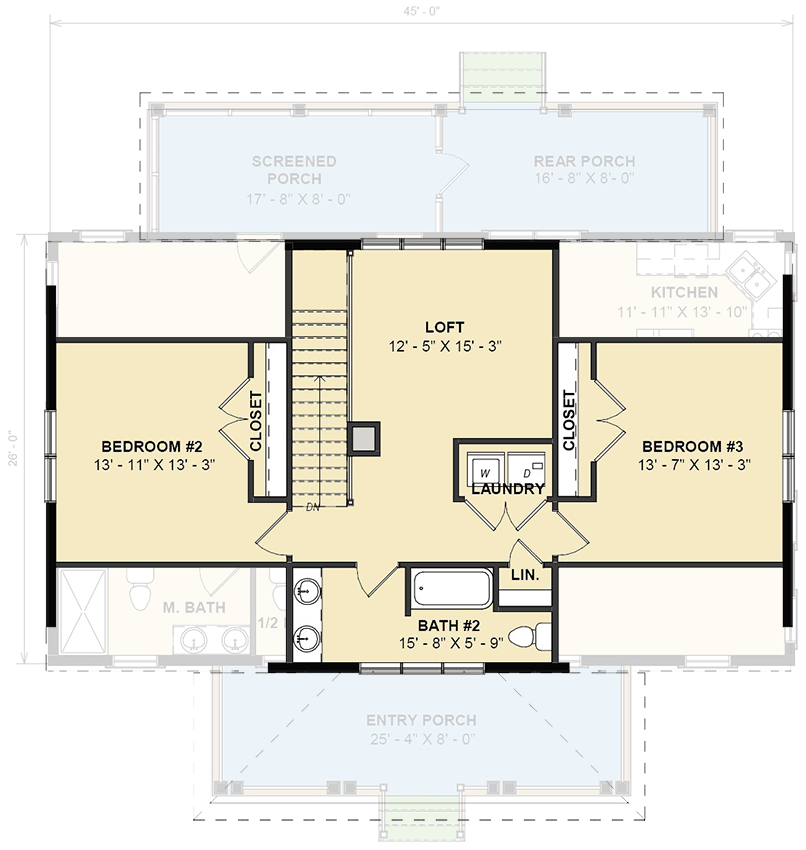

2nd Floor

Plan 31605GF: Country Cottage House Plan with 3 Bedrooms and Great Symmetry - Floor Plan - 2nd Floor - Cottage, Country, Vacation

Plan Details

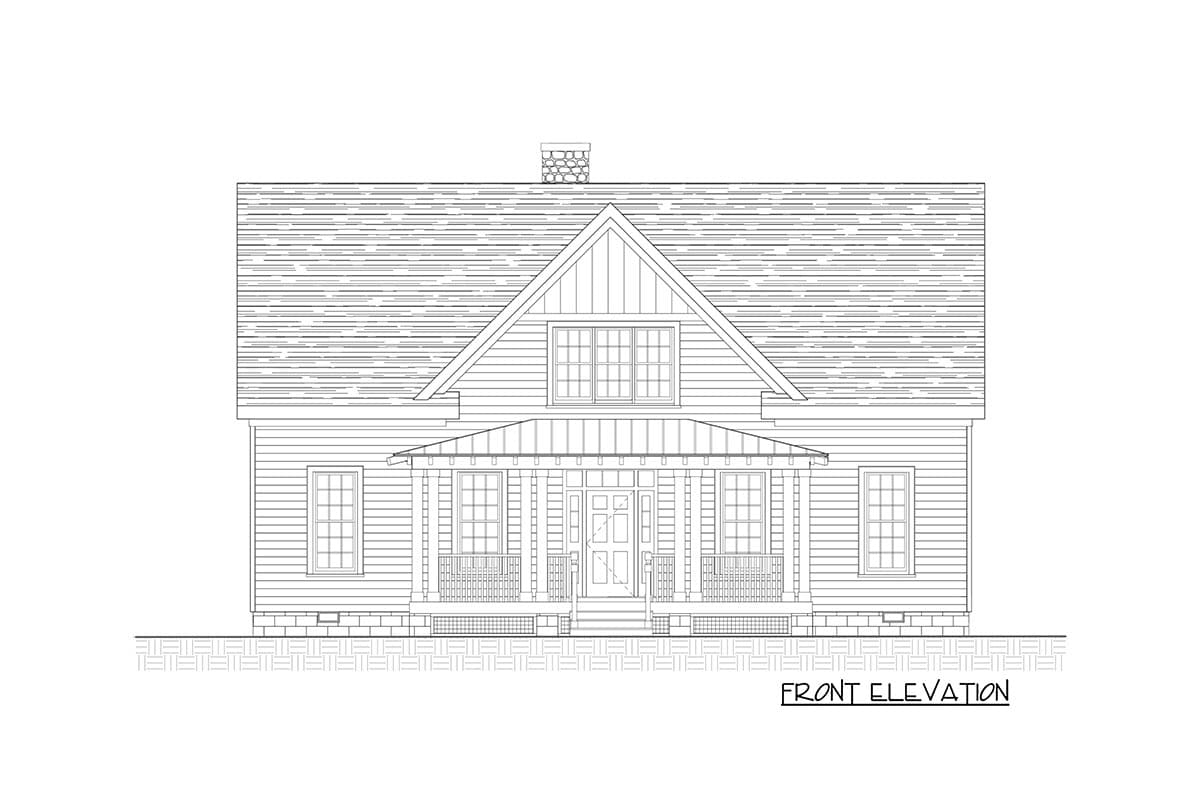

  • This country cottage house plan has great symmetry with the 8'-deep porch - with exposed rafter tails - centered on the home and matching windows to either side. Above, divided lights in the 3 over 2 windows - with a touch of board and batten - lend to the great curb appeal.
  • Enter the foyer - closed off from the home by sliding barn doors - with a powder room and closet to either side.
  • The main portion of the first floor is an open concept layout with the living room flowing to the kitchen with large island (with counter seating) and the dining room.
  • The master bedroom is also on the main floor and enjoys porch access, as does the living room. The porch is divided into a screened and open portions.
  • Upstairs, a loft is set at the top of the stairs and bedrooms are on either side of the floor. A shared bathroom has two vanities.

What's Included

  • Cover Sheet: Shows typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plan: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - handled by your subcontractors
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - handled by your subcontractors
  • Energy calculations - handled locally when required
  • Electrical Layout - handled by your builder and subcontractor

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,910 sq. ft.

1st Floor

1,170 sq. ft.

2nd Floor

740 sq. ft.

Porch, Front

208 sq. ft.

Porch, Rear

133 sq. ft.

Porch, Combined

482 sq. ft.

Screened Porch

141 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

26' 0"

Max Ridge Height

28' 6"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,910 sq. ft.

1st Floor

1,170 sq. ft.

2nd Floor

740 sq. ft.

Porch, Front

208 sq. ft.

Porch, Rear

133 sq. ft.

Porch, Combined

482 sq. ft.

Screened Porch

141 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

26' 0"

Max Ridge Height

28' 6"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Upstairs

Loft

Master Suite - 1st Floor
