Plan 16849WG
Country Cottage with Naturally Bright Foyer
Heated S.F.
1,883
Beds
3
Baths
2
Stories
1
Floor Plan

Plan 16849WG

Main Level
slide image 0
Optional Basement
slide image 1

Plan 16849WG

1-800-854-7852

1-262-521-4596

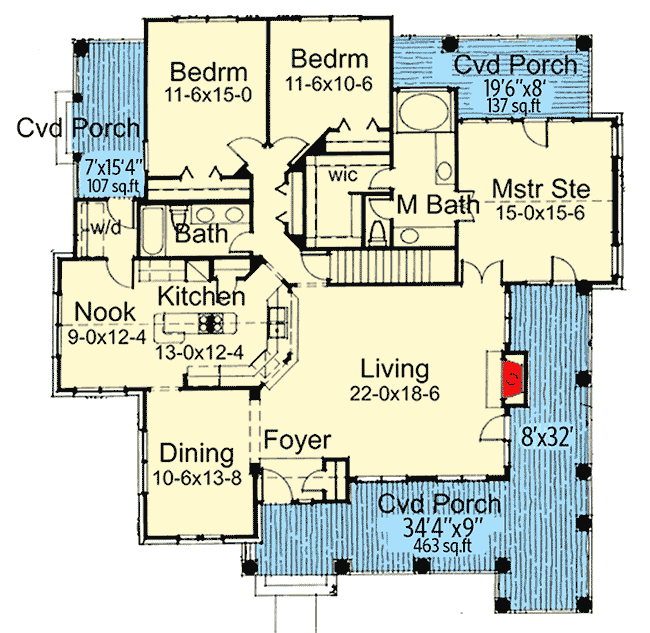

Main Level
floor plan image Main Level

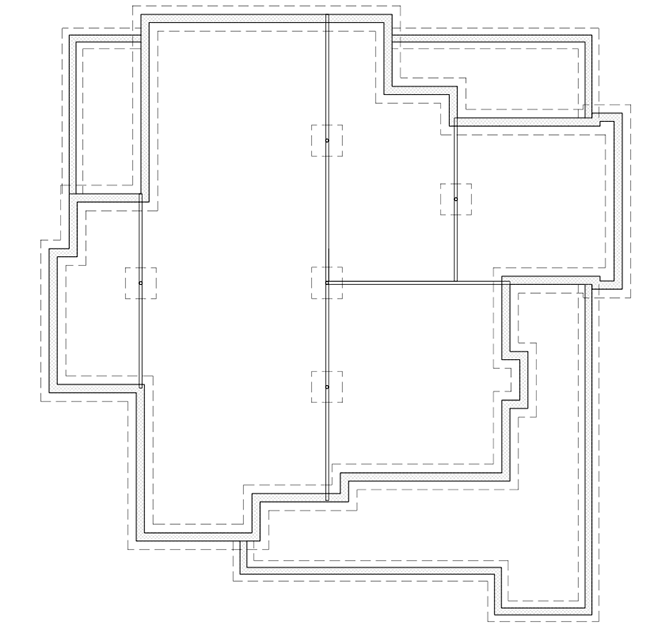

Optional Basement
floor plan image Optional Basement
Plan Details

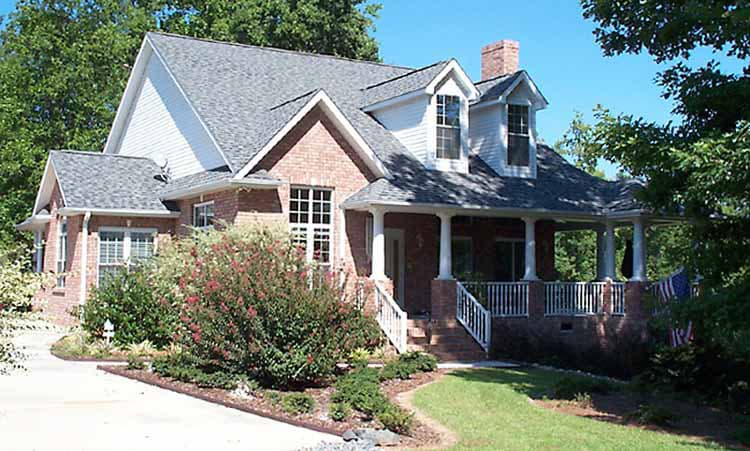

  • A wrap-around porch plus two dormers that let natural light into the foyer and a tall window in the dining room combine to give this Country cottage its curb appeal.
  • The living room is huge with a fireplace at one end and lots of light from windows on two sides.
  • A vaulted ceiling in the kitchen and nook makes this space seem even bigger and an open counter by the sink allows views into the living room.
  • The master suite is also vaulted and has its own private covered porch.
What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

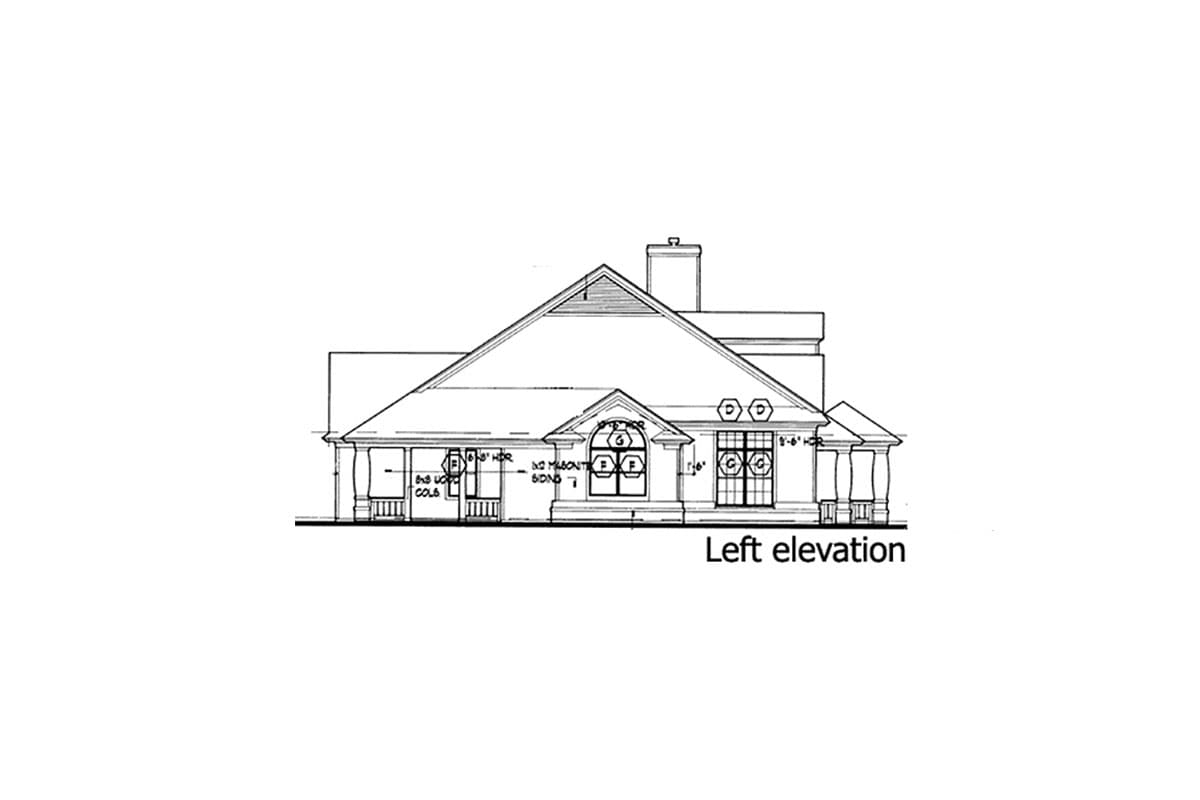

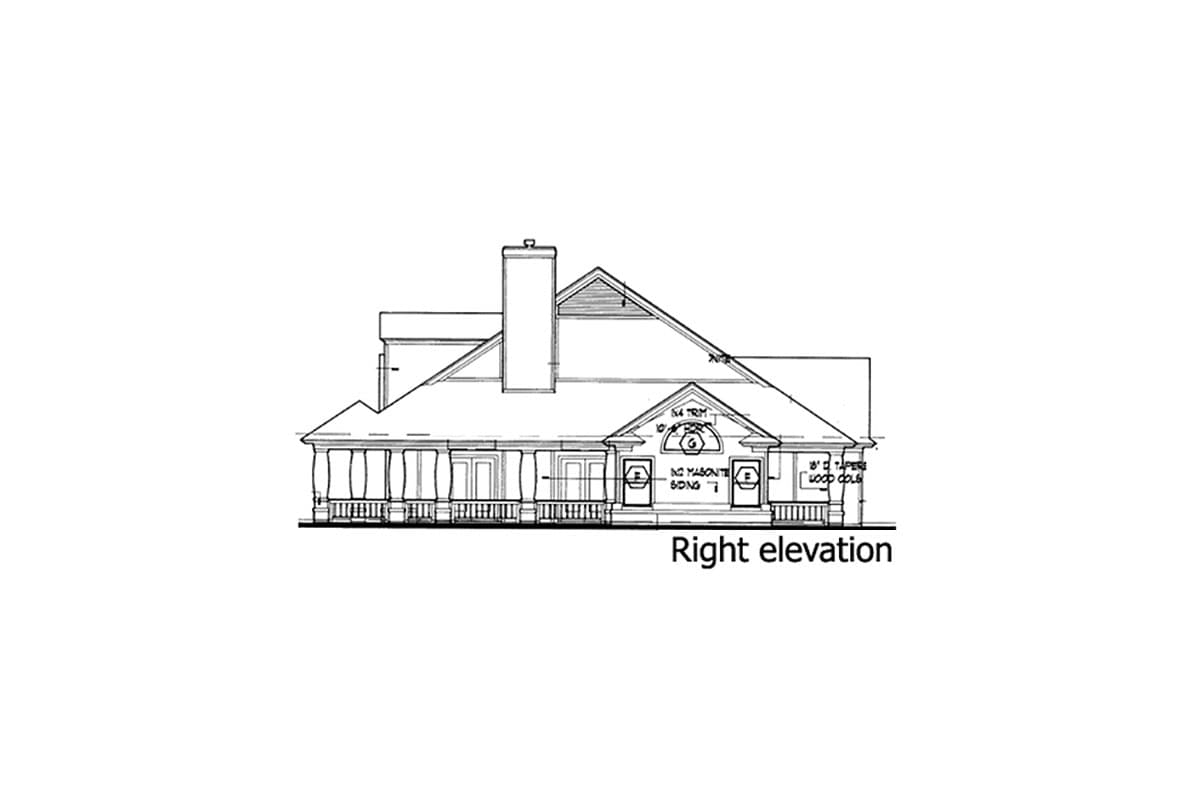

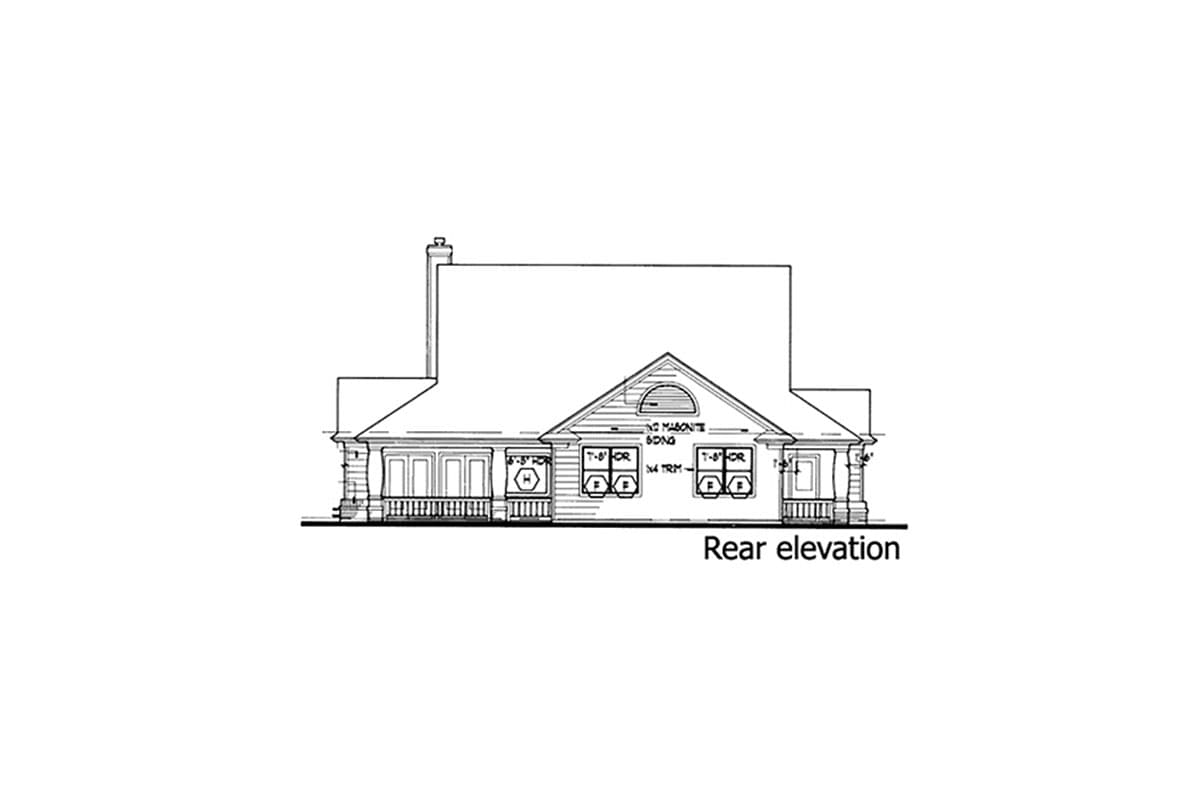

  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,883 sq. ft.

1st Floor

1,883 sq. ft.

Porch, Combined

639 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

58' 0"

Max Ridge Height

26' 10"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

14' 0''

Nook

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Two Kitchen Islands

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

1,883 sq. ft.

1st Floor

1,883 sq. ft.

Porch, Combined

639 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

58' 0"

Max Ridge Height

26' 10"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

14' 0''

Nook

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Two Kitchen Islands

Wrap Around Porch
