Plan 70789MK Country Cottage with Vaulted Ceiling Under 2300 Square Feet with Rear-Facing Garage

2,278 3 2.5 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Country Cottage with Vaulted Ceiling Under 2300 Square Feet with Rear-Facing Garage

Plan 70789MK

  • 2,278

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

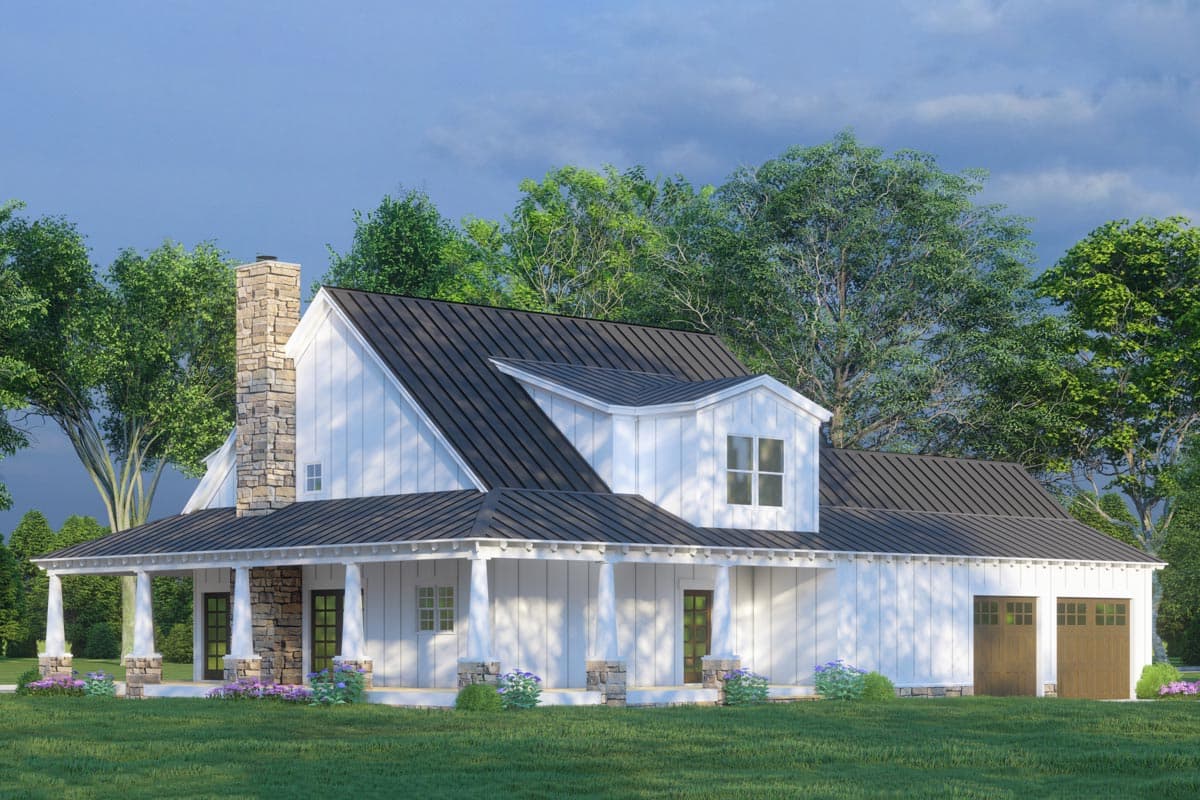

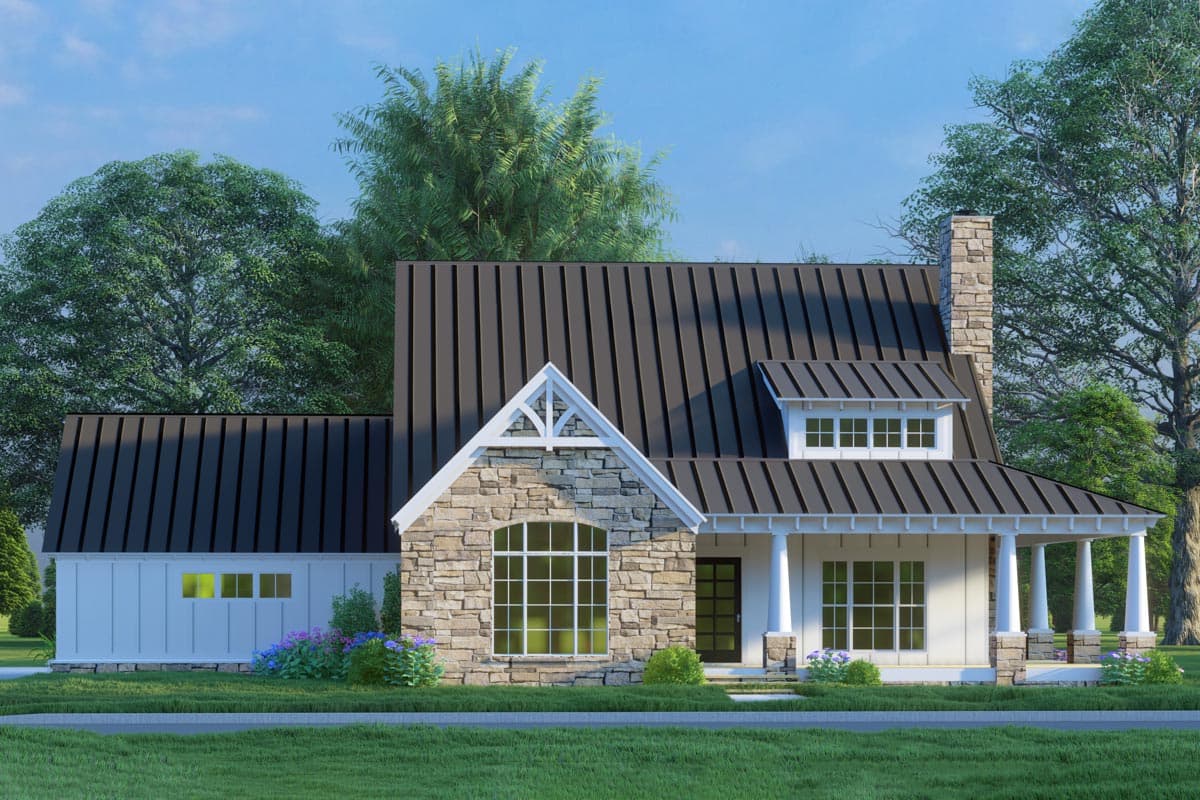

  • This house plan offers all of the charm and delight of a country cottage home plan with classic cabin-style features. Cool stone, board and batten and a shed dormer offer a lasting first impression.
  • The wrap-around porch covers three sides of this home with four individual entrances. A 2-car rear-entry garage attaches to the fourth side of the home.
  • A vaulted ceiling above the open great room accentuates the countryside mountain atmosphere, while the exterior stone can be brought indoors around the rustic fireplace lending a cohesive element.
  • The kitchen rests on the rear of the open layout and features an angled peninsula with seating for six. An informal dining area is steps away.
  • Sliding barn doors from the great room open to the master bedroom, and the sizable ensuite features a corner glass shower, dual vanities, a walk-in closet and direct laundry access. Bedrooms 2 and 3 can be found upstairs, along with a full bath and linen closet.
  • Related Plans: Get alternate versions with house plans 70682MK, 70620MK, 70777MK and 70780MK.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

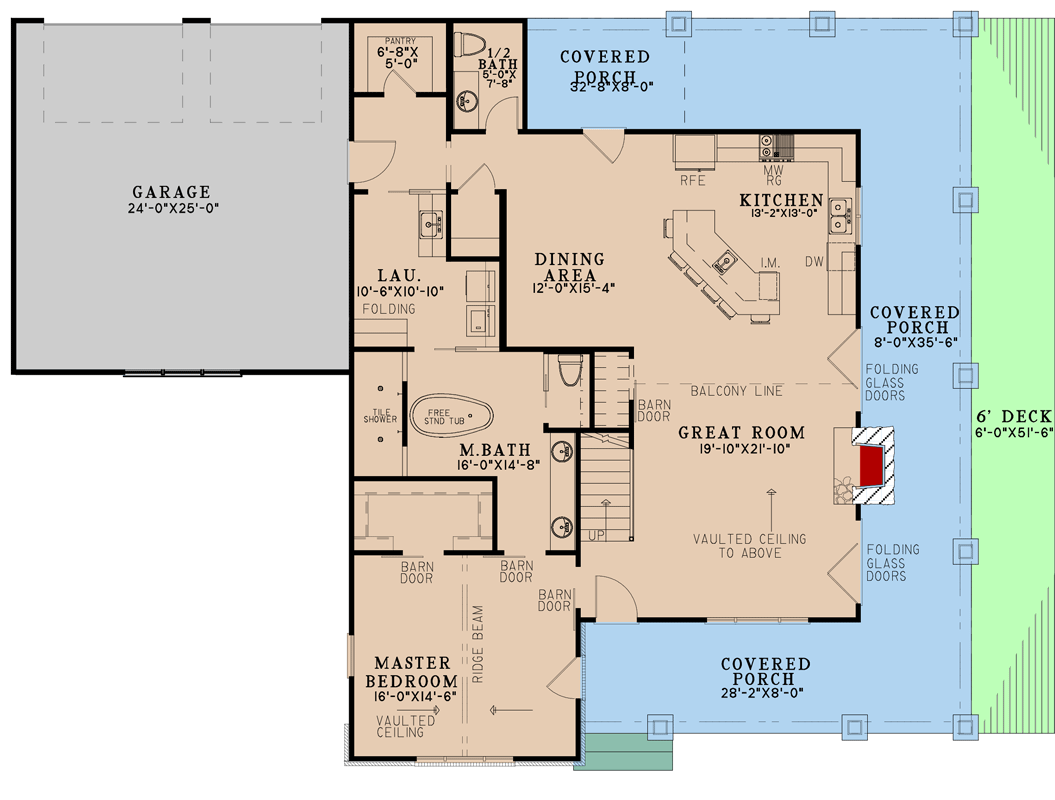

Country Cottage with Vaulted Ceiling Under 2300 Square Feet with Rear-Facing Garage - 70789MK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

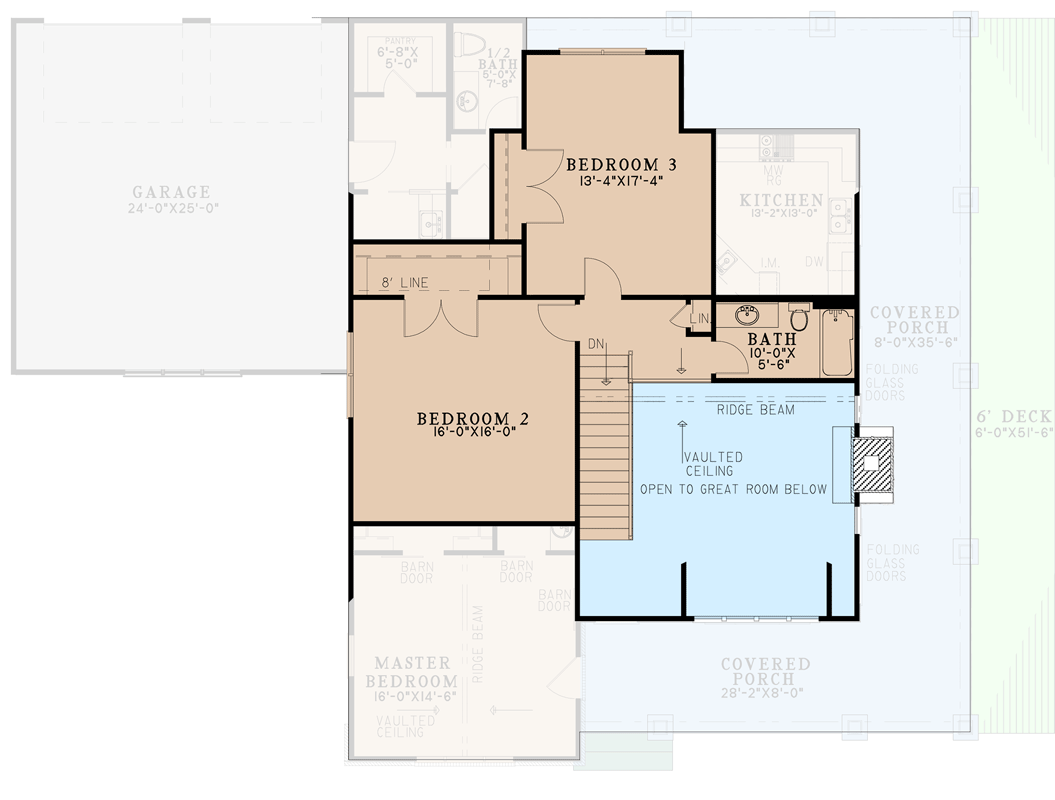

Country Cottage with Vaulted Ceiling Under 2300 Square Feet with Rear-Facing Garage - 70789MK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,278 sq. ft.
  • 1st Floor: 1,577 sq. ft.
  • 2nd Floor: 701 sq. ft.
  • Porch, Combined: 765 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 2"
  • Depth: 53' 6"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 625 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Country Cottage with Vaulted Ceiling Under 2300 Square Feet with Rear-Facing Garage

  • 2,278

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets $1,100
  • 5 Sets + PDF $1,350
  • PDF - Unlimited Build $1,700
  • CAD Unlimited + PDF $2,000
  • View all purchase option online

About This Plan

  • This house plan offers all of the charm and delight of a country cottage home plan with classic cabin-style features. Cool stone, board and batten and a shed dormer offer a lasting first impression.
  • The wrap-around porch covers three sides of this home with four individual entrances. A 2-car rear-entry garage attaches to the fourth side of the home.
  • A vaulted ceiling above the open great room accentuates the countryside mountain atmosphere, while the exterior stone can be brought indoors around the rustic fireplace lending a cohesive element.
  • The kitchen rests on the rear of the open layout and features an angled peninsula with seating for six. An informal dining area is steps away.
  • Sliding barn doors from the great room open to the master bedroom, and the sizable ensuite features a corner glass shower, dual vanities, a walk-in closet and direct laundry access. Bedrooms 2 and 3 can be found upstairs, along with a full bath and linen closet.
  • Related Plans: Get alternate versions with house plans 70682MK, 70620MK, 70777MK and 70780MK.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,278 sq. ft.
  • 1st Floor: 1,577 sq. ft.
  • 2nd Floor: 701 sq. ft.
  • Porch, Combined: 765 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 69' 2"
  • Depth: 53' 6"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 625 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
Plan 70789MK
View this and more for this plan by visiting www.architechtecturaldesigns.com/70789MK
|
