Country Craftsman Duplex House Plan with 3-Bed, 2-Bath Units Under 1300 Square Feet

Heated S.F.
2,496
Units
2
Width
Depth

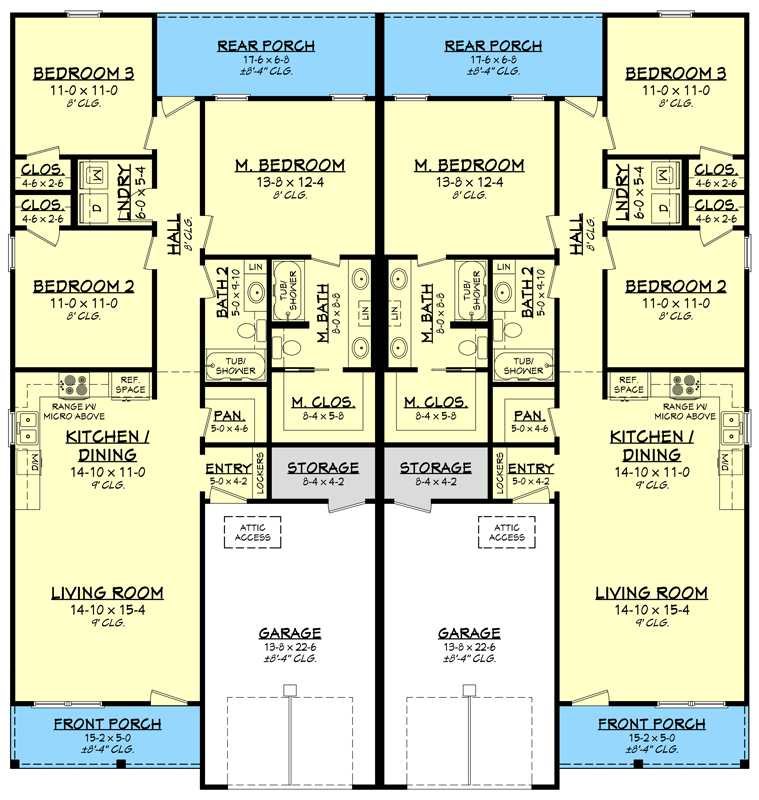

Floor Plan

Plan 51923HZ

Main Level
Main Level

Plan 51923HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51923HZ: Country Craftsman Duplex House Plan with 3-Bed, 2-Bath Units Under 1300 Square Feet - Floor Plan - Main Level - Country, Craftsman, Modern Farmhouse, New American, Ranch, Traditional

Plan Details

  • This darling duplex house plan features a Country Craftsman aesthetic and delivers two side-by-side units. Each of the units is 29'-6" wide by 62' deep and has 1248 sq. ft. of heated living space.
  • Each unit presents an open living space with an eat-in kitchen. The single garage bays offer a dedicated storage room and a walk-in pantry in the kitchen increases dry food storage.
  • The master bedrooms overlook rear porches and include 4-fixture bathrooms with walk-in closets.
  • Two secondary bedrooms reside across the hall from the master suites.
  • Related Plans: Eliminate a bedroom and garage in each duplex with plans 51914HZ (997 sq. ft. units) or 11733HZ (900 sq. ft. units)
Unit A
Heated Area
1,248Sq. Ft.
1248 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
322 Sq. Ft.
Dimensions
29'width
62'depth
19'height
Unfinished Areas
322 Sq. Ft. Garage
Unit B
Heated Area
1,248Sq. Ft.
2496 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
322 Sq. Ft.
Dimensions
29'width
62'depth
19'height
Unfinished Areas
322 Sq. Ft. Garage

What's Included

  • Page 1  Cover Sheet with abbreviations, rendering, sheet index
  • Page 2  Foundation Plan and Details
  • Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Page 4  Exterior views with additional notes and details
  • Page 5  Roof plan and span charts with additional details
  • Page 6  Cross Section & kitchen cabinet views
  • Page 7  Electrical plan
  • Page N1 Code Information
  • Page N2 Code Information
  • Page N3 Code Information
  • Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,496 sq. ft.

1st Floor

2,496 sq. ft.

Porch, Front

152 sq. ft.

Porch, Rear

238 sq. ft.

Porch, Combined

390 sq. ft.

Storage

78 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 0"

Depth

62' 0"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

644 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7` on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Modern Farmhouse

New American

Ranch

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,496 sq. ft.

1st Floor

2,496 sq. ft.

Porch, Front

152 sq. ft.

Porch, Rear

238 sq. ft.

Porch, Combined

390 sq. ft.

Storage

78 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 0"

Depth

62' 0"

Max Ridge Height

19' 0"

Garage

Type

Attached

Area

644 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7` on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Modern Farmhouse

New American

Ranch

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
