Country Craftsman Duplex Plan with 2-Bed Units

Plan 62733DJ

  • 2,908

    Heated s.f.

  • 2

    Units

  • 54' 0"

    Width

  • 37' 0"

    Depth

  • Dual charming 3-window dormers are perched above a wide, covered front porch with tapered columns, on this beautiful multi-family home.
  • Inside, guests are immediately received into the home's main-floor living area, where the great room, kitchen and breakfast area all seamlessly interact.
  • The great room enjoys views to the front through the covered porch, and its fireplace exudes a sense of welcoming warmth.
  •  A built-in hutch and coat closet flank passage into this area from the entry hall.
  • The kitchen features a breakfast island workspace and openly accesses the breakfast area.
  • Just off the breakfast area lies a powder bath.
  • All bedrooms reside upstairs, where the master suite occupies the home's dormer with sunny views to the front.
  • Bedrooms 2 has a central hall bath and features a walk-in closet.
  • A laundry room with utility sink is conveniently located to serve all bedrooms.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

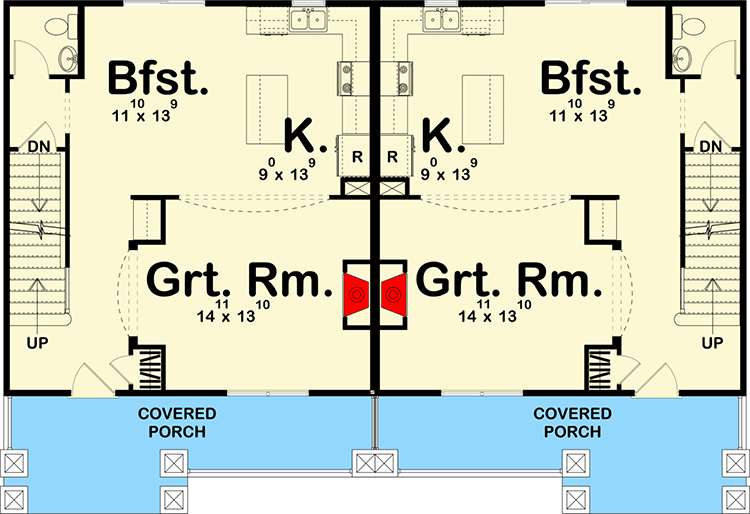

Country Craftsman Duplex Plan with 2-Bed Units - 62733DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

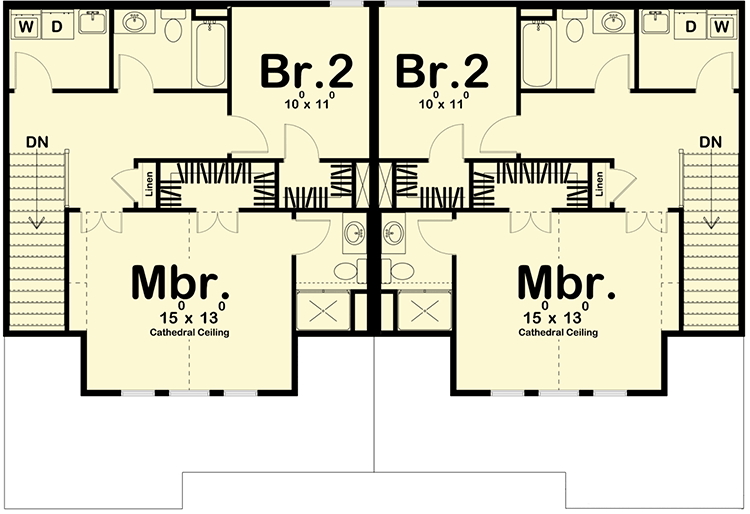

Country Craftsman Duplex Plan with 2-Bed Units - 62733DJ floor plan - 2nd Floor
