Country Craftsman Duplex with 4-Bed, 3-Bath Units Under 1600 Square Feet

Heated S.F.
3,170
Units
2
Width
Depth

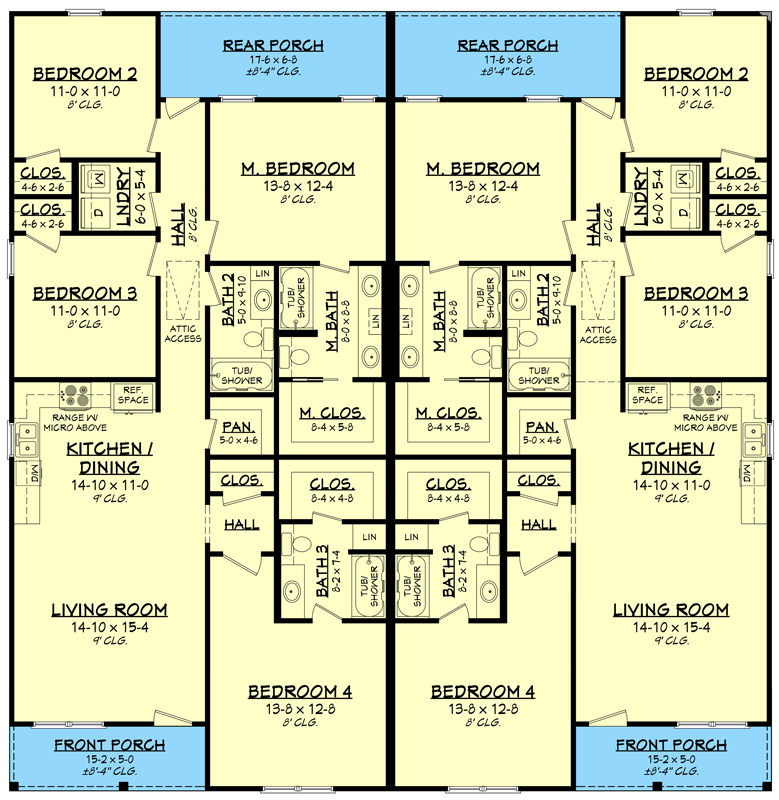

Floor Plan

Plan 52044HZ

Floor Plan 1

Plan 52044HZ

M-F 9am-5pm EST |

1-203-761-8500

Plan 52044HZ: Country Craftsman Duplex with 4-Bed, 3-Bath Units Under 1600 Square Feet - Floor Plan - - Country, Craftsman, Modern Farmhouse, New American, Traditional

Plan Details

  • This thoughtfully designed multi-family plan delivers the perfect blend of style, comfort, and functionality.
  • Each spacious living unit features 4 bedrooms, 3 full baths, and an open-concept layout that creates a seamless flow between the kitchen, dining, and living areas.
  • Private primary suites, generous secondary bedrooms, walk-in closets, and covered front and rear porches make this design ideal for families, long-term rentals, or investment opportunities.
  • With a clean, efficient footprint and modern livability throughout, this duplex offers exceptional curb appeal and everyday comfort in a smart, income-producing design.
  • Related Plans: See our similar duplex ranch plans with 2 or 3 bedroom units with duplex plan 11733HZ (2-bed | 2-bath | 900 sqft/unit), duplex plan 51914HZ (2-bed | 2-bath | 997 sqft/unit) and duplex plan 51923HZ (3-bed | 2-bath | 1248 sqft | 1-car garage/unit).
Unit Left
Heated Area
1,585Sq. Ft.
1585 Sq. Ft. 1st
Beds
4Beds
Baths
3Full Baths
Dimensions
29'width
60'depth
19'height
Unfinished Areas
76 Sq. Ft. Porch, Front
119 Sq. Ft. Porch, Rear
Unit Right
Heated Area
1,585Sq. Ft.
1585 Sq. Ft. 1st
Beds
4Beds
Baths
3Full Baths
Dimensions
29'width
60'depth
19'height
Unfinished Areas
76 Sq. Ft. Porch, Front
119 Sq. Ft. Porch, Rear

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,170 sq. ft.

1st Floor

3,170 sq. ft.

Porch, Front

152 sq. ft.

Porch, Rear

238 sq. ft.

Porch, Combined

390 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 0"

Depth

60' 4"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

9' 0''

Kitchen

9' 0''

Dining Room

9' 0''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Modern Farmhouse

New American

Traditional

Special Features

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,170 sq. ft.

1st Floor

3,170 sq. ft.

Porch, Front

152 sq. ft.

Porch, Rear

238 sq. ft.

Porch, Combined

390 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 0"

Depth

60' 4"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

9' 0''

Kitchen

9' 0''

Dining Room

9' 0''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Modern Farmhouse

New American

Traditional

Special Features

Master Suite - 1st Floor
