Well-Designed Duplex House Plan with 900 Square Foot 2-Bed Units

Plan 11733HZ

  • 1,800

    Heated s.f.

  • 2

    Units

  • 60' 0"

    Width

  • 36' 0"

    Depth

  • This well designed, two bedroom two bath duplex house plan is perfect for that rental space to add to your portfolio.
  • This plan offers large rooms, walk-in closets, lots of storage and laundry area.
  • The open spaces give this plan a very large feel. There is no wasted space to give a nice return on your investment.
  • All of these features are arranged nicely in 900 square feet per unit.
  • Related Plans: Get a slightly larger duplex with house plans 51914HZ (1,994 sq. ft) and 51923HZ (2,496 sq. ft.).

This designer's plans include the following details:

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

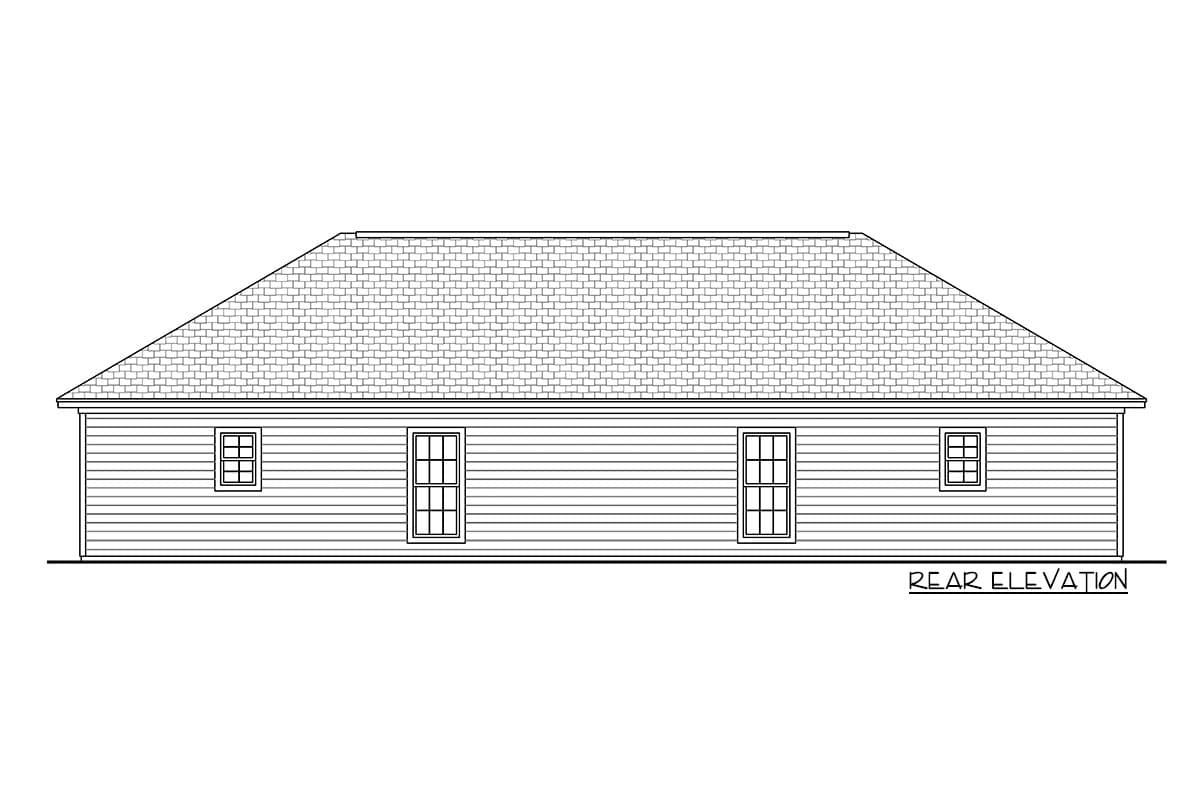

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

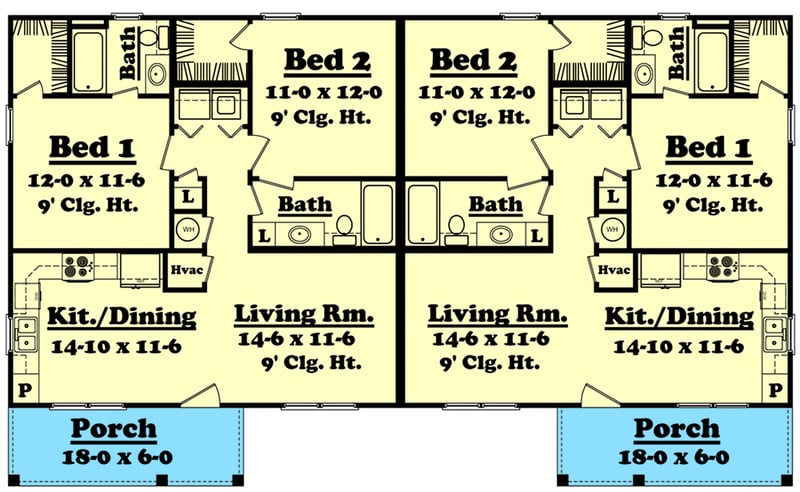

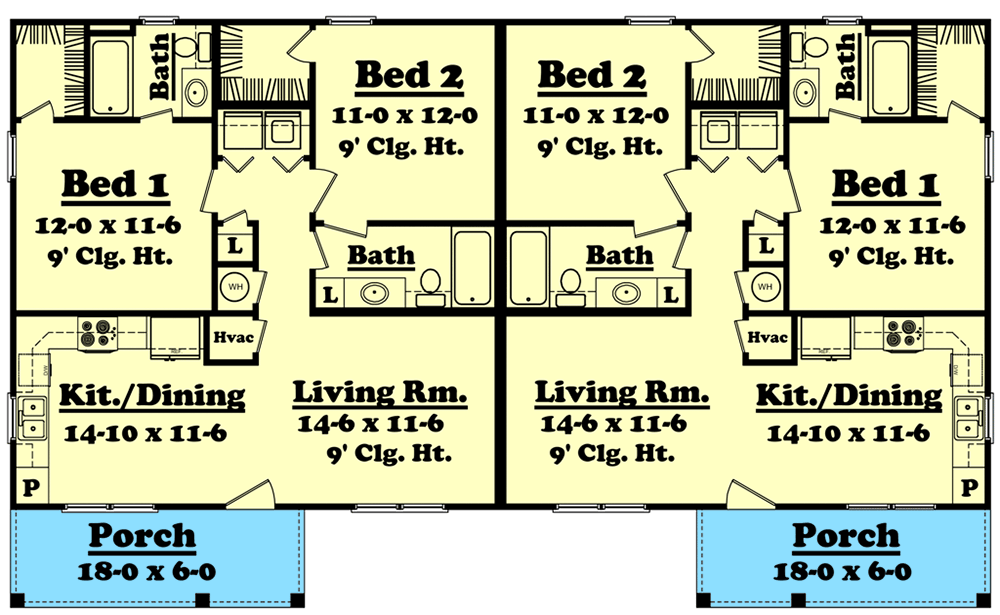

Well-Designed Duplex House Plan with 900 Square Foot 2-Bed Units - 11733HZ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,800 sq. ft.
  • 1st Floor: 1,800 sq. ft.
  • Porch, Front: 108 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 36' 0"
  • Max ridge height: 18' 2"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Stick Or Truss

Architectural Style

Special features

Plan Collections

Well-Designed Duplex House Plan with 900 Square Foot 2-Bed Units

  • 1,800

    Heated s.f.

  • 2

    Units

  • 60' 0"

    Width

  • 36' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,245
  • 5 Sets +PDF Single-Build $1,495
  • PDF - Unlimited Build $1,945
  • CAD + PDF - Unlimited Build $2,245
  • View all purchase option online

About This Plan

  • This well designed, two bedroom two bath duplex house plan is perfect for that rental space to add to your portfolio.
  • This plan offers large rooms, walk-in closets, lots of storage and laundry area.
  • The open spaces give this plan a very large feel. There is no wasted space to give a nice return on your investment.
  • All of these features are arranged nicely in 900 square feet per unit.
  • Related Plans: Get a slightly larger duplex with house plans 51914HZ (1,994 sq. ft) and 51923HZ (2,496 sq. ft.).
