Plan 24380TW Country Craftsman Home Plan with Private Master 2nd Floor

1,959 1-3 1.5 - 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Country Craftsman Home Plan with Private Master 2nd Floor

Plan 24380TW

  • 1,959

    Heated s.f.

  • 1-3

    Beds

  • 1.5 - 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

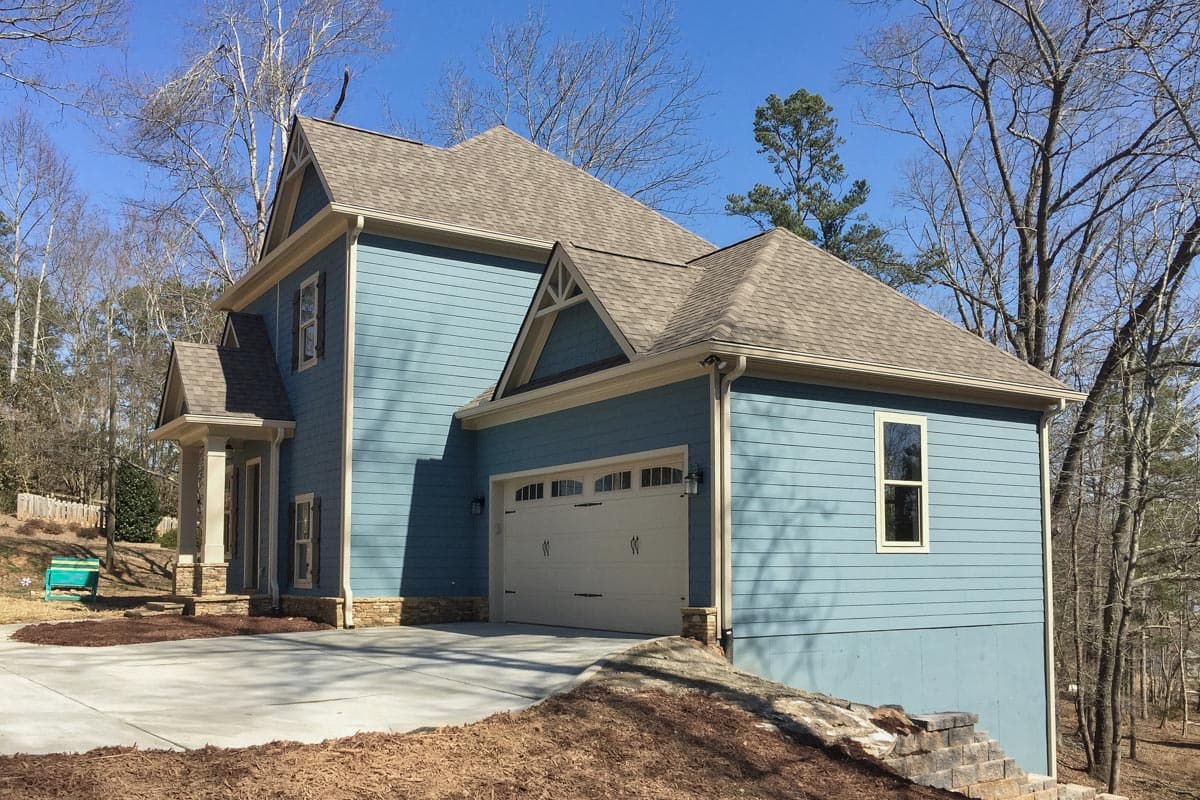

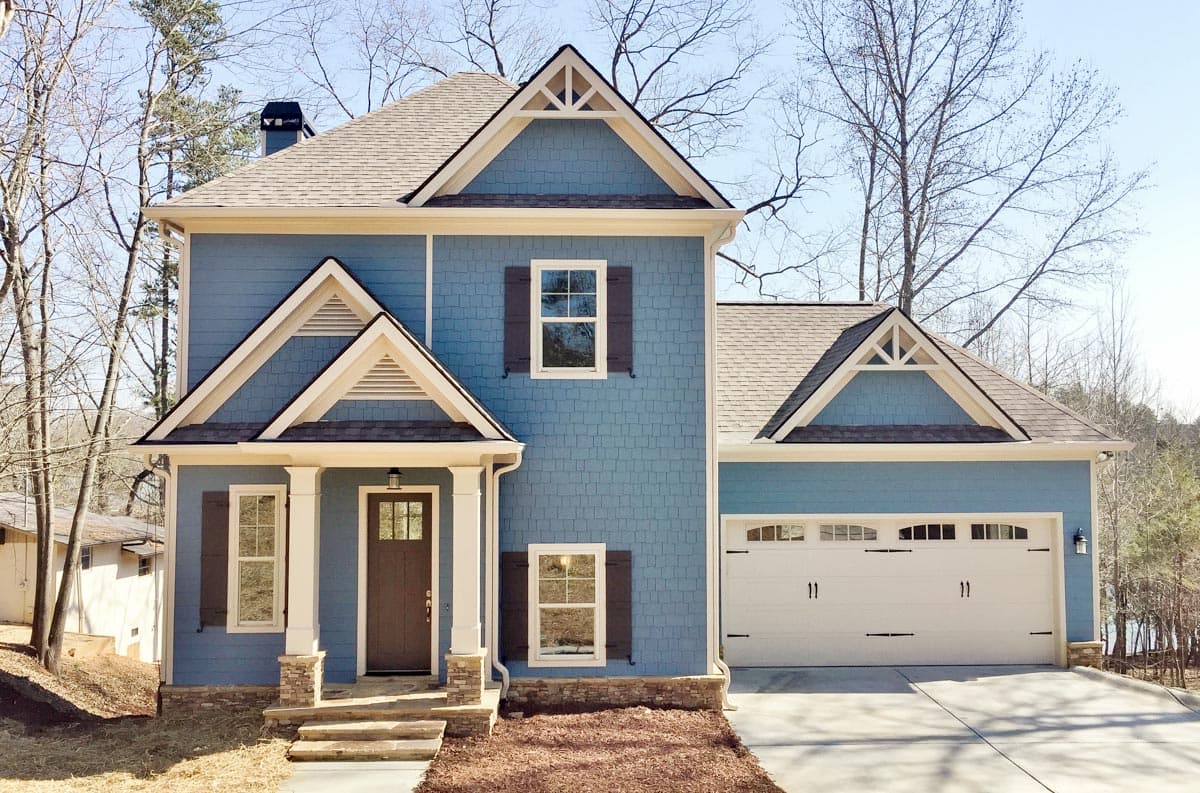

  • This cozy craftsman home welcomes you with a double gable over the entry porch. Perfect for newlyweds or empty-nesters, this home has plenty packed into a small package.

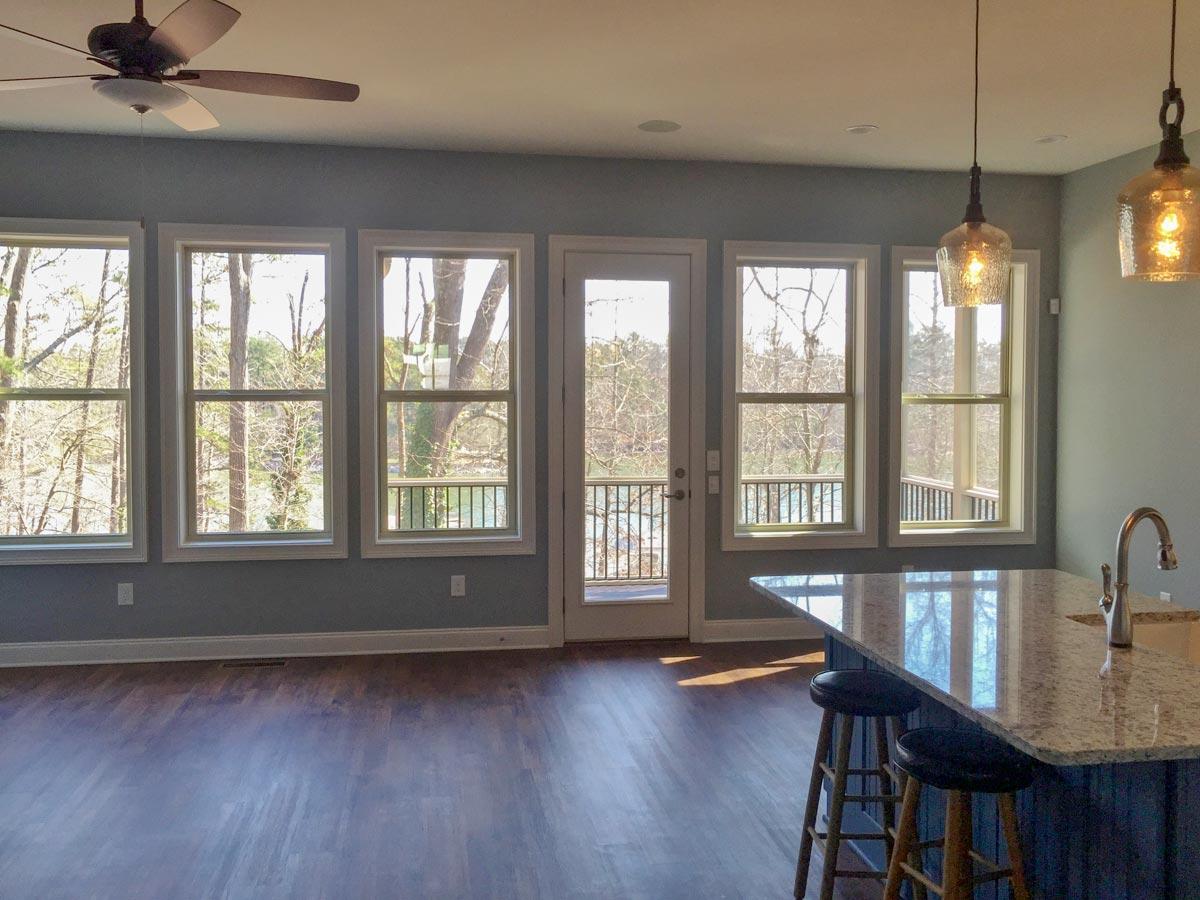

  • You enter to the foyer with sight-lines to the rear porch with ample natural light form the rear windows.

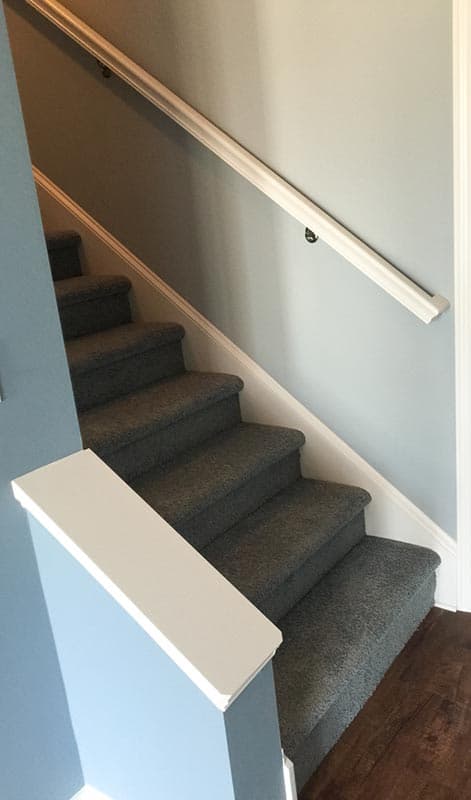

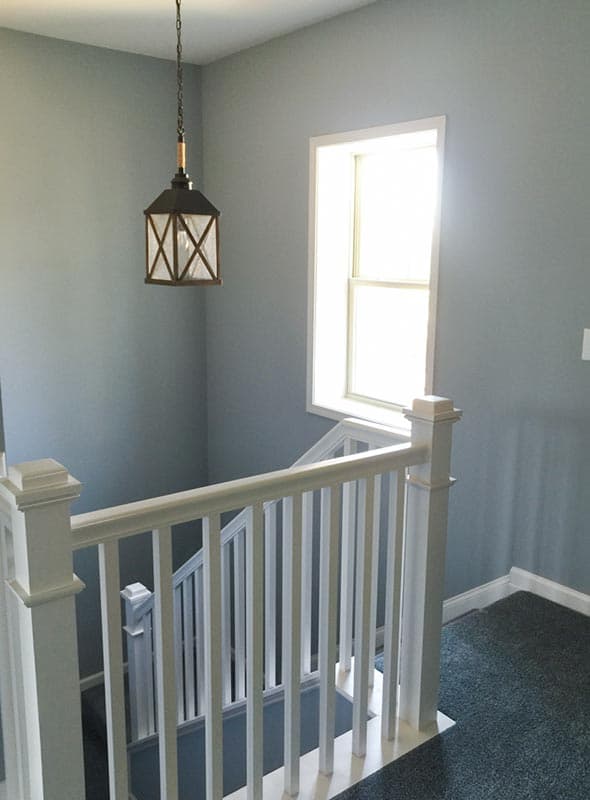

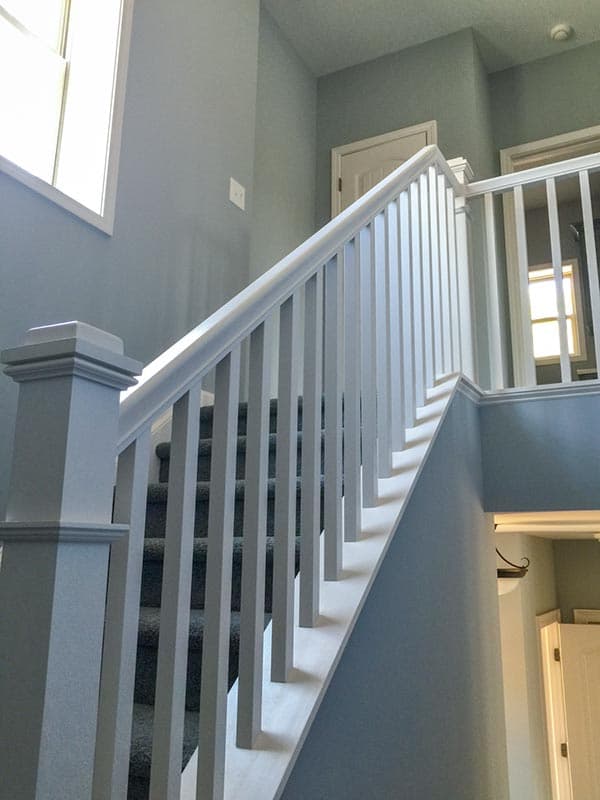

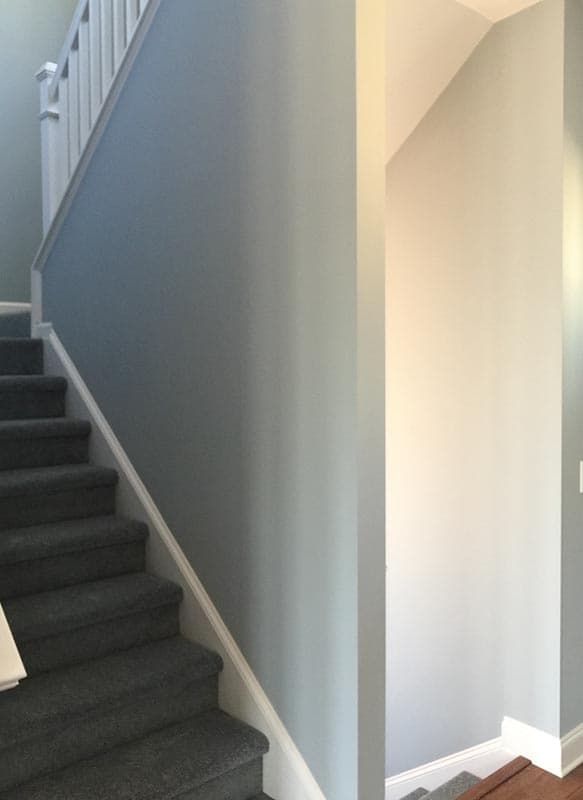

  • The staircase on the right of the foyer will take you up to the private master on the entire 2nd floor or down to the optionally finished basement

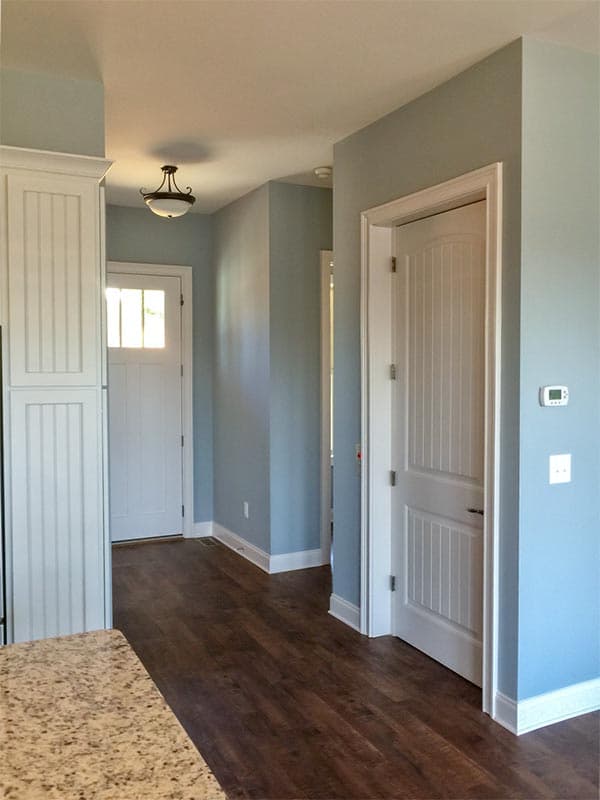

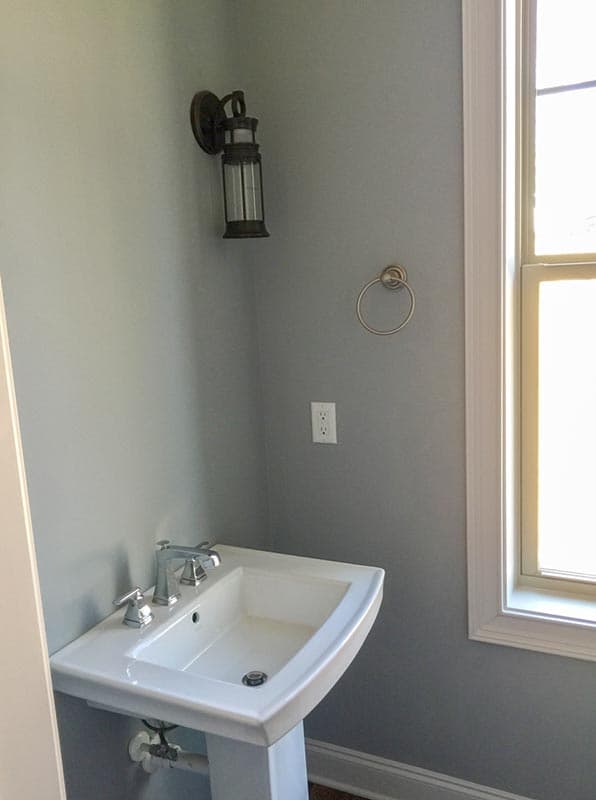

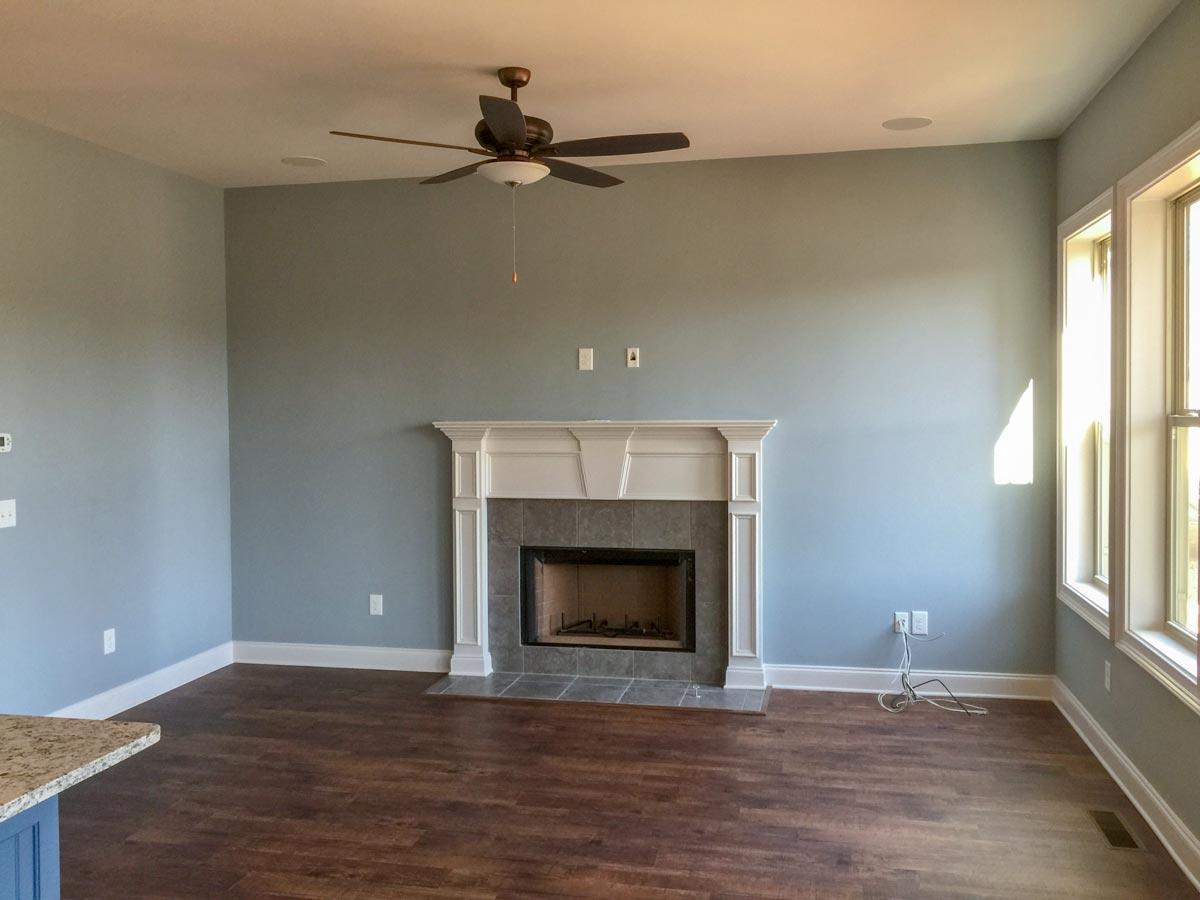

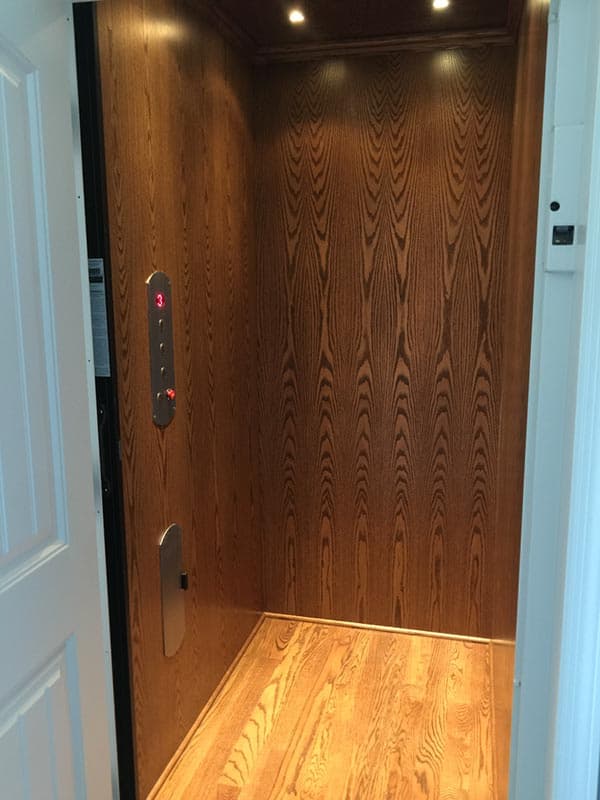

  • Adjacent to the stairs is a powder room and an elevator servicing all floors as you enter the great room.

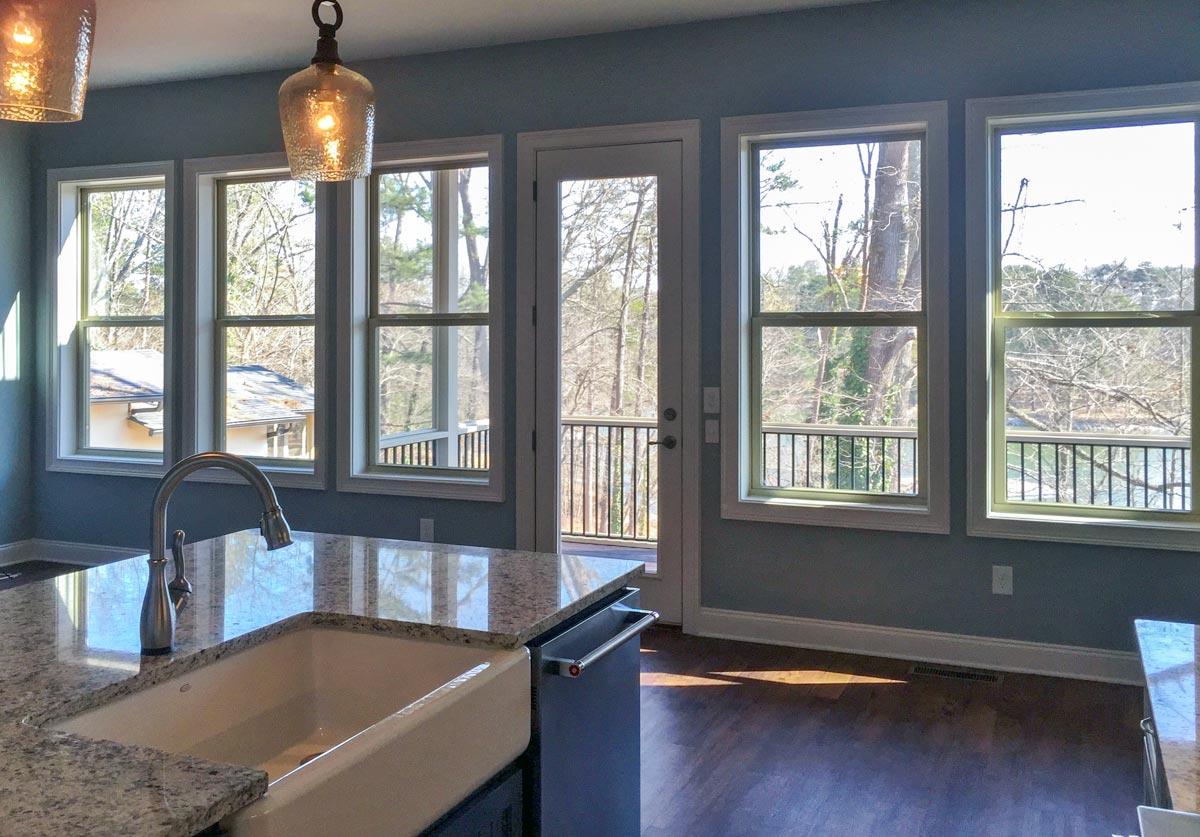

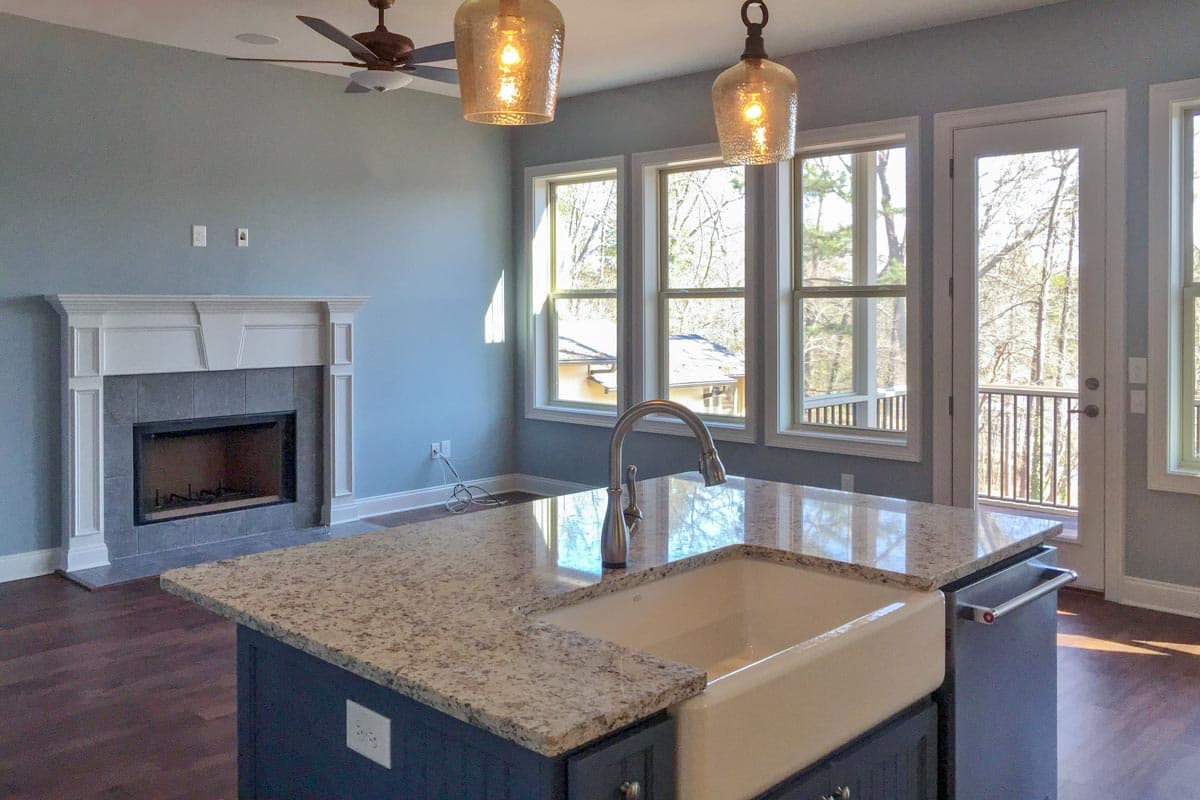

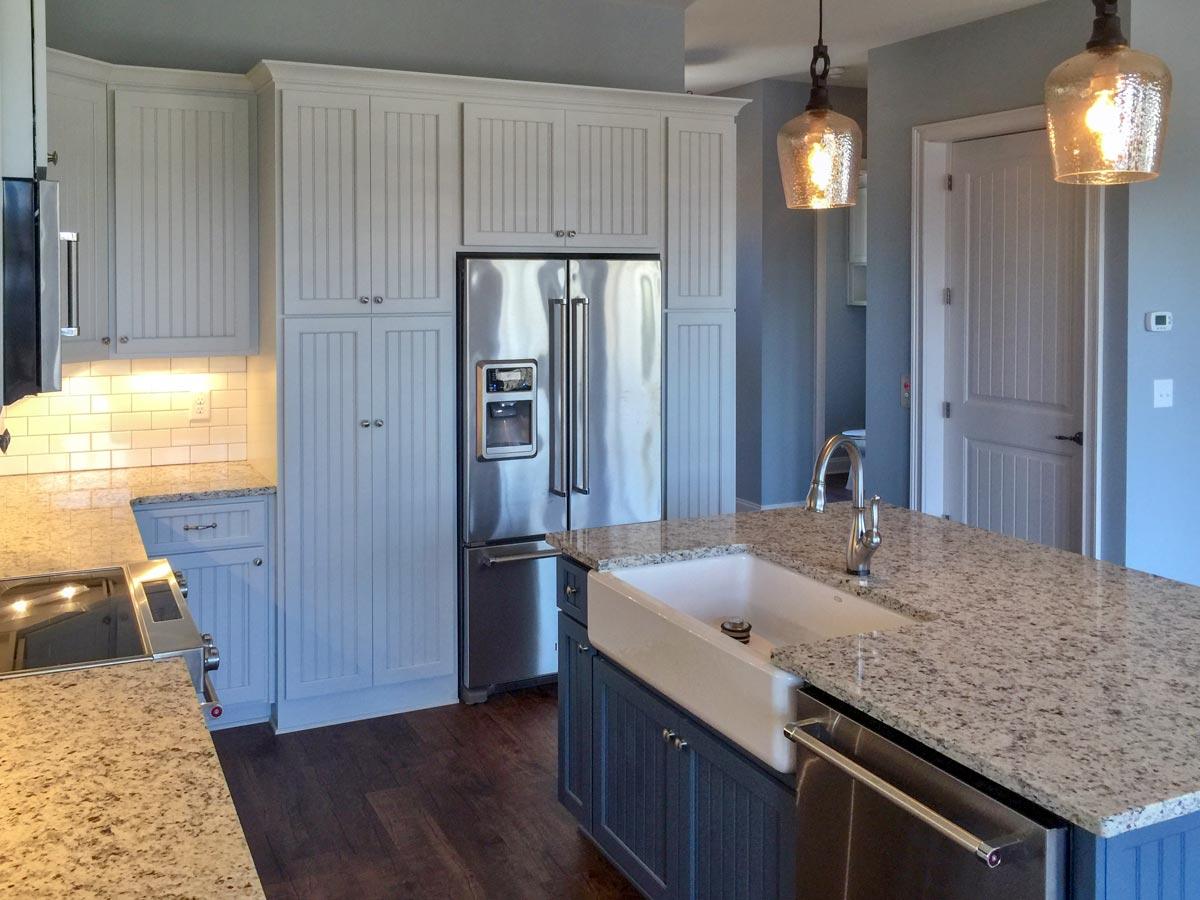

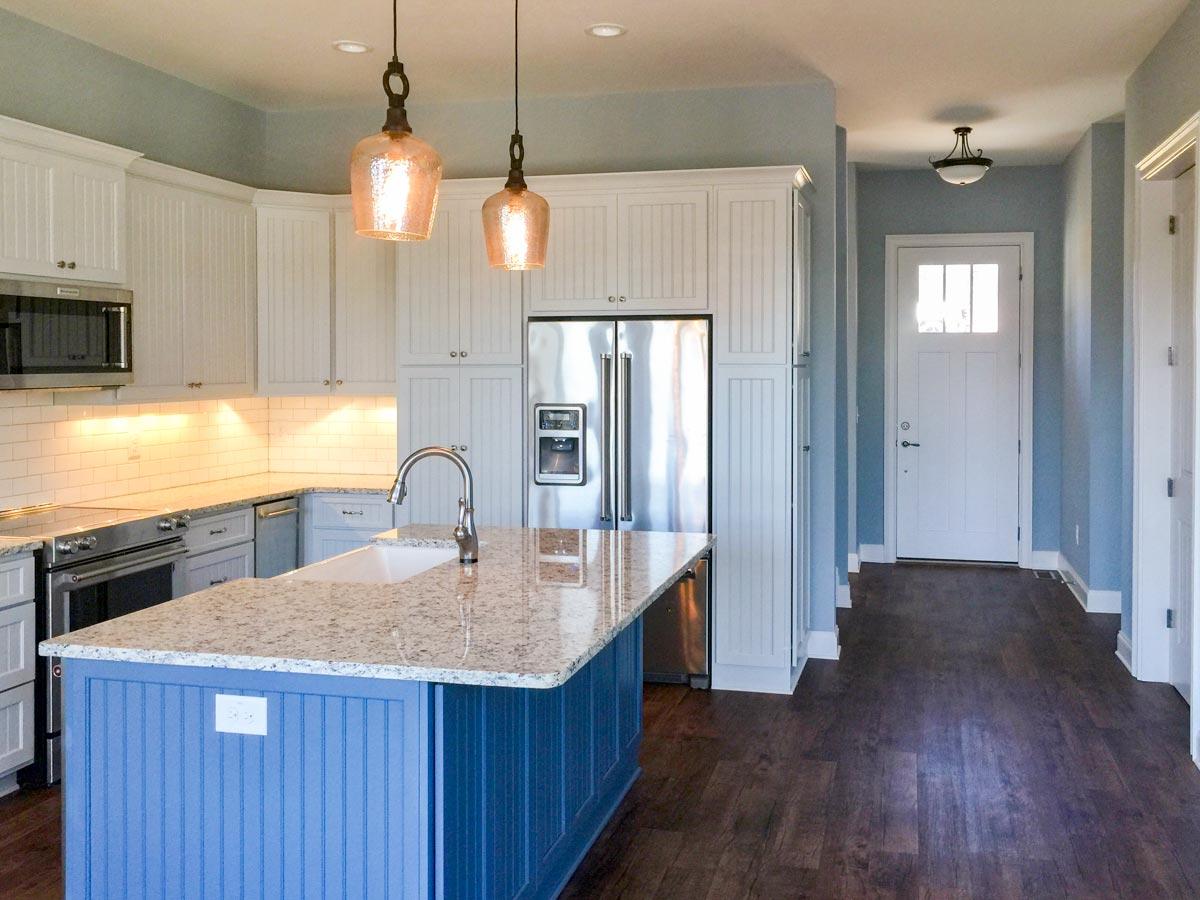

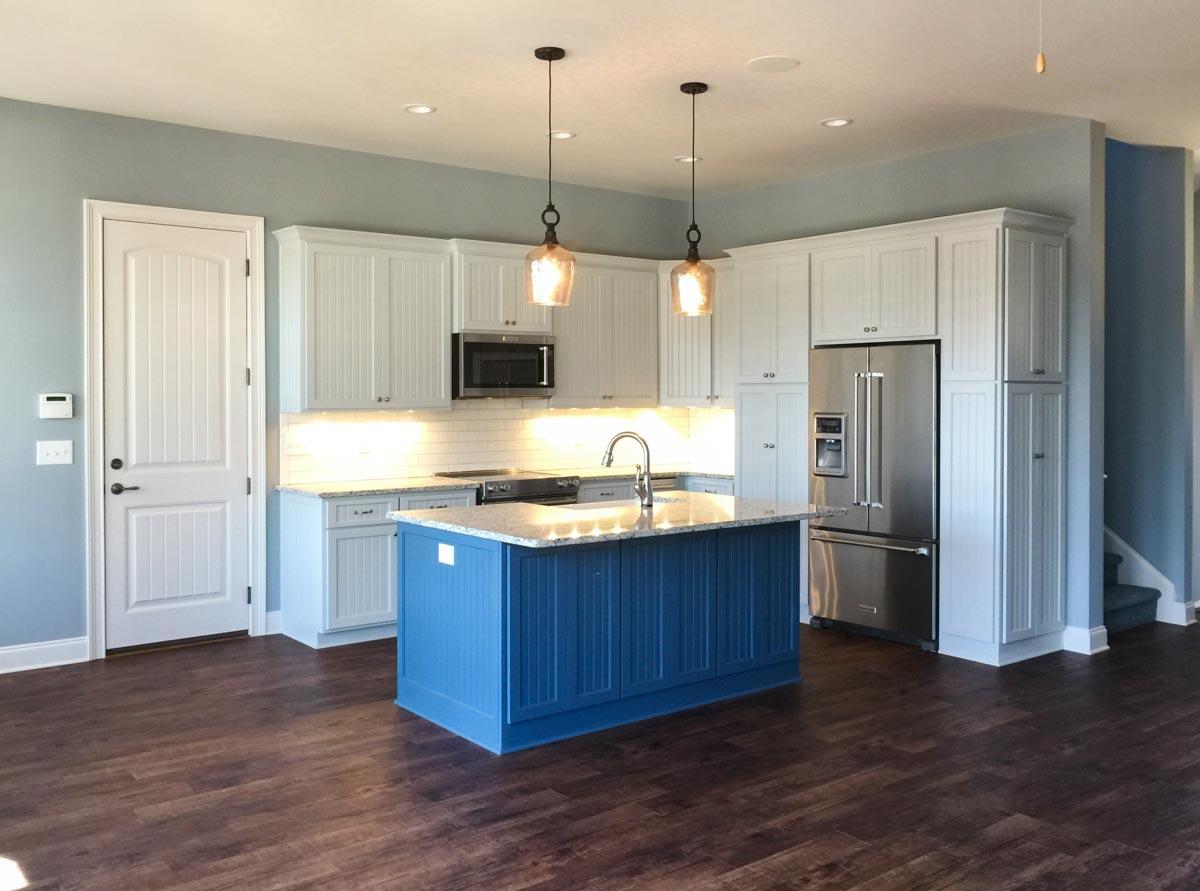

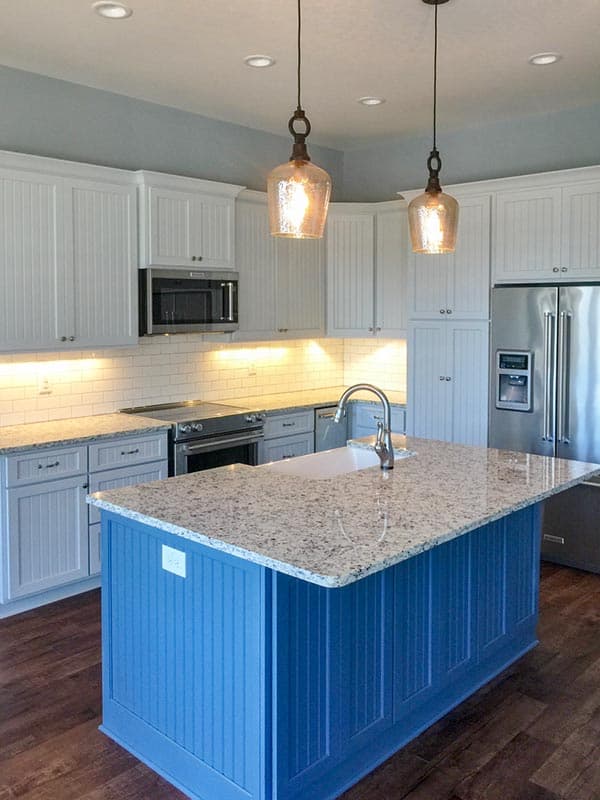

  • The L-shaped kitchen has a utility island with double sink and the dishwasher to maximize counter space.
  • An informal dining is open to the kitchen and the great room with access to the rear porch and the garage.

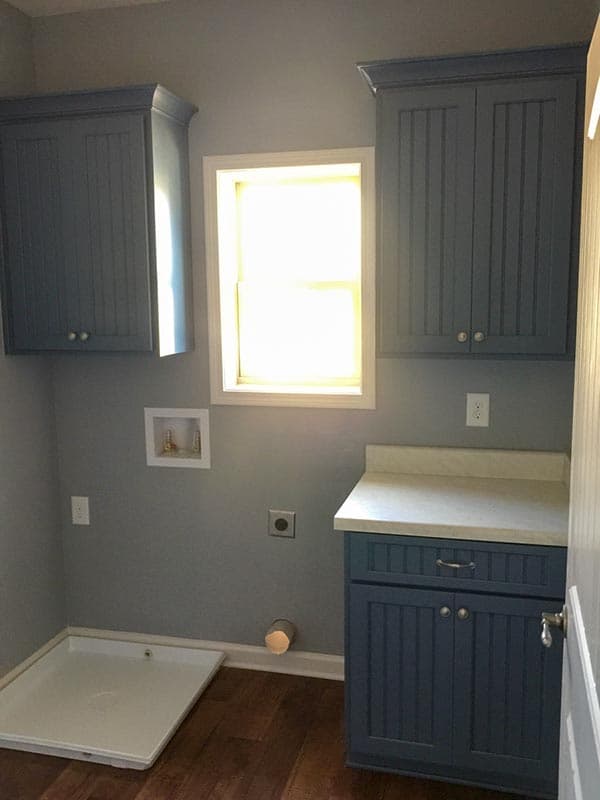

  • You'll find the convenient 2nd floor laundry just at the top of the stairs.

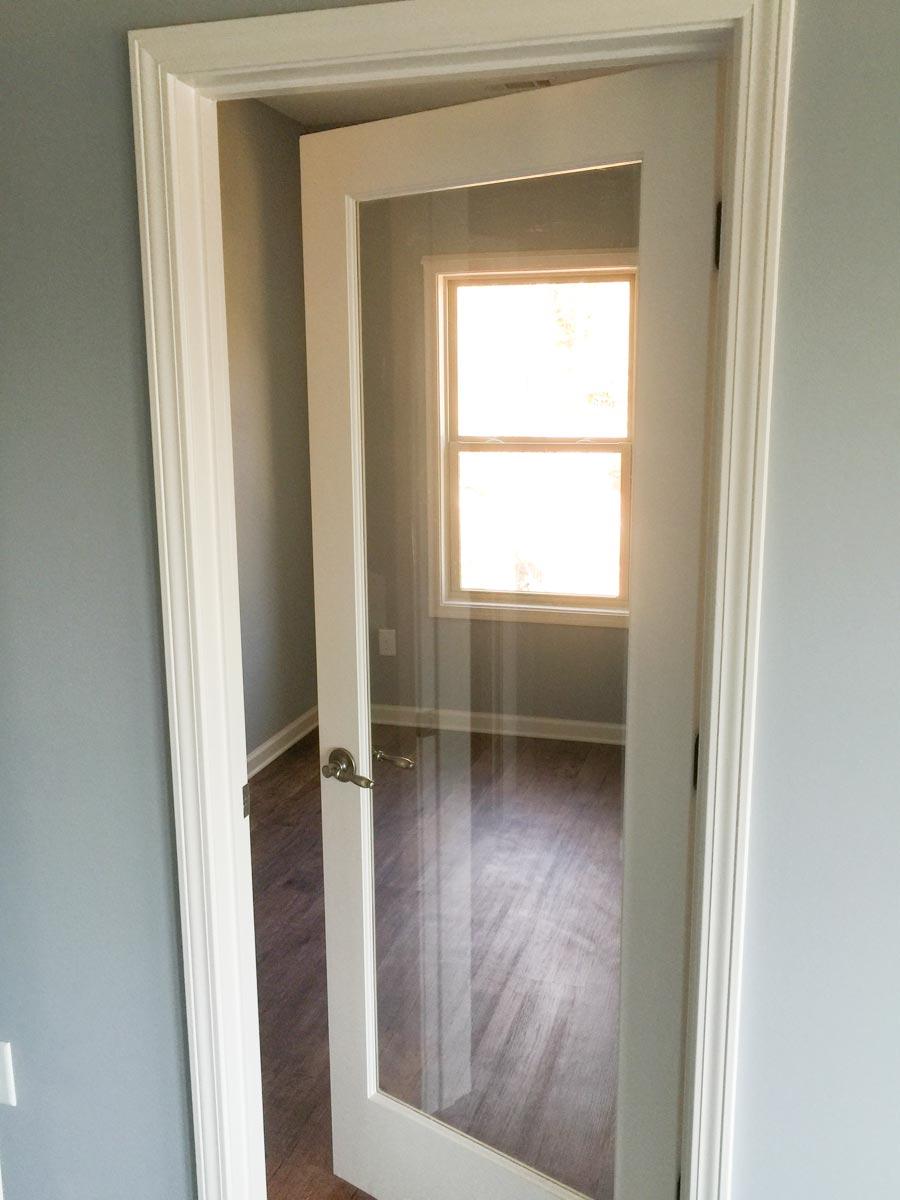

  • A study is accessed from the hallway of the master suite and makes for the perfect home office.

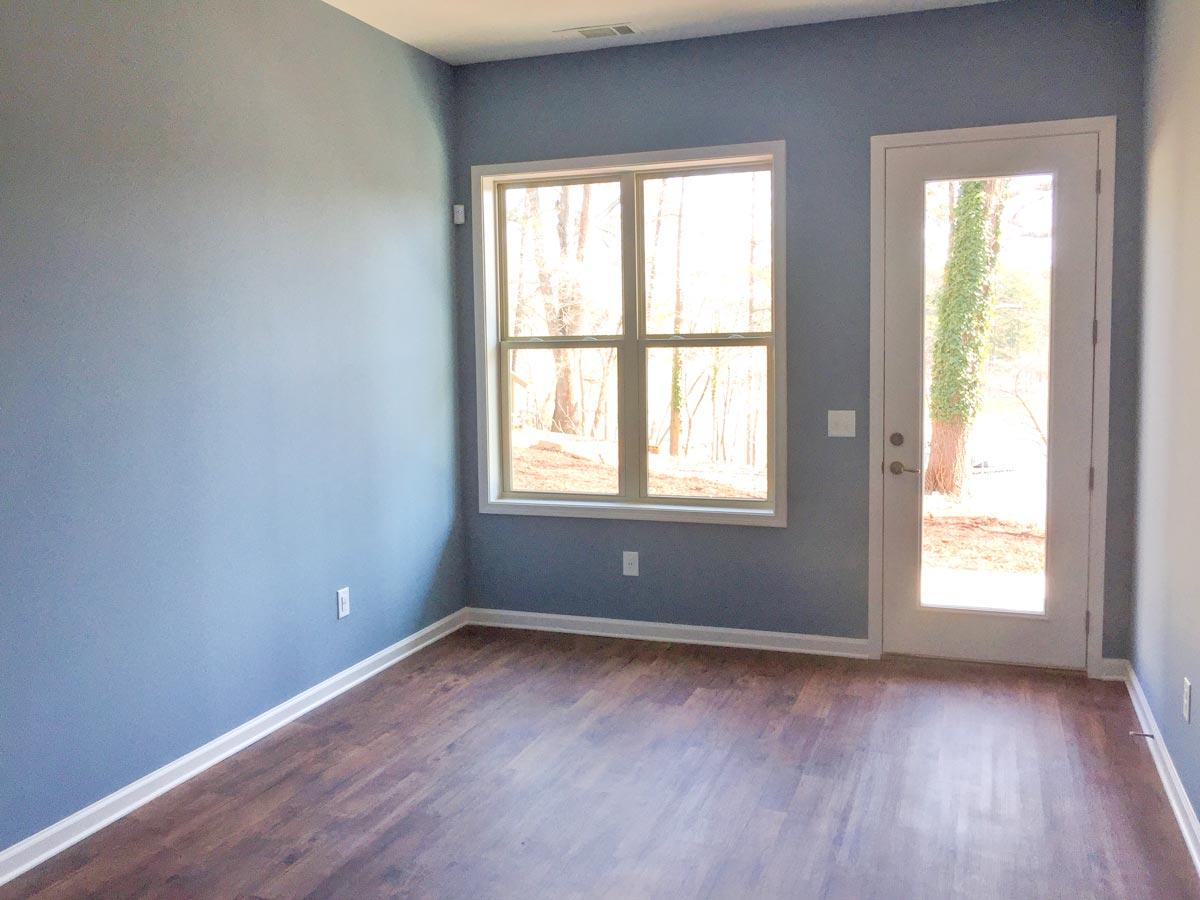

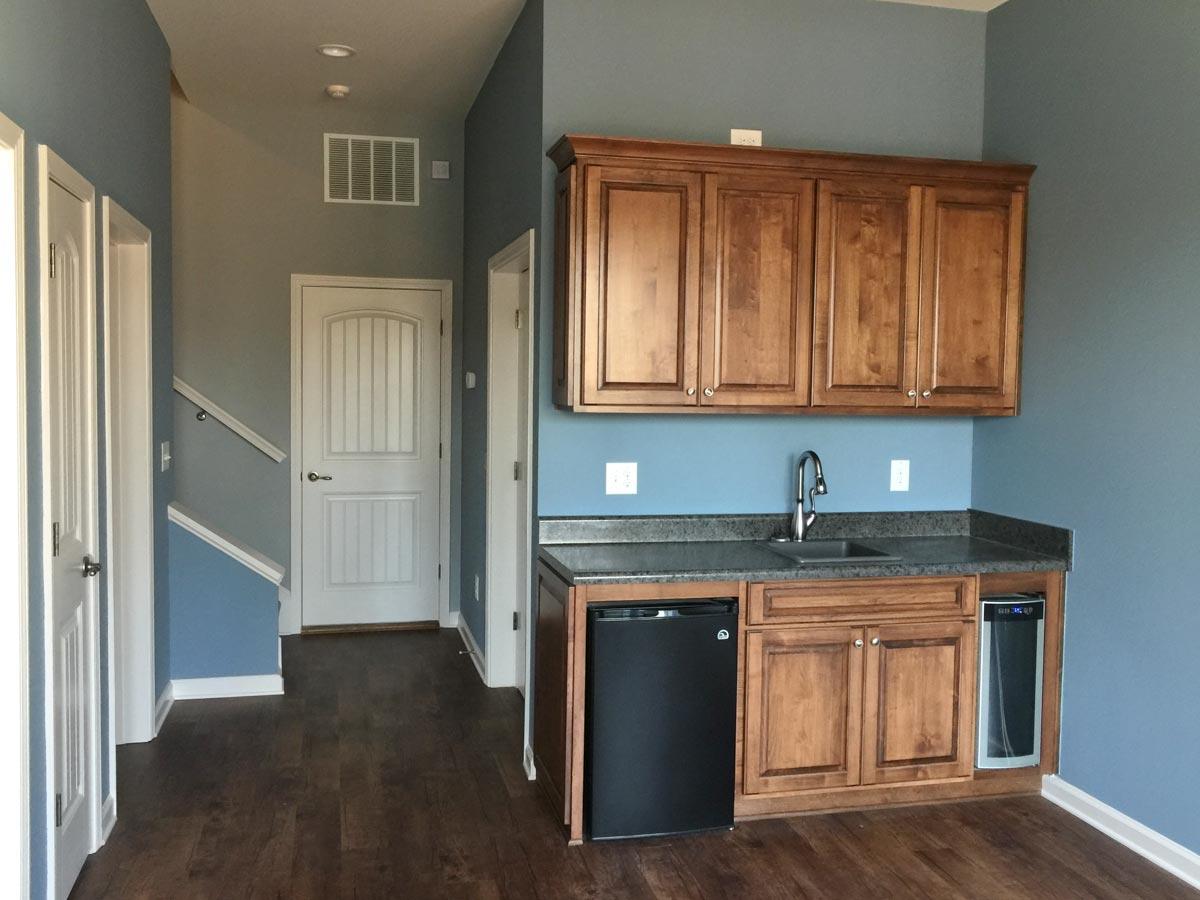

  • The optionally finished lower level offers a flexible rec room with wet bar for entertainment or a guest room.
  • A second bed room is perfect for a boomerang kid or the occasional extended guest.

The plans include the following:

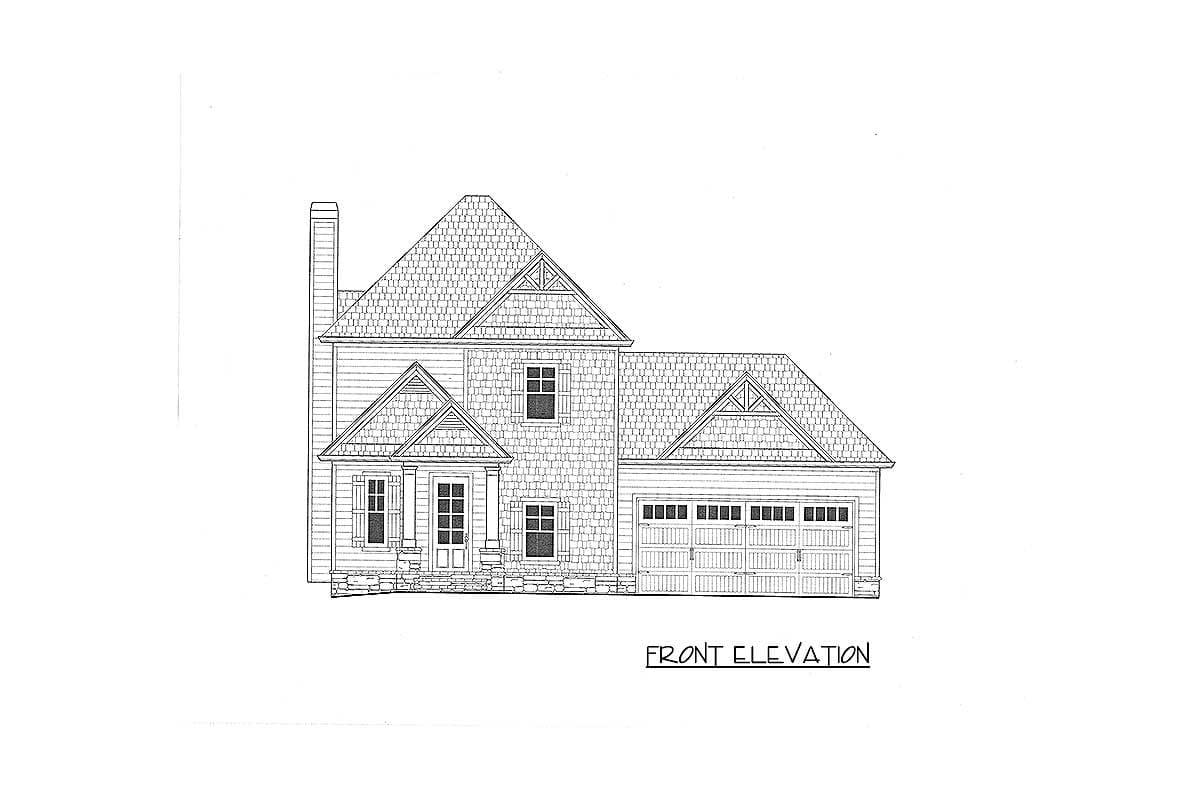

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

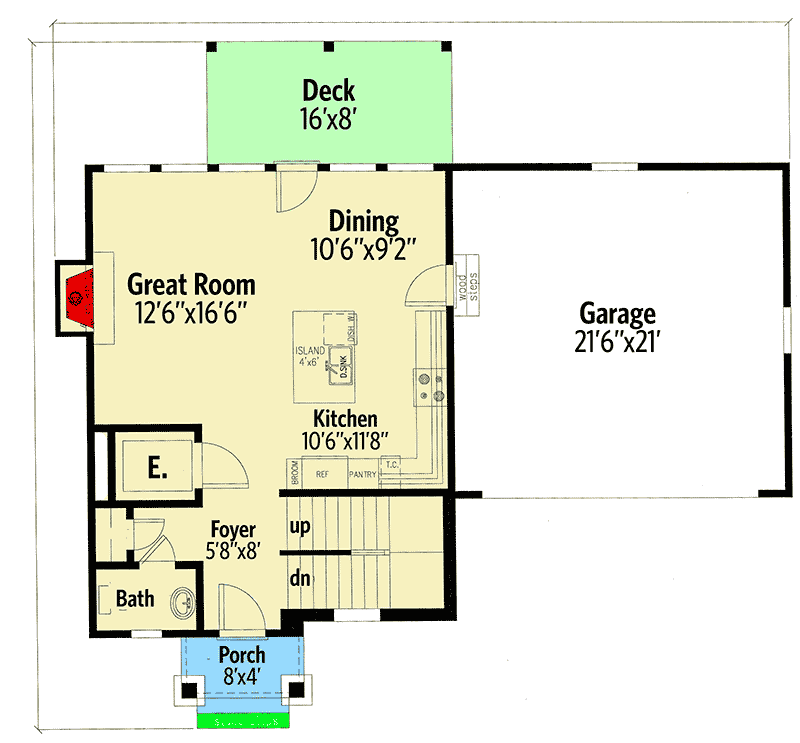

Country Craftsman Home Plan with Private Master 2nd Floor - 24380TW floor plan - Main Level

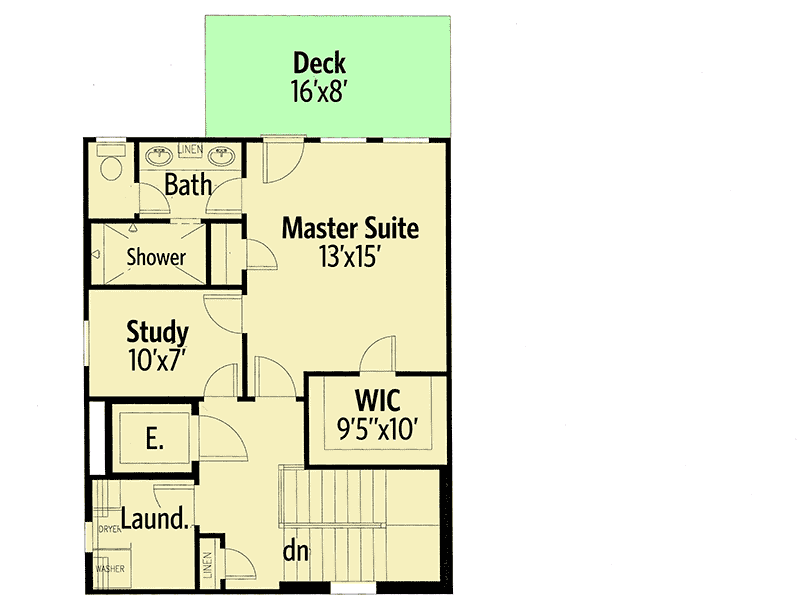

2nd Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Craftsman Home Plan with Private Master 2nd Floor - 24380TW floor plan - 2nd Level

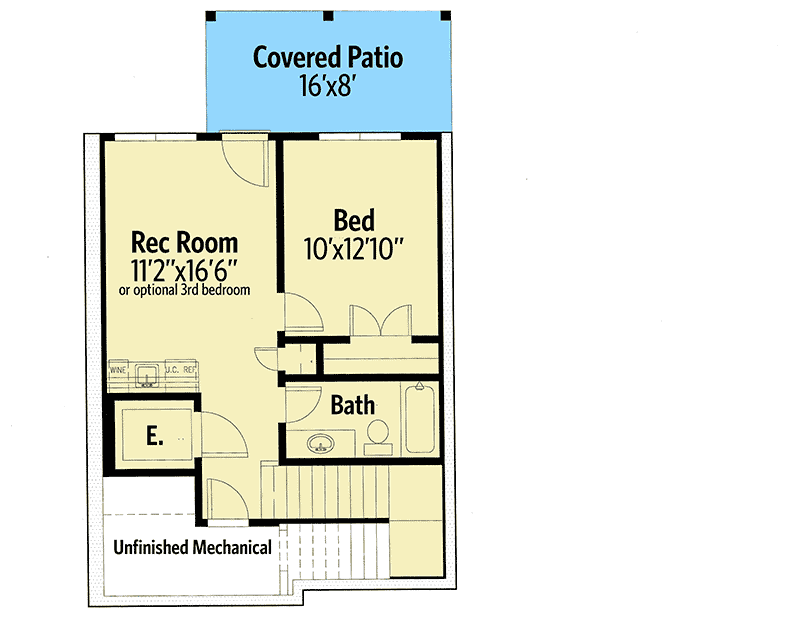

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Craftsman Home Plan with Private Master 2nd Floor - 24380TW floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,959 sq. ft.
  • 1st Floor: 734 sq. ft.
  • 2nd Floor: 656 sq. ft.
  • Porch, Front: 32 sq. ft.
  • Optional Lower Level: 569 sq. ft.
  • Basement Unfinished: 165 sq. ft.

Beds/Baths

  • Bedrooms: 1, 2, or 3
  • Full bathrooms: 1 or 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 48' 0"
  • Depth: 45' 0"
  • Max ridge height: 31' 9"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick Or Truss

Architectural Style

Special features

Plan Collections

Country Craftsman Home Plan with Private Master 2nd Floor

  • 1,959

    Heated s.f.

  • 1-3

    Beds

  • 1.5 - 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,095
  • CAD + PDF - Single-Build $1,250
  • View all purchase option online

About This Plan

  • This cozy craftsman home welcomes you with a double gable over the entry porch. Perfect for newlyweds or empty-nesters, this home has plenty packed into a small package.
  • You enter to the foyer with sight-lines to the rear porch with ample natural light form the rear windows.
  • The staircase on the right of the foyer will take you up to the private master on the entire 2nd floor or down to the optionally finished basement
  • Adjacent to the stairs is a powder room and an elevator servicing all floors as you enter the great room.
  • The L-shaped kitchen has a utility island with double sink and the dishwasher to maximize counter space.
  • An informal dining is open to the kitchen and the great room with access to the rear porch and the garage.
  • You'll find the convenient 2nd floor laundry just at the top of the stairs.
  • A study is accessed from the hallway of the master suite and makes for the perfect home office.
  • The optionally finished lower level offers a flexible rec room with wet bar for entertainment or a guest room.
  • A second bed room is perfect for a boomerang kid or the occasional extended guest.

Floor Plans

  • Main Level

  • 2nd Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,959 sq. ft.
  • 1st Floor: 734 sq. ft.
  • 2nd Floor: 656 sq. ft.
  • Porch, Front: 32 sq. ft.
  • Optional Lower Level: 569 sq. ft.
  • Basement Unfinished: 165 sq. ft.

Beds/Baths

  • Bedrooms: 1, 2, or 3
  • Full bathrooms: 1 or 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 48' 0"
  • Depth: 45' 0"
  • Max ridge height: 31' 9"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick Or Truss
Plan 24380TW
View this and more for this plan by visiting www.architechtecturaldesigns.com/24380TW
|
